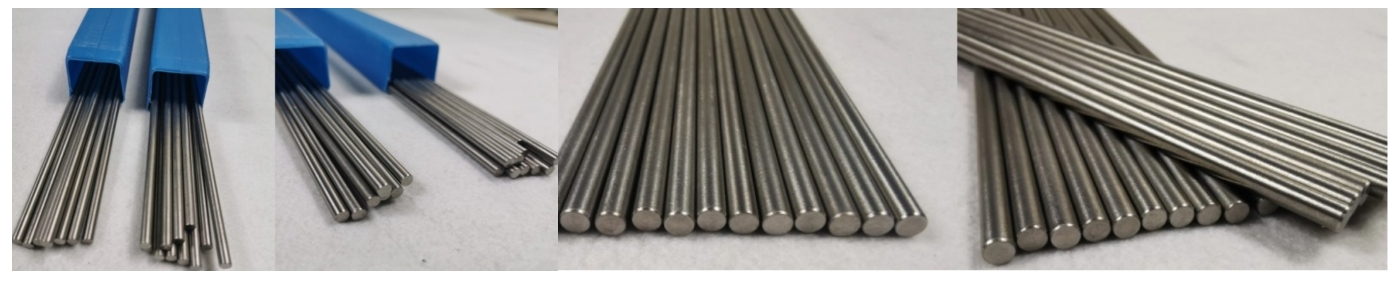

Hastelloy B Wire

Hastelloy B Wire – Premium Nickel-Molybdenum Alloy Wire for Extreme Corrosion Resistance

When you face challenging reducing environments in chemical processing or petrochemical operations, you need a material that won't fail. Hastelloy B Wire delivers exactly that. This premium nickel-molybdenum solid-solution fortified amalgam wire is particularly designed to handle hydrochloric corrosive at all concentrations and temperatures. Not at all like standard stainless steels that rapidly corrupt in diminishing acids, the item gives extraordinary resistance to sulfuric, phosphoric, and acidic acids. It understands your basic torment point of fast gear corrosion and secures against stretch erosion splitting in chloride-rich, non-oxidizing media. Your accuracy components—mesh channels, springs, warming elements—gain basic keenness that standard materials basically cannot match.

What are the Hastelloy B Wire?

The product is a nickel-molybdenum alloy wire that uses high molybdenum content (26-30%) instead of chromium for protection. This unique composition gives you superior performance in reducing environments where oxidizing alloys fail. You get a non-magnetic, high-strength wire with excellent ductility. It's designed for applications where hydrogen chloride gas and pure hydrochloric acid are present. The wire maintains its integrity in conditions that would destroy conventional materials within weeks.

Specification

Physical and Chemical Properties

Product Standards

Your wire meets strict international standards including ASTM B335 for chemical composition and ASME SB335 for mechanical properties. We follow ISO 9001:2008, AS9100D, and AS9120 certifications. Every batch comes with complete material traceability documentation including MTC (Mill Test Certificate) acc EN10204.3.1, SGS test reports, and quality assurance certificates. TÜV certification ensures you receive consistent quality that meets European standards.

What are the features of Hastelloy B Wires?

• Superior Acid Resistance: Exceptional performance in hydrochloric acid at all concentrations and temperatures
• High Molybdenum Content: 26-30% molybdenum provides unique protection in reducing environments
• Stress Corrosion Cracking Resistance: Far superior to 300-series stainless steels in hot chloride solutions
• Non-Magnetic: Ideal for sensitive instrumentation and electronic applications
• Excellent Ductility: Allows fine-diameter drawing without sacrificing toughness
• Thermal Stability: Resists grain-boundary carbide precipitation in welded structures
• High Tensile Strength: Maintains mechanical integrity under demanding conditions

Application

You'll find Hastelloy B Wire essential in three critical industries:

Chemical Processing: Manufacture knitted wire mesh and mist eliminators in hydrochloric acid synthesis units and alkylation plants. Standard materials fail within weeks, but this wire delivers years of service.

Vacuum Metallurgy: Utilize it for warming components and bolster structures in vacuum heaters. Its tall dissolving point and resistance to carburization in decreasing environments guarantee durability.

Petrochemical Instrumented: Manufacture high-precision springs and valve internals for downhole apparatuses and subsea hardware. When you experience acrid gas (H2S) and concentrated diminishing acids, disappointment implies disastrous natural spillage or misplaced generation time. This wire anticipates both.

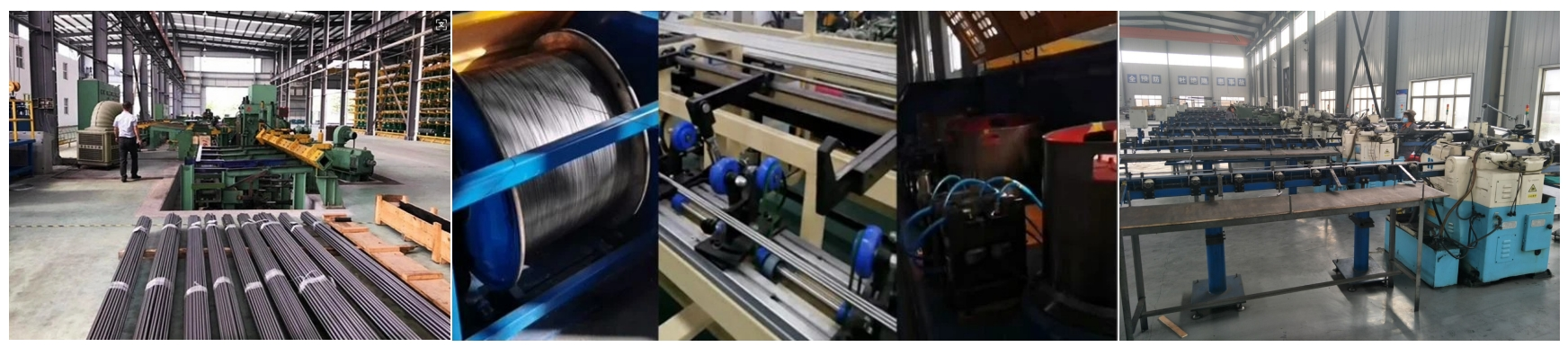

Production and Preparing Technology

We utilize progressed vacuum induction melting (VIM) followed by vacuum bend remelting (VAR) to accomplish chemical homogeneity. Our controlled climate guarantees exact molybdenum conveyance throughout the ingot. After hot working and middle-of-the-road strengthening, we utilize multi-pass cold drawing to accomplish your correct breadth necessities. Surface wrapping up incorporates shining tempering in defensive airs to anticipate oxidation.

What is the production process of Hastelloy B Wire?

1. Raw Material Selection: High-purity nickel and molybdenum from qualified suppliers
2. Vacuum Melting: The VIM process eliminates impurities and ensures uniform chemistry
3. Secondary Refining: VAR improves grain structure and eliminates segregation
4. Hot Working: Forging and hot rolling to intermediate sizes
5. Annealing: Controlled heat treatment to optimize ductility
6. Cold Drawing: Multi-pass drawing through precision dies to final diameter
7. Final Annealing: Stress relief and grain size control
8. Surface Treatment: Bright annealing or pickling to specification
9. Quality Testing: Chemical analysis, mechanical testing, dimensional verification
10. Packaging: Protective wrapping with full documentation

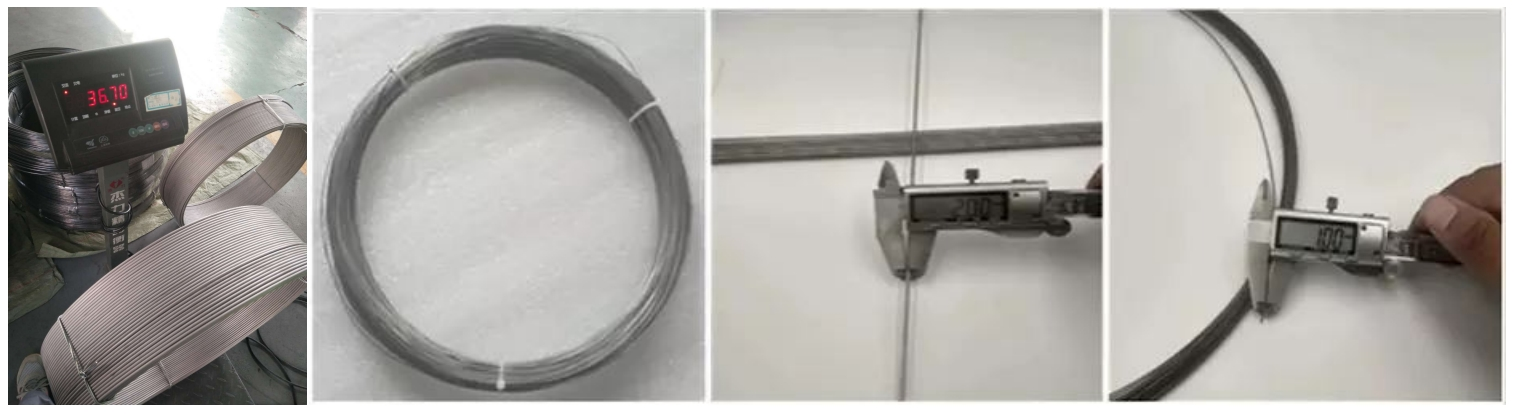

Quality Inspection

Every coil undergoes rigorous testing in our 60,000㎡ facility with over 100 precision instruments:

• Chemical Analysis: Spectrometric verification of all elements
• Mechanical Testing: Tensile strength, elongation, and hardness measurements
• Dimensional Inspection: Precision gauging for diameter tolerance (±0.01 mm)
• Surface Quality: Visual and microscopic examination
• Corrosion Testing: Exposure to representative environments
• Non-Destructive Testing: Eddy current testing for internal defects
• Traceability: Heat number tracking from ingot to finished product

Why Choose TSM Technology?

Proven Skill: With over 14 a long time of involvement and trades to 70+ nations, we get it your challenges.

Complete Certification: ISO 9001, AS9100D, and AS9120 certified fabricating guarantees aerospace-grade quality.

Custom Arrangements: We bolster customized sizes and preparing to coordinate your correct specifications.

Technical Back: Our R&D group gives discussion all through your venture lifecycle.

Reliable Supply: 150 tons/month capacity and stock accessibility cruel you get fabric when you require it.

Global Logistics: Our Hong Kong hub ensures timely delivery of Hastelloy B Wire anywhere in the world.

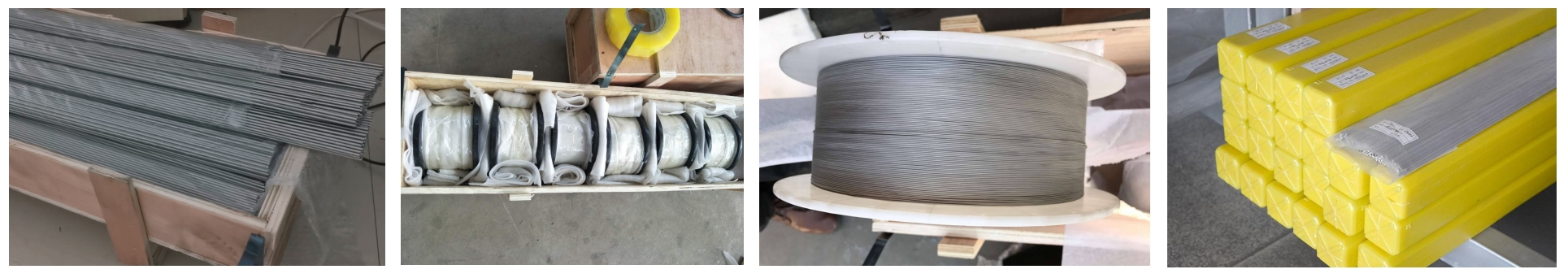

Package and Shipping

We bundle your wire in defensive plastic film and wooden cases to avoid dampness and physical harm amid travel. Each bundle incorporates total documentation: pressing list, process test certificate, fabric security information sheet, and taking care of informational. We orchestrate door-to-door shipping through set up cargo accomplices and give following data for each shipment.

FAQ

Q: Can the item be utilized in nitric corrosive environments?

A: No. Due to its need for chromium, it has poor resistance to oxidizing media like nitric acid. For oxidizing situations, consider Hastelloy C-series combinations instead.

Q: What is the distinction between Hastelloy B and B-2/B-3 wire?

A: B-2 and B-3 are refined adaptations with lower pressure and carbon content. This moves forward warm soundness and anticipates brittleness amid welding operations.

Q: Does the item endure from push erosion cracking?

A: It is especially safe to chloride-induced stretch erosion splitting, making it distant predominant to 300-series stainless steels in hot chloride solutions.

Q: What is the greatest working temperature for the product?

A: Whereas it has a tall softening point, we prescribe utilizing it up to 700-800°C in diminishing climates. Over this temperature, you ought to screen stage steadiness carefully.

Q: Is the item magnetic?

A: No, it is a non-magnetic nickel-based combination. This makes it profitable for utilize in delicate electronic instrumentation or attractive estimation equipment.

Q: Do you give fabric certifications?

A: Yes. Each shipment incorporates MTC acc EN10204.3.1, SGS test reports, and total traceability documentation from crude fabric to wrapped up product.

Q: Can you supply small amounts for testing?

A: Our least arrange amount is 50 kg, but we keep up stock of common sizes for speedier conveyance. Contact us to talk about your testing prerequisites.

Contact Us

Ready to solve your corrosion challenges with Hastelloy B Wire? Our technical team is here to help you select the right specification for your application.
