Hastelloy C22 Round Bar

High-Performance Hastelloy C22 Round Bar – Superior Corrosion Resistance for Critical Chemical Processing

If your operations need robust chemical resistance, the Hastelloy C22 Round Bar offers proven protection against hostile media. Our bars are produced in our TSM Technology plant (60,000㎡) with 100+ precision equipment, ISO 9001 and AS9100D certified. Bars are produced to ASTM B574, minimum tensile strength 690 MPa, minimum yield strength 310 MPa, PREN value >45. Each product is tested by Ultrasonic Testing, PMI testing and ASTM G28 Intergranular Corrosion Testing for Aerospace, Petrochemical and Pharmaceutical applications for full traceability with EN 10204 3.1 certification.

What are the Hastelloy C22 Round Bar?

Hastelloy C22 Round Bar (UNS N06022) is a nickel-chromium-molybdenum-tungsten alloy that is resistant to localized pitting, crevice corrosion and stress corrosion cracking. It is a 56 % nickel base which gives endurance in reducing situations and 22 % chromium content protects against oxidizing acids with chloride ions. The alloy outperforms standard stainless steels and fills performance gaps in unexpected chemical process streams with wet chlorine, nitric acid and mixed oxidizers.

Supply Type



Hastelloy C22 Round Bar supply types include Hot Rolled Bar, Cold Drawn Bar, Forged Bar and Precision Ground Bar. It can provide black leather, polished, and other surface treatments, in line with international standards such as ASTM B574.









Specification

Standards for Hastelloy C22 Round Bar

Our Hastelloy C22 Round Bar is certified to meet ASTM B574, ASME SB574 and International equivalents. All materials are provided with complete heat traceability and are delivered in accordance with ISO h9/h11 dimensional tolerances and with EN 10204 3.1 Mill Test Certificates.

What are the Features of Hastelloy C22 Round Bar?

· Excellent Corrosion Resistance – withstands oxidation and reduction media concurrently

· Weld Friendly No sensitivity in the heat impacted zones

· High PREN Value: Excellent resistance to pitting and crevice corrosion

· Thermal Stability: Preserves strength at high temperatures

· Application: Low Carbon Content: Minimizes carbide precipitation

Application

· Equipment for chemical processing: reactors, heat exchangers, valves

· Petrochemical: scrubbers, ducts, stack liners

· Pharmaceutical: pressure tanks, blending tanks

· Pollution control: Flue gas desulphurization systems

· Marine seawater treatment components

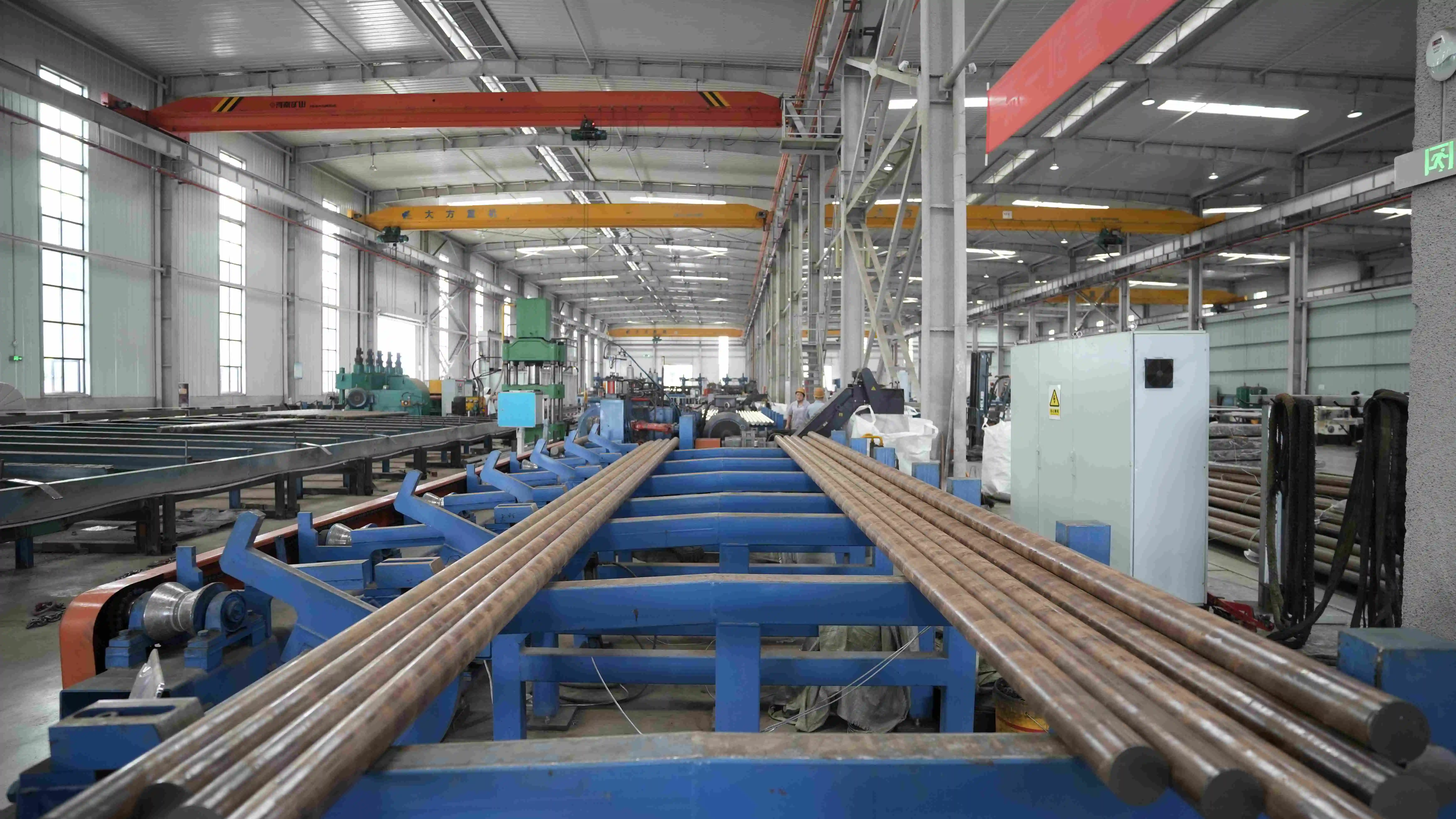

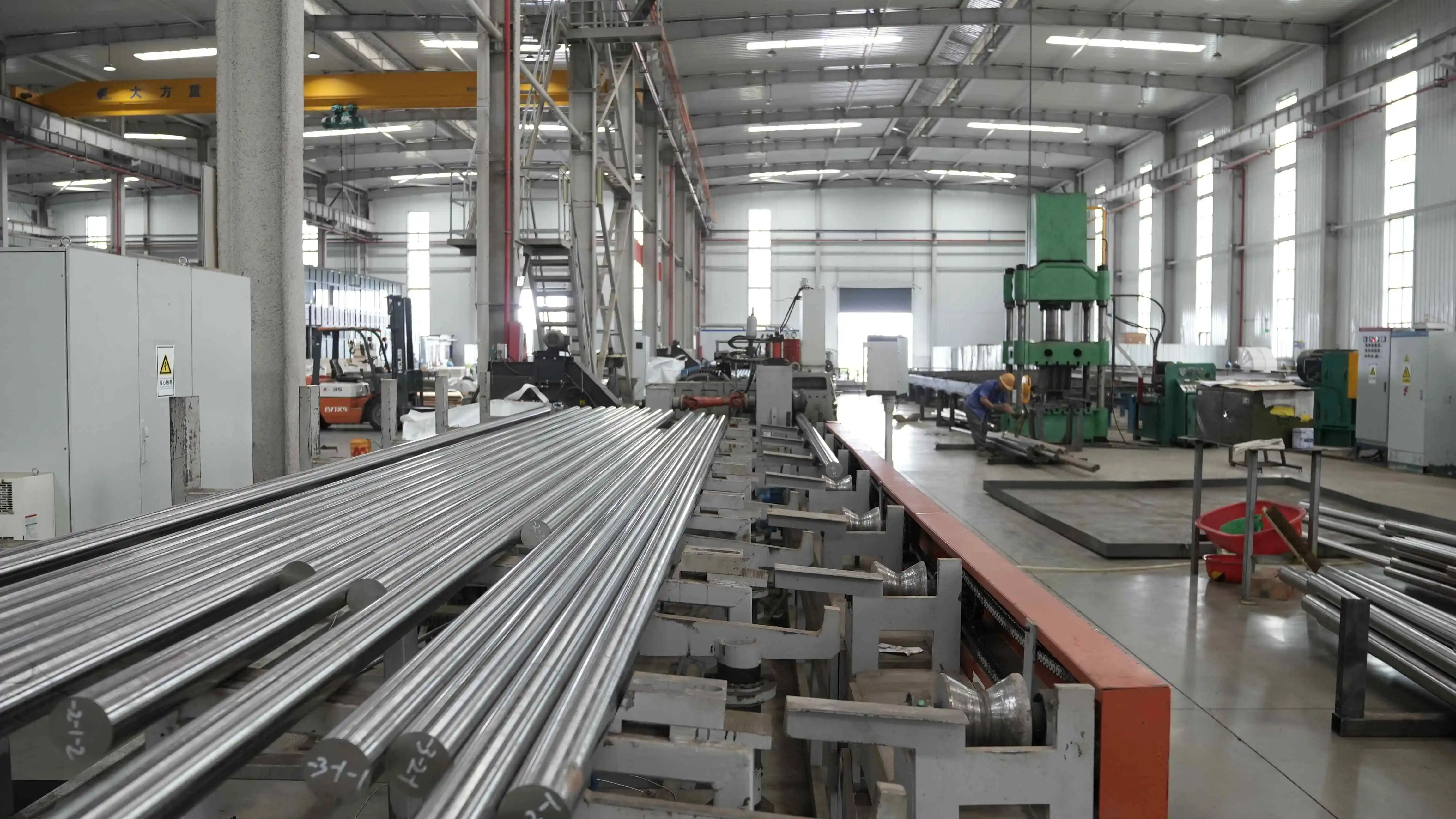

Production and Processing Technology

TSM Technology has a fully integrated line of manufacturing in our 60,000㎡ building. We start with high quality raw materials from approved sources and remove impurities using a vacuum induction melting (VIM) process coupled with electroslag remelting (ESR). Hot forging and multistep rolling to exact grain structure. We manufacture on more than 100 precise CNC machines to achieve tight tolerances. The best corrosion resistance was achieved at solution annealing of 1120-1160C. Every product is produced to aerospace-grade perfection, guarantyd by our AS9100D certification.

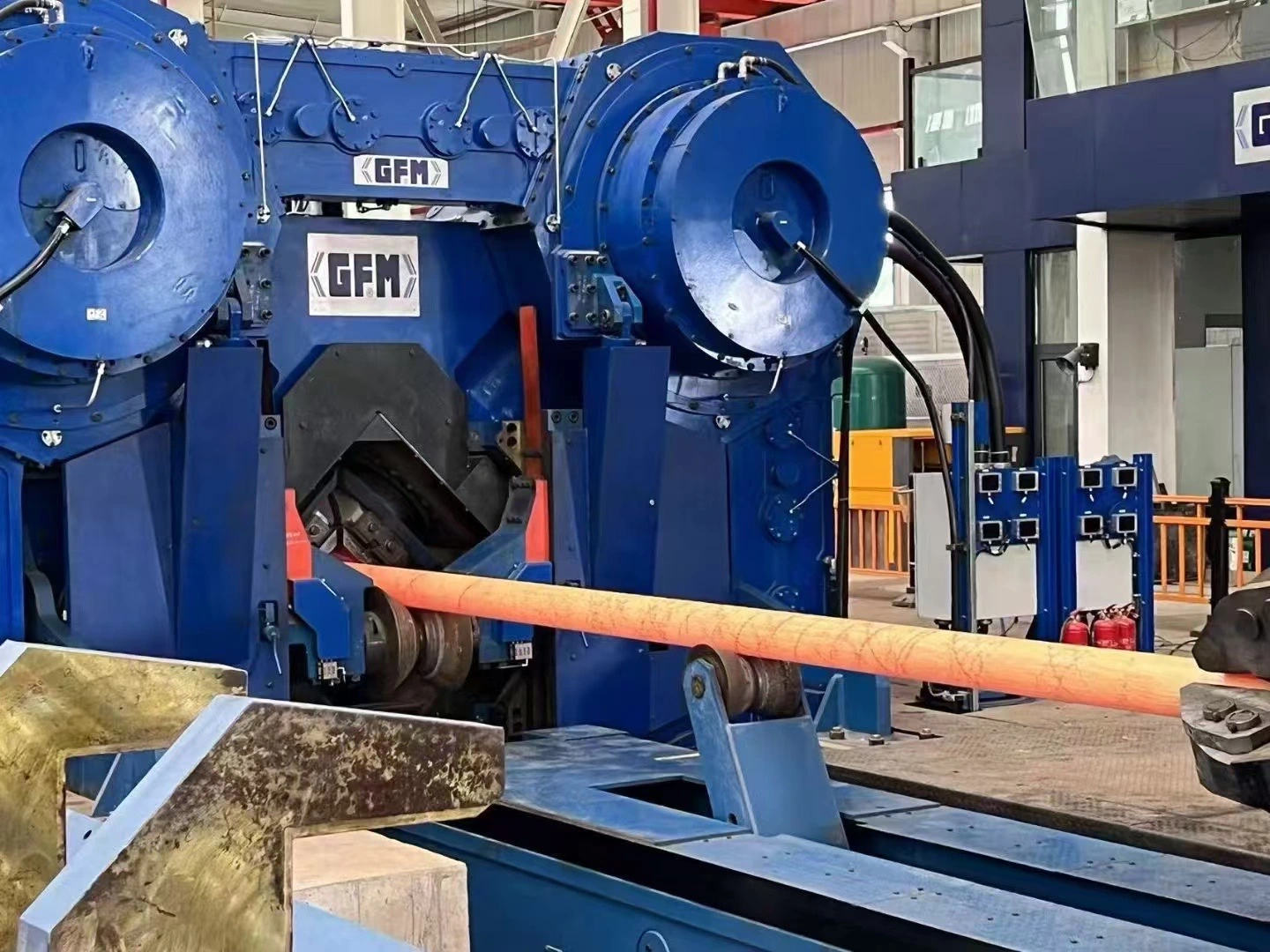

Quality Inspection

Each bar conforms to ASTM B160, B166 and B574 and is:

· Chemical composition: OES, XRF, ICP check

· Mechanical Tests: Tensile, yield, elongation, hardness (Rockwell B)

· NDT: Ultrasonic Testing (UT), Eddy Current Testing (ET), Penetrant Testing (PT)

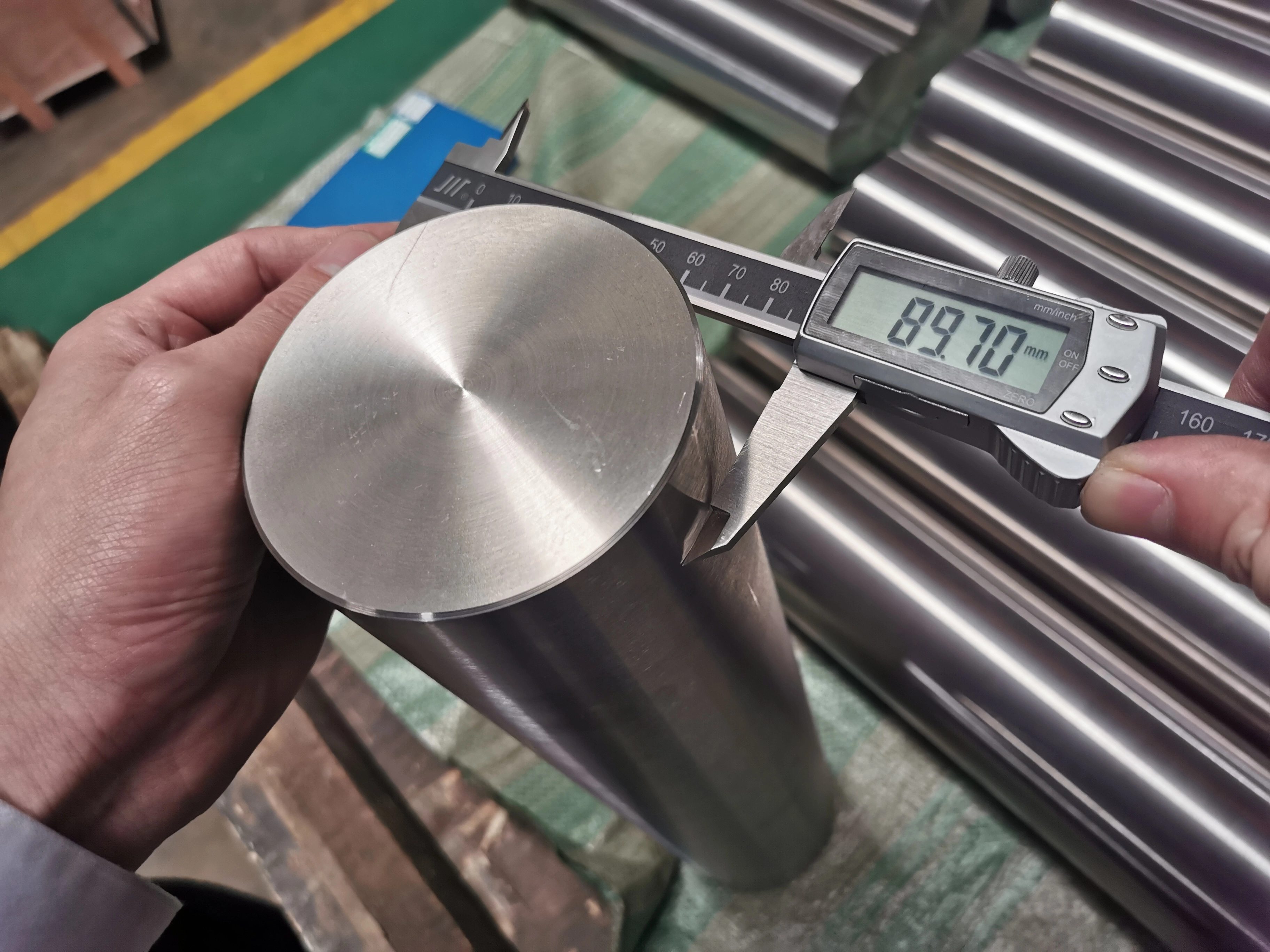

· Dimensional inspection: diameter, length, straightness according to ISO standards

· Surface Inspection: Visual inspection for faults

· Metallography: Grain size and phase distribution analysis

· Intergranular Corrosion: ASTM G28 Methods A & B

· PMI Testing: Positive Material Identification for verifying alloys

All goods are sent with comprehensive paperwork including MTC, QAC and ITP.

Our Certificate

· AS9100D: Aerospace Quality Management System for titanium and nickel alloy manufacturing

· EN 9100:2018: Certified machining of alloy bars, rings, discs for aviation

· EN 9120:2018: Aerospace distribution quality management for alloy materials

· ISO 13485:2016: Medical device quality system for specialty metals

· ISO 9001: Comprehensive quality management across all operations

Company Exhibition

TSM Technology is an active participant in international industry events such as OTC Houston, Offshore Europe Aberdeen, Tube Düsseldorf and CIPPE Beijing. Our displays present advances in nickel alloy production, attract worldwide alliances and promote our dedication to scientific growth in specialty metals.

Customer Cases

Our Hastelloy C22 Round Bar caters to customers worldwide in chemical processing, offshore platforms, and pharmaceutical manufacture. We provide precision bars for demanding reactor components, heat exchanger tube stock and pollution control systems where dependability is a must.

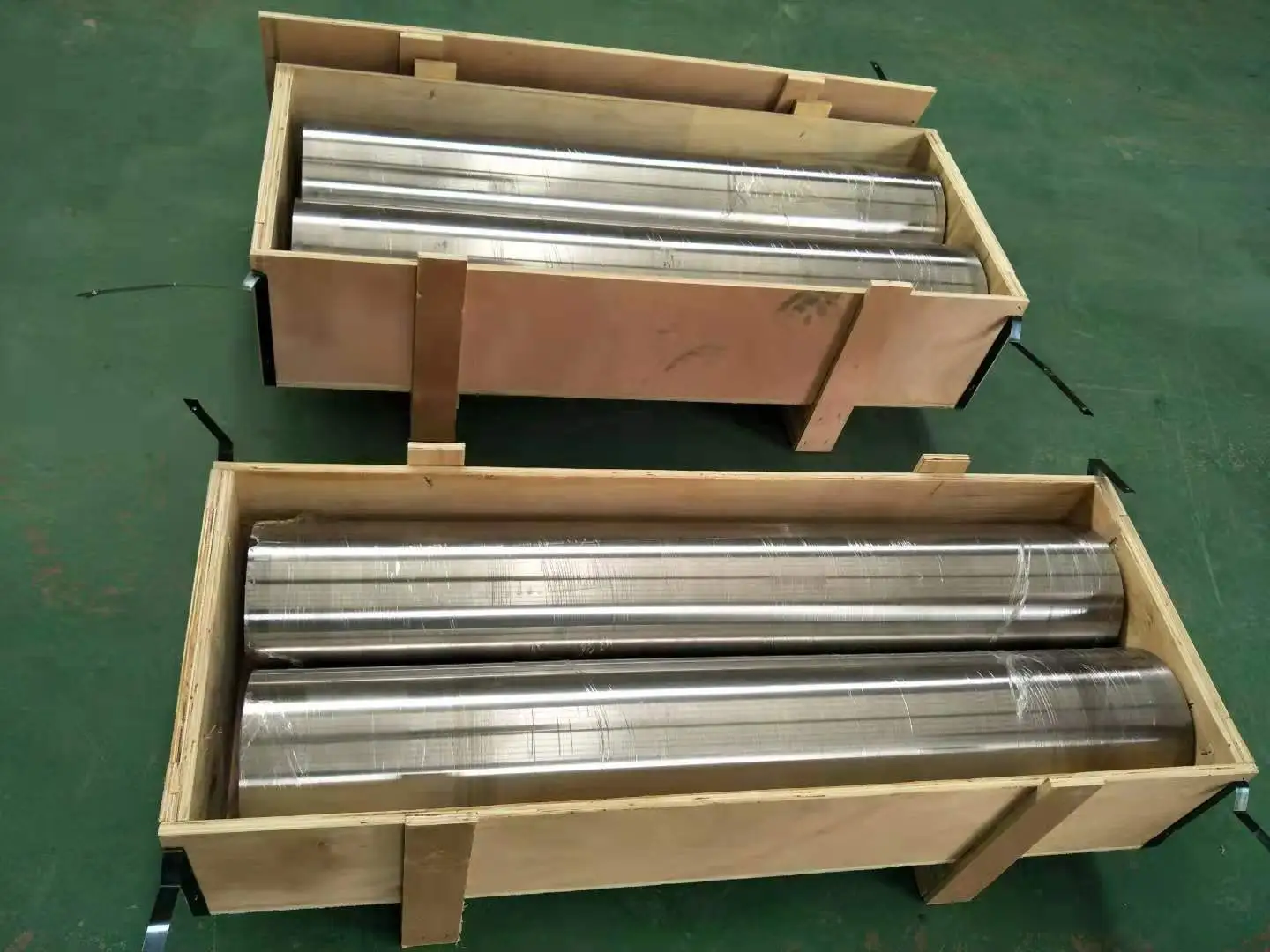

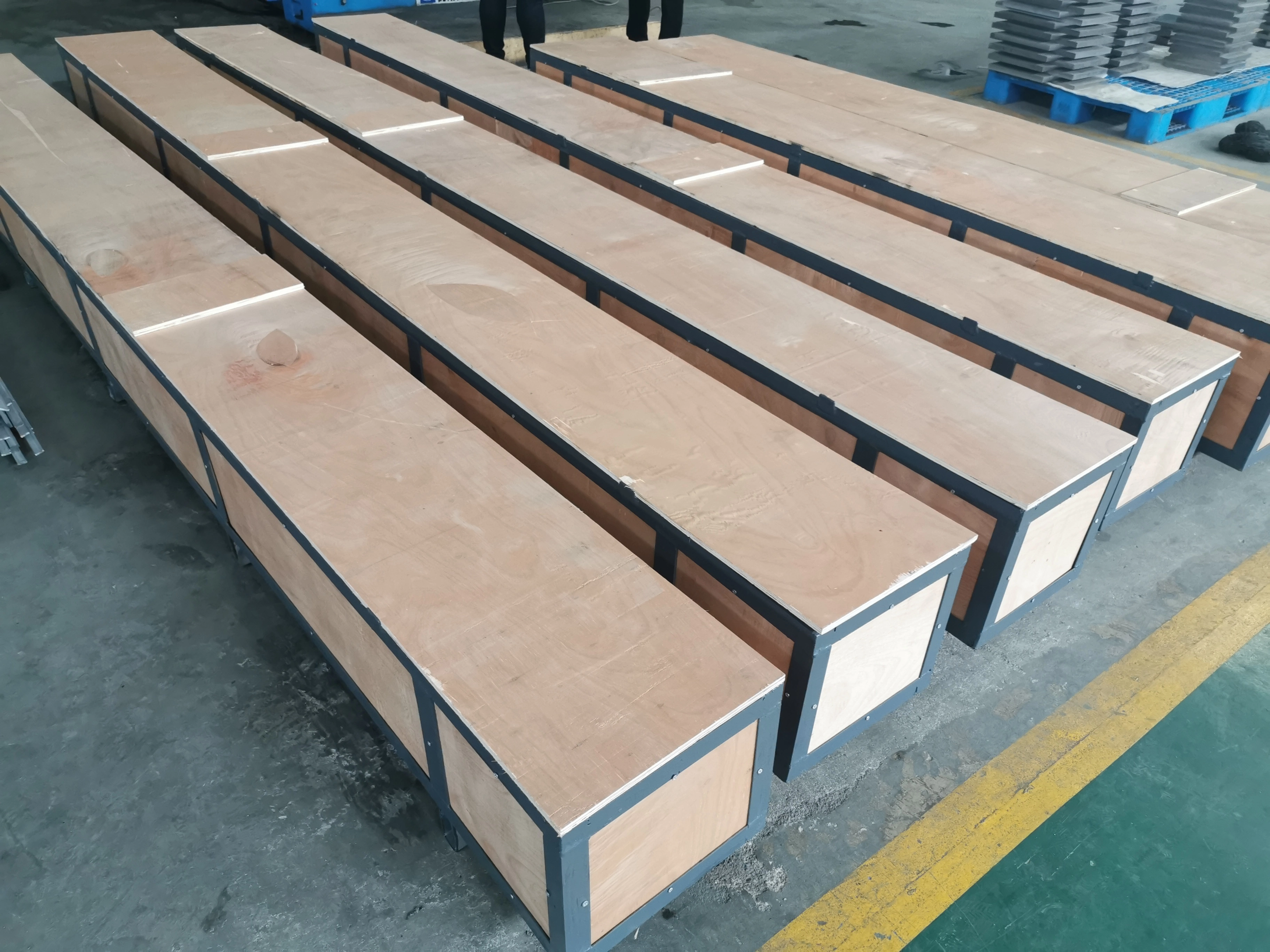

Package and Shipping

Each product is tagged and secured with rust protective oil & covered in waterproof paper and packaged with steel straps and sent in wooden crates. We handle marine freight, air cargo or express delivery with DHL / FedEx. Each cargo is provided with full paperwork – commercial invoice, packing list, MTC and certifications. With our Hong Kong logistics center, we guaranty customs efficiency and timely delivery to the globe.

FAQ

Q1: What is the minimum order quantity for product?

A: We accommodate both small orders and bulk purchases.

Q2: Can you provide custom machining services?

A: Yes, we offer CNC machining, cutting, and surface treatment per your drawings and specifications.

Q3: How long is the lead time?

A: Standard sizes ship within 7-15 days. Custom orders typically require 20-30 days depending on specifications.

Q4: Do you provide material test certificates?

A: Yes, EN 10204 3.1 Mill Test Certificates with full traceability accompany every shipment, including chemical composition, mechanical properties, and heat number.

Q5: What payment terms do you accept?

A: We accept T/T and L/C. Payment terms are negotiable based on order volume and customer relationship.

Contact Us

Reach out to TSM Technology today at info@tsmnialloy.com for technical consultation, quotes, and samples.
