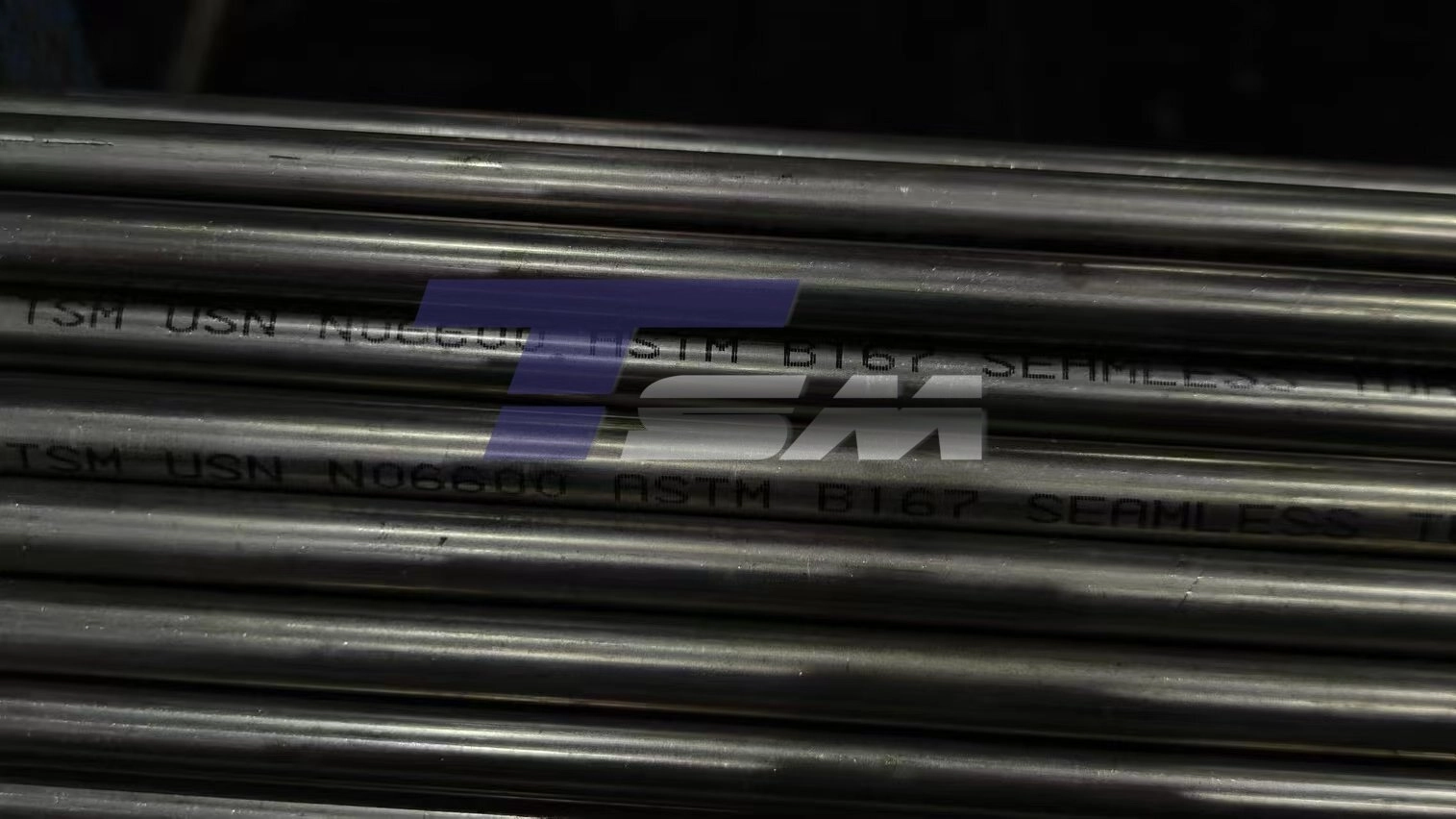

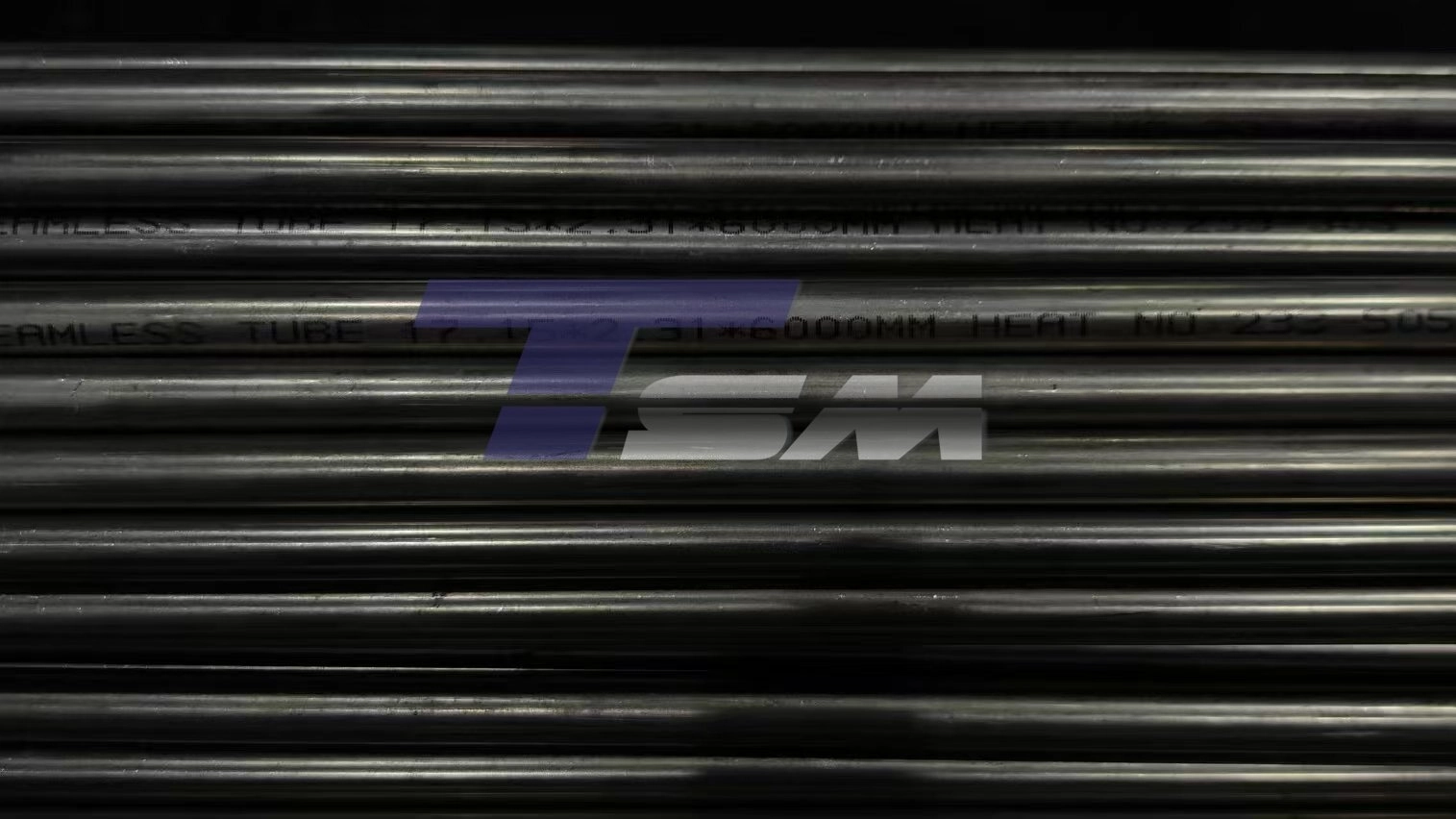

Inconel 600 Seamless Tube

Inconel 600 Seamless Tube – High-Performance Nickel Alloy Tubing for Extreme Environments

TSM Technology manufactures Inconel 600 Seamless Tube (UNS N06600) according to ASTM B167 and ASME SB167 standards, supplying nickel alloy tubing for chemical processing, aerospace, nuclear power and high-temperature applications. Manufactured by TSM Technology with over 14 years of expertise, our seamless tubes feature minimum 72% nickel content and are engineered for demanding applications. We produce tubes with OD from 6 mm to 219 mm, wall thickness from 0.5 mm to 15 mm according to ASTM B167 and ASME SB167 specifications. Monthly production capacity depends on tube size and order requirements. Guaranteed fine tolerances and high surface polish. Whether it is Bright Annealed, Pickled or Polished finish, TSM supplies completely certified materials with MTC, SGS and TUV certification for your crucial applications.

What are the Inconel 600 Seamless Tubes?

It is an alloy of nickel, chromium and iron (UNS N06600) that is top quality for severe service circumstances. Seamless tubes are manufactured through extrusion, rotary piercing and cold drawing processes without longitudinal welding seams. This results in a consistent grain structure through the wall of the tube.

You get exceptional resistance to:

• Chloride-ion stress-corrosion cracking
• High-temperature oxidation up to 2150°F (1175°C)
• Caustic environments
• Thermal cycling fatigue

The alloy maintains structural integrity from cryogenic temperatures to extreme heat. This makes it ideal when standard stainless steels fail in chemical processing, nuclear power, and aerospace applications.

Specification

Physical and Chemical Properties

Chemical Composition (%)

Physical Properties

Product Standards

Our Inconel 600 Seamless Tube meets multiple international specifications:

• ASTM B167 – Standard specification for seamless tubes
• ASTM B444 – Specification for seamless tubes and pipe
• ASME SB167 – Boiler and pressure vessel code
• AMS 5580 – Aerospace material specification
• DIN 17751 – German industrial standard
• JIS G4903 – Japanese industrial standard

All products come with complete material traceability including MTR, QAC, and ITP documentation.

What are the Features of Inconel 600 Seamless Tube?

Superior Corrosion Resistance

The protective oxide coating is formed due to the 72% nickel and 14-17% chromium concentration. This prevents the stress corrosion cracking from chloride ions that kills common stainless steels.

Extreme Temperatures Performance

Continuous service from cryogenic temperatures to 2150°F (1175°C). The matrix is solid-solution reinforced while maintaining mechanical integrity during thermal cycling.

Seamless Construction Advantage

No weld seam means no weak points. Seamless construction provides consistent mechanical properties and is preferred for high-pressure and critical applications.

Chemical Environment Stability

Excellent resistance to caustic alkalis, dry chlorine, and HCl gases. Performs reliably in high-purity water systems where pitting would compromise other materials.

Dimensional Precision

TSM's 100+ precision machines ensure tight tolerances for wall thickness concentricity and straightness. This precision matters for your critical installations.

Application

Nuclear Power Engineering

Steam generator tubing and primary coolant systems rely on our tubes. The resistance to high-purity water corrosion prevents system failures in reactor environments.

Chemical Processing

Heaters, stills, and condenser tubing in chlorinated hydrocarbon production. Our seamless tubes withstand aggressive oxidation-reduction cycles without degradation.

Petrochemical Industry

Caustic alkali production equipment where chloride stress cracking is a constant threat. The seamless construction eliminates preferential weld seam corrosion.

Aerospace Sector

Jet engine components and exhaust systems. Operating under extreme thermal cycling, the tubes prevent weld decay common in welded alternatives.

Thermal Processing Equipment

Furnace retorts, muffle and radiant tubes. Long-term confinement of volatile gases at temperatures when other materials break down.

Factory

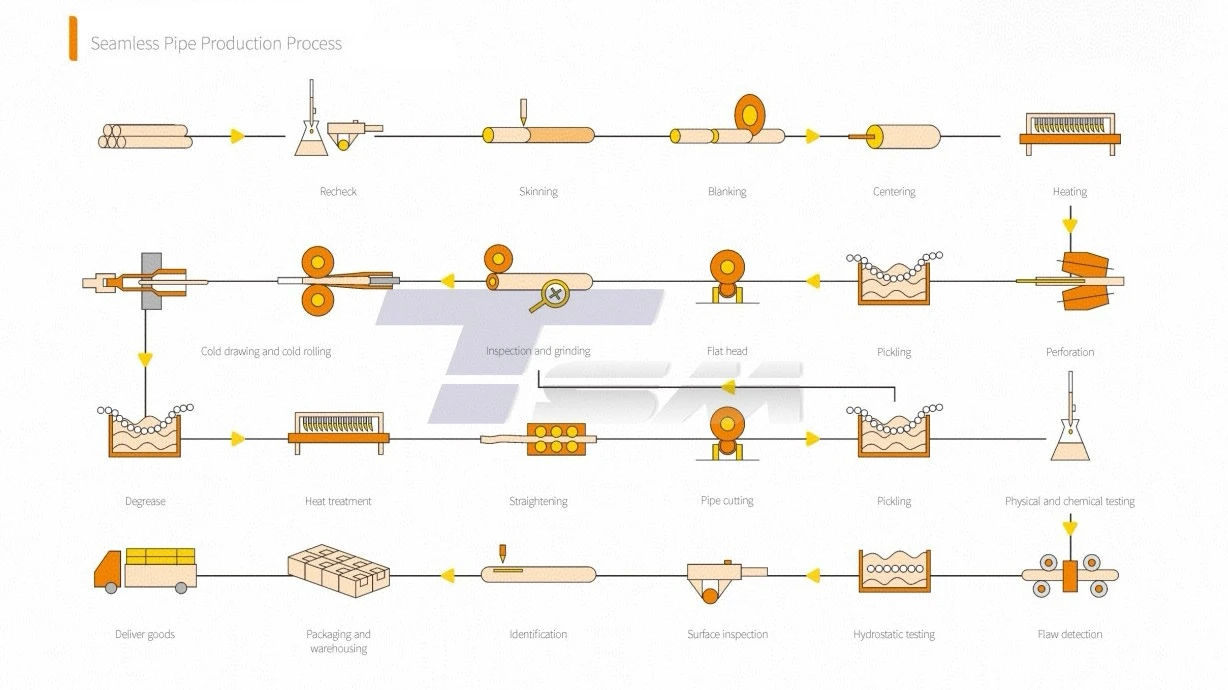

What is the Production Process of Inconel 600 Seamless Tube?

Step 1: Choosing the Raw Material

Our nickel, chromium and iron are of high quality and come from approved vendors. Strict arriving examination ensures that the chemical makeup is to specification.

Step 2: Melting & Casting

Homogeneous alloy composition is ensured using vacuum induction melting (VIM) or electric arc furnacing. Billets are cast with regulated cooling rates.

Step 3 : Hot extrusion or rotary piercing

The hot billets are extruded or rotary pierced to make hollow tubes. Thus, the seamless structure is built without longitudinal welds.

Step 4: Cold-Drawing

Carbide dies are run through many times to decrease diameter and refine wall thickness. With each pass the surface quality and the dimensional accuracy are improved.

Step 5: Heat Treatment

Solution annealing at 1600-1700°F (870-925°C) and quick chilling.  This refines the grain structure and reduces internal tensions

Step 6: Closing the Operations

Bright annealed, pickled or polished to your requirements. Final straightening gives concentricity and straightness tolerances.

Quality Inspection

Every Inconel 600 Seamless Tube undergoes comprehensive testing:

• Ultrasonic Testing (UT) – Detects internal flaws
• Eddy Current Testing (ECT) – Identifies surface defects
• Hydrostatic Testing – Verifies pressure integrity
• Dimensional Inspection – Confirms OD, WT, and length tolerances
• Chemical Analysis – Validates alloy composition
• Mechanical Testing – Confirms tensile and yield strength

We provide full traceability with MTR, SGS, BV, and TUV certifications for your quality assurance requirements.

Why Choose TSM Technology?

Proven Manufacturing Scale

50,000㎡ factory 100+ precision machines 100-200 tonnes each month This capability helps you to meet your project timing.

Certified Quality Systems

We are certified to ISO 9001, AS9100D and AS9120, reflecting our dedication to aerospace-grade quality. All tubes comply with international requirements.

Global Experience

We have served over 70 nations for more than 14 years, so we know what you need. Our Hong Kong logistics center delivers on schedule globally.

Technical Expertise

Our R&D team provides consultation on material selection and application engineering. We help you solve complex corrosion and temperature challenges.

Complete Documentation

Every shipment includes full material traceability – QAC, ITP, MTR, and third-party certifications. This satisfies your most stringent procurement requirements.

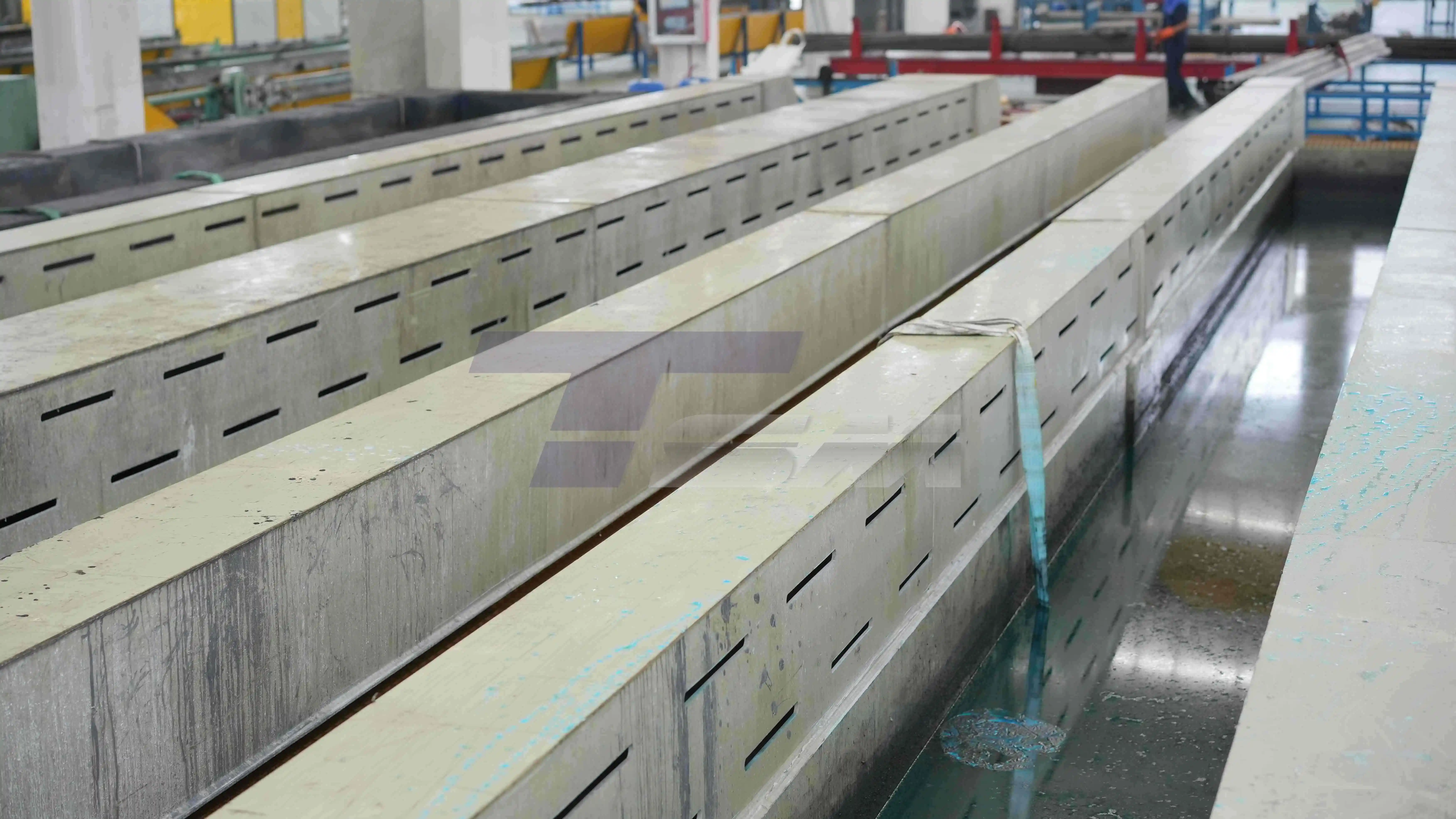

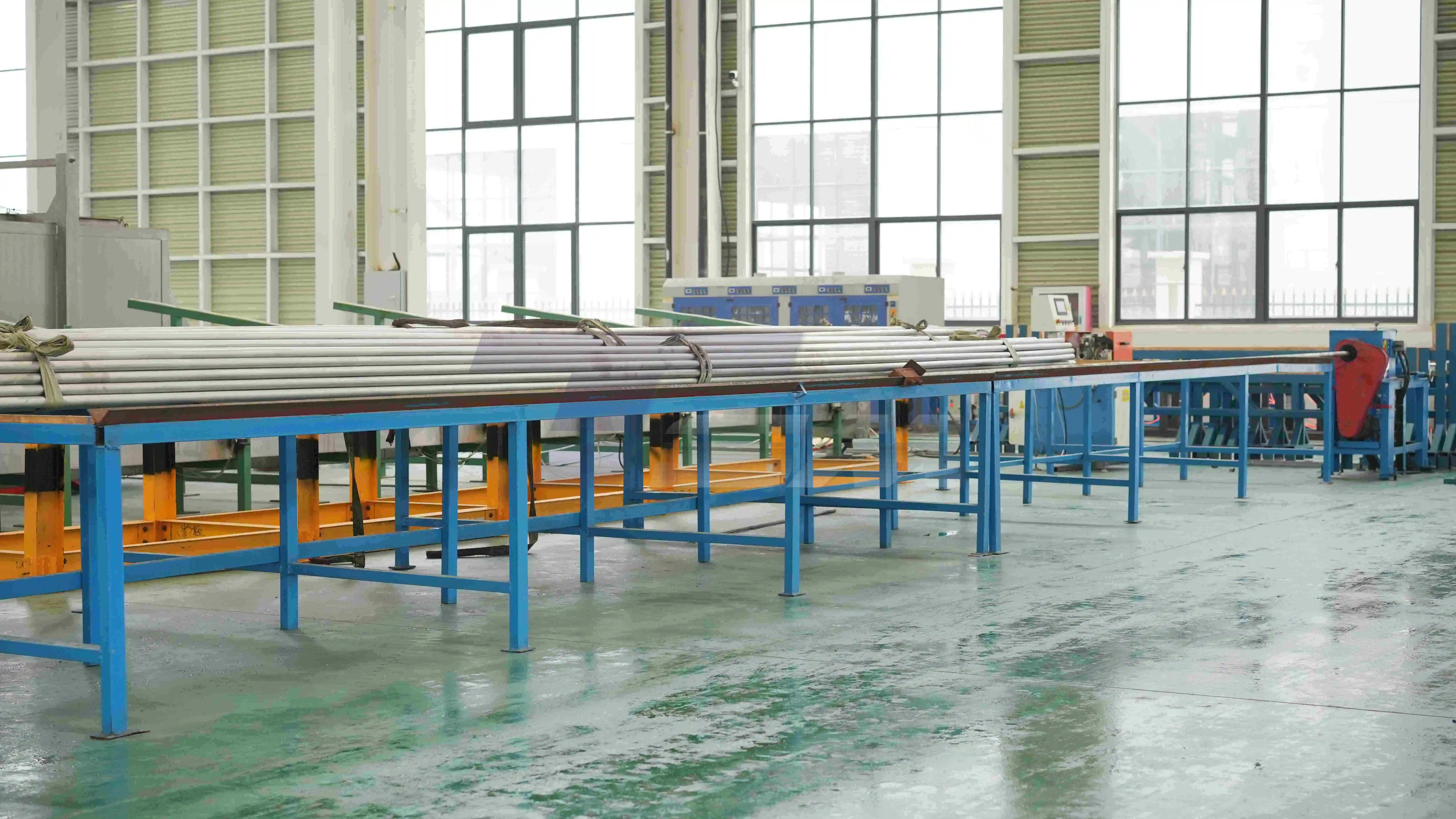

Factory Company Exhibition

TSM Technology's modern manufacturing facility showcases:

• Advanced melting and casting equipment for precise alloy control
• Cold drawing production lines with carbide dies for tight tolerances
• Automated heat treatment furnaces with atmosphere control
• Complete in-house testing laboratory with UT, ECT, and spectroscopy
• Climate-controlled storage maintaining material integrity before shipment

Our AS9100D certification qualifies us for aerospace applications, demonstrating precision and reliability across all industries we serve.

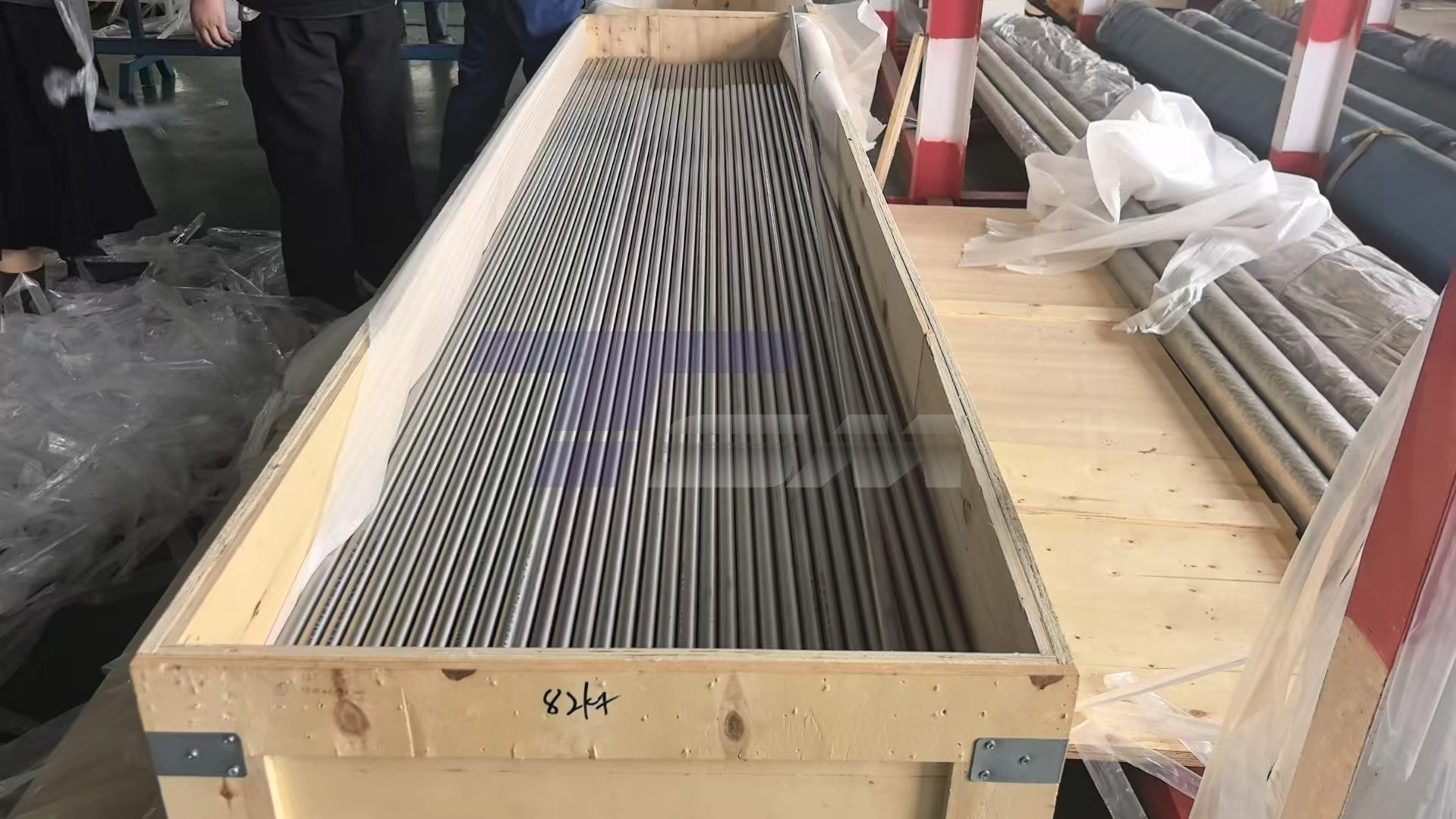

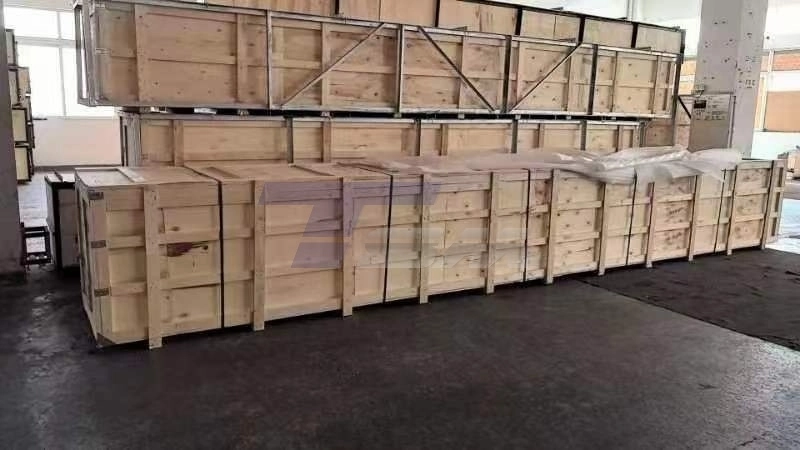

Package and Shipping

Protective Packaging

Each tube is wrapped in waterproof paper and plastic film. Wooden boxes or steel crates protect against transportation damage.

Marking and Labeling

Clear identification includes heat number, specification, size, and customer PO reference. This ensures accurate receiving and traceability.

Shipping Options

• Sea freight for large orders
• Air freight for urgent requirements
• Door-to-door delivery available through our logistics partners

Export Documentation

Commercial invoice, packing list, certificate of origin, and material certifications accompany every shipment.

FAQ

Q: Why choose the product over welded tubing?

A: Seamless construction eliminates weld seams – potential failure points in high-pressure and corrosive environments. You get uniform mechanical properties and higher safety factors, essential for nuclear and chemical processing applications.

Q: What is the maximum operating temperature in oxidizing atmospheres?

A: Continuous operation up to 2150°F (1175°C) is possible. Note that mechanical strength decreases at extreme temperatures. Consult our technical team for your specific temperature requirements.

Q: Is the product magnetic?

A: No, it remains non-magnetic from cryogenic temperatures to operating conditions. This makes it suitable for sensitive electronic applications and magnetic resonance environments.

Q: What welding filler metal should I use for joining?

A: Use ERNiCr-3 (Inconel 82) or ENiCrFe-3 (Inconel 182) filler metals. These maintain corrosion resistance and mechanical properties at weld joints. Proper pre- and post-weld heat treatment is recommended.

Q: Can you provide customized sizes beyond your standard range?

A: Yes, TSM offers custom OD, wall thickness, and lengths. Our engineering team works with your specifications. MOQ and lead times vary based on complexity – contact us with your requirements.

Q. How does it function in sulphuric acid environments?

A: Inconel 600 has good resistance to sulphuric acid. For very concentrated H2SO4 we suggest Incoloy 825 or Hastelloy grades. Our material selection team selects the best alloy.

Q: Do you maintain inventory for quick delivery?

A: Yes, we stock common sizes with 50 kg MOQ. Stock availability varies – inquire about your specific size. Custom orders typically deliver within 20–45 days.

Contact Us

Send your required grade, dimensions, quantity and application details. TSM Technology will provide technical recommendations and quotation with complete material certification. Contact TSM Technology today at info@tsmnialloy.com for technical consultation, quotations, and material certifications.
