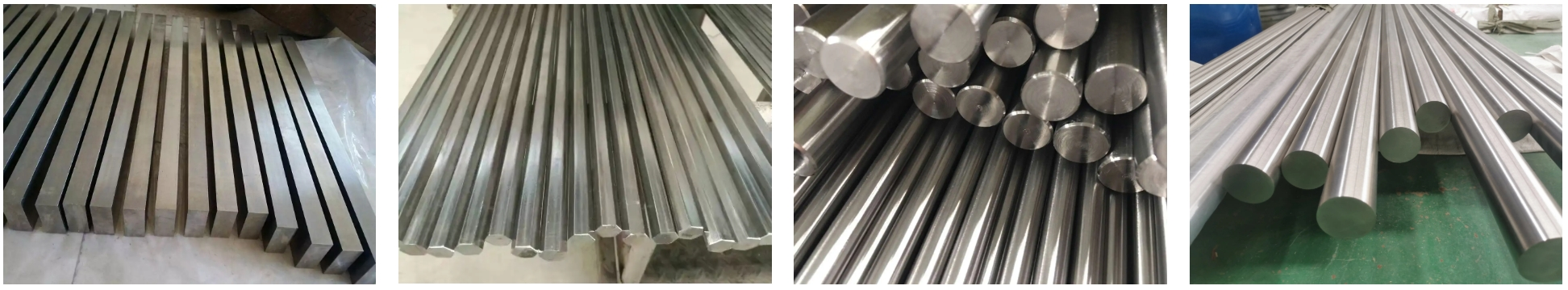

Inconel 625 Cold Drawn Bar

Inconel 625 Cold Drawn Bar – High-Performance Superalloy for Extreme Environments

Inconel 625 cold drawn bar is a high-performance superalloy pole created by driving warmed metal through exactness passes at room temperature. This cold working prepare makes a predominant surface wrap up, more tightly dimensional resiliences (h8-h11), and improved mechanical properties through work hardening. Unlike standard hot-rolled bars, cold drawn items offer you "near-net" shape precision, lessening auxiliary machining time and costs. The alloy's one of a kind composition—primarily nickel, chromium, molybdenum, and niobium—provides extraordinary resistance to oxidation, carburization, and setting in the harshest environments. When your project demands exceptional strength, corrosion resistance, and dimensional precision, the Inconel 625 cold drawn bar delivers unmatched performance. This nickel-chromium-molybdenum superalloy bar is produced through a precision cold drawing process that enhances mechanical properties and achieves tighter tolerances than hot-rolled alternatives. At TSM Technology, we leverage over 14 years of expertise and a fully integrated 60,000㎡ production base in Shaanxi, China, equipped with vacuum arc melting furnaces and 2,500-ton forging presses. With 3 factories, 8 production lines, and 100+ machines, we ensure complete vertical integration from raw material to finished bar, backed by an annual capacity of 1,200 tons. Whether you are engineering aerospace components, marine equipment, or chemical processing systems, our Inconel 625 cold drawn bar solves critical challenges—from resisting chloride-ion stress corrosion cracking to maintaining structural integrity at temperatures up to 1800°F (982°C)—while meeting your most demanding specifications.

Specification

Inconel 625 (NS 336 UNS N06625)

Product Standards

TSM Innovation produces bars in full compliance with universal standards:

• ASTM B446 – Standard Determination for Nickel-Chromium-Molybdenum-Columbium Combination Rod
• ASTM B805 – Determination for Cold-Finished Nickel Amalgam Bars
• AMS 5666 – Aviation Fabric Specification
• ISO 9723 – Worldwide superalloy standards
• DIN 17744 / JIS – European and Japanese standards

Each Inconel 625 cold drawn bar comes with complete traceability documentation including Material Test Reports (MTR), Quality Assurance Certificates (QAC), and Inspection Test Plans (ITP).

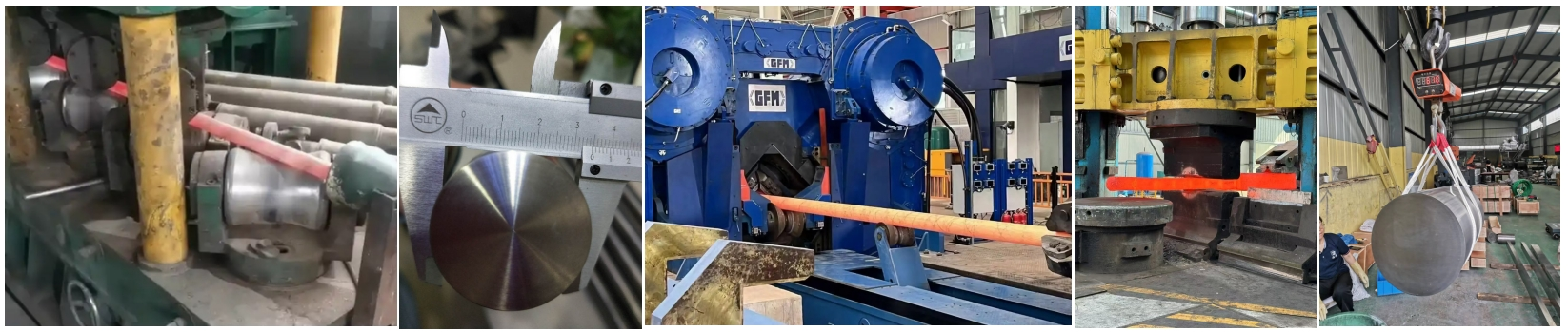

Production and Processing Technology

TSM Innovation utilizes state-of-the-art fabricating forms in our 50,000㎡ office with over 100 exactness machines:

Raw Material Selection

We source high-purity amalgam ingots from qualified providers, guaranteeing reliable chemical composition.

Hot Working

Initial manufacturing and rolling at controlled temperatures refine grain structure and diminish inside stress.

Cold Drawing

Multiple passes through exactness carbide passes on decrease distance across whereas making strides surface quality and mechanical properties.

Heat Treatment

Annealing at 1600–1900°F calms push and optimizes erosion resistance.

Straightening & Finishing

Precision fixing and cleaning provide Inconel 625 cold drawn bar assembly your correct specifications.

Quality Inspection

TSM Innovation keeps up thorough quality control all through production:

• Chemical Investigation: Spectrometry confirms amalgam composition
• Mechanical Testing: Ductile, surrender, and prolongation tests on each lot
• Ultrasonic Testing (UT): Recognizes inside defects
• Eddy Current Testing (ECT): Recognizes surface discontinuities
• Dimensional Assessment: Micrometer and gage verification
• Surface Quality Check: Visual and amplification inspection
• Hardness Testing: Brinell or Rockwell measurement
• Corrosion Testing: Salt shower and intergranular erosion assessment

Every shipment incorporates MTR, ITP, and third-party review reports upon request.

What Are the Features of the product?

1. Superior Dimensional Accuracy

Cold drawing accomplishes h-series resiliences, guaranteeing precision-fit gathering without broad machining.

2. Exceptional Corrosion Resistance

The molybdenum and niobium substance anticipates setting, cleft erosion, and stretch erosion splitting in marine and chemical environments.

3. High-Temperature Stability

Maintains quality and oxidation resistance from cryogenic temperatures to 982°C (1800°F).

4. Enhanced Mechanical Properties

Work solidifying amid cold drawing increments abdicate and pliable quality whereas keeping up ductility.

5. Excellent Surface Finish

Polished wrap up diminishes grinding and defilement dangers in touchy applications.

6. Non-Magnetic Properties

Ideal for electronic instrumented and delicate estimation equipment.

Application

Aerospace Industry

Engine deplete frameworks, fuel line tubing, and turbine components require the bar's high-temperature weakness resistance and exact dimensions.

Marine Engineering

Propeller shafts, mooring cables, and subsea equipment advantage from insusceptibility to seawater erosion and chloride-ion cracking.

Chemical Processing

Reaction vessels, channeling frameworks, and warm exchangers dealing with phosphoric corrosive, sulfuric corrosive, or blended chemicals depend on the alloy's localized erosion resistance.

Oil & Gas

Downhole tubing, wellhead gear, and valve components work dependably in acrid gas situations containing H₂S and CO₂.

Power Generation

Steam turbine jolts, atomic reactor components, and vent gas desulfurization frameworks depend on long-term auxiliary integrity.

Why Choose TSM Technology?

1. Proven Expertise

With over 14 a long time of involvement and sends out to 70+ nations, we get it your industry's special challenges.

2. Complete Certifications

Our ISO 9001, AS9100D, and AS9120 certifications illustrate commitment to aviation and defense-grade quality.

3. Advanced Manufacturing

50,000㎡ office with 100+ exactness machines guarantees reliable quality and quick turnaround.

4. Technical Support

Our designing group gives fabric determination direction, welding suggestions, and application consulting.

5. Customization Capability

We create non-standard sizes, uncommon resiliences, and custom lengths to coordinate your correct requirements.

6. Reliable Supply Chain

Strong crude fabric organizations and productive coordinations ensure on-time conveyance worldwide.

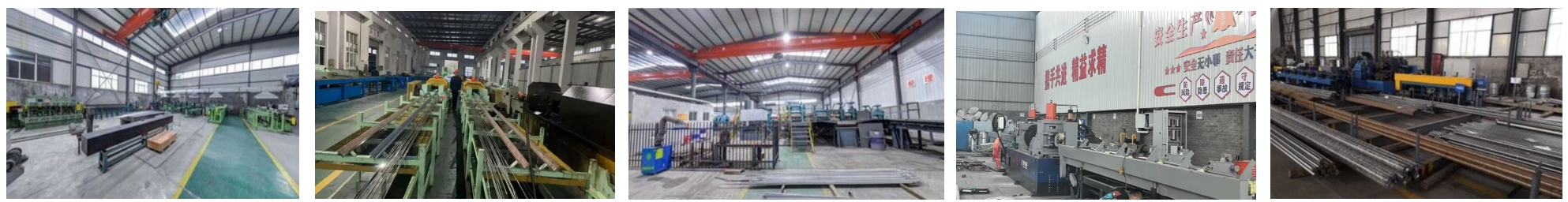

Factory

TSM Innovation works a cutting edge fabricating complex featuring:

• Vacuum acceptance dissolving furnaces
• Multi-station producing presses
• Continuous cold drawing lines with carbide tooling
• Atmosphere-controlled tempering furnaces
• Automated surface wrapping up equipment
• In-house testing research facility with progressed NDT equipment

Our coordinates generation framework controls each step from dissolving to last review, guaranteeing traceability and reliable quality.

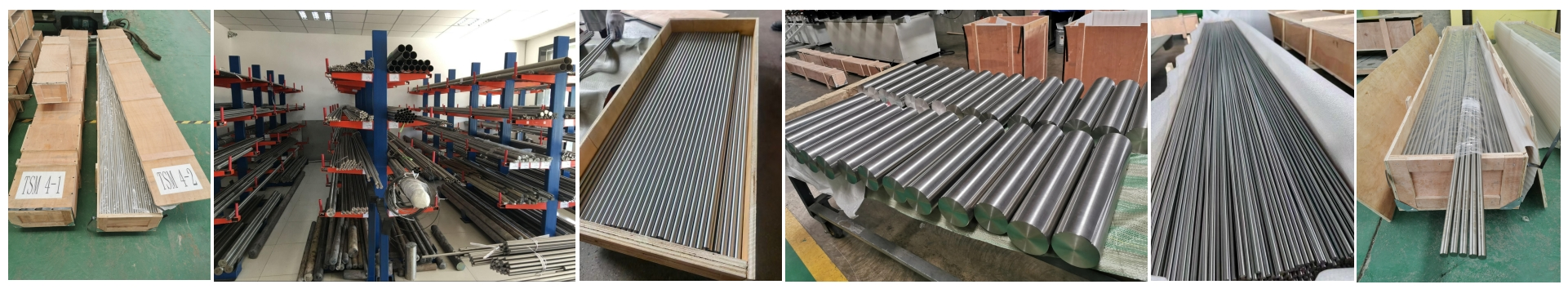

Package and Shipping

We ensure your venture through proficient packaging:

• Individual Security: Plastic conclusion caps anticipate harm during handling
• Bundle Wrapping: Waterproof paper and plastic film protect against moisture
• Wooden Cases: Heavy-duty boxes with inner padding for ocean freight
• Labeling: Clear distinguishing proof with warm number, measure, and client PO
• Documentation: Total send out printed material counting commercial receipt, pressing list, and certificates

Our Hong Kong coordination center empowers proficient shipping by means of ocean, air, or express delivery to your location.

FAQ

Q1: How does cold drawing affect the machinability of the bars?

While cold drawing increases hardness through work hardening, the improved dimensional uniformity and surface quality often reduce initial setup time and material removal required during CNC machining. You'll experience more predictable tool life and better surface finishes.

Q2: Is this alloy magnetic?

No, the product remains non-magnetic even at cryogenic temperatures, making it perfect for electronic and sensitive instrumentation applications where magnetic interference must be avoided.

Q3: What's the difference between Grade 1 and Grade 2?

Grade 1 is annealed at 1600–1900°F for maximum corrosion resistance and tensile strength in most applications. Grade 2 undergoes solution annealing at higher temperatures specifically for creep-rupture applications in elevated temperature service.

Q4: Can this material withstand hydrogen-rich environments?

Yes, the specific alloy chemistry provides high resistance to hydrogen embrittlement compared to standard stainless steels, making it suitable for petrochemical processes involving hydrogen.

Q5:What tolerances can I expect?

Depending on diameter, you'll receive h-series tolerances (typically h8, h9, or h10)—significantly tighter than the standard +/- tolerances of hot-rolled bars. This precision reduces your machining costs and assembly time.

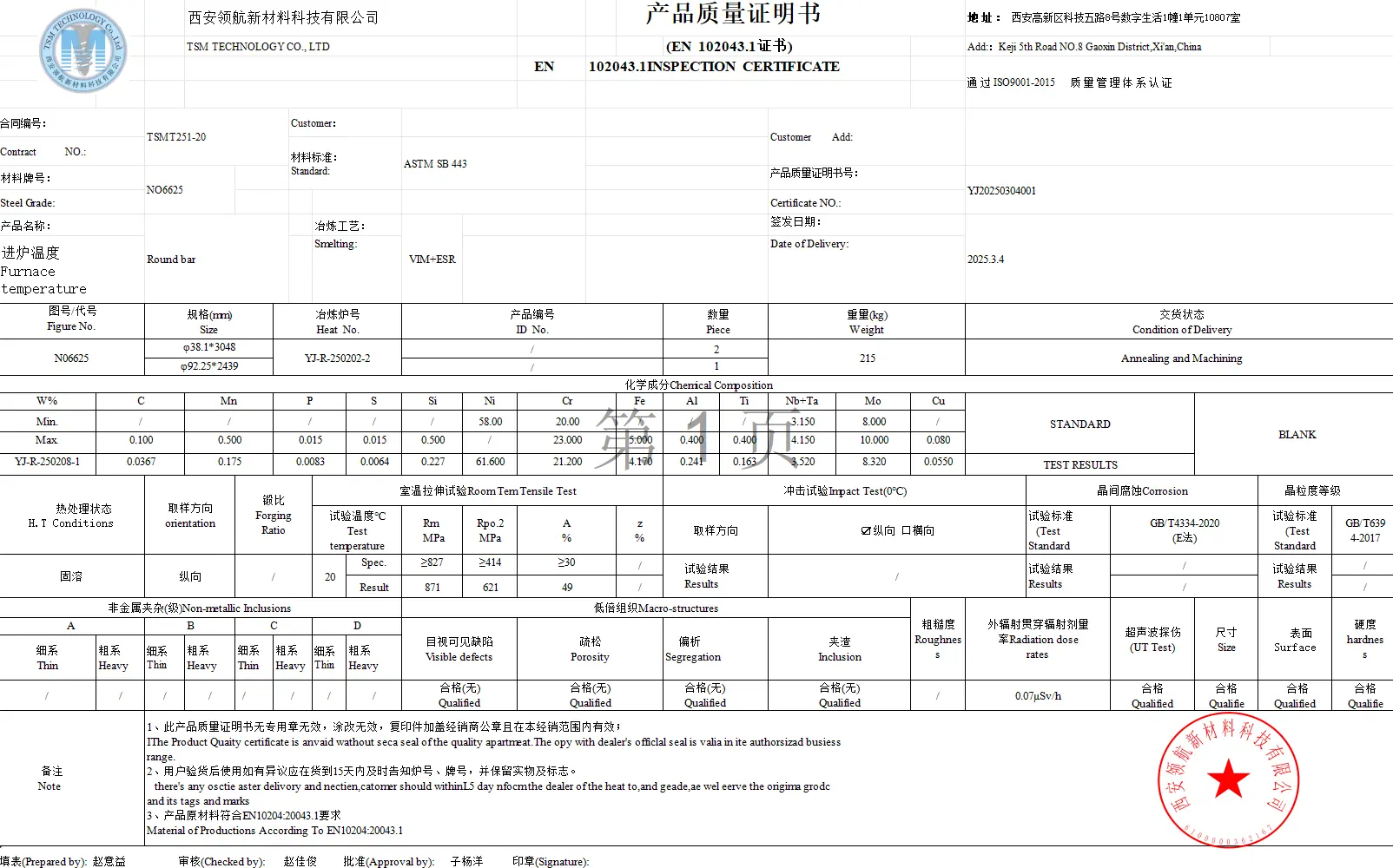

Q6: Do you provide material certificates?

Absolutely. Every shipment includes Material Test Reports (MTR) per EN 10204.3.1, showing actual chemical composition and mechanical test results. Third-party inspection reports are available upon request.
