How Ultrasonic Testing Ensures Metal Component Reliability?

Ultrasonic testing is very important for making sure that metal parts in a lot of different fields are reliable. This method of non-destructive testing uses high-frequency sound waves to find internal flaws, gaps, and material features without hurting the part. By showing the condition of the structure of metal parts in great depth, ultrasonic testing helps engineers and producers find possible issues, avoid breakdowns, and improve the quality of the product overall. The process of sending sound waves through a substance and studying the signs that bounce back makes very accurate readings of thickness, finds cracks, and determines what the material is like. This improved method makes metal parts in important uses much safer, longer-lasting, and better at performing their jobs.

The Fundamentals of Ultrasonic Testing in Metal Component Inspection

Principles of Ultrasonic Testing

Ultrasonic testing depends on the ability of high-frequency sound waves to move through different materials. A sensor sends waves into the metal part that usually range from 0.5 to 25 MHz. When waves move through a substance, they interact with its internal structure by bouncing off edges, flaws, or areas with different density. The sensor then picks up the waves that have been reflected, turns them into electrical signals, and analyzes them.

The time that the sound waves need to go through the material and come back to the detector gives useful information about how thick the part is and what its internal structure is like. By looking at these signs, techs can find cracks, holes, or other issues that could make the part less reliable.

Types of Ultrasonic Testing Methods

Several ultrasonic testing methods are used to check metal parts. Each method works best with certain types of materials and in certain situations:

• Pulse-Echo Method: In this popular method, one detector sends ultrasonic sounds out into the environment and then picks them up when they bounce off of something. It's especially good at finding mistakes and measuring width on objects that are flat or curved.
• Through-Transmission Method: This method uses different sensors to send and receive signals, with each side of the component. It's perfect for looking at things with high absorption or when you can't get to both sides.
• Phased Array Ultrasonic Testing (PAUT): This advanced method uses multiple sensor elements to make steerable ultrasonic beams. This makes it possible to check complex shapes more quickly and thoroughly.

Equipment and Instrumentation

Special tools are needed for ultrasonic tests to make, receive, and study ultrasonic sounds. The most important parts are:

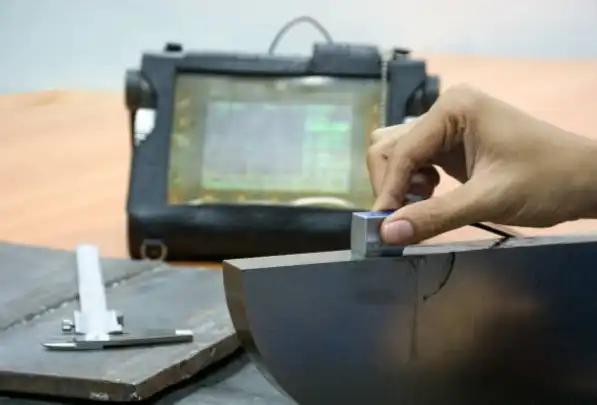

• Ultrasonic Flaw Detector: This machine makes and handles ultrasonic sounds and shows the results on a screen so they can be read.
• Transducers: These plastic parts can turn sound waves into electrical energy and do the opposite as well.
• Couplant: A gel or liquid that helps ultrasound waves move quickly and easily from the detector to the object being tested.
• Calibration Blocks: These are standard reference blocks used to make sure that the equipment is correct and adjust it.

More advanced systems may use robots, automation, and complex software for data analysis and display to make checks faster and more accurate.

Applications and Benefits of Ultrasonic Testing in Metal Component Quality Assurance

Industries Relying on Ultrasonic Testing

Ultrasonic testing has become very important in many fields where the dependability of metal parts is crucial:

• Aerospace: Looking at very important parts of the airplane, like the landing gear, rotor blades, and features in the body.
• Automotive: Make sure the engine parts, welds, and structure components are all made correctly.
• Oil and Gas: Looking for rust and other problems in pressure tanks, pipes, and buildings built on the coast or in the ocean.
• Power Generation: Looking at burners, engines, and parts of nuclear reactors.
• Manufacturing: Making sure that made parts, molds, and forgings are of good quality.

Ultrasonic testing aids in ensuring that metal parts in each of these industries meet strict safety and performance standards, lowering the likelihood of breakdowns and extending the useful life of important tools.

Advantages Over Other Non-Destructive Testing Methods

Ultrasonic testing is better than some other non-destructive testing methods in the following ways:

Superior Penetration: Ultrasonic waves can go deep into materials, which makes it possible to find flaws that are below the surface and might be missed by methods that only look at the surface.

• High Sensitivity: The method can find even the tiniest flaws, which improves total quality control.
• Versatility: Works with many different shapes and materials, from thin sheets to thick forgings.
• Real-Time Results: Immediate feedback lets people make decisions right away during manufacturing or repair.
• Safety: Ultrasonic testing is safer for both people and the environment than radiography methods because it does not use harmful radiation.

Impact on Manufacturing Processes and Product Quality

Product quality and dependability have greatly improved since ultrasonic testing was integrated into industrial processes:

• Early Defect Detection: Finding mistakes early on in production saves time and materials and makes the process more efficient.
• Process Optimization: Feedback from ultrasonic testing can be used to make industrial settings more exact, which makes the output more consistent.
• Quality Assurance: A full range of testing tools makes sure that the end goods meet or beat the quality standards.
• Cost Reduction: Ultrasonic testing helps lower warranty claims and insurance costs by lowering the likelihood of in-service breakdowns.
• Innovation Support: Being able to correctly measure material qualities and structure stability makes it possible to make newer, lighter, and more useful metal parts.

By giving manufacturers information about the quality of materials and the strength of structures, ultrasonic testing helps make sure that manufacturing processes and product performance keep getting better.

Advanced Techniques and Future Trends in Ultrasonic Testing for Metal Components

Emerging Technologies in Ultrasonic Testing

With the development of new tools, the field of ultrasonic testing is constantly changing:

• Full Matrix Capture (FMC) and Total Focusing Method (TFM): These are new methods that make high-resolution pictures of the insides of things. This helps with finding and describing defects.
• Guided Wave Testing: This method lets you look at pipes and other long structures from far away, which saves time and money.
• Laser Ultrasonics: This method uses lasers to make and identify ultrasonic waves. It can be used to check parts that are hot or moving without having to touch them.
• Nonlinear Ultrasound: This method finds early-stage material wear and degradation, which helps to determine how much longer a part will last.

These advances are making ultrasonic testing more useful and accurate. This allows for more thorough and speedy checks of metal parts.

Integration with Digital Technologies and Industry 4.0

Putting ultrasonic testing and digital tools together is changing the way quality assurance works:

• Internet of Things (IoT): You can keep an eye on the health and performance of the part in real time with connected sound devices.
• Artificial Intelligence and Machine Learning: Advanced algorithms make it easier to find and classify defects, which lowers the need for human input.
• Digital Twin Technology: Models can be made digital and then ultrasonic data can be used on them. This makes it possible to do predictive maintenance and lifecycle management.
• Cloud Computing: Data keeping and analysis from afar make it easier for people to work together and look at trends more in depth.

These connections make it possible to use more preventative and data-driven methods to make sure metal parts are reliable.

Challenges and Future Directions

Even though ultrasonic testing has a lot of benefits, it also has some problems that are driving researchers and developers to work on it:

• Complex Geometries: Making it easier to check parts that have complex forms or places that are hard to get to.
• Material Variability: Finding ways to correctly check new materials and combinations that have anisotropic qualities.
• Data Interpretation: Improving automatic analysis so that it doesn't depend on skilled workers as much and so that it is more consistent.
• In-Service Inspection: Making stronger and more compact tools for checking parts that are already placed at the site.
• Standards and Certification: Establishing comprehensive standards for new ultrasonic technologies to ensure reliability and comparability of results.

Overcoming these issues will further establish ultrasonic testing as an important way to make sure that metal parts are reliable in all businesses. As technology continues to advance, ultrasonic testing is poised to become even more integral to quality assurance and asset management strategies.

Conclusion

Ultrasonic testing has proven to be an invaluable tool in ensuring the reliability of metal components across various industries. It is an important part of the quality assurance process because it can find internal flaws, measure material properties, and give specific information without hurting the part. Ultrasonic testing is becoming more useful as technologies change and new methods like phased array testing and digital analysis tools are used. These changes make ultrasonic testing even more exact and efficient. For makers and engineers who want to improve the quality and safety of their products, it is very important to use the latest ultrasonic testing methods. This way, they can get better at making metal parts that work well, meet the strict needs of current uses, and are always dependable.

FAQs

How often should ultrasonic testing be performed on metal components?

How often ultrasonic testing is done relies on many things, such as how important the part is, the settings it works in, and the rules that must be followed. For parts that are high-stress or important for safety, checking every year or even more often may be needed. In apps where performance isn't as important, testing might be done during planned repair periods.

Can ultrasonic testing detect all types of defects in metal components?

Ultrasonic testing is very good, but it might not find all flaws. It's great at finding internal cracks, gaps, inclusions, and other flaws, but it might not be the best way to find faults on the surface. For the best results, a thorough check often uses ultrasonic testing along with other non-destructive testing methods.
