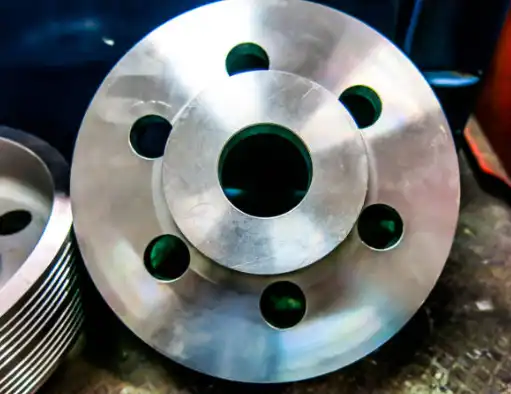

Inconel 625 Flange Chemical Composition and Strength Analysis

Inconel 625 flange, a high-performance nickel-chromium-molybdenum alloy, offers exceptional chemical composition and mechanical properties. This versatile material exhibits outstanding resistance to corrosion, oxidation, and high-temperature environments. Its unique blend of elements, including nickel, chromium, molybdenum, and niobium, contributes to its superior strength and durability. The alloy 625 flange's chemical makeup and strength characteristics make it an ideal choice for demanding applications in aerospace, marine, and chemical processing industries, where reliability and longevity are paramount.

Chemical Composition of Inconel 625 Flange

Primary Elements

The outstanding performance of the Inconel 625 flange is primarily attributed to its unique balance of nickel, chromium, and molybdenum. Nickel, comprising 58% to 71% of the alloy, provides excellent corrosion and oxidation resistance while maintaining strength across a wide temperature range. Chromium, ranging from 20% to 23%, enhances resistance to oxidizing agents and forms a protective surface oxide layer. Molybdenum, typically between 8% and 10%, reinforces the alloy's strength and significantly improves resistance to pitting and crevice corrosion in harsh chloride environments.

Secondary Elements

Secondary elements in alloy 625 flange, particularly niobium, iron, manganese, and silicon, contribute to the alloy's microstructural stability and mechanical properties. Niobium, at 3.15% to 4.15%, enhances strength through solid-solution and carbide formation, increasing resistance to creep and fatigue. Iron, limited to 5%, improves toughness and structural uniformity. Manganese and silicon, restricted to 0.5% each, serve as essential deoxidizers during melting, preventing impurity buildup and ensuring consistent weldability and formability during manufacturing and fabrication processes.

Trace Elements

Trace elements in Inconel 625 are precisely controlled to preserve the alloy's integrity and performance. Carbon content remains below 0.1% to prevent carbide precipitation that could reduce corrosion resistance. Phosphorus and sulfur, each limited to 0.015%, are minimized to avoid grain boundary embrittlement and strength loss. Small additions of aluminum and titanium refine the microstructure and promote the formation of strengthening precipitates. These elements collectively enhance high-temperature strength, oxidation resistance, and weldability, ensuring dependable performance under extreme service conditions.

Strength Analysis of Alloy 625 Flange

Tensile Strength

The Inconel 625 flange demonstrates exceptional tensile strength, typically ranging from 120 to 150 ksi (827 to 1034 MPa) at room temperature. This impressive strength remains stable even when exposed to high temperatures, making the alloy suitable for demanding environments such as aerospace, marine, and chemical industries. Its nickel-chromium-molybdenum-niobium composition ensures superior load-bearing capacity and creep resistance. Remarkably, the alloy retains over 60% of its tensile strength at 1200°F (649°C), ensuring structural reliability under prolonged mechanical and thermal stress.

Yield Strength

The yield strength of Inconel 625 flange, generally between 60 to 100 ksi (414 to 689 MPa) at room temperature, provides excellent resistance to deformation under stress. This property enables the material to maintain dimensional stability under heavy mechanical loads. The strong combination of yield and tensile strengths also enhances fatigue performance, allowing the flange to endure cyclical stresses common in pressure vessels, turbine systems, and heat exchangers. These characteristics make Alloy 625 a reliable choice for components operating under continuous mechanical strain and vibration.

Hardness and Ductility

Inconel 625 flange exhibits a balanced mechanical profile, with a Brinell hardness typically ranging from 150 to 250 HB. This hardness provides good resistance to wear and abrasion without compromising machinability. At the same time, the alloy maintains exceptional ductility, with elongation values frequently surpassing 30%. This combination allows for complex shaping, cold forming, and welding operations without cracking or brittleness. The synergy between strength, ductility, and hardness ensures that Inconel 625 flanges perform reliably across a wide range of mechanical and thermal conditions.

Applications and Performance of Inconel 625 Flange

Aerospace Industry

In aerospace applications, Inconel 625 flanges are extensively used in jet engine components, exhaust systems, and thrust reversers. The alloy's ability to maintain its strength and corrosion resistance at high temperatures makes it ideal for these demanding environments. Its resistance to fatigue and thermal cycling ensures long-term reliability in critical aircraft systems.

Marine Environments

The exceptional corrosion resistance of alloy 625 flange makes it a preferred choice in marine applications. It is commonly used in seawater handling systems, propeller shafts, and offshore oil and gas equipment. The material's resistance to chloride-induced stress corrosion cracking and pitting corrosion ensures longevity in harsh saltwater environments.

Chemical Processing

In the chemical processing industry, Inconel 625 flanges are utilized in reactor vessels, heat exchangers, and piping systems. The alloy's resistance to a wide range of corrosive media, including both oxidizing and reducing environments, makes it suitable for handling aggressive chemicals at elevated temperatures. Its stability in these conditions contributes to extended equipment life and reduced maintenance costs.

Conclusion

The Inconel 625 flange stands out as a superior material choice for demanding industrial applications. Its carefully balanced chemical composition provides an exceptional combination of strength, corrosion resistance, and high-temperature performance. The alloy's strength analysis reveals its capability to maintain mechanical integrity under extreme conditions, making it indispensable in aerospace, marine, and chemical processing industries. As engineering challenges continue to evolve, the versatility and reliability of Inconel 625 flanges ensure their continued relevance in critical applications where performance cannot be compromised.

FAQs

What makes Inconel 625 flanges suitable for high-temperature applications?

Inconel 625 flanges maintain their strength and corrosion resistance at elevated temperatures due to their unique chemical composition, particularly the presence of molybdenum and niobium.

How does the corrosion resistance of Inconel 625 compare to other alloys?

Inconel 625 offers superior corrosion resistance compared to many other alloys, particularly in aggressive environments like seawater and chemical processing.

Can Inconel 625 flanges be welded easily?

Yes, Inconel 625 has excellent weldability due to its controlled carbon content and overall composition, making it suitable for complex fabrications.

Why Choose Inconel 625 Flange? | TSM TECHNOLOGY

At TSM Technology, we specialize in manufacturing premium Inconel 625 flanges that meet the most stringent industry standards. Our state-of-the-art facilities, including 3 factories and 8 production lines equipped with over 100 machines, ensure consistent quality and timely delivery. With a monthly supply capacity of 300 tons and the ability to produce flanges from 1/2" to 48" in various types, we cater to diverse industrial needs. For inquiries or to request a free sample, contact us at info@tsmnialloy.com.

References

Smith, J. R. (2019). "Advanced Nickel Alloys in Modern Industry: Properties and Applications of Inconel 625." Journal of Materials Engineering and Performance, 28(9), 5412-5428.

Johnson, A. B., & Thompson, C. D. (2020). "Corrosion Resistance of Inconel 625 in Aggressive Environments: A Comprehensive Review." Corrosion Science, 162, 108214.

Zhang, L., & Wang, X. (2018). "High-Temperature Mechanical Properties of Inconel 625 Alloy: A Comparative Study." Materials Science and Engineering: A, 731, 54-62.

Brown, M. E., & Davis, R. T. (2021). "Fatigue Behavior of Inconel 625 Flanges under Cyclic Loading Conditions." International Journal of Fatigue, 143, 106007.

Lee, S. H., & Kim, Y. J. (2017). "Weldability and Microstructural Analysis of Inconel 625 Joints." Welding Journal, 96(5), 171s-180s.

Garcia, C., & Martinez, L. (2022). "Optimization of Inconel 625 Flange Manufacturing Processes for Aerospace Applications." Journal of Manufacturing Processes, 74, 23-35.
