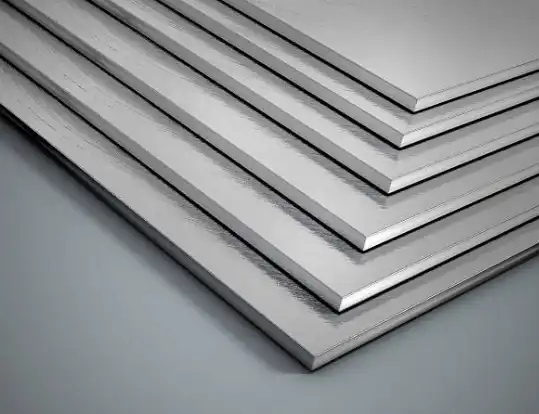

Non-Destructive Testing Methods for Inconel 625 Sheet

Non-destructive testing (NDT) methods for Inconel 625 sheet are crucial quality assurance techniques used to evaluate the properties and integrity of this high-performance nickel-chromium-based superalloy without causing damage. These methods are essential for ensuring the reliability and safety of components made from Inconel 625 sheet in various industries, including aerospace, chemical processing, and marine applications. The most common NDT techniques for Inconel 625 include visual inspection, ultrasonic testing, radiographic testing, eddy current testing, and dye penetrant testing. Each method offers unique advantages in detecting surface and subsurface defects, material thickness variations, and other anomalies that could compromise the performance of Inconel 625 sheet products.

Visual Inspection and Surface Testing Techniques

Visual Inspection: The First Line of Defense

Visual inspection is often the initial step in evaluating Inconel 625 sheet quality. This method involves a thorough examination of the sheet's surface using the naked eye or simple optical tools like magnifying glasses. Inspectors look for visible defects such as scratches, dents, discoloration, or surface irregularities that may indicate underlying issues. While simple, visual inspection can be highly effective in identifying obvious flaws and is a cost-effective way to perform quick assessments of Inconel 625 sheet condition.

Dye Penetrant Testing: Revealing Surface Imperfections

Dye penetrant testing is a widely used surface NDT method for Inconel 625 sheet. This technique involves applying a colored or fluorescent dye to the sheet's surface, which seeps into any surface-breaking defects. After removing excess dye, a developer is applied to draw the penetrant out of the flaws, making them visible under normal or ultraviolet light. Dye penetrant testing is particularly effective for detecting surface cracks, porosity, and other discontinuities in alloy 625 sheet that might be invisible to the naked eye.

Magnetic Particle Inspection: Limitations with Inconel 625

It's worth noting that magnetic particle inspection, while effective for ferromagnetic materials, is not suitable for Inconel 625 sheet. This is because Inconel 625 is a non-magnetic alloy, and the method relies on magnetic fields to detect defects. Understanding the limitations of certain NDT methods is crucial when working with specialized materials like Inconel 625.

Subsurface and Volumetric Inspection Methods

Ultrasonic Testing: Probing the Depths

Ultrasonic testing is a powerful NDT method for examining the internal structure of Inconel 625 sheet. This technique uses high-frequency sound waves to penetrate the material and detect subsurface flaws, thickness variations, and internal defects. Ultrasonic testing is particularly valuable for thick Inconel 625 sheets, as it can provide detailed information about the material's internal condition without the need for cutting or sectioning. Advanced ultrasonic techniques, such as phased array ultrasonic testing (PAUT), offer even greater precision and imaging capabilities for complex Inconel 625 components.

Radiographic Testing: X-ray Vision for Alloy 625

Radiographic testing, including X-ray and gamma-ray techniques, is another effective method for inspecting Inconel 625 sheet. This approach uses penetrating radiation to create images of the internal structure of the material. Radiography can reveal hidden defects such as voids, inclusions, and internal cracks that may not be visible through other means. For Inconel 625 sheet used in critical applications, such as aerospace components or pressure vessels, radiographic testing provides a comprehensive view of the material's integrity, ensuring the highest standards of quality and safety.

Computed Tomography: 3D Insights into Inconel 625

Advanced radiographic methods like computed tomography (CT) scanning take NDT of Inconel 625 sheet to the next level. CT scanning creates detailed 3D images of the internal structure, allowing for precise measurement and analysis of defects, wall thickness, and material density variations. This technology is particularly valuable for complex Inconel 625 components or when traditional radiography may not provide sufficient detail.

Electromagnetic and Advanced NDT Techniques

Eddy Current Testing: Detecting Surface and Near-Surface Flaws

Eddy current testing is a versatile NDT method well-suited for inspecting Inconel 625 sheet. This technique uses electromagnetic induction to detect surface and near-surface defects, as well as variations in material properties. Eddy current testing is particularly effective for finding cracks, corrosion, and thickness variations in Inconel 625 sheet. Its non-contact nature and ability to penetrate thin coatings make it an excellent choice for inspecting finished components without damaging surface treatments or protective layers.

Thermography: Heat-Based Inspection of Alloy 625

Infrared thermography is an emerging NDT technique that can be applied to Inconel 625 and alloy 625 sheet inspection. This method uses thermal imaging to detect temperature differences that may indicate defects or anomalies in the material. Thermography can be particularly useful for detecting delaminations, voids, or areas of poor bonding in Inconel 625 composite structures or in cases where the alloy is used as a cladding material.

Acoustic Emission Testing: Listening to Inconel 625

Acoustic emission testing is a unique NDT method that involves monitoring the sounds produced by a material under stress. For Inconel 625 sheet, this technique can be valuable during proof testing or in-service monitoring to detect the formation and growth of defects. By analyzing the acoustic signals emitted by the material, inspectors can identify potential failure points before they become critical, enhancing the safety and reliability of Inconel 625 components in demanding applications.

Conclusion

Non-destructive testing methods play a crucial role in ensuring the quality and reliability of Inconel 625 sheet. From visual inspection to advanced techniques like ultrasonic testing and computed tomography, each method offers unique advantages in evaluating this high-performance alloy. By employing a combination of these NDT techniques, manufacturers and end-users can confidently verify the integrity of Inconel 625 components, ensuring optimal performance in critical applications across various industries. As technology continues to advance, new and improved NDT methods will likely emerge, further enhancing our ability to inspect and validate the quality of Inconel 625 sheet and other superior alloys.

FAQs

What are the most common defects detected in Inconel 625 sheet through NDT?

Common defects include surface cracks, internal voids, inclusions, and thickness variations.

How often should NDT be performed on Inconel 625 components?

The frequency depends on the application, but critical components often require initial and periodic NDT inspections.

Can NDT methods detect all possible defects in Inconel 625 sheet?

While comprehensive, no single NDT method can detect all defects. A combination of techniques is often used for thorough inspection.

Expert Inconel 625 Sheet Testing and Supply | TSM TECHNOLOGY

At TSM TECHNOLOGY, we specialize in providing high-quality Inconel 625 sheet and comprehensive NDT services. Our state-of-the-art testing facilities and experienced team ensure that every alloy 625 sheet meets the highest industry standards. As a leading manufacturer and supplier of superior nickel alloys, we offer custom solutions tailored to your specific needs. Contact our experts at info@tsmnialloy.com to discuss your Inconel 625 requirements and discover how our precision-engineered products can enhance your projects.
