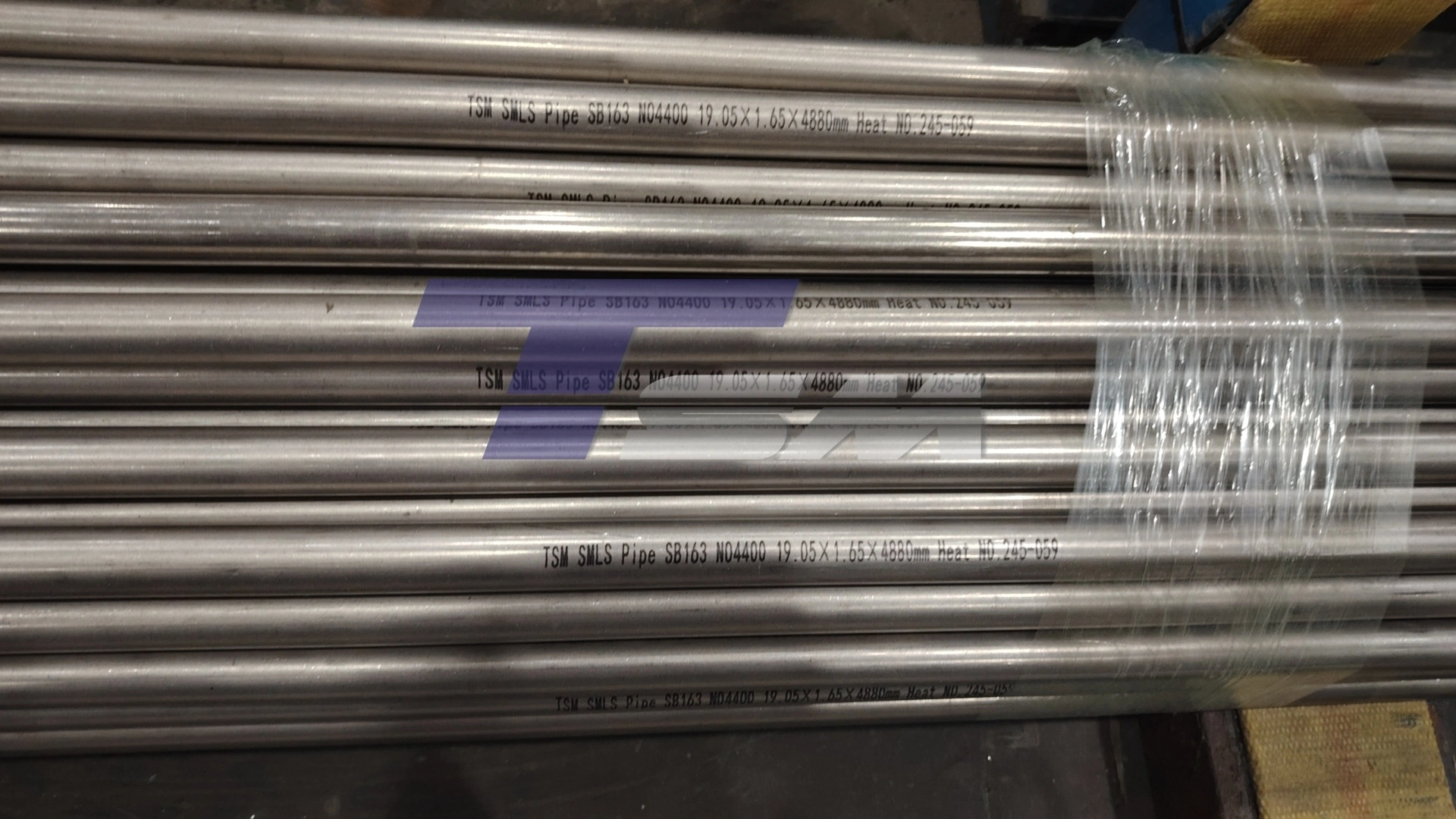

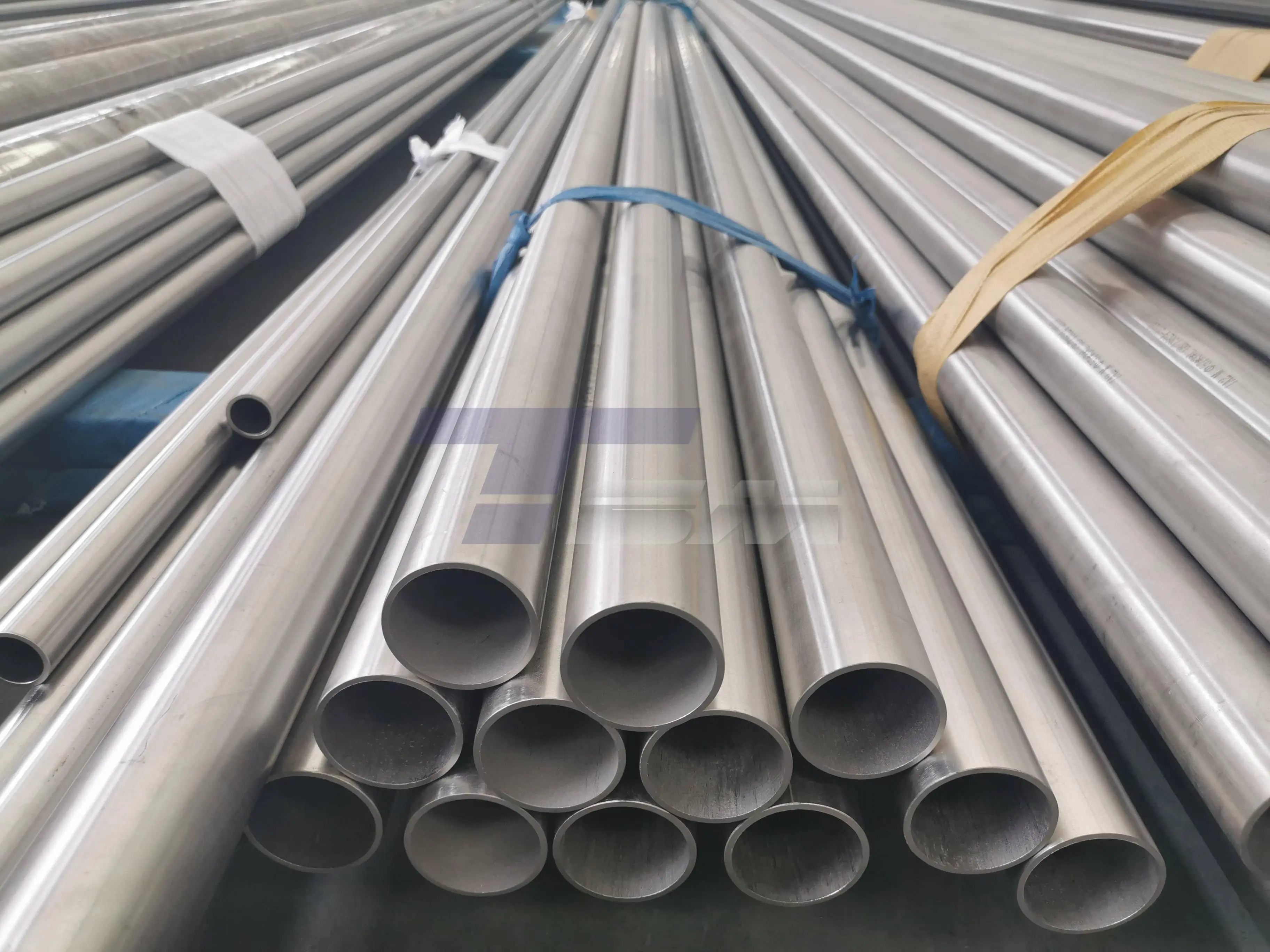

Monel 400 Seamless Tube

Specification

Physical and Chemical Properties

Chemical Composition (ASTM B165) and Physical Properties

Product Standards

TSM Technology manufactures tubes conforming to multiple international standards:

• ASTM B165 – Standard Specification for Nickel-Copper Alloy Seamless Pipe and Tube
• ASME SB165 – Boiler and Pressure Vessel Code
• ASTM B829 – Standard Specification for Nickel-Copper Alloy Rod and Bar
• DIN 17751 – European standard for Nickel alloy tubes
• JIS H3300 – Japanese Industrial Standard

All Monel 400 Seamless Tube products come with full material traceability documentation including MTC, SGS, BV, and TUV certifications.

What are the Features of Monel 400 Seamless Tube?

Exceptional Corrosion Resistance

You are practically immune to chloride-ion stress corrosion cracking. This makes it suitable for seawater and brine service where stainless steel fails.

Superior Pressure Integrity

Seamless construction provides 20% higher allowable working pressures compared to welded tubes according to ASME codes.

Wide Temperature Range

The alloy maintains structural integrity from cryogenic temperatures to 538°C (1000°F). Your systems operate reliably across extreme conditions.

Excellent Hydrofluoric Acid Resistance

It withstands hydrofluoric acid in all concentrations up to boiling point. This is a critical requirement for chemical alkylation units.

Enhanced Weldability

The material joins easily without hot cracking. You can fabricate complex piping systems without compromising corrosion resistance.

Uniform Grain Structure

Seamless manufacturing eliminates heat-affected zones. This ensures consistent mechanical properties throughout the tube length.

Application

Marine Engineering

Your offshore platform splash zone pipework is free from bio-fouling and chloride attack. Seawater heat exchangers - no pitting corrosion and hence efficiency is maintained.

Chemical Process

The hydrofluoric acid alkylation units must be seamless or catastrophic leaks may occur. The tubes are capable of handling hazardous chemicals in sulphuric acid production facilities safely.

Generation of power

High velocity steam conditions are seen in boiler feed pipes and high pressure feedwater heaters. This substance is used in deaerated water systems for nuclear and fossil fuel facilities.

Petroleum and Gas

These tubes are used in crude oil distillation units for heat exchange in corrosive situations. They perform well in sour gas conditions such as hydrogen sulphide.

Aerospace & Defence

Aircraft hydraulic systems need corrosion resistant fluid transfer lines. The tubes comply with rigorous aerospace requirements for safety essential applications.

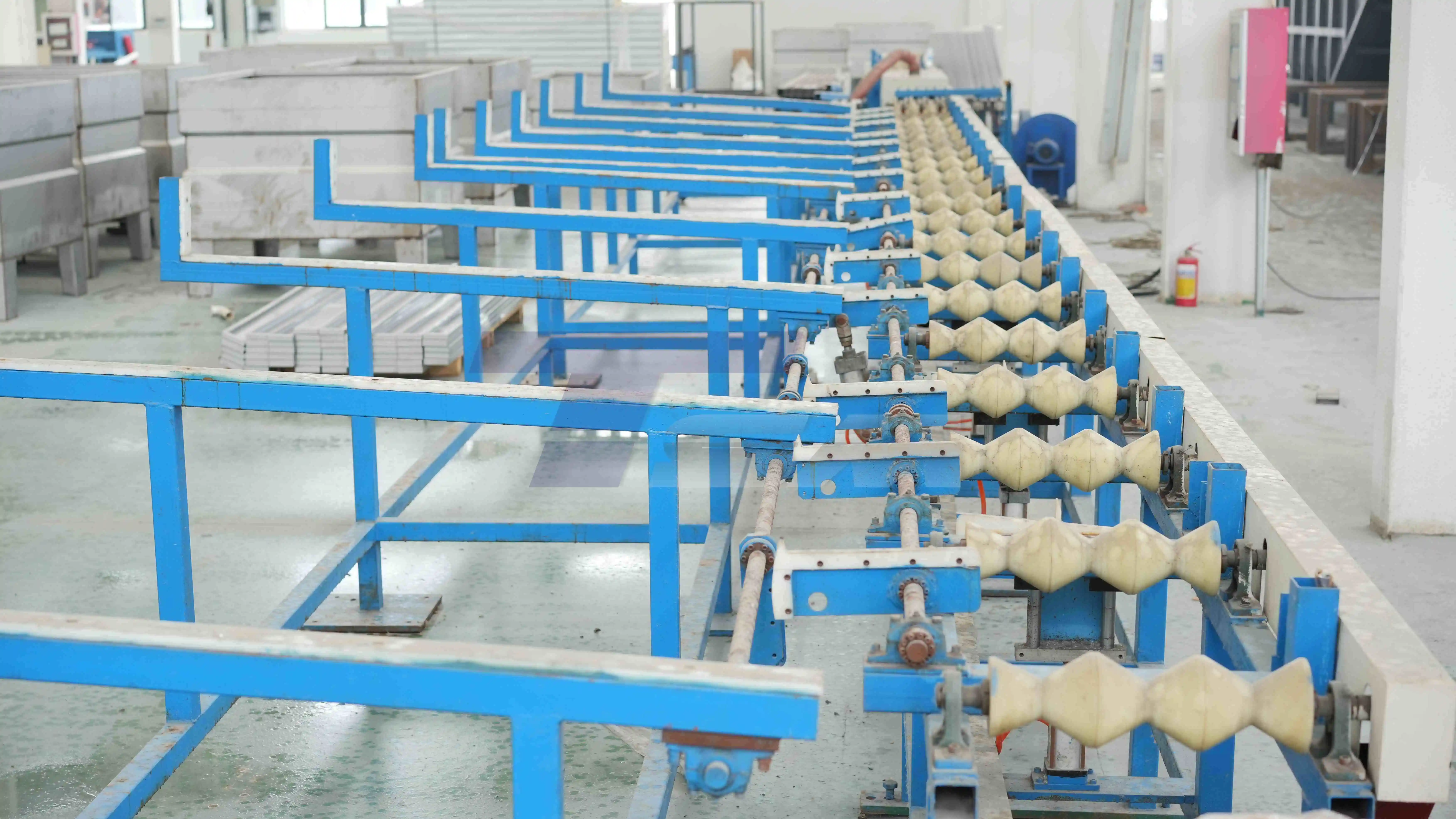

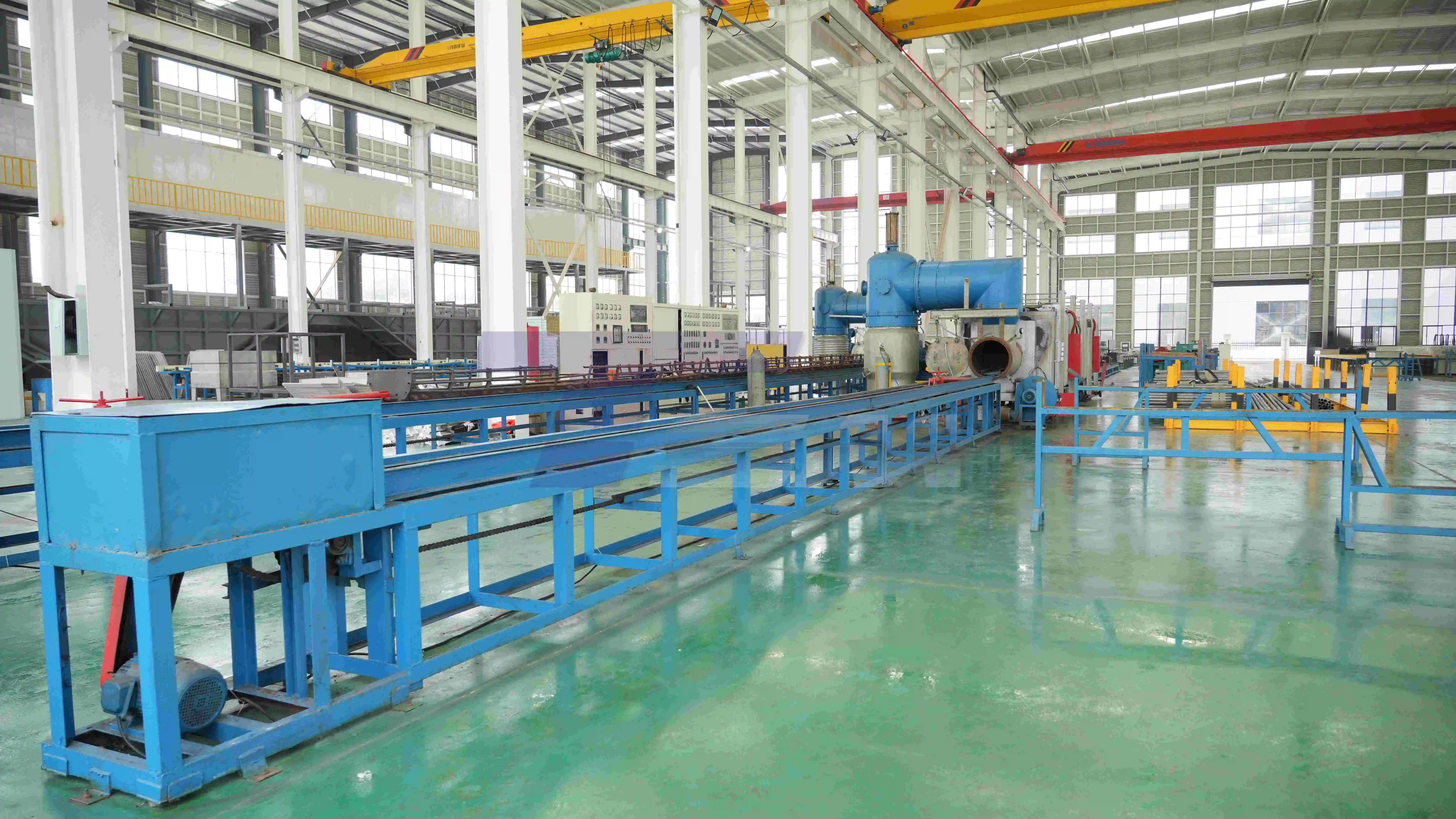

Factory

TSM Technology has a modern manufacturing building of 60,000 square meters. Our plant is a whole manufacturing chain from melting to final inspection. Main equipment: vacuum induction furnaces, hot extrusion presses, multi-stage cold drawing equipment, brilliant annealing furnaces. Advanced testing facilities have ultrasonic, eddy current and radiographic inspection technologies.

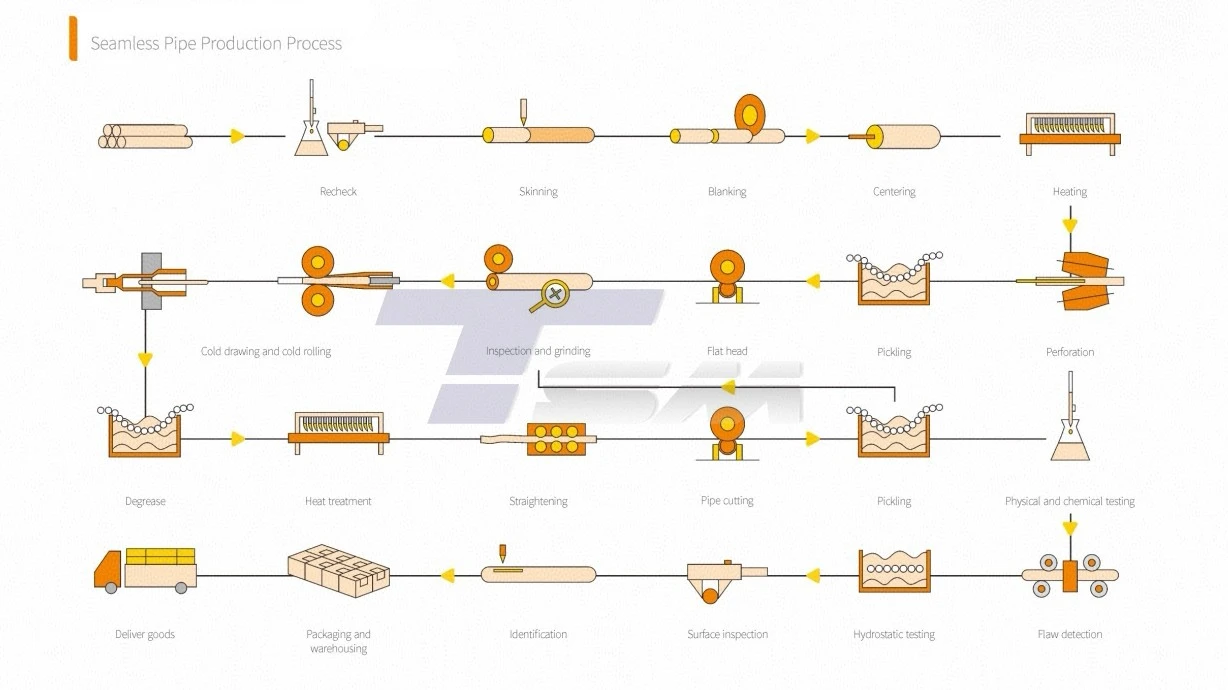

What is the Production Process of Monel 400 Seamless Tube?

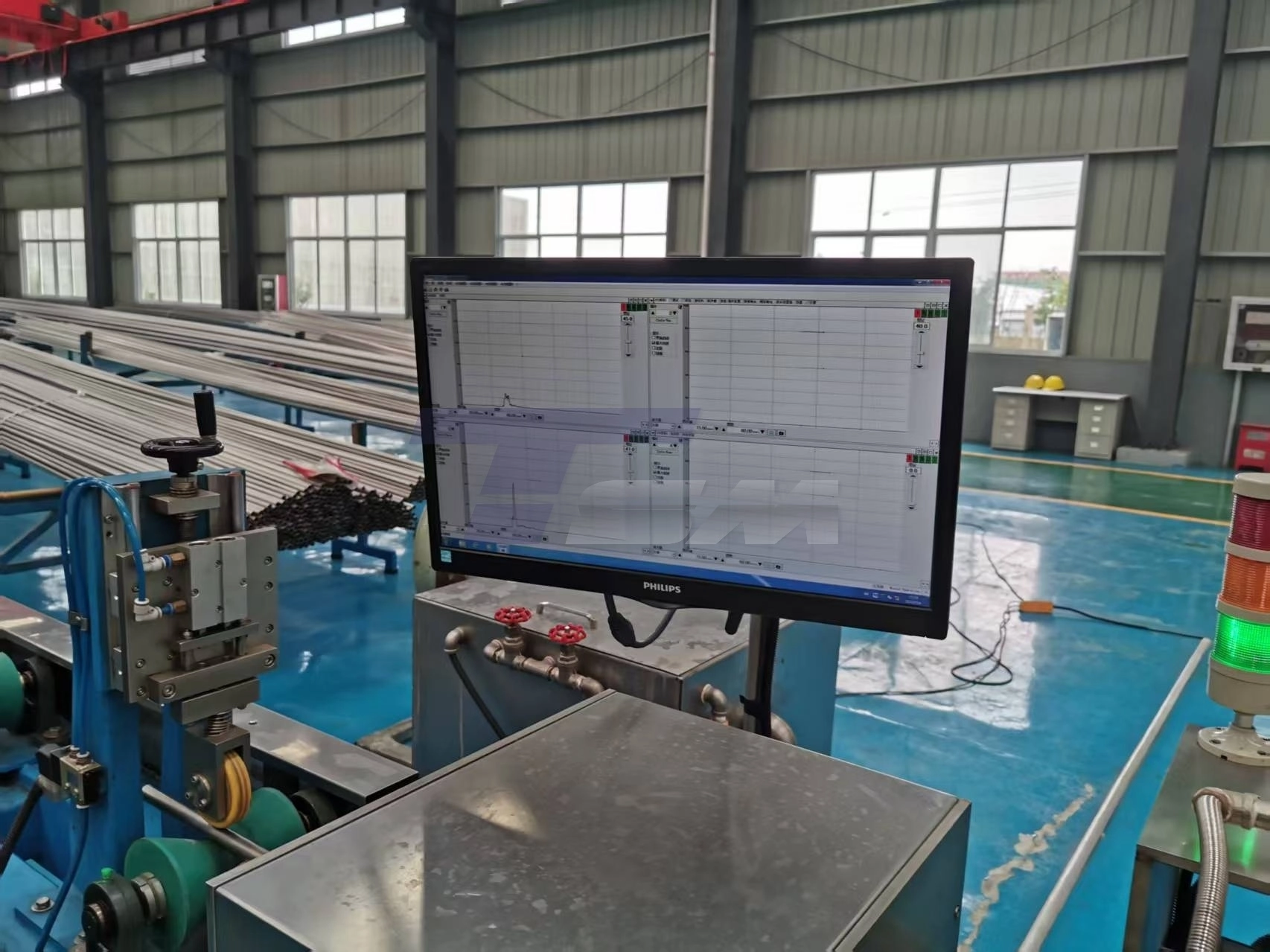

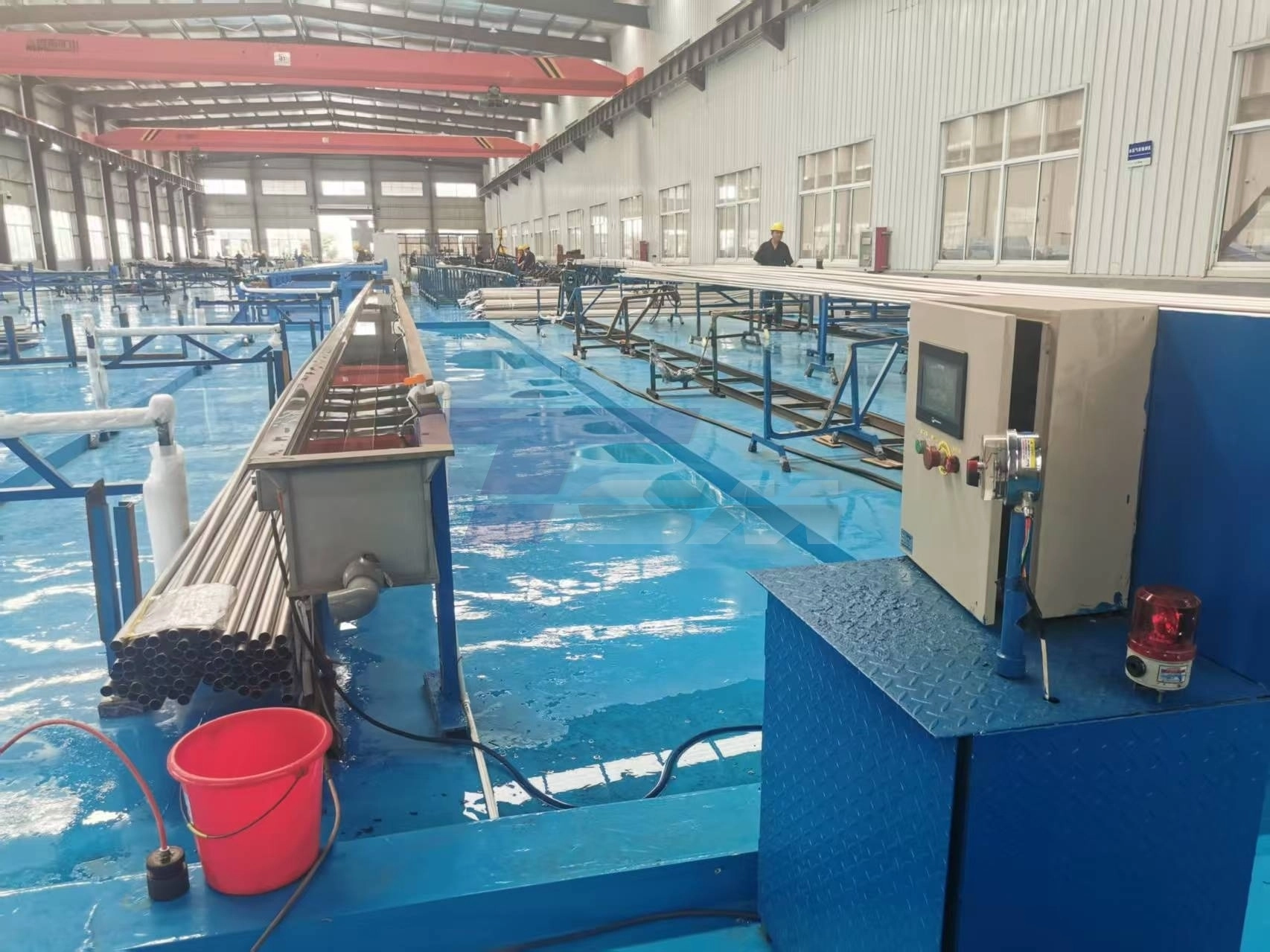

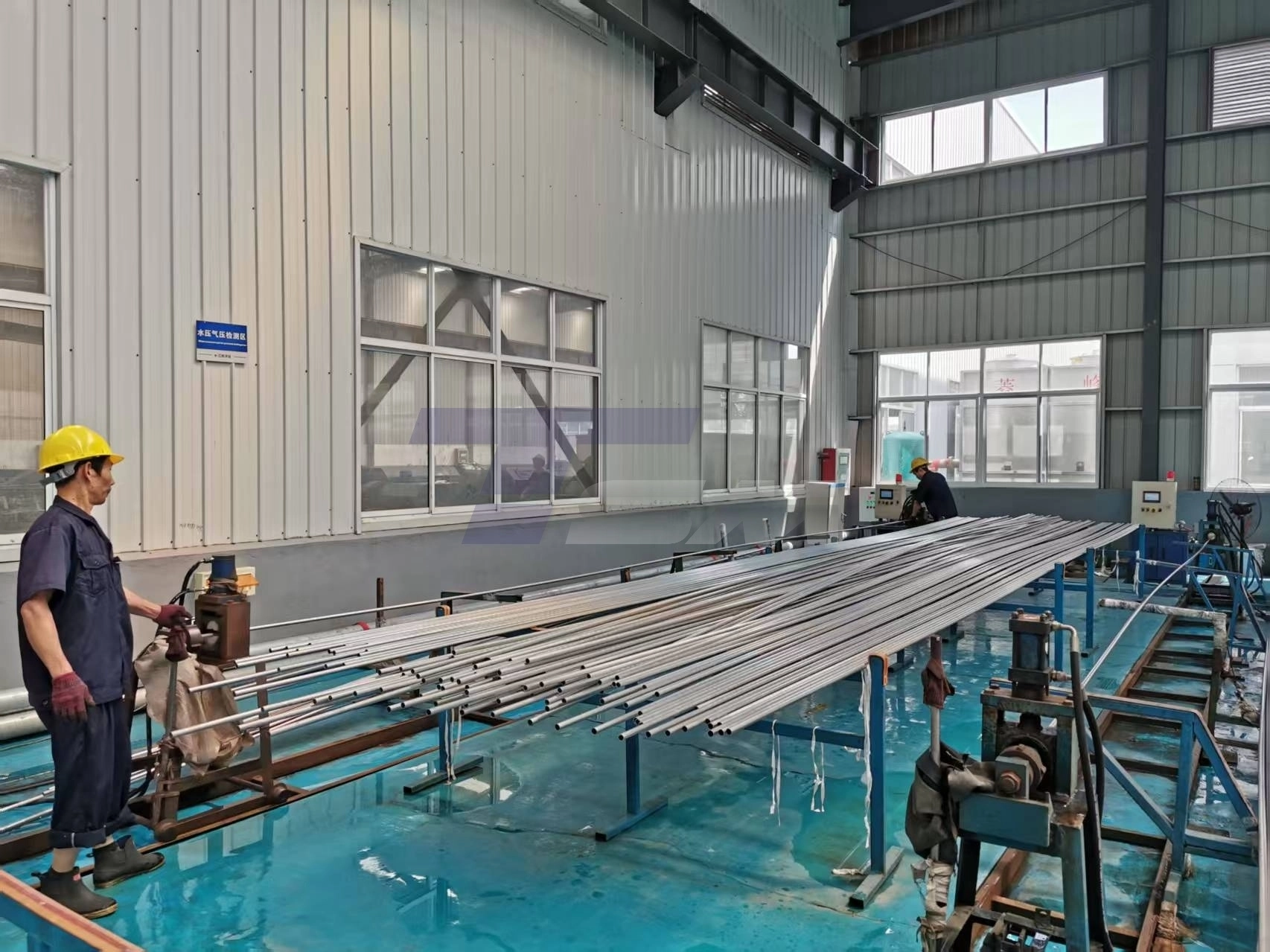

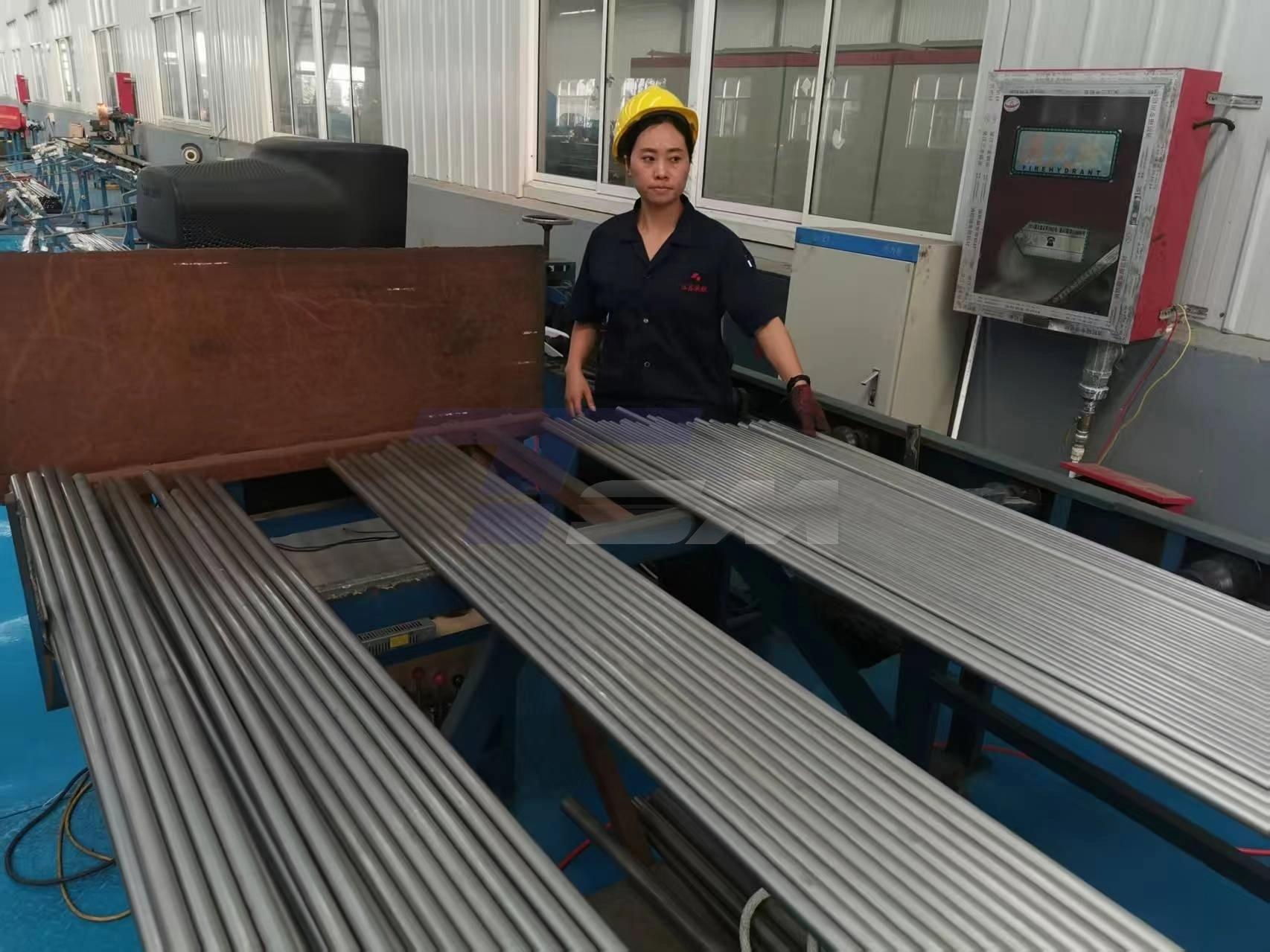

Quality Inspection

TSM Technology maintains ISO 9001, AS9100D, and AS9120 certifications. Our comprehensive testing includes:

• Ultrasonic Testing (UT) – Detects internal flaws and wall thickness variations
• Eddy Current Testing (ECT) – Identifies surface and near-surface defects
• Hydrostatic Testing – Verifies pressure integrity at 1.5× working pressure
• Radiographic Testing – Examines internal structure for voids
• Dimensional Inspection – Confirms OD, WT, and length specifications
• Chemical Analysis – Ensures composition meets ASTM standards
• Mechanical Testing – Validates tensile strength and elongation properties

Full traceability documentation accompanies every order, including QAC, ITP, and MTR certificates.

Why Choose TSM Technology?

14+ Years of Proven Experience

We've supplied Monel 400 Seamless Tube to clients in 70+ countries. Your project benefits from our deep expertise in high-performance alloys.

Advanced Manufacturing Facility

We have a 50,000㎡ plant that contains more than 100 precision machinery. With 200 tons/month manufacturing capability, you receive constant quality.

Aerospace-Grade Quality Standards

AS9100D certification demonstrates our commitment to precision. We supply materials for large aircraft projects requiring absolute reliability.

Comprehensive Material Portfolio

Beyond Monel, we offer Inconel, Hastelloy, and High-Temperature Alloys. Your entire alloy procurement needs meet under one roof.

Customization Capabilities

We accommodate special sizes, lengths, and surface finishes. Your unique specifications receive the same rigorous quality control as standard products.

Responsive Technical Support

Our engineering team provides material selection guidance and fabrication advice. You get expert consultation throughout your project lifecycle.

Competitive Lead Times

With 20–45 day delivery and some stock availability, your production schedules stay on track.

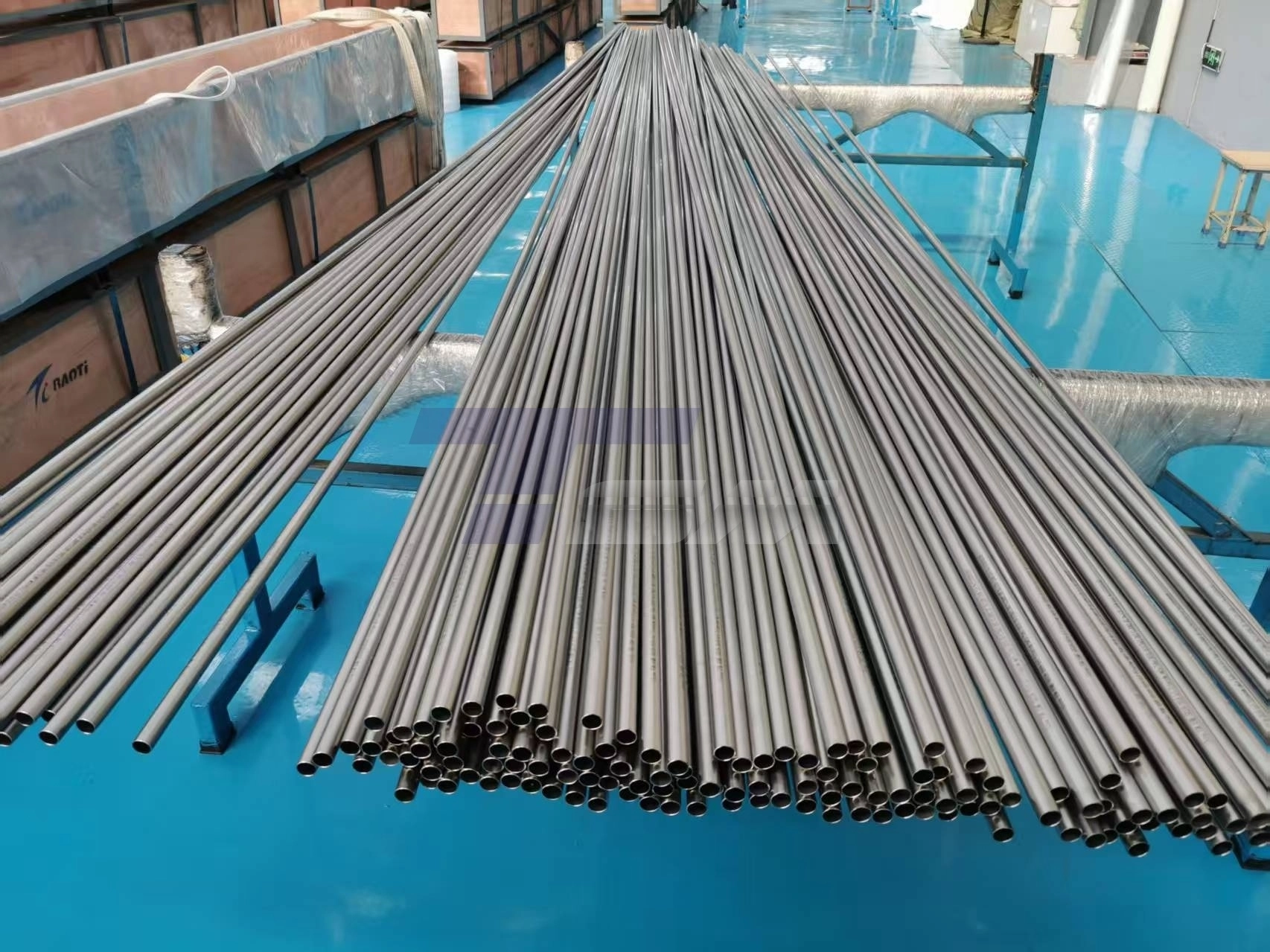

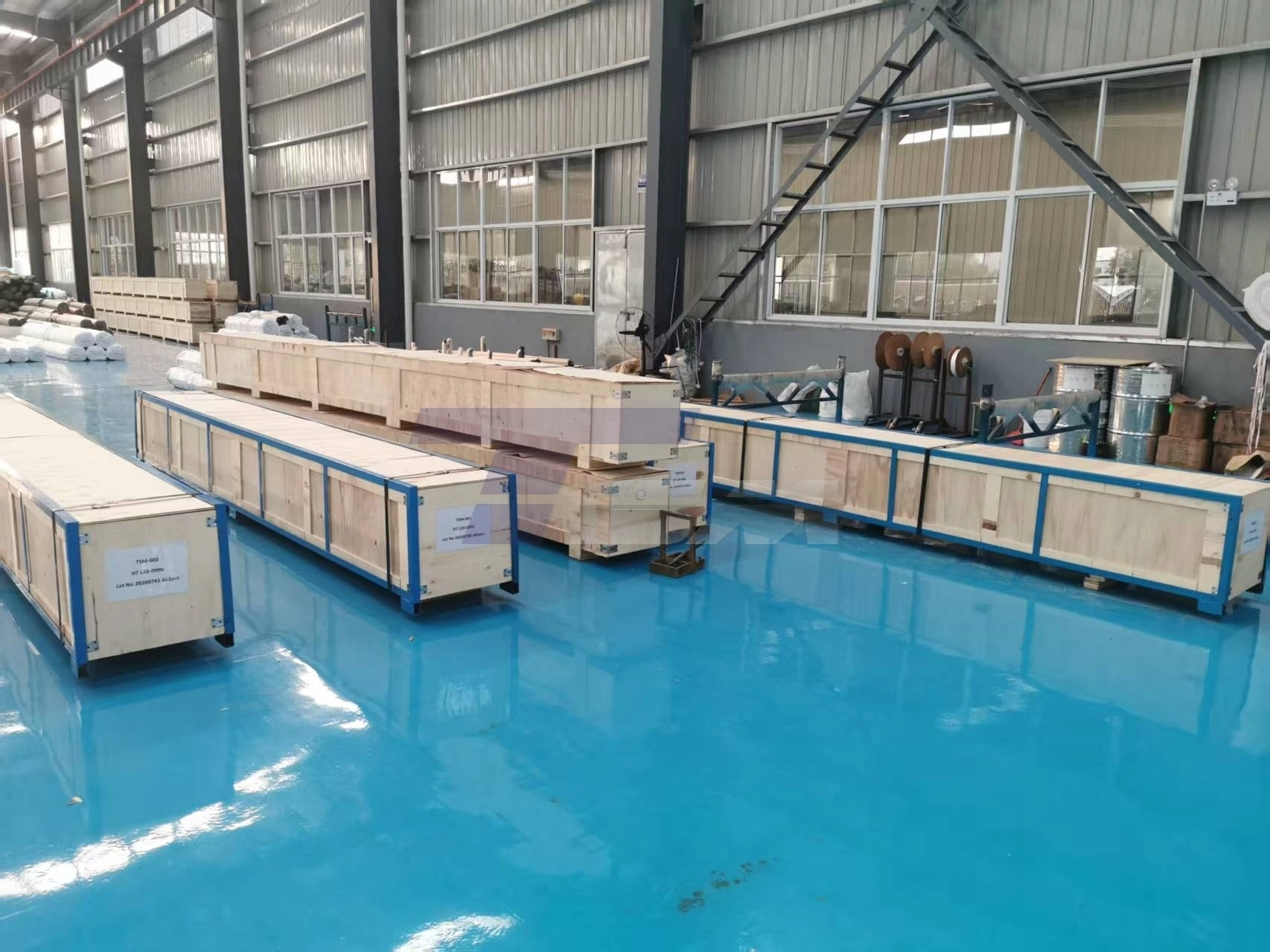

Package and Shipping

Each tube receives individual plastic caps on both ends for protection. Bundles are secured with steel straps and wrapped in waterproof materials.

Wooden cases or plywood boxes provide additional protection for international shipping. All packages include clear labeling with heat numbers and specifications.

Depending on your urgency, we may arrange sea freight, air freight or express delivery. Our expert logistics staff manages customs paperwork and works with goods forwarders.

Average shipping time 7-30 days depending on location.

FAQ

Q: How do the products differ from Monel K500?

A: Monel 400 is corrosion resistant alloy in solid-solution range . K500 has aluminium and Titanium for precipitation hardening. Higher strength less ductility. Use 400 for common corrosion applications and K500 if you require higher mechanical strength.

Q: Can Monel 400 be used in oxidizing acids?

A: It's not suggested for strongly oxidising acids like nitric acid. Rapid attack is caused by the copper content. But it is quite good in reducing conditions like hydrochloric acid and sulphuric acid.

Q: What is the maximum service temperature for the product?

A: You can safely operate up to 538°C (1000°F) in air. Above this temperature oxidation rates rise substantially and mechanical characteristics deteriorate.

Q: Why choose seamless over welded Monel 400 tubes?

A. Seamless tubes are allowed to operate at 20% greater pressure per ASME regulations. They prevent the potential of preferential weld-line corrosion and offer homogeneous wall thickness with no heat impacted zones.

Q: Is Monel 400 susceptible to Stress Corrosion Cracking?

A: Yes, it is virtually impervious to chloride-ion stress corrosion cracking. This is the principal cause of failure of stainless steels in marine atmospheres and chloride solutions.

Q: What certificates do you provide with shipments?

A: Each purchase comes with Material Test Certificates (MTC), Mill Test Reports (MTR) and third party certification from SGS, BV or TUV upon request. We provide complete traceability documentation for aerospace and nuclear applications.

Q: Do you have bespoke sizes outside of your usual sizes?

A: Totally. We are flexible in our manufacture and can accept specific dimensions, lengths up to 12 m and unique surface treatments. Kindly contact our technical staff with your exact requests.

Contact Us

Ready to source reliable, high-performance Monel 400 Seamless Tube tubing for your critical applications? Contact TSM Technology today at info@tsmnialloy.com for technical specifications, quotations, and expert material selection guidance.
