Nickel 200 Seamless Tube – High-Purity Wrought Nickel Solution

TSM Technology manufactures Nickel 200 Seamless Tube enterprise-grade seamless tubes with 99.0% minimum nickel purity, engineered to ASTM B161 and ASME SB161 standards. Our seamless construction eliminates weld seams and Heat Affected Zones, providing superior structural integrity for high-pressure chemical reactors and alkaline processing systems. With production capacity reaching 100–200 tons monthly across sizes from OD 6–219 mm and wall thickness 0.5–15 mm, we ensure tight tolerances and consistent quality through our 50,000㎡ facility equipped with over 100 precision machines.

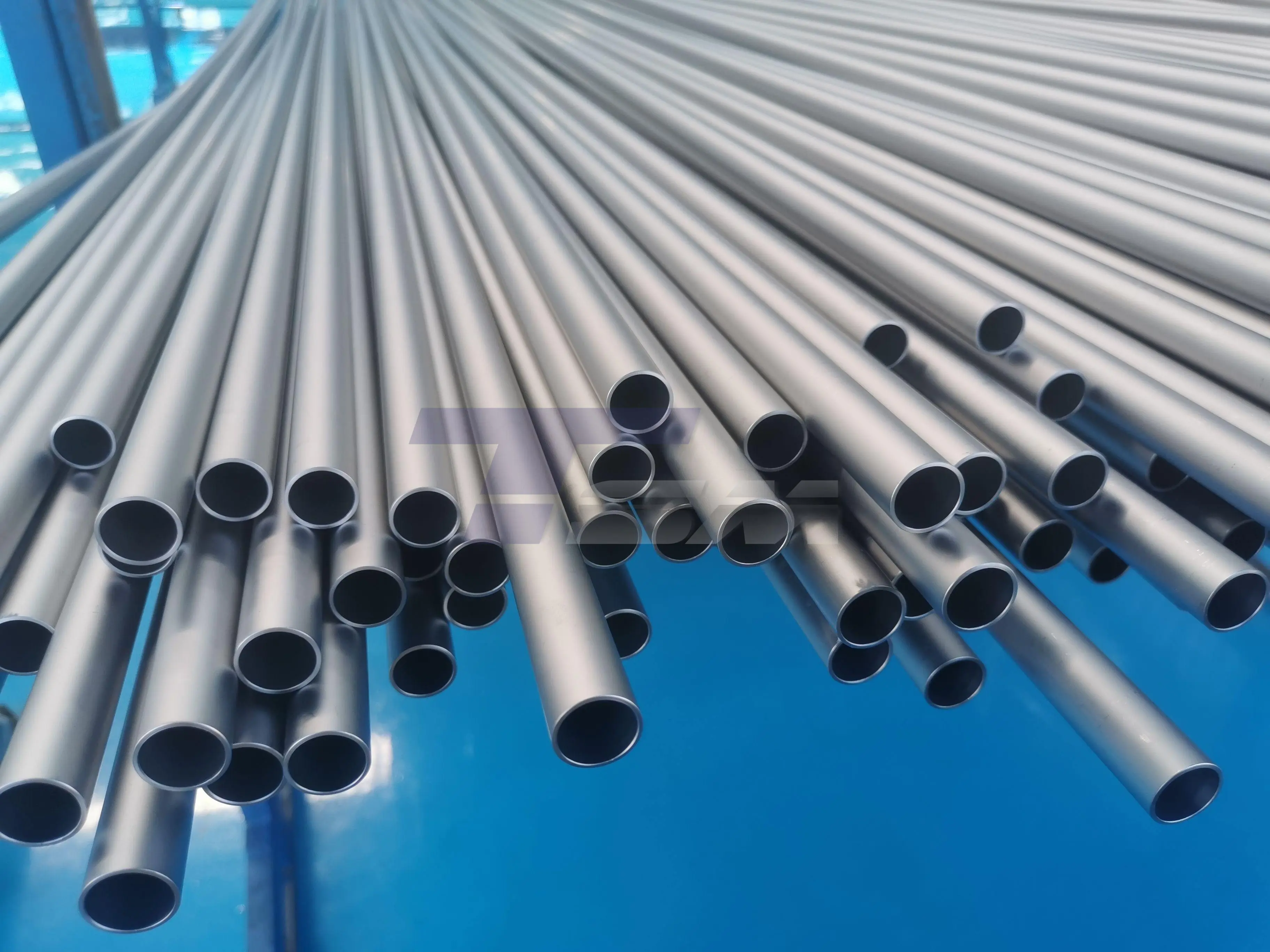

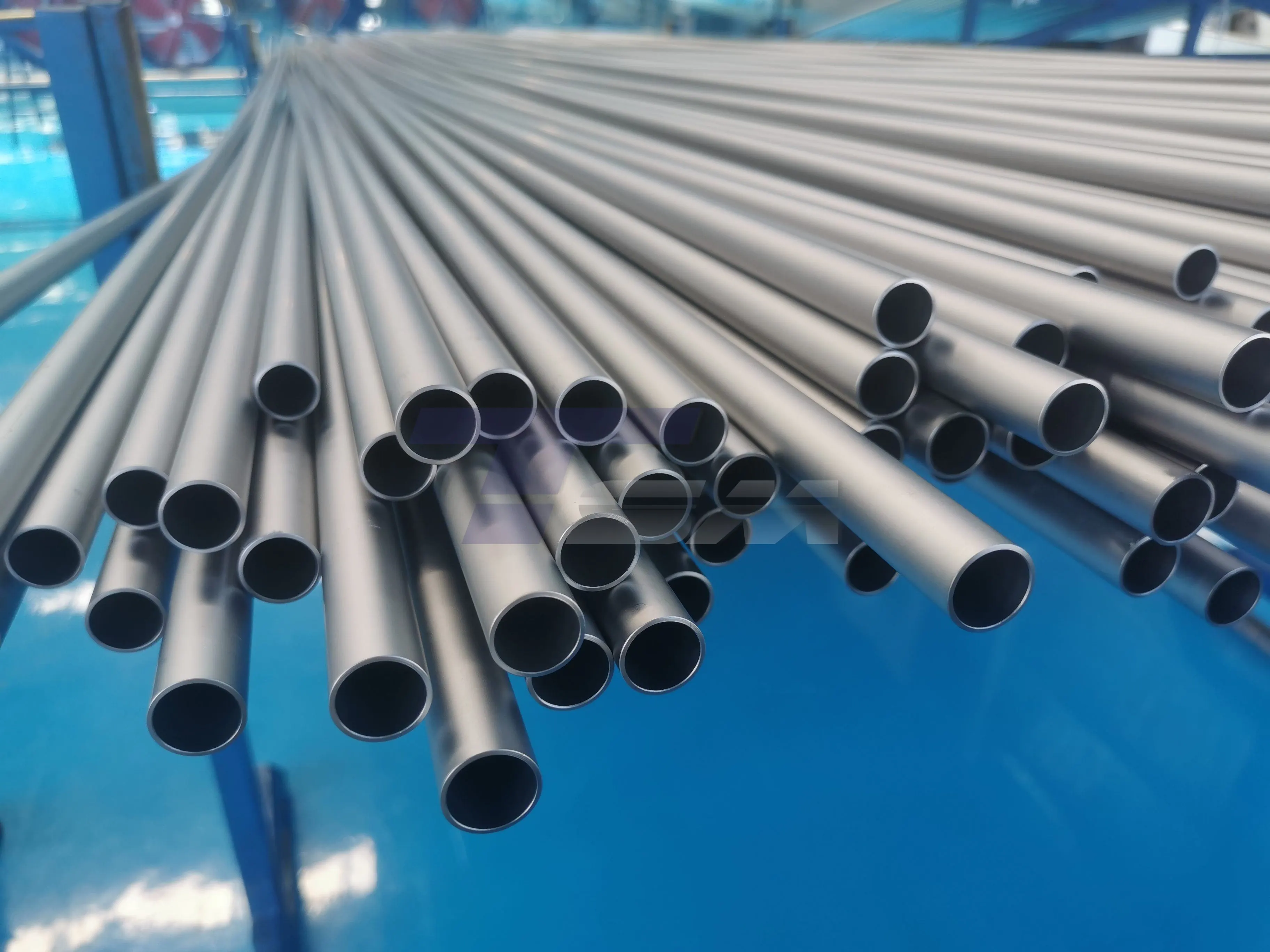

What Are Nickel 200 Seamless Tubes?

These are commercially pure wrought nickel products manufactured through cold-drawing or extrusion processes. The seamless structure ensures continuous material integrity without welded joints. This construction method provides uniform corrosion resistance and exceptional mechanical properties throughout the tube wall. They are essential when working with solutions of sodium hydroxide or in applications with high thermal conductivity. The design with no weld seams removes the possible weak places where stress corrosion cracking often occurs.

Specification

Physical and Chemical Properties

Product Standards

Our manufacturing strictly adheres to international specifications:

• ASTM B161 – Standard Specification for Nickel Seamless Pipe and Tube
• ASTM B829 – Standard Specification for Nickel and Nickel-Cobalt Alloy Welding Fittings
• ASME SB161 – Boiler and Pressure Vessel Code compliance
• JIS H4552 – Japanese Industrial Standards
• DIN 17742 – European standards for nickel tubes

All goods are provided with comprehensive Material Test Certificates (MTC) and third-party certifications from SGS, BV or TUV upon request.

Application

Chlor-Alkali Industry: Heating elements and evaporator tubes for concentrated caustic solutions where pitting corrosion would kill conventional materials in a matter of months.

Synthetic Fibre Manufacturing: Piping systems for viscose rayon manufacturing where little amounts of contamination effect product quality and market price.

Vacuum systems and electronic shielding for aerospace components that need low vapour pressure and reliable operation in challenging conditions.

Chemical Processing Reactors and heat exchangers for acid- and neutral salt solutions.

Food Processing Equipment: Where product purity is a regulatory requirement and a non-negotiable.

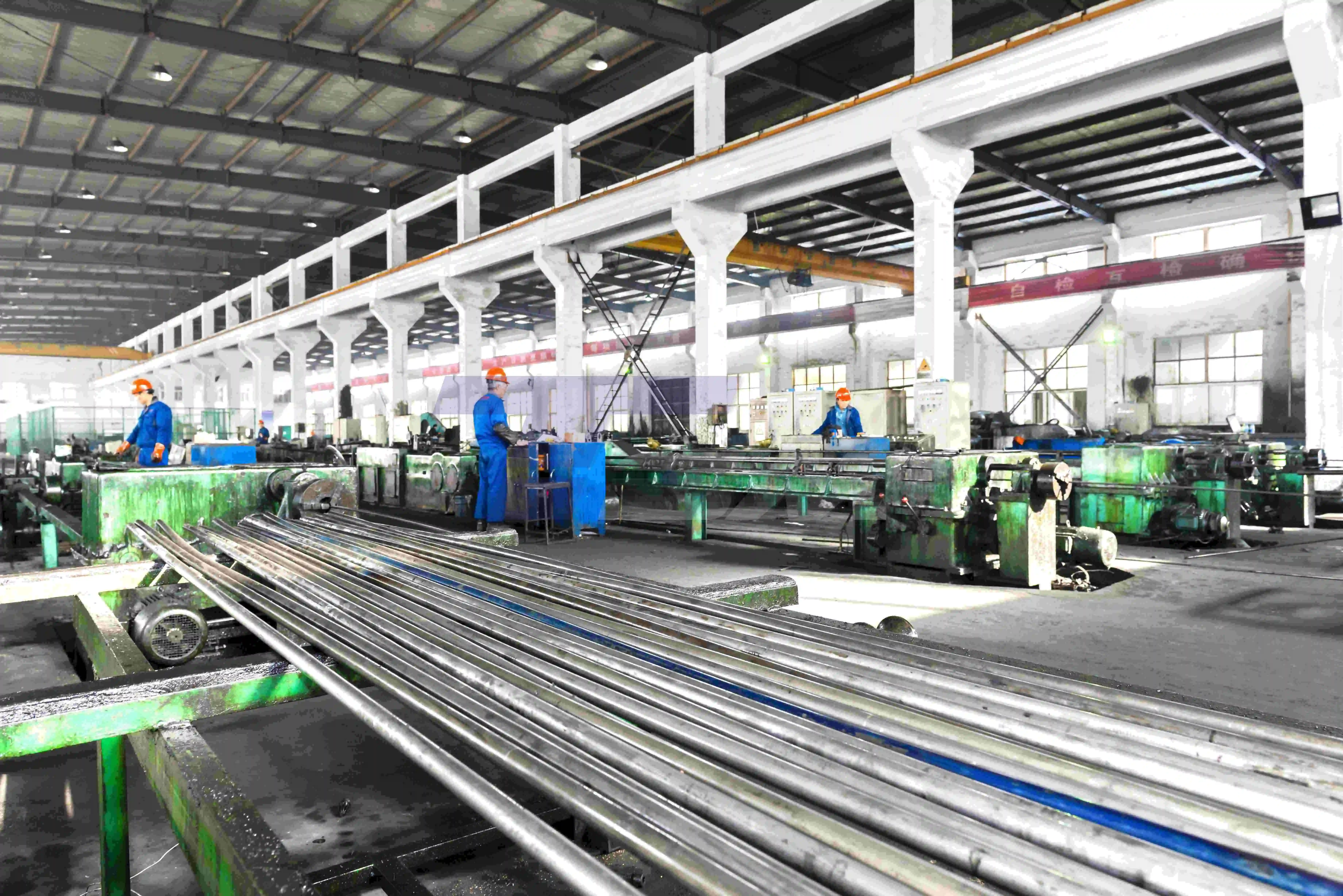

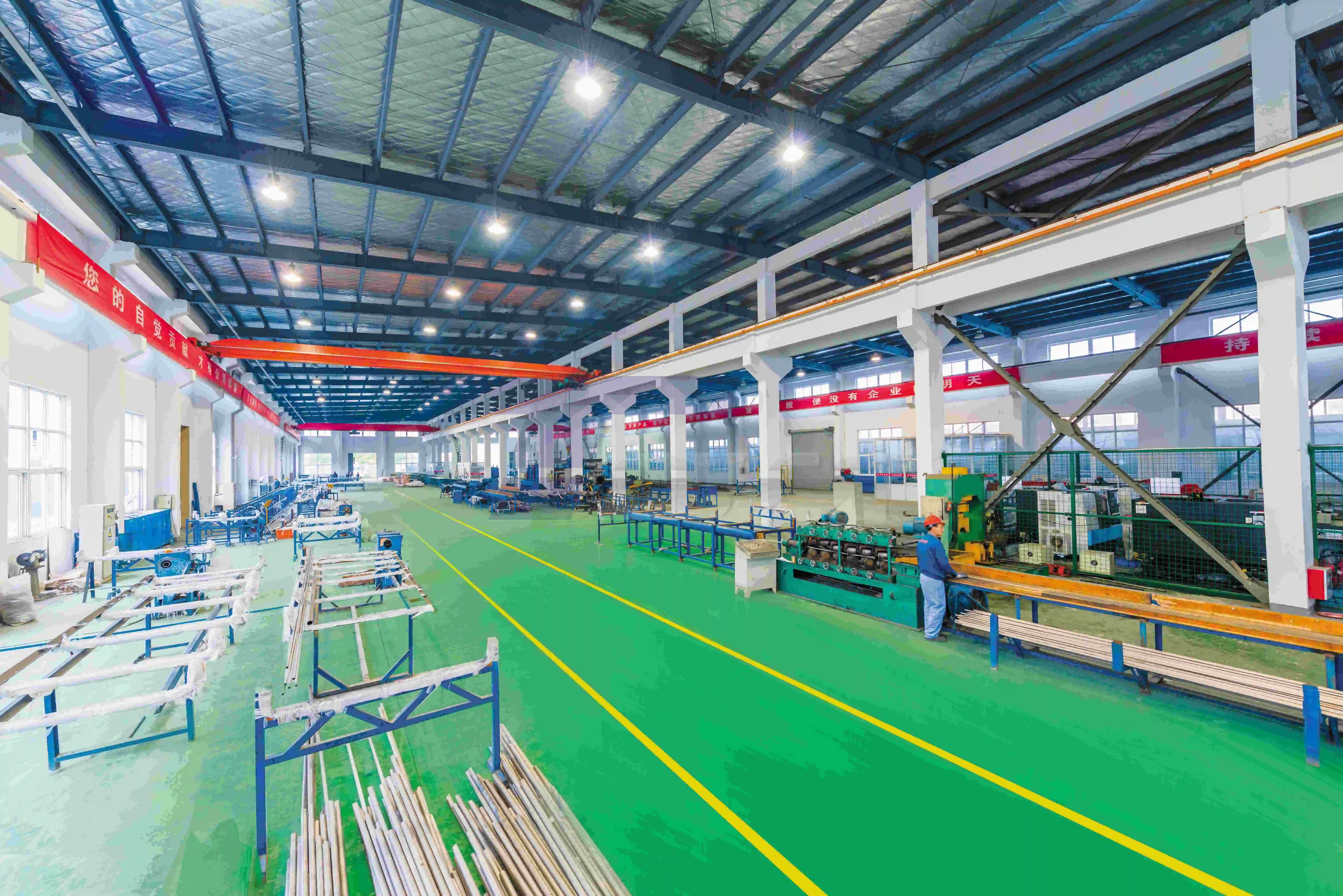

Factory

TSM Technology has integrated production capabilities in its contemporary manufacturing facility. Our forge shops, cold drawing lines and heat treatment shops are under cleanroom grade environmental controls. Our inspection laboratory is equipped with state-of-the-art testing equipment including spectrum analysers, ultrasonic flaw detectors and hydrostatic testing stations. This vertical integration allows quality control at each level of manufacturing. Regularly we showcase our capabilities at international exhibitions like Tube China, ADIPEC and Offshore Technology Conference where we interact with industry partners across the world.

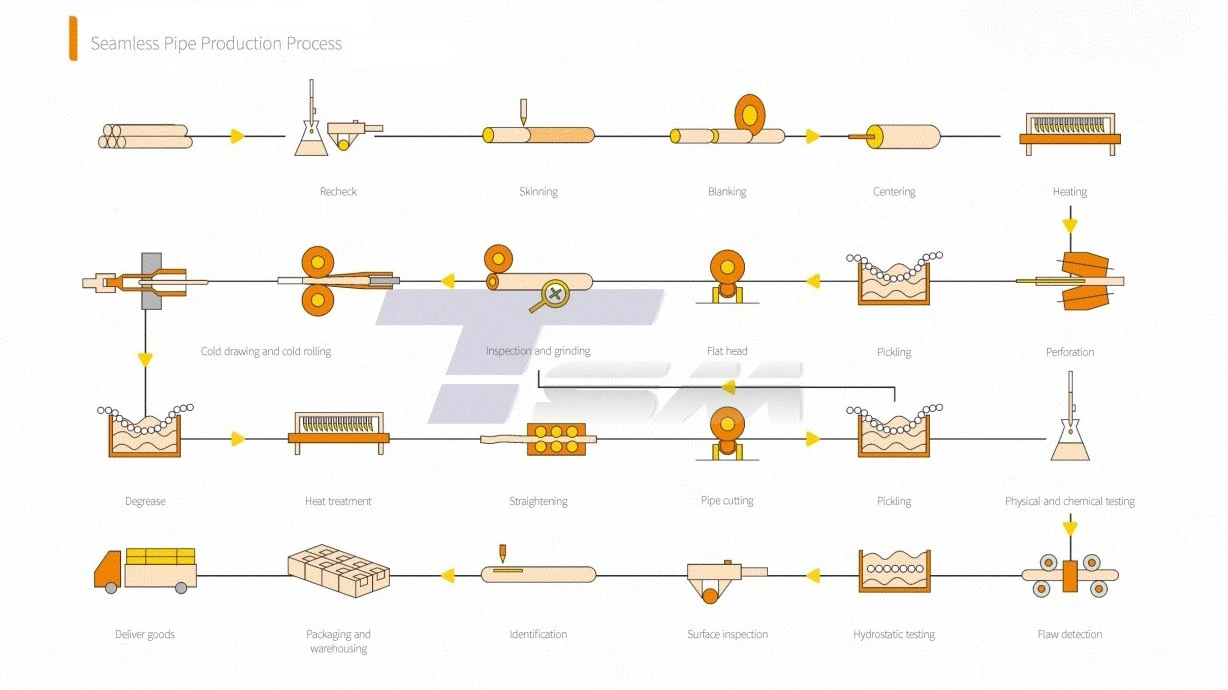

Processing and Production Technology

TSM Technology uses state-of-the-art production methods for precision-engineered tubes. Our procedure starts with high purity raw materials from certified vendors, providing constant chemical composition.

What Is the Production Process of Nickel 200 Seamless Tubes?

Step 1: Material Selection

We source 99.0%+ pure nickel billets verified through Optical Emission Spectroscopy (OES).

Step 2: Hot Extrusion

Billets are heated to optimal forming temperature and extruded through precision dies to create initial tube profiles.

Step 3: Cold Drawing

Final dimensions are obtained by many cold-drawing passes via tungsten carbide dies with tolerances within ±0.05 mm.

Step 4: Heat Treatment

Bright annealing in controlled environment furnaces is used to release internal tensions and to optimise mechanical characteristics.

Step 5: Finishing the surface

Pickling, polishing or brilliant annealing techniques will give you your desired surface finish.

Step 6: Straightening and Cutting

Precision straightening equipment ensures Nickel 200 Seamless Tube concentricity before cutting to your required lengths.

Quality Inspection

Each tube is subjected to rigorous multi-tier examination prior to shipment:

Non-Destructive Testing: Ultrasonic Testing (UT) ASTM E213 for internal defects. Eddy Current Testing (ET) Detects sub-surface and surface flaws.

Hydrostatic Testing : Pressure testing demonstrates your containment capabilities for your operational settings.

Chemical Verification: Analysis by OES validates nickel content of minimum 99.0% and regulated levels of impurities.

Mechanical Testing: Testing of tensile strength, yield strength and elongation to certify conformity with ASTM B829.

Dimensional Inspection: Wall thickness homogeneity, ovality, and straightness are checked using laser measuring devices to ensure they meet specification limitations.

Documentation Package: Complete traceability via Material Test Reports, Inspection Test Plans (ITP) and Quality Assurance Certificates (QAC).

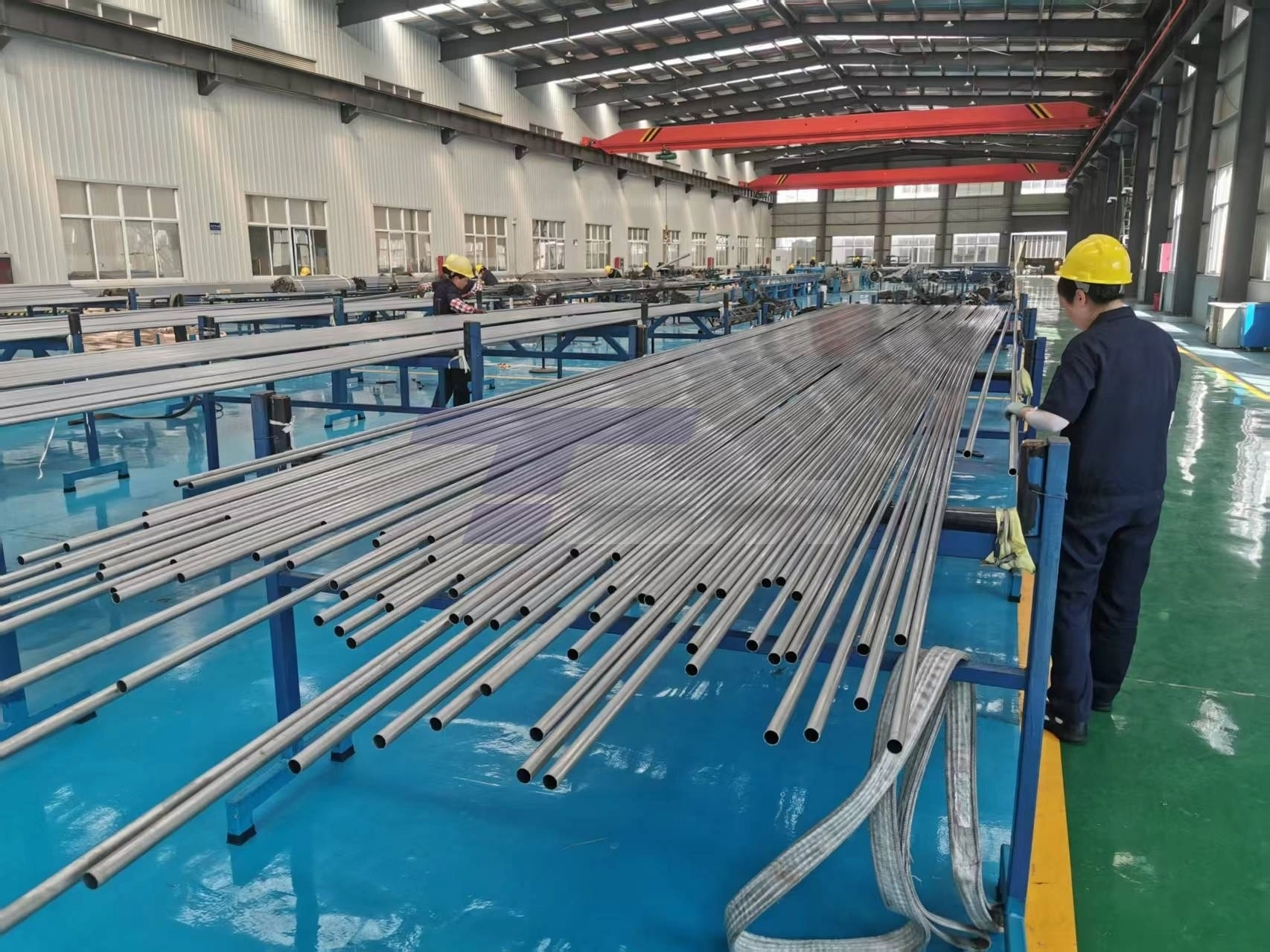

surface inspection

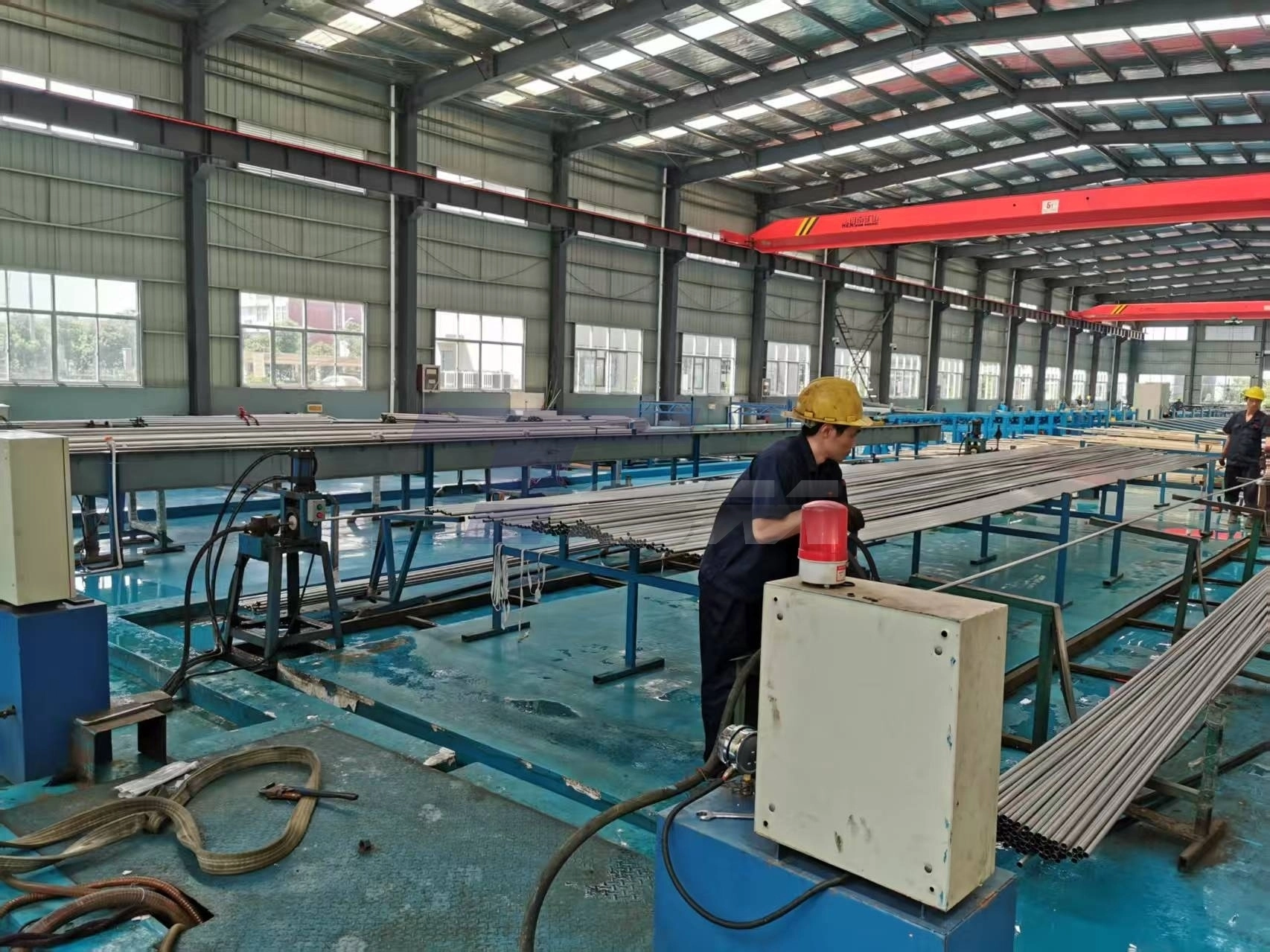

Hydrostatic test

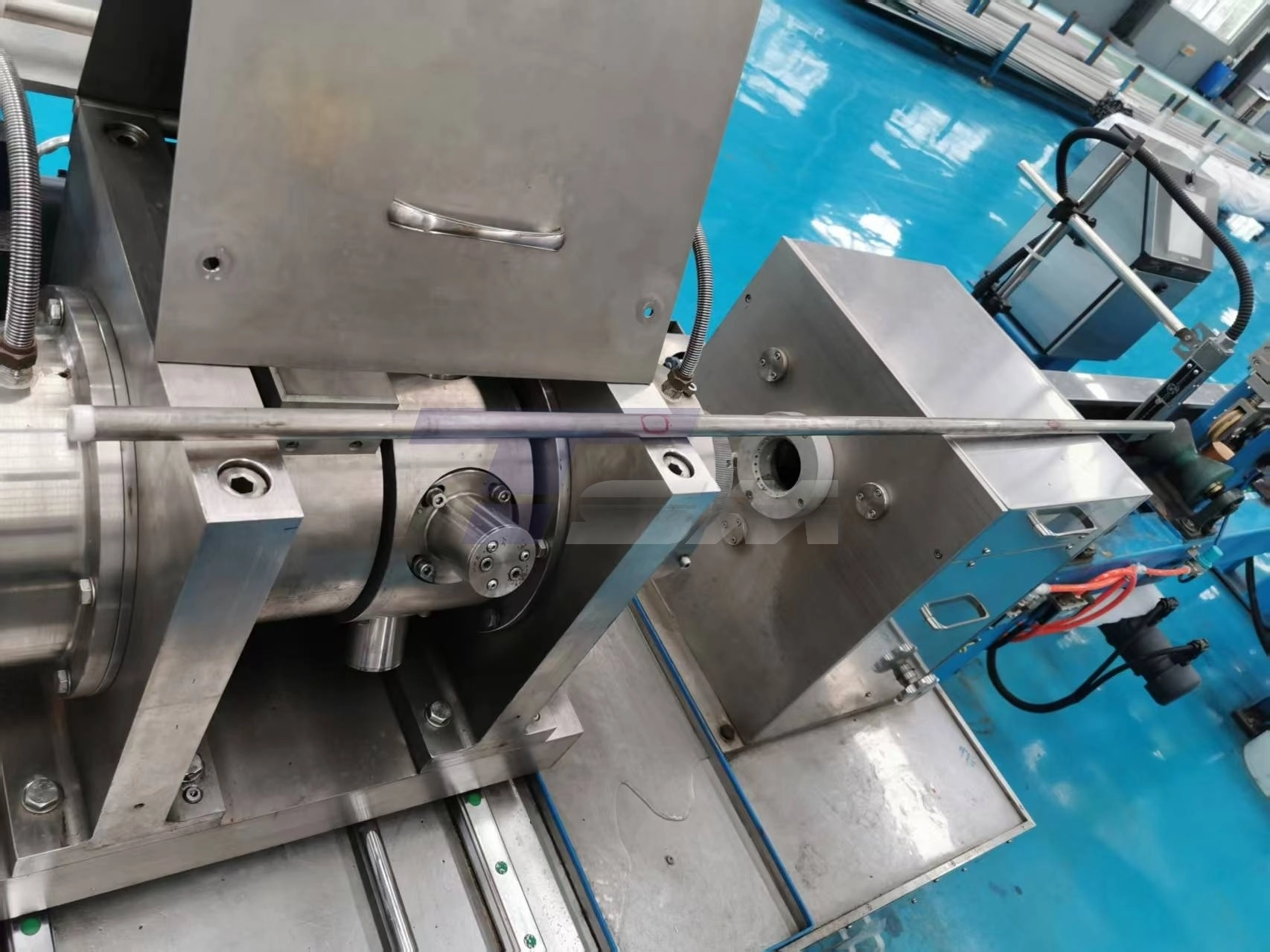

Ultrasonic testing (UT)

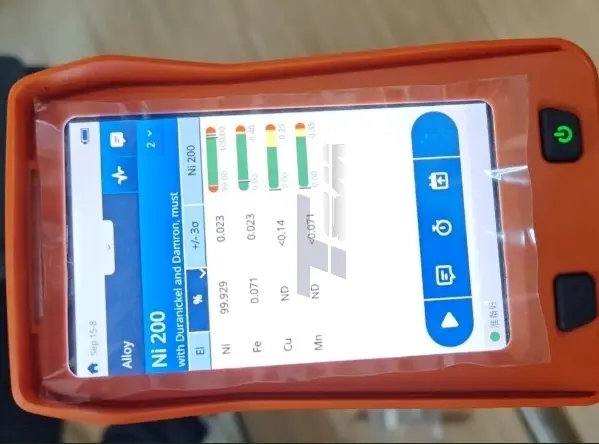

Alloy 200 OES

Why Choose TSM Technology?

Certified Excellence Our certifications of ISO 9001, AS9100D and AS9120 are testaments to our devotion to aerospace-grade quality systems.

Proven Global Footprint: 14+ years servicing customers in 70+ countries, building faith in our dependability and experience.

Advanced Manufacturing Infrastructure 50,000㎡ facility with over 100 precise equipment to accommodate your volume and specification needs.

Technical Support Our engineers give advice on material selection, manufacturing techniques and unique application issues.

Flexible Production: We customise size and processes according to your project needs, from 50 kg MOQ to huge orders.

Quick Response Time: The dedicated customer service staff answers quotes and technical enquiries within 24 hours.

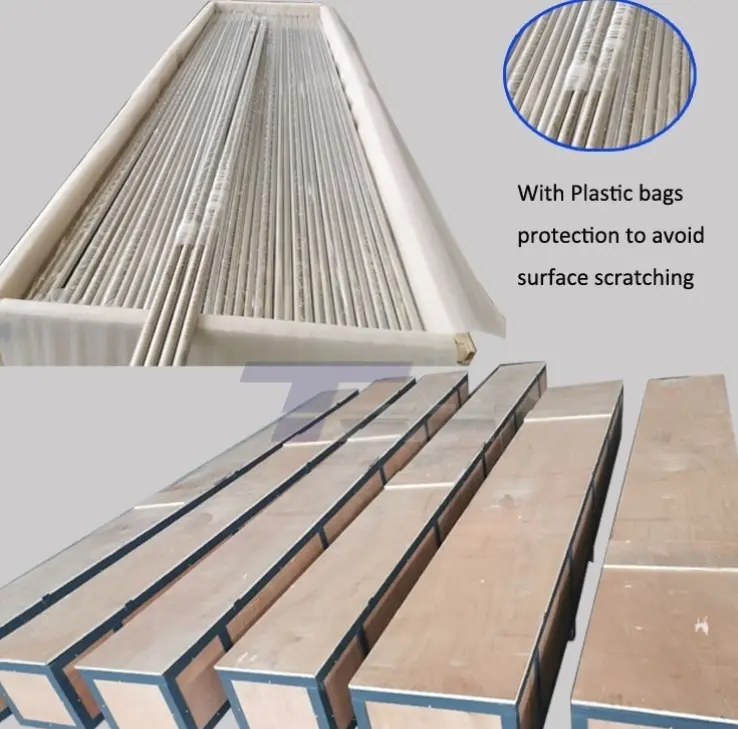

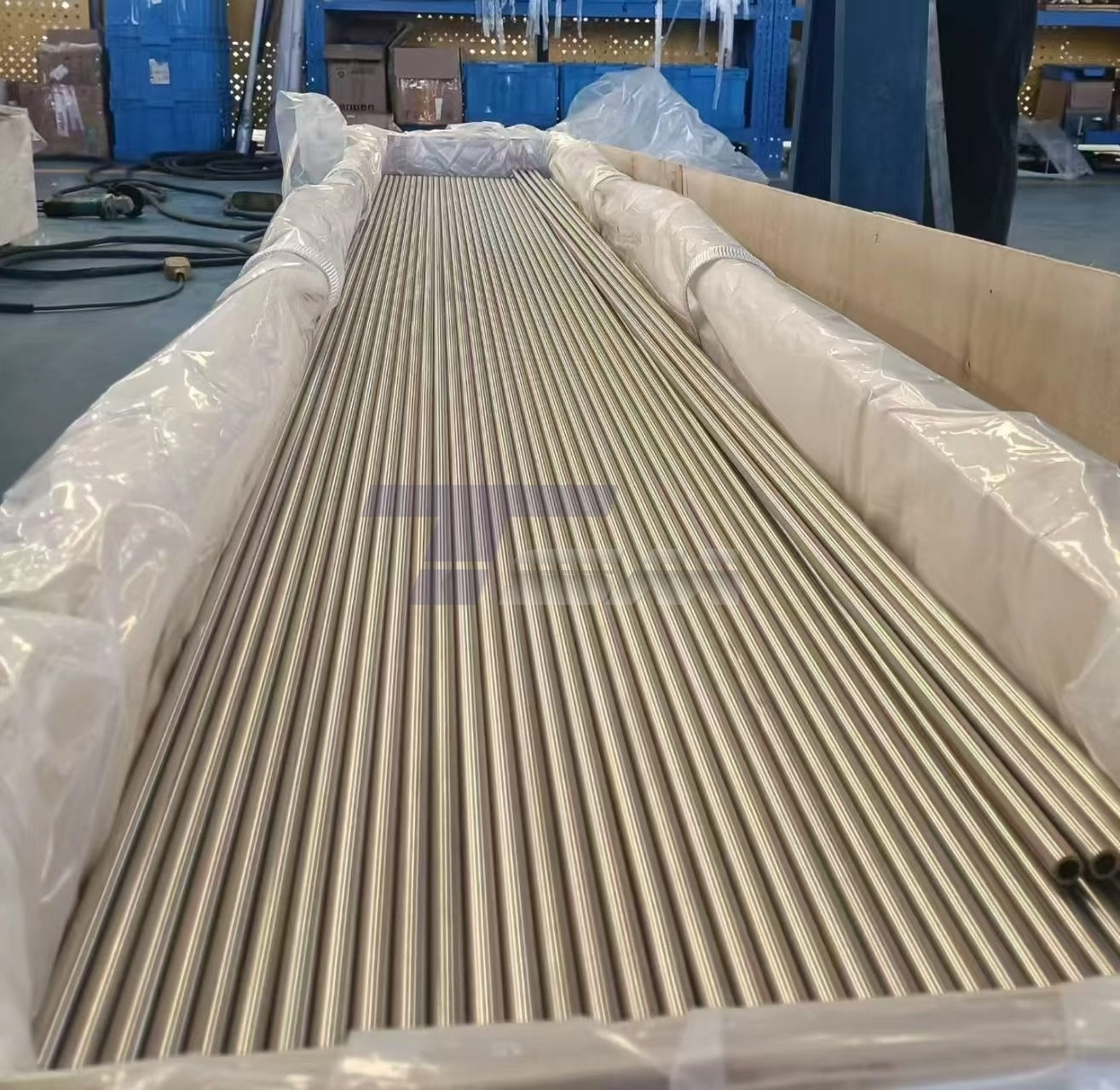

Shipping and Packaging

All tubes are covered with protective plastic film and tied with wooden support to avoid distortion during transportation. For export, packing is done in plywood boxes or steel crates as per ISPM-15 regulations for international shipments. Our Hong Kong hub is our logistics coordination center, providing maritime freight, air cargo and express delivery. Insurance coverage and tracking documents provide peace of mind while delivery occurs.

FAQ

Q: Why is Nickel 200 confined to temperatures below 315°C?

A: Above 315 °C, carbon precipitates as graphite and embrittles. For high temperature service, get the reduced carbon version, Nickel 201.

Q: Are these tubes resistant to hydrochloric acid?

A: Yes, they have very good resistance in deaerated HCl at ambient temperature and decreasing acid conditions. Other alloys are needed for oxidising conditions.

Q: What is the difference between ASTM B161 and B163 specifications?

A. Pipe and tube for general purposes should conform to ASTM B161. Tighter dimensional tolerances for condenser and heat exchanger tubes are specified in ASTM B163.

Q: Can I use Nickel 200 tubes for marine applications?

A: They are resistant to moving saltwater but may pit in static situations due to marine fouling. Marine conditions need regular upkeep.

Q: How can I know that stuff on site is real?

A. Nickel 200 is paramagnetic at normal temperature. The simple magnet test for Positive Material Identification (PMI) is a rapid field check before installation.

Q: What wall thickness tolerance can you achieve?

A: Standard tolerance is ±10% of nominal wall thickness. For critical applications requiring tighter control, we offer ±5% tolerance through enhanced inspection protocols.

Q: Do you provide material traceability documentation?

A: Absolutely. Every shipment includes MTC showing heat number, chemical analysis, mechanical test results, and full traceability to the raw material source.

Contact Us

Ready to specify Nickel 200 Seamless Tube for your next project? Our technical team is standing by to discuss your requirements. Email us at info@tsmnialloy.com for quotations and engineering support.
