Nickel Alloy SO Flange

Brand: TSM Technology
Grade: MONEL 400, INCONEL 600/625
3 factories*8 production lines*70+ machines
Supply Ability: 300 Tons/month
Standards: ASTM B564 / ASME SB564 / ASME B16.5
Size：1/2″ (15 NB) to 48″ (1200 NB)
Customized size and processing are supported
Delivery time: Usually about 10-25 days（According to your order quantity）
Payment terms: T/T, L/C, Paypal, West Union or as required
Provide Free sample
Send Inquiry
Download
Product Description

Nickel Alloy SO Flange Manufacturer and Supplier

Looking for a high-quality Nickel Alloy SO Flange that meets demanding industry standards? TSM Technology Co., Ltd. is your trusted global supplier. With 14 years of experience and a strict quality control system, we specialize in delivering reliable, corrosion-resistant SO flanges made from superior nickel alloys like MONEL 400 and INCONEL 600/625. Precision-engineered for aerospace, medical, energy, and chemical applications.

What Is a Nickel Alloy SO Flange?

Nickel Alloy SO (Slip-On) Flanges are widely used in high-stress, high-temperature environments. They are designed to slide over the pipe and are typically fillet welded on both sides. This structure makes them ideal for low-pressure and non-critical applications that demand excellent corrosion resistance and strength.

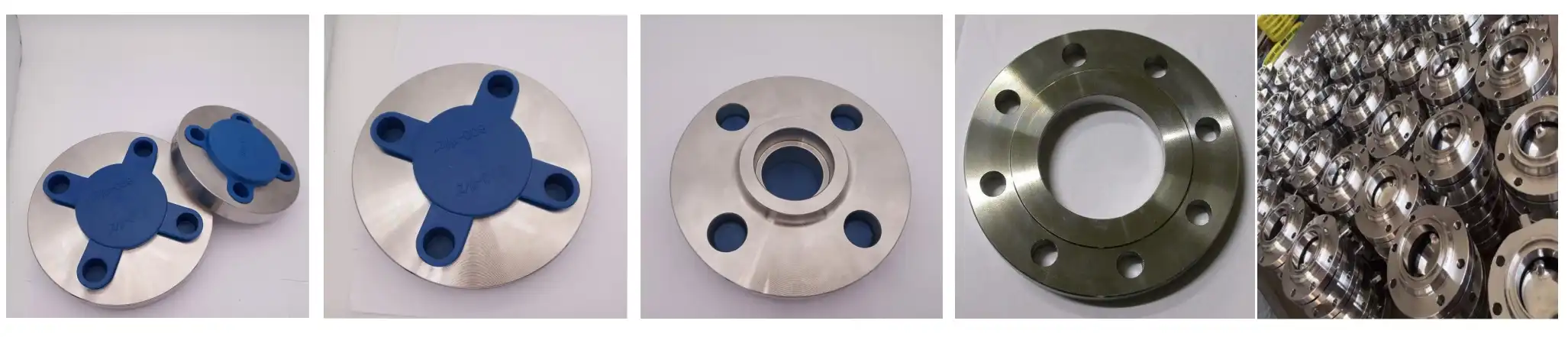

Nickel Alloy SO Flange

Specification

Grade MONEL 400 / INCONEL 600 / INCONEL 625

Standard

 ASTM B564 / ASME SB564 / ASME B16.5

Size Range

 1/2″ (15 NB) to 48″ (1200 NB)

Types Available

 SO (Slip-On), TH (Threaded), BL (Blind), WN (Welding Neck), LJ (Lapped), SW (Socket Weld)

Custom Options

 Size & surface processing customizable

Payment Methods​​​​​​​

 T/T, L/C (negotiable)

​​​​​​​Physical & Chemical Properties

Property MONEL 400 INCONEL 600 INCONEL 625

Nickel Content (%)

 ~67 ≥72 ≥58

Corrosion Resistance

 Excellent Excellent Superior

Tensile Strength (MPa)

 ≥480 ≥550 ≥827

Yield Strength (MPa)

 ≥170 ≥240 ≥414

Operating Temp (°C)

 -100 to 550 -200 to 650 -200 to 980

Standards Compliance

 ASTM, ASME, ISO ASTM, ASME, ISO ASTM, ASME, ISO



Material Grades Available

Nickel 200/201 (UNS N02200/N02201)

Monel 400/K500 (UNS N04400/N05500)

Inconel 600/625/718 (UNS N06600/N06625/N07718)

Hastelloy C276/C22 (UNS N10276/N06022)



Product Standards

Standard Type Applicable Standard Key Requirements
Material Standard ASTM B564 Covers forged nickel alloy slip-on flanges
ASTM B366 Factory-made wrought nickel alloy pipe fittings
Dimensional Standard ASME B16.5 Class 150 to 2500, NPS ½" to 24"
ASME B16.47 Series A/B Large diameter flanges (NPS 26" to 60")
Corrosion Resistance NACE MR0175/ISO 15156 Sulfide Stress Cracking (SSC) resistance
Pressure Testing API 6A Wellhead and Christmas tree equipment standards
Special Applications ISO 13485 Biocompatibility for medical use
NADCAP AC7108 Aerospace quality certification



Features of Nickel Alloy SO Flange

High resistance to corrosive environments (acidic, marine, high-salt)

Stable performance at extreme temperatures

Long service life with minimal maintenance

Smooth inner surface to reduce fluid resistance

Suitable for welding, polishing, and customized finishes

Applications

Our Nickel Alloy SO Flanges are widely used in:

Aerospace: Jet engine parts, high-temperature fittings

Medical Devices: Biocompatible equipment connections

Energy & Petrochemical: Pipelines, valves, heat exchangers

Marine & Offshore: Saltwater piping systems

Semiconductor & Cleanrooms: EP-grade purity for gas systems


What Is the Production Process of Nickel Alloy SO Flange?

  1. Material Inspection: Strict chemical and mechanical analysis

  2. Forging & Heat Treatment: Improves grain structure and strength

  3. CNC Machining: Achieves precision dimensions

  4. Surface Processing: Tailored to your application needs

  5. Final QC & Packing: Includes 100% dimensional and surface checks


Quality Inspection

Every batch undergoes:

  • 100% PMI (Positive Material Identification)
  • Hydrostatic Testing per ASME Section V
  • RT (Radiographic Testing) for weld joints
  • Hardness Testing per ASTM E10
  • Chemical composition testing (Spectrometer)
  • Mechanical testing (Tensile, hardness, impact)
  • Dimension and flatness verification
  • Third-party certification available (SGS, BV, TUV)
  • Traceable Heat No. for full material tracking

After placing an order, we will provide: QAC/ITP/MTR

Our Service


TSM delivers unmatched precision, performance, and reliability in every Nickel Alloy SO Flange we produce. Our advantages include

Global Logistics

Fast and secure delivery backed by inventory and smart warehousing

Precision Engineering

±0.02mm tolerance and custom surface finishes (sandblasting, pickling, EP) for chemical and biomedical use

Complete Quality System

Certified to ISO 9001, ISO 13485, AS9100D, and NADCAP for global compliance

Traceability

Every product is traceable by Heat No. and batch ID

Tailored Solutions

Industry-specific customization for aerospace, medical, energy

Rapid Response:

Agile delivery for urgent R&D and small-lot needs

Packaging & Shipping

Packaging & Shipping

FAQ

Q: Can I get custom dimensions?
Yes, we offer custom machining to your drawings or specs.

Q: Do you support small batch orders?
Absolutely. We support pilot projects and urgent R&D needs.

Q: Can you provide test reports and certifications?
Yes. MTCs, 3.1 certificates, and third-party inspection reports are available.

Q: Do you provide surface polishing?
Yes, including pickling, EP, and Ra≤0.2μm polishing.

Contact Us

Let’s talk about how we can meet your Nickel Alloy SO Flange needs.

📧 Email: info@tsmnialloy.com
