Nickel Alloy WN Flange

Grade:Nickel 201,Monel K500,Inconel 718,Hastelloy C276 Specifications：ASTM B564 / ASME SB564 / ASME B16.5 / B16.47 Size：1/2″ (15 NB) to 48″ (1200NB) Pressure Class: 150# - 2500# Type：TH (THreaded) flange, SO (Slip-On Welding) flange, BL (Blind) flange, SW (Socket Welding) flange, LJ (Lapped) flange, WN (Welding Neck) flange Testing: PMI, hydrostatic, RT Customized size and processing are supported Payment way:T/T, L/C, can be negotitated

Send Inquiry

Download

Product Description

Nickel Alloy WN Flange Manufacturer & Supplier

TSM Technology Co., Ltd. is a leading manufacturer and supplier of Nickel Alloy WN Flange, specializing in premium nickel-based materials. With over 14 years of global supply experience, we offer top-quality flanges made from Nickel 201, Monel K500, Inconel 718, and Hastelloy C276. Our products meet the highest standards for aerospace, medical, petrochemical, and semiconductor industries.

What is a Nickel Alloy WN Flange?

Nickel Alloy WN Flange, also known as a weld neck flange, is a high-performance flange designed with a long tapered hub for butt-welded connections. It ensures superior strength and stress distribution, making it ideal for high-pressure, high-temperature, and corrosive applications.

We supply a wide range of pressure classes from 150# to 2500#, and sizes from 1/2″ (15NB) up to 48″ (1200NB), following international standards such as ASTM B564, ASME SB564, ASME B16.5, and B16.47.

Nickel Alloy WN Flange

Specifications

Category	Details
Grades	Nickel 201, Monel K500, Inconel 718, Hastelloy C276
Types	WN (Welding Neck), TH (Threaded), SO (Slip-On), BL (Blind), SW (Socket Weld), LJ (Lap Joint)
Pressure Ratings	150#, 300#, 600#, 900#, 1500#, 2500#
Testing	- PMI (Positive Material Identification) - Hydrostatic Test - Radiographic Test
Customization	Size, Surface Finish (e.g., polished, coated), Machining (drilling, grooving)

Key Applications

Our flanges are widely used in demanding industries, including:

Oil & Gas: Offshore platforms, sour service pipelines.

Power Plants: High-pressure steam systems.

Marine: Seawater handling systems.

Aerospace – where high strength-to-weight ratio and NADCAP compliance are critical

Medical – meeting ISO 13485 standards for biocompatibility

Energy & Chemical Processing – requiring resistance to sulfide stress cracking (NACE MR0175)

Properties & Features

Property	Description
Corrosion Resistance	Exceptional resistance to acids, chlorides, and marine environments.
Mechanical Strength	High tensile/yield strength, suitable for extreme pressure and temperature.
Heat Resistance	Maintains integrity in high-temperature applications (up to 1000°C for some grades).
Weldability & Sealing	Excellent weldability ensures leak-proof performance under pressure.
Biocompatibility	Polished internal surfaces (Ra ≤ 0.2μm) for medical/pharmaceutical applications.

Production Process

Raw Material Selection – Only certified high-purity alloys from strategic reserves

Forging & Heat Treatment – Tailored to grade requirements

Precision Machining – Achieving ultra-low tolerance

Surface Treatment – Custom options available

Inspection & Testing – PMI, Hydro, RT & mechanical property testing

Packaging & Shipping – Export-ready wooden crates with full traceability

Quality Inspection

We follow a zero-defect approach through:

100% material traceability via Heat No. system

Independent third-party certification

Compliance with ISO 9001, ISO 13485, AS9100D, and NADCAP

Continuous quality audits and documentation

Our Service

Quaerimus socium cooperantem ad res nostras dilatandas.

Global Supply Chain

We've built stable logistics and warehousing hubs in key markets.

Precision Manufacturing

Our flanges exceed standard tolerances and offer custom surfaces (e.g., polished, pickled) for extreme environments.

End-to-End Quality Assurance

From raw materials to final product, our system is certified to ISO 9001, ISO 13485 (medical), AS9100D (aerospace), and NADCAP (heat treatment).

Traceability Management

Each product is tracked with full documentation and Heat No. ID, ensuring reliability.

Advanced Material Technology

We maintain tight control over alloy purity and trace elements to ensure high performance.

Intelligent Logistics

Smart warehouse systems ensure fast delivery and real-time tracking.

Customer Success Stories

Aerospace Client in Germany: Used our Inconel 718 flanges for turbine parts, praised the weld integrity and traceability.

Medical Equipment Manufacturer in the U.S.: Approved our polished Nickel 201 flanges for implant support structures.

Chemical Plant in the Middle East: Switched to our Hastelloy C276 WN flanges for longer service life in acidic pipelines.

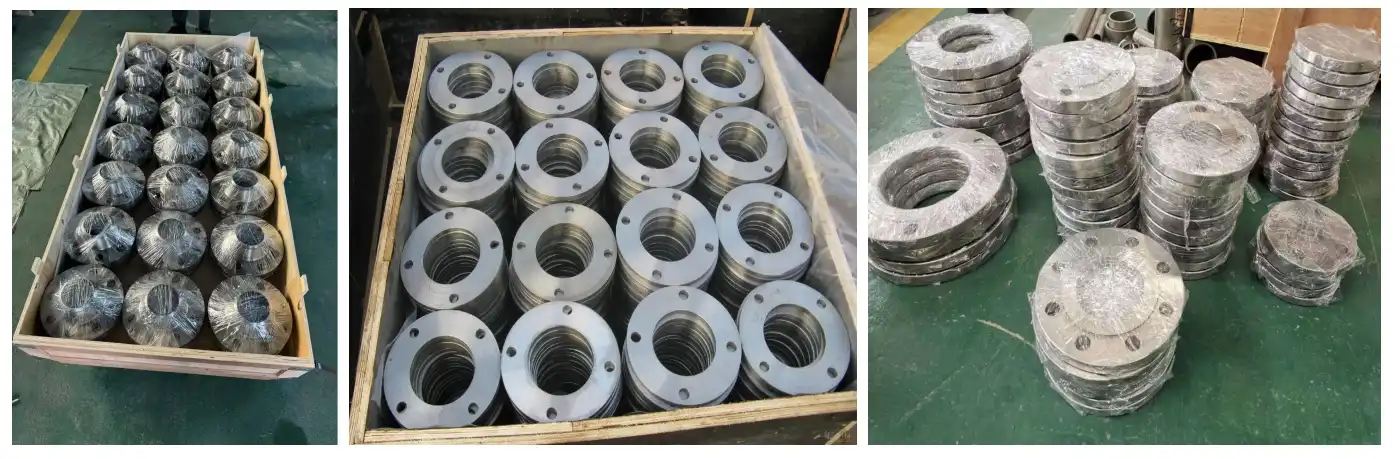

Packaging And Shipping

All flanges are packed in export-grade wooden boxes with anti-rust oil, plastic film, and labeled with heat number and grade. Global shipping options include sea, air, and express.

Packaging & Shipping

FAQ

Q1: Do you offer custom flanges?
Yes, we support custom sizes, surfaces, and small-batch production.

Q2: Can I get a material certificate?
Absolutely. We provide MTCs and third-party test reports upon request.

Q3: What’s your typical lead time?
Standard sizes ship within 7–10 days. Custom items: 15–25 days.

Q4: Do you have NADCAP certification?
Yes, especially for aerospace-grade heat-treated parts.

Contact Us

Have a project in mind or need technical support about Nickel Alloy WN Flange?
📩 Email us at: info@tsmnialloy.com
