Monel Seamless Tube

Monel Seamless Tube – High-Performance Nickel-Copper Alloy Tubing for Extreme Environments

TSM Technology manufactures premium Monel Seamless Tube with a proven monthly production capacity of 100–200 tons. Our tubes are produced using modern extrusion and rotary piercing methods so there are no weld seams. Monel 400 (67% Ni, 23% Cu) and Monel K-500 with precipitation hardening provide corrosion resistance in saltwater. The grades are unparalleled for corrosion resistance in acid chemicals and sour gas (H2S). Our tubes are pressure tight up to 1,000°F (538°C) with an outside diameter of 6–219 mm, wall thickness of 0.5–15 mm and conform to ASTM B165/B829. The AS9100D quality assurance and complete certifications (MTC, SGS, BV, TUV) guarantee the aerospace-grade dependability of each tube.

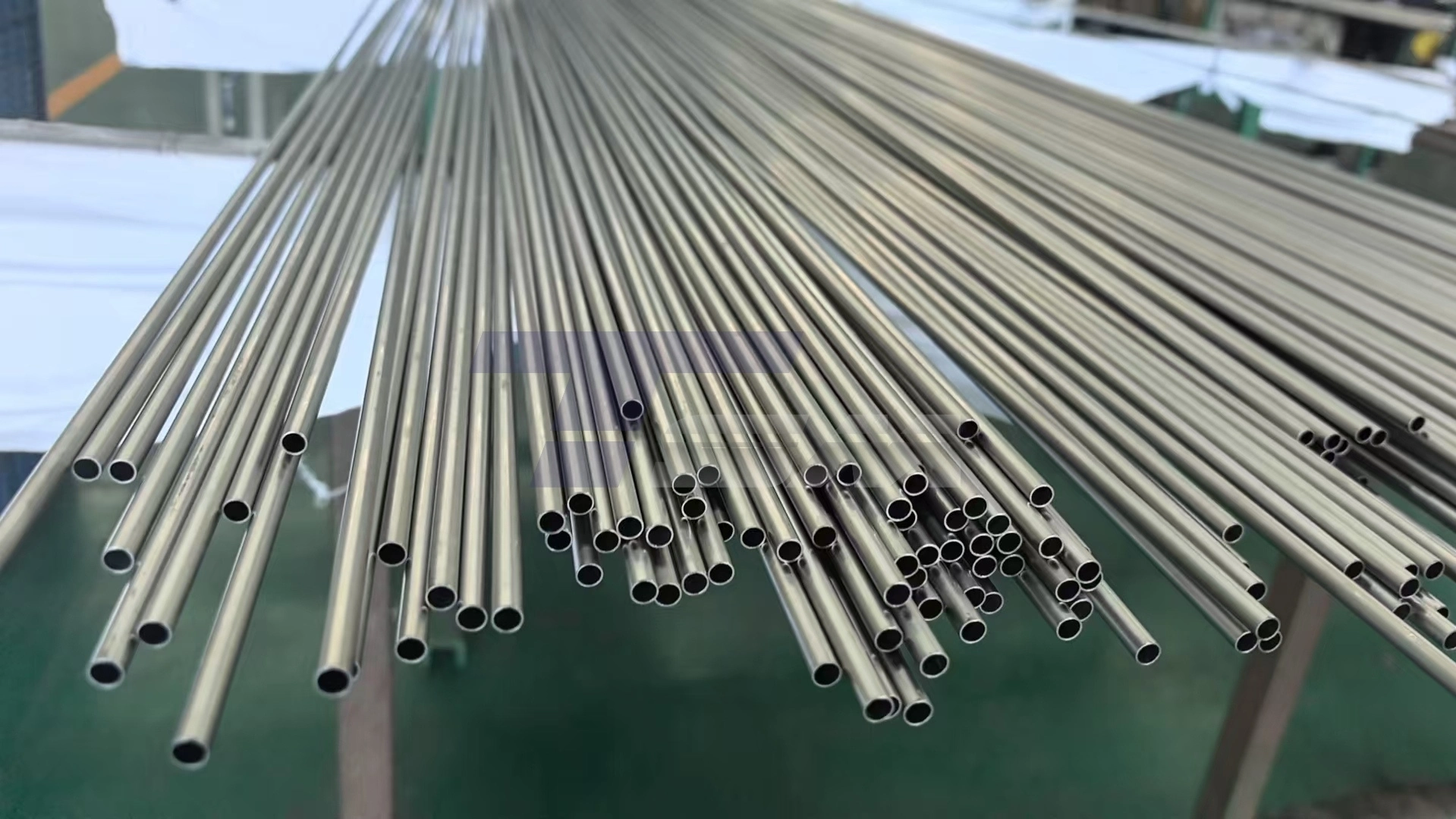

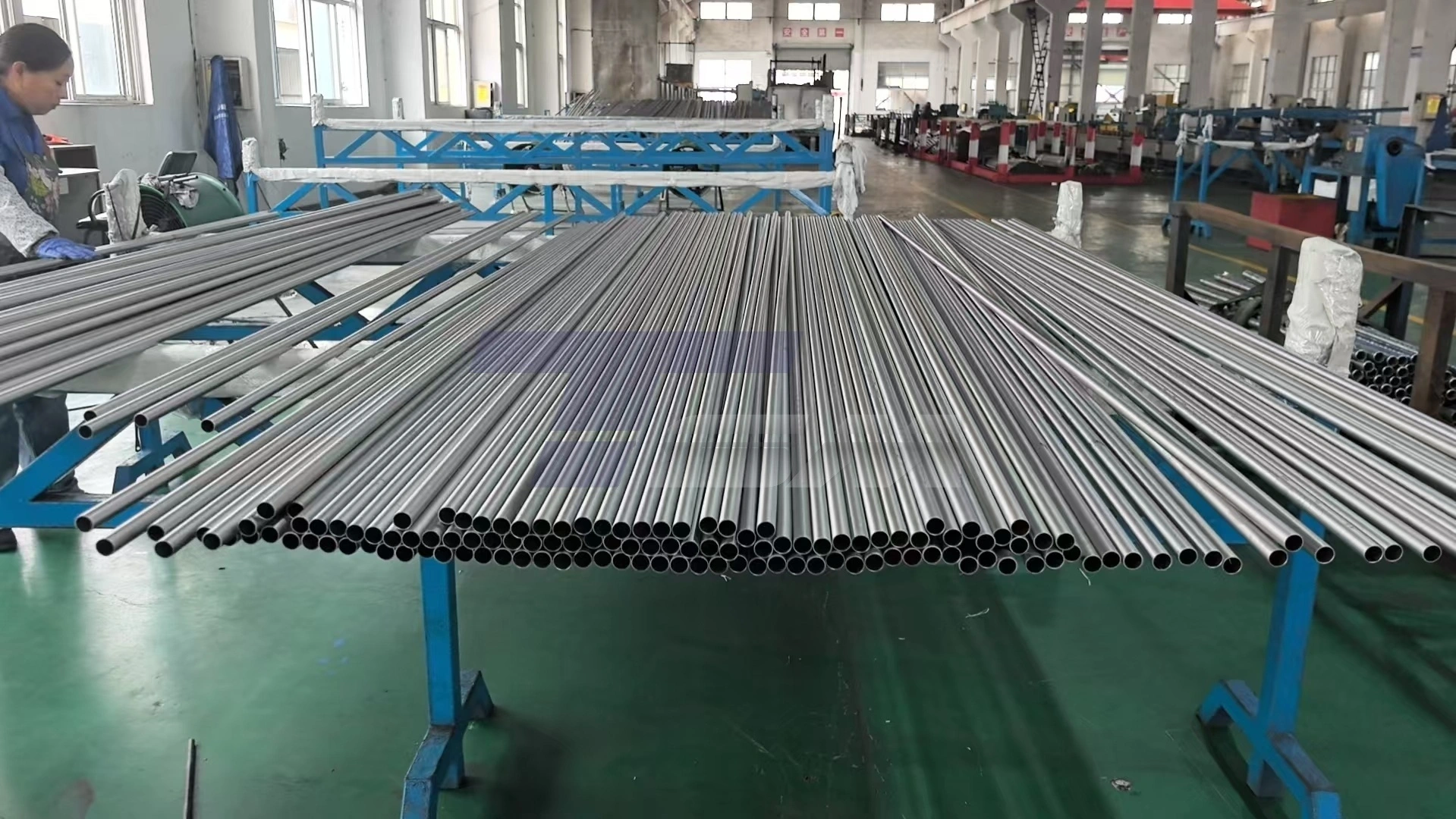

What Are Monel Seamless Tubes?

The product is a continuous tube of high strength nickel-copper alloy. The design is seamless, avoiding heat-affected zones that might weaken the structure, as is the case with welded alternatives. you obtain homogenous grain structure all through the tube wall, which avoids localised corrosion and keeps the pressure ratings stable.

These tubes are generally Monel 400 (UNS N04400) or Monel K-500 (UNS N05500). The solid-solution alloy composition addresses major issues you confront in chloride-rich settings such as seawater piping, hydrofluoric acid handling and downhole oil extraction. If your application calls for zero tolerance for leaks or failures, seamless construction is a must.

Specifications

Physical and Chemical Properties

Product Standards

Our tubes conform to internationally recognized standards:

• ASTM B165 – Specification for Nickel-Copper Alloy Seamless Pipe and Tube
• ASTM B829 – Specification for Monel 400 and K-500 Seamless Tubes
• ASME SB-165 – Pressure vessel code requirements
• JIS H4553 – Japanese Industrial Standard for nickel-copper tubes
• DIN 17743 – European standard for nickel alloys

All products come with full material traceability documentation (MTR), third-party inspection reports (SGS, BV, TUV), and compliance certificates.

What Are the Features of Monel Seamless Tubes?

Applications

Marine Engineering

Monel's resistance to biological fouling and saltwater corrosion applies to your seawater pipe systems, heat exchangers and condensers.

Chemical Processing

When you're working with hydrofluoric acid, alkylation catalysts, or other extremely corrosive compounds, you need tubes that won’t deteriorate or pollute your process streams.

Oil and Gas Extraction and Mining

In sour gas settings containing H2S and CO2 these tubes prevent sulphide stress cracking in downhole equipment, allowing for safe operation.

Aerospace

Rocket engine components and liquid oxygen systems need materials that can withstand embrittlement at very high or low temperatures.

Production of electric power

Monel tubes are used in steam turbine systems and desalination facilities for long term dependability in high temperature and high salinity environments.

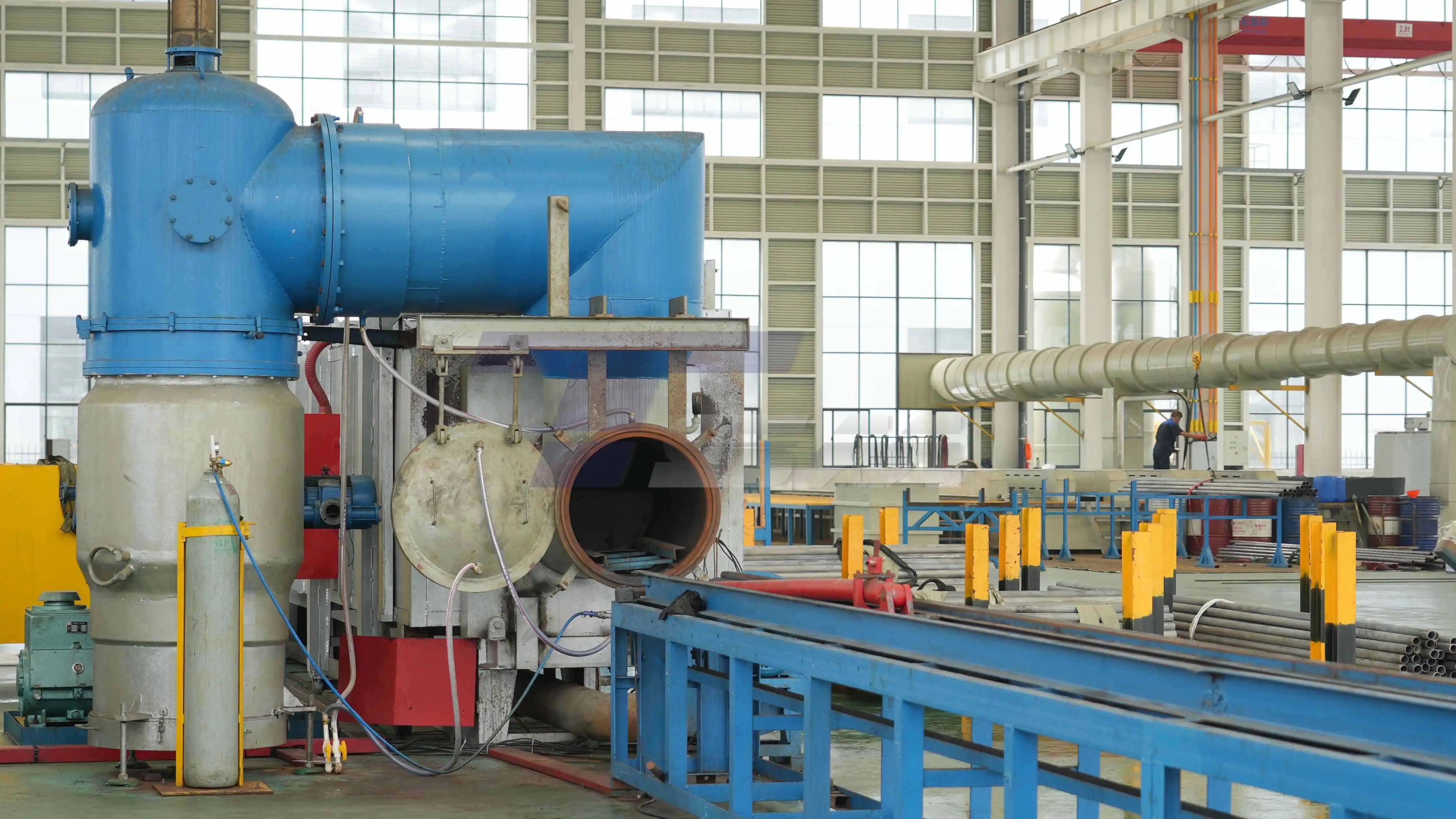

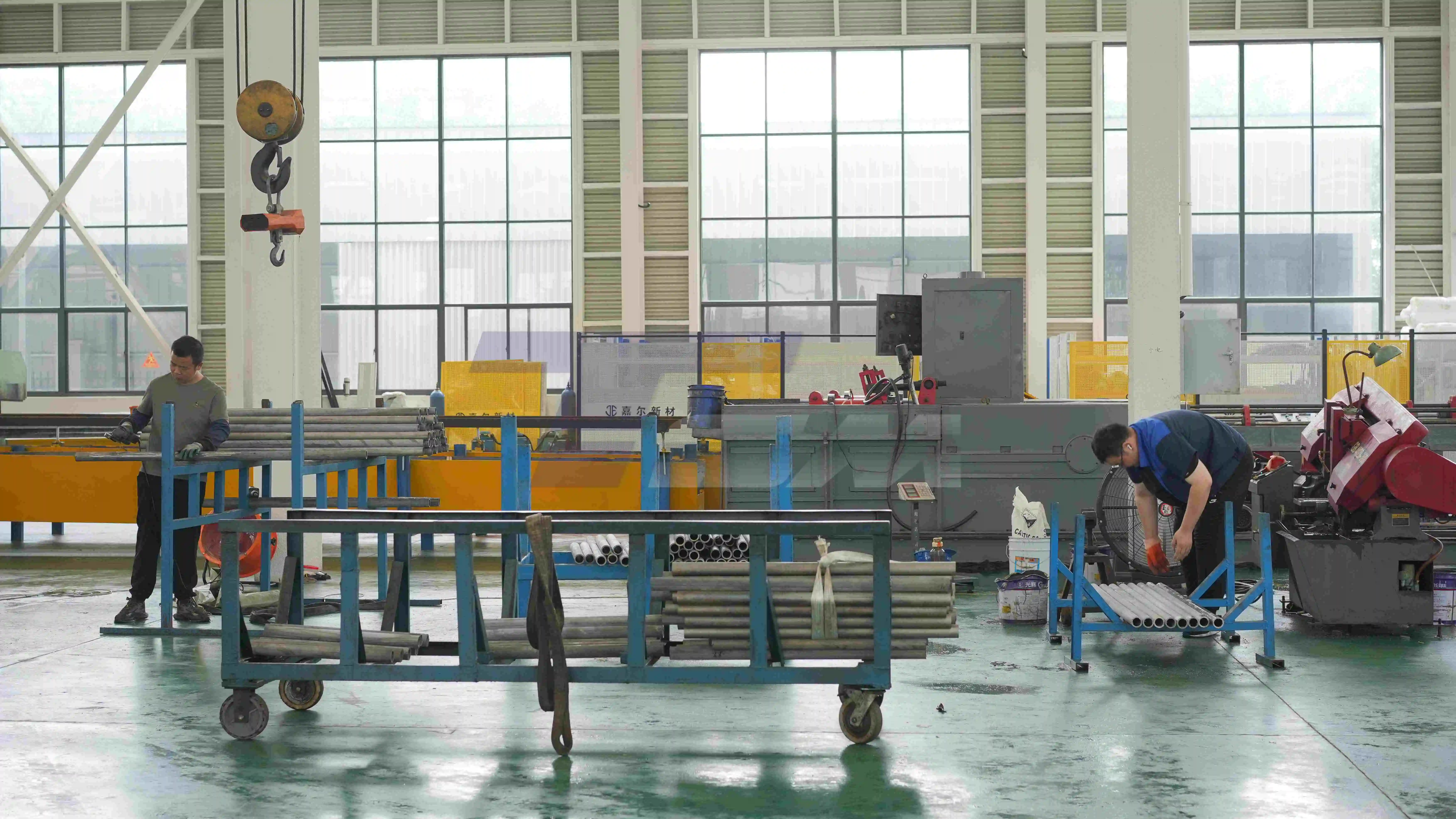

Factory

Our state-of-the-art manufacturing complex integrates:

Vacuum melting furnaces for contamination-free alloy production

Hot extrusion lines with capacity for tubes up to 219mm OD

Cold drawing equipment achieving ±0.05mm tolerance

Heat treatment furnaces with programmable atmosphere control

In-house testing laboratory equipped with spectrometers, tensile testers, and NDT equipment

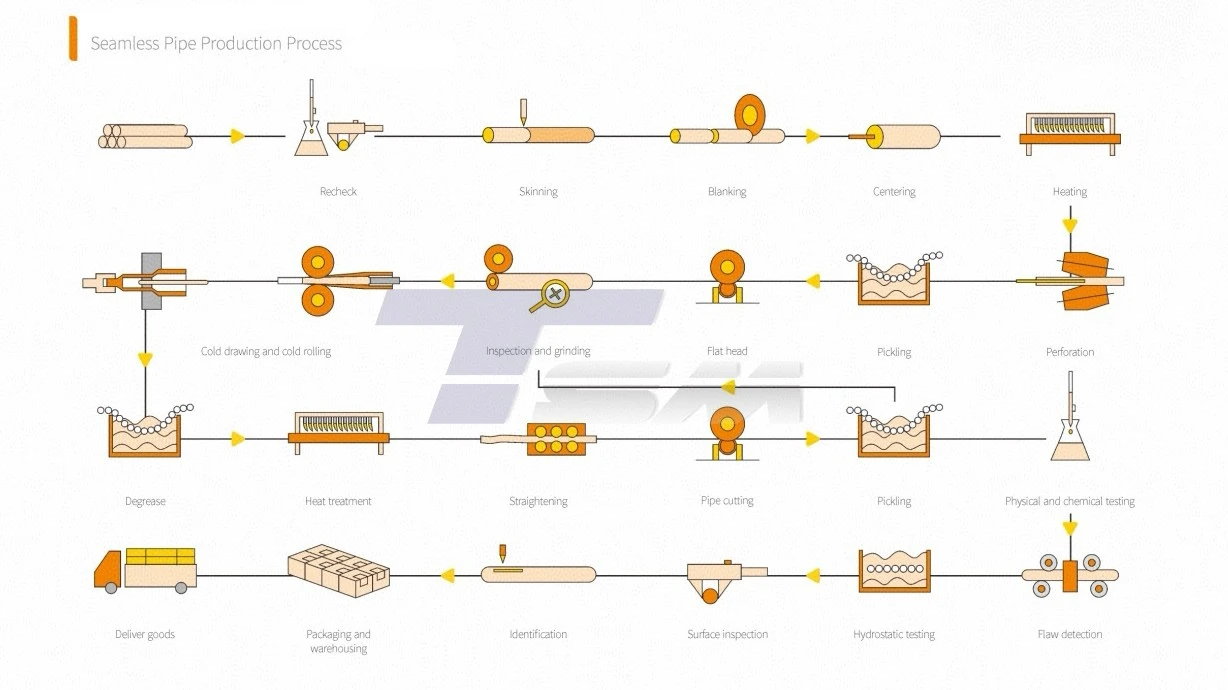

What Is the Production Process of Monel Seamless Tubes?

Step 1: Material Selection

It is fabricated using high purity nickel and copper ingots from approved vendors to provide the constant chemical composition.

Step 2: Melting and Casting

Vacuum induction furnaces melt raw materials. The molten alloy is cast into billets with a specified grain structure.

Step 3: Hot Extruding

Heated billets are sent through piercing mills to generate hollow shells. This means there is no joint or weld line.

Step 4: Cold Drawing

The tubes are cold drawn many times via carbide dies for close tolerances on precise dimensions.

Step 5. Heat treating

Bright annealing in controlled atmospheres provides stress relief and optimum mechanical characteristics. K-500 grades are also subjected to precipitation hardening (ageing).

Step 6: Straightening and Cutting

The tubes are straightened by multi-roll straighteners and cut to your specified lengths by precision saws.

Step 7: Check the final result

Each tube is checked for dimensions, surface condition and non-destructively tested prior to packing.

Quality Inspection

At TSM Technology we employ multi-stage quality control:

• Chemical Composition Analysis: Verified alloy composition by optical emission spectrometry
• Dimensional Inspection: OD, WT and Length Tolerances Guaranteed by CMM Machines
• Ultrasonic Testing (UT) : Detects interior flaws and inclusions
• Eddy Current Testing (ECT) Detects defects on and under the surface
• Hydrostatic Testing: Confirms pressure integrity at specified test pressures.
• Radiographic Testing (RT): For essential applications, available
• Corrosion testing: Salt spray and immersion tests verify performance

Each batch of manufacturing is guaranteed traceability and consistent quality with our Monel Seamless Tube AS9100D and ISO 9001 certified.

Why choose for TSM Technology?

High level industry experience

For over 14 years, we have served 70+ nations, and we understand your specific issues and expectations.

High Tech Manufacturing Plant

We have a 50,000㎡ plant with 100+ precise machinery and a whole process from melting to final inspection.

Extensive Material portfolio

We provide Inconel, Hastelloy, Incoloy and titanium alloys, as well as Monel for your one-stop project sourcing.

Aerospace Grade Certification

Our AS9100D accreditation shows our capacity to satisfy the highest quality criteria.

Customisation flexibility

If you need particular dimensions, surface treatments or material grades, we can customise goods to your requirements.

Technical Support

Our technical staff can advise you on material selection, manufacturing processes and application specific solutions.

Global Logistics Network

Through our Hong Kong hub, we ensure timely delivery with complete documentation for international shipments.

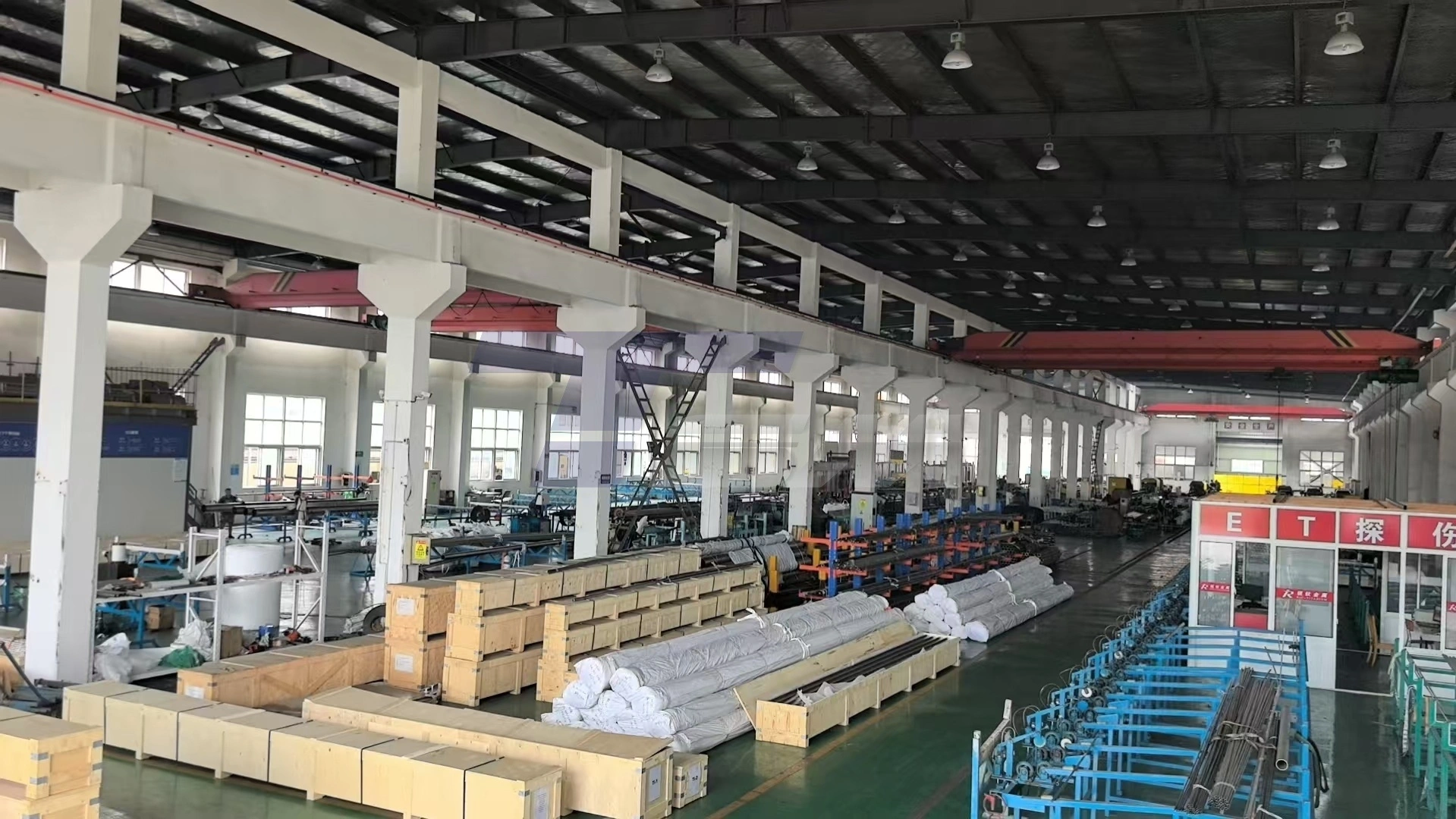

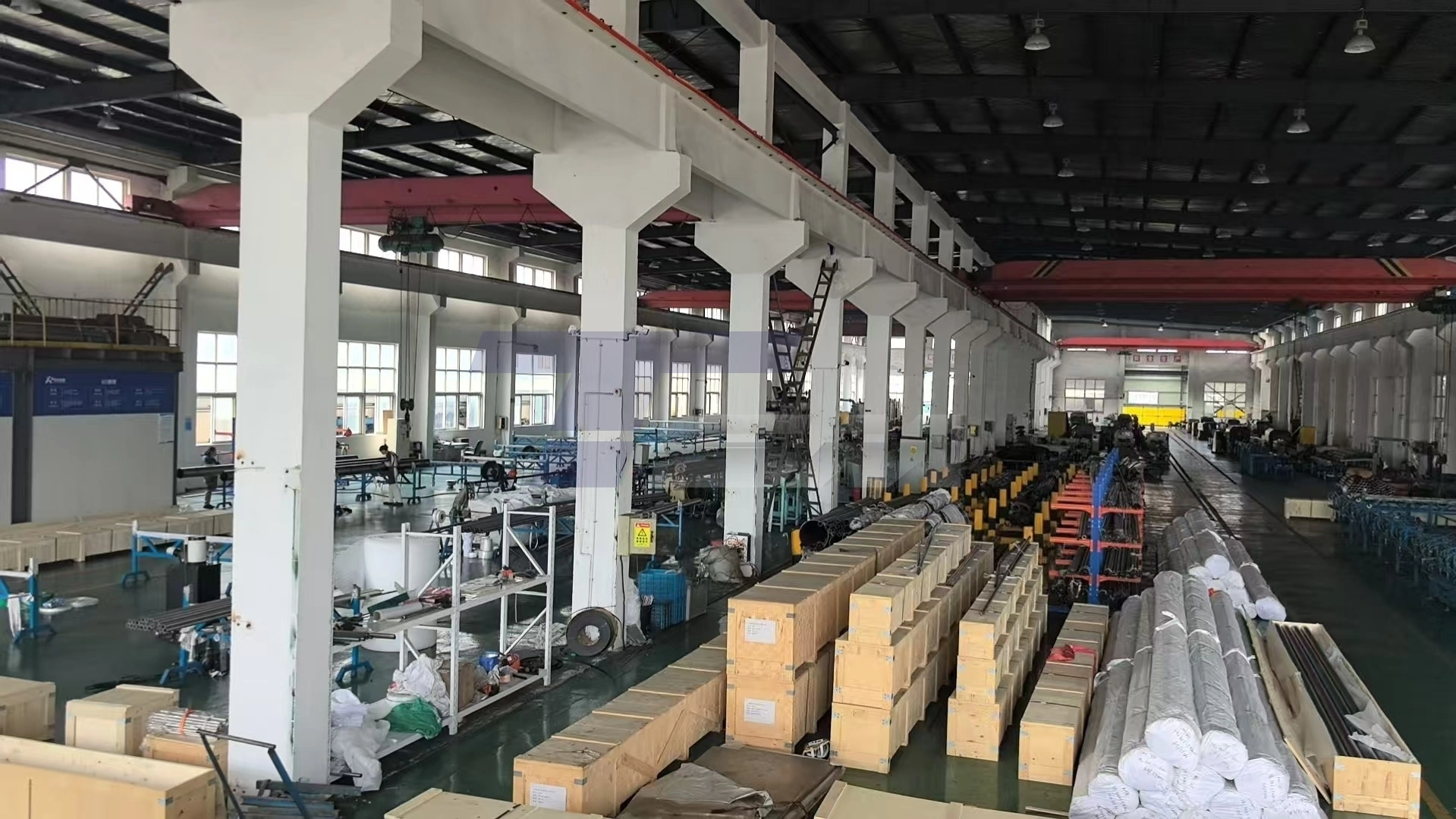

Package and Shipping

Your tubes are protected through:

• Individual plastic caps on tube ends
• Bundle wrapping with waterproof material
• Wooden crates or steel frames for sea freight
• Foam padding for air-sensitive shipments
• Complete documentation: Commercial invoice, packing list, MTR, SGS reports

We send via ocean freight, air freight or fast courier depending on your urgency and location.

FAQ

Q. How can you tell Monel 400 apart from K-500 seamless tubes?

A: Monel 400 is a solid-solution alloy with good overall corrosion resistance. K-500 combines aluminium and titanium for precipitation hardening, resulting in much greater strength and hardness – perfect for situations where you require both corrosion resistance and mechanical strength.

Q: are these tubes ok for oxidising environments?

A: Monel is good in reducing and neutral situations but is not suggested in strongly oxidising acids such as concentrated nitric acid. If you want this for applications look at Hastelloy or titanium options.

Q: Why pick seamless vs welded construction?

A: Seamless tubes don’t have the heat affected zone of the welds which is subject to preferred corrosion. You also obtain greater working pressure ratings and consistent mechanical qualities across the wall of the tube.

Q: What is the performance of Monel in cryogenic temperatures?

A：Alloy has ductility and toughness at very low temperature without brittle transition, suited for liquefied gas handling and cryogenic processing equipment.

Q: What lead time should I expect for custom sizes?

A：Standard size will be sent in 20 days. Custom dimensions usually takes 30-45 days depending on the number of orders and the intricacy of the specifications. If you are on a tight time frame, please contact us for fast turnaround alternatives.

Q: Do you provide material traceability documentation?

A：Yes, all shipments are accompanied with Material Test Reports (MTR), Quality Assurance Certificates (QAC) and third-party inspection reports (SGS, BV or TUV) upon request.

Contact Us

Ready to solve your corrosion challenges with Monel Seamless Tube? Our technical team is standing by to discuss your specific requirements. Email info@tsmnialloy.com today for quotations and technical specifications.
