Compare Inconel 600 Sheet vs Inconel 625 for High-Temp Parts

When selecting materials for high-temperature applications, Inconel 600 sheet and Inconel 625 are two popular nickel-based superalloys that offer excellent performance. While both provide outstanding heat and corrosion resistance, they have distinct characteristics that make each better suited for certain uses. Inconel 600 excels in oxidizing environments up to 1093°C (2000°F) and offers good fabricability, while Inconel 625 provides superior strength and resistance to reducing atmospheres up to 982°C (1800°F). This comparison examines the key properties, advantages, and ideal applications of each alloy to help engineers and buyers determine the optimal choice for their high-temperature parts and components.

Composition and Properties of Inconel 600 and 625

Chemical Composition

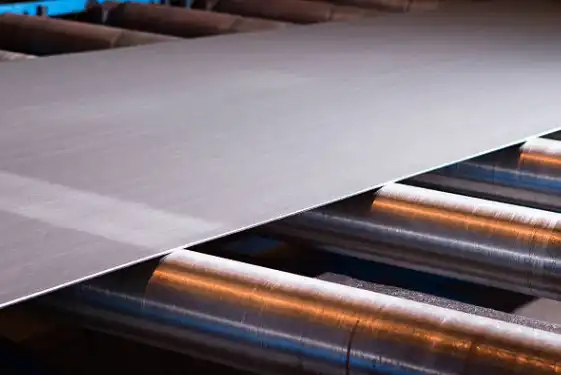

Inconel 600 sheet primarily consists of nickel (minimum 72%) and chromium (14-17%), with small amounts of iron, carbon, and trace elements. This composition forms a protective oxide layer on the surface, providing excellent resistance to oxidation and high-temperature corrosion. Inconel 625 contains higher chromium content (20-23%) and molybdenum (8-10%), along with niobium and iron. The additions of molybdenum and niobium enhance strength and provide exceptional resistance to pitting and crevice corrosion, especially in reducing and aggressive chemical environments, making it suitable for demanding industrial applications.

Mechanical Properties

Inconel 600 plate exhibits good strength and ductility across a wide temperature range, maintaining its mechanical properties up to 1093°C (2000°F) in oxidizing conditions. Its tensile strength is approximately 655 MPa (95 ksi) and yield strength around 310 MPa (45 ksi) at room temperature. In contrast, Inconel 625 offers superior mechanical performance, with a tensile strength of roughly 827 MPa (120 ksi) and yield strength of 414 MPa (60 ksi) at room temperature. It retains higher strength at elevated temperatures, making it suitable for extreme thermal and mechanical stress applications.

Corrosion Resistance

Both Inconel 600 and 625 provide exceptional corrosion resistance but in different operational environments. Inconel 600 sheet performs exceptionally well in oxidizing atmospheres, resisting oxidation, carburization, and other high-temperature attacks. Inconel 625, with its higher chromium, molybdenum, and niobium content, offers superior resistance to pitting, crevice corrosion, and stress corrosion cracking, particularly in chloride-containing or reducing environments. These properties ensure long-term durability, reliability, and safety in chemical processing, marine, aerospace, and other industrial applications where corrosion resistance is critical.

Applications and Performance Comparison

High-Temperature Applications

Inconel 600 is widely used in heat-treating equipment, furnace components, and nuclear reactor internals due to its excellent oxidation resistance and stability at high temperatures. Its ability to maintain properties up to 1093°C (2000°F) makes it ideal for parts exposed to extreme heat in air.

Inconel 625 finds extensive use in aerospace, marine, and chemical processing industries where a combination of high strength and corrosion resistance is required at elevated temperatures. It performs exceptionally well in exhaust systems, heat exchangers, and offshore oil and gas equipment.

Fabricability and Welding

Inconel 600 plate offers excellent fabricability and can be easily formed, machined, and welded using conventional techniques. This makes it a preferred choice for complex-shaped components and large structures that require extensive fabrication.

While Inconel 625 can also be fabricated using standard methods, it may require more specialized techniques due to its higher strength and work hardening rate. However, it offers superior weldability and is often used as a welding filler metal for dissimilar metal joints.

Cost Considerations

Inconel 600 sheet is generally more cost-effective than Inconel 625 due to its simpler composition and wider availability. For applications where the performance requirements can be met by Inconel 600, it often provides a more economical solution.

Inconel 625 commands a higher price due to its more complex alloying elements and superior mechanical properties. However, its enhanced performance in certain environments may justify the additional cost for critical applications.

Selecting the Right Alloy for Your Application

Environment and Temperature Considerations

When choosing between Inconel 600 and 625 for high-temperature parts, carefully evaluate the operating environment. For predominantly oxidizing atmospheres and temperatures up to 1093°C (2000°F), Inconel 600 often provides sufficient performance at a lower cost. In reducing or chloride-containing environments, or where higher strength is required, Inconel 625 may be the better choice.

Mechanical Requirements

Consider the mechanical loads and stresses your components will experience. If high strength at elevated temperatures is crucial, Inconel 625 offers superior performance. For applications where moderate strength is adequate, Inconel 600 plate may suffice while offering better fabricability.

Long-Term Cost Analysis

While Inconel 625 has a higher initial cost, its enhanced properties may lead to longer service life and reduced maintenance in certain applications. Perform a thorough lifecycle cost analysis to determine which alloy provides the best long-term value for your specific use case.

Conclusion

Both Inconel 600 sheet and Inconel 625 offer exceptional performance for high-temperature applications, each with its own strengths. Inconel 600 excels in oxidizing environments and offers good fabricability, making it ideal for heat-treating equipment and nuclear components. Inconel 625 provides superior strength and corrosion resistance in more aggressive environments, making it the go-to choice for aerospace and marine applications. By carefully considering the specific requirements of your application - including operating environment, temperature range, mechanical needs, and budget constraints - you can select the optimal alloy to ensure long-lasting performance and reliability in your high-temperature parts.

FAQs

What is the maximum operating temperature for Inconel 600 sheet?

Inconel 600 can maintain its properties up to 1093°C (2000°F) in oxidizing environments.

Is Inconel 625 more corrosion-resistant than Inconel 600?

Inconel 625 offers superior resistance to pitting and crevice corrosion, especially in chloride-containing environments.

Which alloy is easier to fabricate?

Inconel 600 plate is generally easier to fabricate due to its lower strength and work hardening rate.

Can Inconel 600 and 625 be welded together?

Yes, these alloys can be welded together, often using Inconel 625 as the filler metal.
