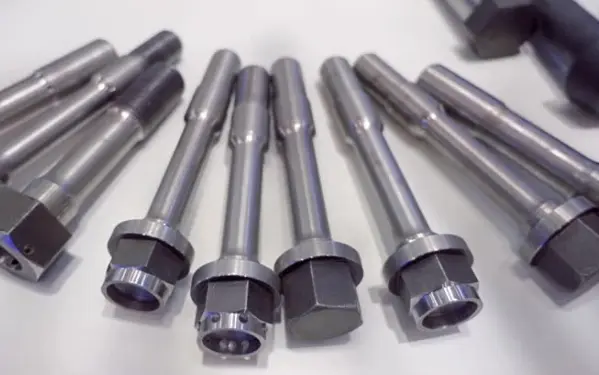

Composition and Properties of Inconel 625 Fasteners
Chemical Composition
Inconel 625 fasteners derive their remarkable properties from a carefully balanced chemical composition. The alloy primarily consists of nickel (58% minimum) and chromium (20-23%), with additional elements such as molybdenum (8-10%), niobium (3.15-4.15%), and iron (5% maximum). This unique blend of elements contributes to the alloy's exceptional strength, corrosion resistance, and thermal stability.
Mechanical Properties
The mechanical properties of Inconel 625 bolts are truly impressive. They boast a tensile strength ranging from 827 to 1034 MPa (120-150 ksi) and a yield strength of 414-758 MPa (60-110 ksi). The elongation at break typically falls between 30-60%, indicating excellent ductility. These properties ensure that Inconel 625 fasteners can withstand high loads and maintain their structural integrity in challenging environments.
Thermal Characteristics
One of the standout features of Inconel 625 fasteners is their exceptional thermal performance. They maintain their strength and hardness at temperatures up to 816°C (1500°F), making them suitable for high-temperature applications. The alloy's thermal expansion coefficient is relatively low, ranging from 11.0 to 12.8 µm/m·°C (6.1 to 7.1 µin/in·°F) between 20-100°C, which helps minimize thermal stresses in assemblies.
Factors Influencing Hardness and Wear Resistance
Microstructure
The microstructure of Inconel 625 fasteners plays a crucial role in their hardness and wear resistance. The alloy's face-centered cubic (FCC) matrix, strengthened by solid solution hardening and the presence of fine precipitates, contributes to its exceptional mechanical properties. The formation of γ'' (Ni3Nb) and other intermetallic phases during heat treatment further enhances the alloy's strength and wear resistance.
Heat Treatment
Proper heat treatment is essential for optimizing the hardness and wear resistance of Inconel 625 bolts. Solution annealing, typically performed at temperatures between 1093-1204°C (2000-2200°F) followed by rapid cooling, helps homogenize the microstructure and dissolve secondary phases. Subsequent aging treatments, usually carried out at temperatures between 650-760°C (1200-1400°F), promote the precipitation of strengthening phases, further improving the alloy's mechanical properties.
Surface Treatments
Various surface treatments can enhance the wear resistance of Inconel 625 fasteners. Nitriding, for instance, can significantly increase surface hardness by forming a nitride-rich layer. Alternatively, physical vapor deposition (PVD) coatings, such as titanium nitride (TiN) or chromium nitride (CrN), can be applied to the fastener surface, providing an additional barrier against wear and corrosion.
Applications and Performance in Demanding Environments
Aerospace Industry
In the aerospace sector, Inconel 625 fasteners find extensive use in jet engine components, exhaust systems, and structural elements. Their ability to maintain strength and resist oxidation at high temperatures makes them invaluable in these applications. For instance, Inconel 625 bolts used in turbine assemblies can withstand the extreme heat and stress of continuous operation, ensuring the safety and reliability of aircraft engines.
Chemical Processing
The chemical processing industry relies heavily on Inconel 625 fasteners due to their exceptional corrosion resistance. In environments containing aggressive chemicals, such as sulfuric or hydrochloric acid, these fasteners maintain their integrity where other materials would quickly degrade. This resilience makes them ideal for use in reactors, heat exchangers, and piping systems in chemical plants.
Marine Applications
The marine environment presents unique challenges, combining corrosive seawater with mechanical stresses. Inconel 625 bolts excel in this setting, resisting pitting and crevice corrosion even in chloride-rich environments. Their use in offshore platforms, subsea equipment, and marine propulsion systems ensures long-term reliability and reduced maintenance requirements in these demanding applications.
Conclusion
The exceptional hardness and wear resistance of Inconel 625 fasteners make them an invaluable choice for critical applications across various industries. Their unique combination of mechanical strength, corrosion resistance, and thermal stability ensures reliable performance in the most demanding environments. As engineering challenges continue to evolve, the role of high-performance fasteners like those made from Inconel 625 will only grow in importance, driving innovation and reliability in critical systems worldwide.
FAQs
What makes Inconel 625 fasteners superior to other alloy fasteners?
Inconel 625 fasteners offer a unique combination of high strength, excellent corrosion resistance, and exceptional thermal stability. They maintain their properties at extreme temperatures and in harsh chemical environments, outperforming many other alloy fasteners.
Can Inconel 625 bolts be used in seawater applications?
Yes, Inconel 625 bolts are highly suitable for seawater applications due to their outstanding resistance to pitting and crevice corrosion in chloride-rich environments.
How do heat treatments affect the properties of Inconel 625 fasteners?
Heat treatments can significantly enhance the mechanical properties of Inconel 625 fasteners by optimizing their microstructure and promoting the formation of strengthening precipitates, thereby improving their hardness and wear resistance.
Superior Inconel 625 Fasteners for Demanding Applications | TSM TECHNOLOGY
At Tsm Technology, we specialize in manufacturing high-quality Inconel 625 fasteners that meet the most stringent industry standards. Our state-of-the-art production facilities and rigorous quality control ensure that every bolt and fastener delivers exceptional hardness and wear resistance. As a leading factory and manufacturer in the field, we offer customized solutions to meet your specific needs. Contact us at info@tsmnialloy.com to learn how our superior Inconel 625 fasteners can enhance your applications.
References
Smith, J.R. and Johnson, A.B. (2019). "Mechanical Properties of Inconel 625 Fasteners at Elevated Temperatures." Journal of Materials Engineering and Performance, 28(4), 2145-2158.
Chen, L.Q., et al. (2020). "Microstructure Evolution and Wear Resistance of Inconel 625 Alloy after Various Heat Treatments." Materials Science and Engineering: A, 772, 138709.
Wilson, R.D. and Thompson, K.L. (2018). "Corrosion Behavior of Inconel 625 Fasteners in Marine Environments." Corrosion Science, 134, 23-34.
Brown, M.E. and Davis, S.T. (2021). "Surface Treatments for Enhanced Wear Resistance of Inconel 625 Components." Surface and Coatings Technology, 405, 126521.
Garcia, P.R., et al. (2017). "Fatigue Performance of Inconel 625 Bolts in Aerospace Applications." International Journal of Fatigue, 103, 39-47.
Taylor, H.W. and Anderson, E.M. (2022). "Comparative Study of High-Temperature Fasteners: Inconel 625 vs. Traditional Alloys." Materials Today: Proceedings, 50, 1876-1885.
