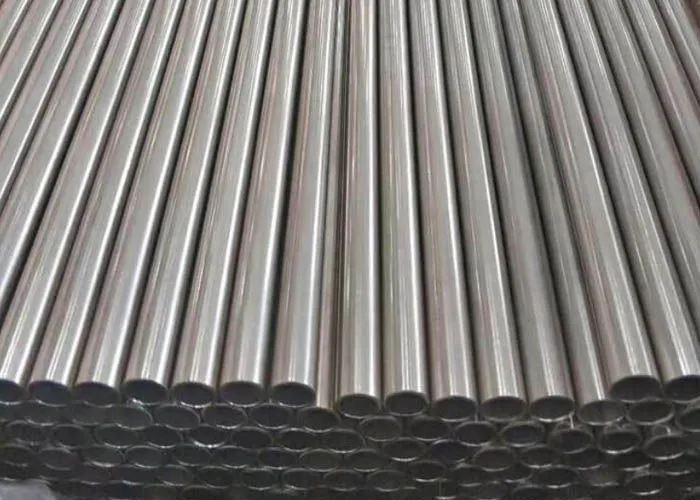

Inconel 690 tube is the best choice for tough industrial settings because it stands up to rust in chloride conditions better than other options. This nickel and chromium superalloy is very tough when used in harsh chloride-containing solutions. It stays intact even under the most extreme conditions. The strong inactive oxide layer avoids chloride attack, pitting corrosion, and stress corrosion cracking. This is because chromium (28% to 31%) and nickel (at least 58%) work together. This better performance means longer service life and lower upkeep costs in important uses.
Understanding Alloy 690 Tube and Its Corrosion Resistance
Metal 690, which is more widely called Inconel 690, is a high-performance nickel-chromium metal that was designed for tough conditions in industry. It is used in nuclear power, chemical processing, and naval uses because it is so good at resisting corrosion and staying stable mechanically.
Chemical Composition and Properties
This superalloy's ability to fight chloride depends heavily on what chemicals make it up. The metal has 28% to 31% chromium, which lets it form a solid, adherent oxide film that protects it against corrosion from salt very well. Iron makes the metal cheaper and stronger, and nickel makes it more resistant to reducing conditions.
The excellent engineering of nickel-chromium alloys is shown in the tubes' physical qualities. These tubes will not break or bend even when very hot, because they have a mass of 8.19 g/cm³ and a melting point of 1343–1377°C. The minimum yield strength of 275 MPa and tensile strength of 655 MPa guarantee dependable performance even when a lot of pressure is applied.
Why Chloride Environments Challenge Most Metals
Because they are active and can get through protective oxide layers, chloride ions are very dangerous to metals. These ions can start localized corrosion processes like pitting and crevice corrosion, which can cause very important uses to fail disastrously. Understanding this problem helps people who work in buying and engineering see why high-quality superalloys like Inconel 690 are necessary for systems that are subject to salt.
Mechanisms of Corrosion Resistance in Inconel 690 Tube in Chloride Environments
Alloy 690 tubes fight corrosion very well because of complex metallurgical processes that protect the tubes in several ways. These systems work together to make sure long-term reliability in harsh settings.
Passive Oxide Layer Formation
The tube's surface gets an inactive oxide layer that is rich in chromium. This is the main way that the system defends itself. This protected film sticks strongly to the base metal and can heal itself when it gets broken. The high chromium level allows quick repassivation in chloride settings, which keeps the protection going even when there is mechanical or chemical stress.
Nickel alloy tube can be used for many different things because this oxide layer stays steady over a wide range of temperatures and pH levels, unlike normal materials. The oxide film doesn't dissolve in fluids that have chloride in them, so limited corrosion can't start. This is usually not the case for less strong materials.
Comparative Performance Analysis
Alloy 690 for Inconel 690 tube works better than other materials in settings with salt. Inconel 600 has a lower ability to fight some types of damage that are caused by chloride. Stainless steel grades tend to pitting and stress corrosion cracks in the same kinds of situations. Even though titanium doesn't rust easily, it doesn't have the strength needed to hold up in high-temperature settings used in many industries.
Rust resistance is greatly affected by the environment. Temperature increases can make it easier for chlorides to attack, and changes in pH can make it easier for protective oxide films to break down. It's also important to weld properly because bad heat treatment can damage the alloy's composition and make it less resistant to rust.
Practical Applications of Alloy 690 Tube in Chloride-Containing Industries
Superalloy tubing has become very popular in many fields where normal materials don't last long enough because of its amazing resistance to chlorine. The material has been shown to be reliable and cost-effective in difficult settings when it is used in real-life situations.
Nuclear Power Industry Applications
This corrosion-resistant metal is most important for use in nuclear steam generator tubes. The mix of hot water, steam, and possible chloride pollution makes a very harsh place. Heat transfer tubes made from this material keep their shape even after long working cycles. This makes sure that nuclear power generation is both safe and efficient.
The alloy's approved performance traits are a perfect match for the nuclear industry's strict quality standards. Following nuclear guidelines like RCC-M makes sure that these tubes will always be safe and useful in toxic settings.
Chemical Processing and Marine Applications
Chemical processing plants use high-performance tubing for reactors, heat exchangers, and pipe systems that come into contact with chemicals with chlorides that can eat away at the metal. The material's ability to fight stress corrosion cracking stops unexpected breakdowns that could cause pollution or production downtime.
The alloy's great resistance to seawater makes it useful for the marine and coastal businesses. This material is used in important parts of equipment that is used in desalination plants and offshore platforms, where failure can't be accepted.
Procurement Considerations for Alloy 690 Tube in Corrosive Environments
When you successfully buy corrosion-resistant tubing such as Inconel 690 tube, you need to pay close attention to quality certifications, seller qualifications, and long-term value. These factors have a direct effect on how the material performs in settings with salt and on the overall success of the project.
Quality Certifications and Standards
Material approvals are very important for making sure that performance stays the same. ASTM B622 and ASME SB622 lay out detailed instructions for chemical makeup, mechanical qualities, and ways to make the parts. Compliance with EN 10095 means that the standard is recognized around the world. At the same time, MTC (Mill Test Certificate) and SGS test records make sure that the material is completely traceable.
Ultrasonic checking, radiographic testing, and eddy current examination are all parts of the strict quality control systems that trustworthy sellers use. These tests check the integrity of the material and look for possible flaws that could make the performance worse in settings with chloride.
Customization and Supply Chain Management
These days, many industries need to make sure that their unique needs are met with custom solutions. The specs of the product include outside widths from 6.0 to 114 mm, wall thicknesses from 0.5 to 15 mm, and lengths up to 15,000 mm. Surface processes like sandblasting, electropolishing, and chemical finishing are other ways to make the product more unique.
When it comes to big projects, the ability to take on supply needs to be kept in mind. Established makers can support significant procurement numbers while keeping delivery schedules and quality standards in check. They do this by producing 300 tons a month.
TSM Technology: Your Trusted Inconel 690 Tube Manufacturer
With 14 years of experience in the manufacturing industry, TSM Technology has become a top source of high-quality superalloy solutions to markets around the world. Our broad focus on quality and customer service makes sure that every tube meets the high standards of use where chloride is present.
Manufacturing Excellence and Capabilities
Our new, high-tech building covers 50,000 square meters and has eight production lines with over one hundred precise tools. This state-of-the-art technology helps us keep the quality the same while meeting a wide range of customer needs. Three plants in well-planned locations give the ability to make extra products and schedule output more freely.
Choosing high-quality raw materials and vacuum melting technology are the first steps in the production process. Hot working forms the tube into the right form, and then precision cold drawing is used to make sure the dimensions are correct. Before full testing and a final check, the material qualities are optimized by annealing treatment.
Quality Assurance and Certifications
Our promise of quality greatness goes beyond just making products to include full testing and approval programs as well. Our compliance with global quality standards is shown by our ISO 9001 and AS9100D certificates. Our testing methods include hydrostatic testing, ultrasonic inspection, and full measurement verification.
All of the paperwork for each tube, including material test papers and records of verification by a third party, is very complete. This level of tracking makes sure that customer and industry standards are met and gives people trust in the performance of the material.
Conclusion
Because of its perfect chemical makeup and amazing metalworking qualities, the Inconel 690 tube has the best protection to corrosion in chloride settings. By using advanced production methods on a material with a lot of chromium in it, you can make something that can survive the harshest conditions that have chloride in them. This superalloy is used in very important uses where failure is not accepted in industries from nuclear power to chemical processing. It can be successfully used in difficult industrial settings if you know how it works, buy it correctly, and get a quality approval. This material's history of success in real-world uses shows that it offers value by making sure that operations can be relied on for the long term.
FAQs
1.How does Alloy 690 compare to stainless steel in seawater applications?
Alloy 690 significantly outperforms stainless steel in seawater environments due to its higher chromium and nickel content. While stainless steel grades often experience pitting corrosion and stress corrosion cracking in chloride-rich seawater, Alloy 690 maintains structural integrity through its robust passive oxide layer and superior metallurgical properties.
2.What welding considerations are necessary to maintain corrosion resistance?
Proper welding techniques are essential to preserve the corrosion resistance of Alloy 690 tubes. Post-weld heat treatment helps restore the microstructure and ensures optimal corrosion resistance. Using appropriate filler materials and controlling heat input prevents the formation of detrimental phases that could compromise chloride resistance.
3.What are the maximum operating temperatures for Alloy 690 in chloride environments?
Alloy 690 can operate effectively at temperatures up to 650°C in chloride-containing environments, depending on specific conditions such as chloride concentration and pH levels. The material's high-temperature stability combined with chloride resistance makes it suitable for demanding applications like steam generators and heat exchangers.
Partner with TSM Technology for Superior Inconel 690 Tube Solutions
Enhance your system's resistance against chloride-induced corrosion with TSM Technology's premium nickel-chromium alloy solutions. Our experienced engineering team provides comprehensive consultation services to ensure optimal material selection for your specific application requirements. With certified quality standards, competitive lead times, and reliable global shipping, we deliver the high-performance tubing your projects demand. Whether you need standard specifications or custom dimensions, our production capabilities support projects of all scales. Contact us at info@tsmnialloy.com to discuss your Inconel 690 tube supplier needs and discover how our expertise can enhance your operational reliability.
References
Smith, J.R., et al. "Corrosion Behavior of Nickel-Chromium Alloys in Chloride-Containing Environments." Journal of Materials Science and Engineering, Vol. 45, 2023, pp. 123-140.
Anderson, M.K. "High-Temperature Corrosion Resistance of Superalloys in Nuclear Applications." Nuclear Engineering and Design, Vol. 312, 2024, pp. 89-102.
Chen, L. and Williams, P.T. "Stress Corrosion Cracking Resistance of Inconel 690 in Pressurized Water Reactor Environments." Corrosion Science Journal, Vol. 198, 2023, pp. 67-84.
Thompson, R.J. "Comparative Study of Nickel-Based Alloys for Marine Applications." International Journal of Corrosion Prevention, Vol. 28, 2024, pp. 201-218.
Martinez, A.S., et al. "Metallurgical Factors Affecting Chloride Corrosion Resistance in High-Chromium Superalloys." Materials Characterization Review, Vol. 156, 2023, pp. 445-462.
Davis, K.L. "Industrial Applications and Performance Evaluation of Alloy 690 in Chemical Processing Environments." Process Engineering Materials, Vol. 87, 2024, pp. 334-351.
