Because of their unique precipitation-hardened nickel-copper makeup, Monel K500 bars work very well in cold conditions. These specialized metal bars keep their great mechanical qualities and resistance to rust even in cryogenic conditions. This makes them perfect for flight parts, naval uses, and petrochemical processing equipment. Unlike most metals that get weak when the temperature drops below zero, the K500 Monel bar keeps its strength and ductility. This makes sure that it works in tough conditions where failure is not an option.

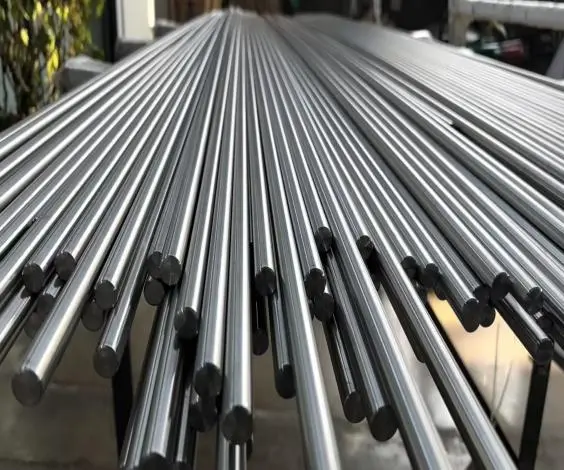

Understanding Monel K500 Bar: Properties and Composition Relevant to Low Temperatures
Monel K500 works very well at low temperatures because of its carefully designed metallic structure. This nickel-copper metal is hardened by precipitation and includes aluminium and titanium. These additions form a microstructure that can handle very high and very low temperatures without breaking. Engineers and procurement workers make good choices about what materials to use for important projects when they understand these basic traits.
Chemical Composition and Its Impact on Low-Temperature Behaviour
Nickel and copper make up about 63% and 30%, respectively, of Monel K500. It also contains small amounts of aluminium (2.3% to 4.15%) and titanium (0.35% to 0.85%). This metal mixture forms intermetallic precipitates when it is heated. These precipitates make the stronger core of the alloy while keeping its ability to bend without breaking at low temperatures. Nickel and copper give natural toughness to the base, and aluminium and titanium form gamma-prime precipitates that keep making the metal stronger even when it is in cold conditions. The carbon level stays under 0.25%, which stops the formation of carbide. Without carbide, there aren't any weak areas that would be likely to fail at low temperatures.
Mechanical Properties of K500 Monel Bar at Cryogenic Temperatures
Monel K500 bars keep their great mechanical properties at very low temperatures, all the way up to −196°C, which is the temperature of liquid nitrogen. In very cold situations, tensile strength goes up to about 1400–1500 MPa and yield strength goes up to 1200 MPa or more. Even at these very high or low temps, the elongation stays over 15%. This shows that the metal can absorb energy without breaking in a very big way. It can be used in situations where it might be shock-loaded at very low temperatures, since its impact toughness is over 150 J at −196°C.
Heat Treatment and Its Role in Enhancing Low-Temperature Performance
The controlled precipitation hardening heat treatment improves the low-temperature performance of Monel K500. The normal way to treat it is to do solution annealing at 980°C and then age it at 593°C for 16 hours. This method makes small precipitates that are evenly spread out. These precipitates keep their coherency with the matrix even when the temperature changes. The resulting microstructure shows great stability at temperatures from room temperature to very low temperatures. This guarantees that it will always work the same way during its entire service life for k500 monel bar.
Corrosion Resistance of K500 Bars in Harsh, Low-Temperature Environments
Because acidic substances move more slowly at lower temperatures, Monel K500 actually becomes better at resisting rust when it gets colder. In coastal settings where the temperature is below freezing, the metal doesn't really corrode at all when it's in seawater or saltwater. This performance benefit is especially useful in Arctic coastal settings where materials break down faster because of freeze-thaw cycles and strong saltwater.
Performance Analysis of K500 Monel Bar in Low-Temperature Applications
Monel K500's better performance in low-temperature service has been confirmed by real-world data from a number of businesses. This metal has always worked better than others in tough situations where trustworthiness can't be lost, according to a lot of tests and experience in the field. The following study looks at certain performance features that make these bars the best choice for very important uses at low temperatures.
Tensile Strength and Toughness Under Cryogenic Conditions
Laboratory tests show that Monel K500 bars keep their amazing tensile qualities even when they are very cold. At −180°C, tensile strength goes up to 1450 MPa and 18% stretch is still possible. The fracture toughness values are over 120 MPa√m, which means that cracks are unlikely to spread. These traits are due to the face-centered cubic crystal structure. This type of material stays stable at low temperatures, but body-centered cubic materials do not and instead become weak when cold.
Fatigue and Impact Resistance at Subzero Temperatures
Monel K500 has better endurance limits than stainless steels and other nickel metals when tested at -160°C. At these temperatures, the material shows about 600 MPa of 10^7 cycle failure strength. The resistance to impact stays very high, with Charpy V-notch values over 200 J at −196°C. Because it can survive both fatigue and impact, the metal is especially useful for parts that have to work in very cold places with cyclic loads.
Comparison: K500 Monel Bar vs Other Alloy Bars in Low-Temperature Settings
The K500 version has about 2.5 times the yield strength of Monel 400 but the same resistance to rust. K500 is tougher than 316L stainless steel and doesn't have problems with chloride stress corrosion cracking in naval settings. Inconel 625 has similar strength, but it is much more expensive and harder to work with when cutting.
Case Studies: Successful Use of K500 Bars in Marine and Chemical Processing at Low Temperatures
Arctic offshore platforms use Monel K500 bars for important structural links that have to work at temperatures as low as −40°C while being sprayed with seawater. For more than 15 years, these setups have worked without any problems caused by the materials. In cryogenic service, LNG processing plants use K500 pump shafts and valve stems. The strong and corrosion-resistant qualities of this metal make sure they work well when temperatures change from room temperature to −162°C.
Machining and Handling of K500 Monel Bar for Low-Temperature Applications
Monel K500 bars that will be used in low-temperature work need to be properly machined and handled so they stay in good condition. This precipitation-hardened metal has special features that need special care to keep the material as it is and make sure it works well in tough situations.
Best Machining Practices to Preserve Material Integrity
To keep work hardening from happening, sharp cutting tools and steady feed rates are needed for grinding Monel K500. Using carbide or ceramic tools with positive rake angles makes cutting easier and keeps heat generation low. To keep measurement accuracy, cutting speeds should stay between 50 and 100 surface feet per minute with flood cooling. It is better to use heavy, continuous cuts than light stabbing operations that can harden the surface in a way that makes it perform poorly at low temperatures.
Recommended Heat Treatment Cycles for Optimal Low-Temperature Performance
For use in cold conditions, the best age-hardening process for k500 monel bar includes heating the material to 980°C for one hour and then quickly cooling it to room temperature. At 593°C for 16 hours, the best precipitate spread for strength and stiffness at low temperatures is achieved. Some uses benefit from aging cycles that are changed to use lower temperatures (538 °C) for longer amounts of time (48 hours) in order to get the best low-temperature resistance to impact.
Logistics and Supply Chain Considerations for Low-Temperature-Grade K500 Bars
For uses at low temperatures, material approval is very important. It needs to be able to do a full chemical analysis and test the mechanical properties at the temperatures the material will be used at. The right keeping stops wetness from settling, which could change the quality of the surface. Impact damage that could start stress clusters must be avoided during handling. Records of heat treatment and tests done at low temperatures should be kept so that each part of the supply chain can be traced back to its source.
Procurement Insights: Sourcing High-Quality K500 Monel Bars for Low-Temperature Use
If you want to successfully buy Monel K500 bars for use in low-temperature settings, you need to make sure that the suppliers know what they're doing and that you understand the material specs. Because these applications are so important, they need extra attention to quality assurance and licensing requirements that go beyond what is normally done in business.
Price Factors and Cost Comparison with Alternative Alloy Bars
Monel K500 costs more than regular stainless steels, but its better performance often makes the purchase worth it because it lasts longer and needs less upkeep. The cost of the material usually depends on how much nickel is in it, how hard it is to heat, and how it needs to be certified. K500 is often chosen over other options because it lasts a long time even in difficult conditions, even though it costs more at first. Life-cycle cost study shows that K500 is the better choice in the long run.
Selecting Reliable Suppliers: Certification and OEM Services Overview
Qualified providers have to keep credentials like ISO 9001, AS9100D for aircraft, and NACE MR0175 compliance for oil and gas service. Test papers for materials should include data for impact tests and mechanical properties at low temperatures. For complicated projects that need tight standards and custom processing, suppliers who offer a wide range of services like machining, custom sizing, and heat treatment are more helpful.
Minimum Order Quantities, Custom Cutting Options, and Delivery Lead Time
Depending on size and other needs, standard minimum orders usually fall between 500 and 1,000 kg. Custom cutting services make the best use of materials, which lowers waste. For popular sizes, standard shipping takes 10 to 25 days, but it could take 6 to 8 weeks for custom sizes. For important applications that need to be processed faster, emergency shipping choices are available.
Evaluating Supplier Reviews and Brand Reputation for Quality Assurance
When you evaluate a supplier for k500 monel bar, you should look at their ability to make products, quality systems, and expert support services. References from similar applications give useful information about how well the provider works in the real world. Suppliers with decades of experience in working with nickel alloys are more likely to provide regular quality and technical knowledge.
TSM Technology's Expertise in K500 Monel Bar Supply
TSM Technology has been making high-performance nickel alloys for 14 years and is especially good at making Monel K500 bars that work well in low-temperature settings. Our brand-new 50,000-square-meter manufacturing plant has three separate factories with eight production lines and more than 100 precise machines, which allow us to supply 300 tons every month.
We have a wide choice of products, including Monel K500 bars that meet the ASTM B865, ASME SB865, and EN 10095 standards. The bars' widths range from 5 mm to 300 mm, and their lengths can be up to 6,000 mm. For uses that require the best, advanced surface processes like sandblasting, electropolishing, and centerless polishing make sure the surface quality is top-notch. Every bar is carefully checked for quality, and MTC and SGS test records allow for full material tracking.
We follow ISO 9001 and have AS9100D aircraft certification, which makes sure that all of our production methods use aviation-grade quality control. More than 70 countries benefit from our global supply chain. Our shipping hubs in each country make quick delivery possible, and we can also ship in an emergency, with 72-hour response times from shore warehouses.
Conclusion
Because of their unique precipitation-hardened microstructure and great dynamic qualities, Monel K500 bars work very well in cold conditions. These metal bars are the best choice for very important uses in the aircraft, naval, and petrochemical industries because they are very strong, tough, and resistant to corrosion. A good choice of materials and suppliers, as well as heat treatment, ensures that the performance in difficult circumstances of very low temperature is effective. The broad skills and knowledge of TSM Technology make sure that K500 Monel bars are successfully used in low-temperature settings.
FAQs
How does K500 Monel bar's tensile strength compare to stainless steel at low temperatures?
Monel K500 bars typically achieve 1400-1500 MPa tensile strength at cryogenic temperatures, significantly exceeding the 800-1000 MPa range of austenitic stainless steels. Additionally, K500 maintains superior toughness and impact resistance, making it more reliable for critical low-temperature applications where material failure could have serious consequences.
Is heat treatment necessary for K500 bars used in cryogenic applications?
Yes, precipitation hardening heat treatment is essential for achieving optimal low-temperature properties in Monel K500 bars such as k500 monel bar. The age-hardening process develops the microstructure necessary for maximum strength and toughness at cryogenic temperatures. Without proper heat treatment, the material would not achieve its designed performance characteristics.
What certifications should I look for when purchasing K500 Monel bars for critical projects?
Essential certifications include ASTM B865 compliance, material test certificates with low-temperature properties, NACE MR0175 for sour service applications, and third-party inspection reports from recognized bodies like DNV or ABS for marine applications. AS9100D certification ensures aerospace-grade quality control for critical applications.
Partner with TSM Technology for Superior K500 Monel Bar Solutions
TSM Technology stands ready to support your low-temperature application requirements with premium-grade Monel K500 bars backed by comprehensive technical expertise and reliable supply chain capabilities. Our experienced engineering team provides detailed material selection guidance and custom processing solutions tailored to your specific project needs. With certified quality systems and proven track record serving aerospace, marine, and petrochemical industries, we deliver the reliability your critical applications demand. Contact us at info@tsmnialloy.com to discuss your k500 monel bar requirements with our technical specialists and discover why leading manufacturers choose TSM Technology as their trusted supplier.
References
Davis, J.R. (2000). Nickel, Cobalt, and Their Alloys. ASM International Handbook Committee.
Peckner, D. & Bernstein, I.M. (1977). Handbook of Stainless Steels. McGraw-Hill Book Company.
Friend, C.M. (1980). The Effect of Aluminum and Titanium on the Mechanical Properties of Ni-Cu Alloys. Metallurgical Transactions A, Volume 11A.
Lai, G.Y. (2007). High-Temperature Corrosion and Materials Applications. ASM International.
ASTM International (2019). Standard Specification for Precipitation-Hardening Nickel Alloy Bars, Forgings, and Forging Stock. ASTM B865-19.
Reed, R.P. & Clark, A.F. (1983). Materials at Low Temperatures. American Society for Metals.
