Knowing the differences between Inconel 617 and Inconel 625 is important for getting the best results from superalloy materials used in high-temperature situations. Inconel 617 is very strong at high temperatures and doesn't oxidize easily, which makes it perfect for aerospace turbine parts that work above 900°C. Inconel 625, on the other hand, is great at resisting corrosion and works well in marine settings. The Inconel 617 sheet has great resistance to creep and thermal stability, which makes it ideal for jet engine combustors and nuclear reactors that have to deal with high temperatures for long periods of time.
Understanding Inconel 617 and Inconel 625 Fundamentals
The nickel-chromium superalloy family includes both alloys, but their chemical makeups make them behave differently. Inconel 617 is mostly made up of nickel (44-66%), chromium (20-24%), molybdenum (8-10%), cobalt (10-12%), and aluminum (0.8-1.5%). This mix gives it great strength at high temperatures and resistance to rusting.
On the other hand, Inconel 625 has more molybdenum (8–10%) and niobium (3.15–4.15%), which makes it more resistant to corrosion in chloride conditions. Because Inconel 625 doesn't contain cobalt, it can be used in nuclear uses that need materials with low cobalt content.
ASTM B168, ASME SB168, and different AMS specifications are used as manufacturing standards for both metals. These standards make sure that quality and performance are the same for all providers and uses. Being aware of these changes in composition helps engineers choose the right material for a given job.
Temperature Performance and Mechanical Properties
Temperature resistance is a key feature that sets these metals apart. Inconel 617 keeps its shape at temperatures up to 1093°C (2000°F), showing that it is better at resisting creep when exposed to high temperatures for a long time. Because it has such great thermal performance, it can't be used in aerospace applications.
Inconel 617 has a tensile strength of more than 760 MPa and a yield strength that stays at least 85% of its room temperature value even after being heated and cooled many times. These traits come from the alloy's special microstructural stability and precipitation hardening features.
Inconel 625 usually works well up to 982°C (1800°F), and its mechanical qualities are very good in this temperature range. Its tensile strength is between 827 and 1034 MPa, and it has great qualities for resisting fatigue and stress rupture. Even at very low temperatures, the material is very flexible and doesn't break easily when hit.
When working with both metals for fabrication, it's important to pay close attention to how they work-harden. Inconel 617 sheet needs to be heated and cooled in a controlled way to keep its grain structure, but Inconel 625 is easier to work with when it comes to production. These differences affect how much it costs to make things and how hard it is to process them.
Corrosion Resistance and Environmental Performance
The ability to prevent environmental damage makes these alloys very different. Because it contains molybdenum and niobium, Inconel 625 works better in chloride-rich environments, marine atmospheres, and acidic situations. This mix makes an oxide layer that protects against pitting and crevice rust.
Inconel 617 is very resistant to oxidation at high temperatures. It forms a solid chromium oxide scale that stops oxidation from happening again. This quality is very useful in aerospace uses where parts are exposed to oxidizing atmospheres and repeated changes in temperature.
Another important thing to think about is sulfidation protection. Inconel 617 is very resistant to environments with sulfur at high temperatures, which makes it a good choice for handling petrochemicals. Even when hydrogen sulfide and other sulfur molecules are present, the alloy's structure stays the same.
ASTM G28 testing methods have shown that both alloys are very resistant to intergranular corrosion. This resistance makes sure that the product will work reliably for a long time in important situations where a material failure could have bad results.
Industrial Applications and Market Positioning
The aerospace and defense businesses use Inconel 617 a lot for things like turbine parts, combustor liners, and exhaust systems that have to work in very hot or cold conditions. Because the material can keep its strength through thermal cycling, it is necessary for jet engine uses that need to last for thousands of flight hours.
Another important area where Inconel 617 is used is in nuclear power generation, especially in Generation IV reactor designs where helium cooling systems work at high temperatures. The metal will work well for a long time because it doesn't break down when exposed to helium or heat.
Inconel 625 is used a lot in chemical manufacturing, oil and gas processing, and marine building. Because it doesn't rust or corrosion easily, it's perfect for parts that are exposed to salt water, offshore platforms, and harsh chemical conditions.
Both metals are used in power plants, and the choice of material depends on the conditions of the operation. The special properties of these superalloys make sure that energy generation is reliable in steam turbines, heat exchangers, and boiler parts.

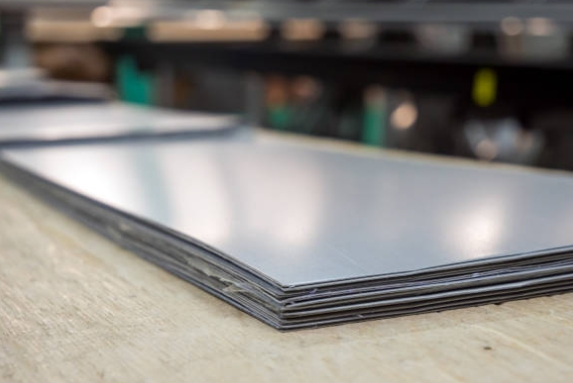

TSM Technology's Inconel 617 Sheet Manufacturing Excellence
TSM Technology runs three cutting-edge factories with eight production lines and more than 100 precise tools. This makes sure that nickel-based superalloys are always of high quality and available when needed. We can make all of the different specifications for Inconel 617 sheets, which meets the strict needs of the business.
Through advanced manufacturing methods, our production skills give you unbeatable value:
- Precision Thickness Control: We can make products with tolerances of ±0.025mm across thickness ranges from 0.5mm to 50mm. We can do this by using special rolling methods and real-time measurement systems. This level of accuracy makes sure that success is the same in all situations.
- Choices for treating the surface: Complete surface cleaning, including sandblasting, anodizing, pickling, and polishing to a mirror finish with a Ra of 0.8µm. These processes make parts more resistant to corrosion and make them last longer.
- Dimensional Flexibility: We can cut to any width between 1000 and 2000 mm, so we can meet the needs of a wide range of projects, from aircraft parts to industrial heat exchangers.
Because of these manufacturing advantages, TSM Technology can meet strict requirements in the aerospace, nuclear, and industrial sectors while still offering affordable prices and meeting delivery dates.
Comprehensive material testing with XRF verification, ultrasonic testing, and radiographic inspection are all part of quality assurance processes. Material certifications include test reports from MTC and SGS, which make sure that the product can be fully tracked and meets foreign standards like EN 10095, ASTM B168, and ASME SB168.
Procurement Considerations and Cost Analysis
Choosing between Inconel 617 and 625 as a material requires looking at more than just the original cost. Maintenance needs, replacement intervals, and performance reliability under certain working conditions are all things that need to be thought about during the lifecycle.
Because it contains cobalt and has special production needs, Inconel 617 usually costs more than other metals. But in demanding situations, its better performance at high temperatures often makes the investment worthwhile by extending service life and lowering repair costs.
Inconel 625 is easier to find and has more stable prices, which makes it a good choice for projects that need a lot of it or standard specs. It is very easy to work with, which lowers the cost of processing and improves the total project economics.
Some of the things that go into the supply chain are the availability of raw materials, the time it takes to make something, and safety certifications. To keep up with changing customer needs and market conditions, TSM Technology keeps strategic amounts of inventory and a flexible production schedule.
Quality Assurance and Certification Standards
Material approvals are very important in high-performance settings where failure could have terrible results. TSM Technology keeps up-to-date quality control systems, such as AS9100D, ISO 9001, and AS9120 certifications, which make sure that materials always have the same properties and can be tracked.
XRF analysis is used to check the chemical composition, tensile and impact tests are used to check the mechanical properties, and advanced metallography methods are used to look at the microstructure. These thorough tests make sure that the performance of the material meets or beats the standards set by the specifications.
When needed, documentation packages come with Material Test Reports (MTR), EN 10204 3.1 certificates, and AS9102 First Article Inspection Reports. This paperwork gives the full background of the material and makes sure it meets all customer requirements and government rules.
Customers can use free sample programs to check the properties and compatibility of materials before placing big orders. This method lowers the risk of procurement and makes sure that the best materials are chosen for each purpose.
Conclusion
Which one you choose between Inconel 617 sheet and Inconel 625 relies on the needs of the application, the conditions of use, and your performance priorities. In extreme high-temperature situations where better creep resistance and oxidation protection are needed, Inconel 617 works great. On the other hand, Inconel 625 is great for marine and chemical processing settings where corrosion resistance is important. By knowing these basic differences, you can choose materials that are the best in terms of both performance and cost. Because TSM Technology knows how to make things and offer a wide range of services, they can reliably give high-quality materials that meet the strictest requirements in industrial, nuclear, and aerospace settings.
FAQs
What are the highest temperatures that Inconel 617 and Inconel 625 can be used at?
Inconel 617 can work constantly at temperatures up to 1093°C (2000°F), but Inconel 625 is usually only able to handle temperatures up to 982°C (1800°F). Inconel 617 is best for extreme aerospace and nuclear uses because it can handle higher temperatures.
In marine settings, which alloy is more resistant to corrosion?
The higher molybdenum content and niobium additions in Inconel 625 make it more resistant to corrosion in marine settings. These elements make the metal more resistant to pitting and crevice rust caused by chloride, which happens a lot in seawater.
How are these metals' welding needs different from one another?
Both alloys can be welded well, but Inconel 617 needs to be heat treated more carefully after welding in order to keep its high-temperature mechanical features. When it comes to welding, Inconel 625 is easier to work with and doesn't need as much complicated heat processing.
Partner with TSM Technology for Premium Inconel Solutions
Choosing the right Inconel 617 sheet supplier can have a big effect on the success of your business and the costs of running it in the long term. TSM Technology offers high-quality nickel-based superalloys that meet the strictest requirements thanks to its 14 years of specialized knowledge and advanced manufacturing skills.
Precision cutting, custom surface treatments, and flexible payment terms, such as T/T and L/C choices, are just a few of the many services we offer. No matter if you need very thin sheets for heat shields or heavy plates for structural parts, our production flexibility will help you find the best answer.
TSM Technology is the best company to buy Inconel 617 sheets from because they have quality certifications, full material traceability, and technical help throughout the whole project lifecycle. Our ability to offer goods all over the world and our quick response to customer service make sure that buying things for aerospace, nuclear, and industrial uses goes smoothly.
Are you ready to see how TSM Technology can help you? Get in touch with us at info@tsmnialloy.com to talk about your Inconel needs and get cheap quotes backed by full technical support.
References
Davis, J.R. "Heat-Resistant Materials." ASM International Handbook Committee, Materials Park, OH, 1997.
Reed, R.C. "The Superalloys: Fundamentals and Applications." Cambridge University Press, Cambridge, 2006.
American Society for Testing and Materials. "Standard Specification for Nickel-Chromium-Cobalt-Molybdenum Alloy Plate, Sheet, and Strip." ASTM B168-19, West Conshohocken, PA, 2019.
Sims, C.T., Stoloff, N.S., and Hagel, W.C. "Superalloys II: High-Temperature Materials for Aerospace and Industrial Power." John Wiley & Sons, New York, 1987.
Donachie, M.J. and Donachie, S.J. "Superalloys: A Technical Guide, 2nd Edition." ASM International, Materials Park, OH, 2002.
Special Metals Corporation. "Inconel Alloy 617 Technical Data." Publication Number SMC-029, New Hartford, NY, 2020.
