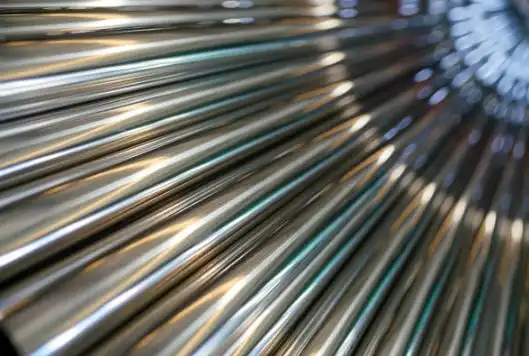

Due to its unique nickel-copper alloy makeup, Monel 400 is very resistant to hydrofluoric acid environments. This makes it the best material for chemical processing tasks. The Monel 400 seamless pipe has a very high corrosion resistance when exposed to high concentrations of HF. It can keep its shape even in harsh acidic circumstances. It has minimum 63% nickel content creates a protective passive layer that successfully blocks fluoride-induced corrosion, and the copper part makes it last longer. Because they work so well, Monel 400 seamless pipe systems are required in petrochemical plants, drug factories, and other specialized chemical processing jobs where hydrofluoric acid must be present.
Understanding Monel 400 Seamless Pipe Properties Relevant to Hydrofluoric Acid
The chemical makeup and mechanical properties of Monel 400 have been carefully designed to make it work so well in hydrofluoric acid environments. This nickel-copper combination has at least 63% nickel and between 28% and 34% copper. The nickel and copper work together to make a strong material that is very resistant to corrosion caused by fluoride.
When Monel 400 is exposed to hydrofluoric acid, it makes a stable passive film that stops the corrosion from getting worse. In high-frequency environments, stainless steel can get serious pitting and crevice corrosion. Monel 400, on the other hand, keeps its protective barrier even when acid levels are high. ASTM G48 testing procedures show that the alloy's corrosion rate stays below 0.025 mm/year in harsh environments.
Even when it is under acidic stress, Monel 400's mechanical qualities stay the same. The material can handle both chemical attack and mechanical force at the same time because its tensile strength is at least 517 MPa and its yield strength is at least 172 MPa. The minimum elongation of 35% ensures that the ductility is maintained, which stops brittle failure modes that could damage the stability of the system in serious situations.
Comparative research shows that Monel 400 is better than other materials for HF service. Although Inconel alloys work very well at high temperatures, they don't have the same level of fluoride protection as Monel 400. In hydrofluoric acid, standard types of stainless steel, like 316L, break down quickly, so they can't be used in long-term exposure situations.
How Is Monel 400 Seamless Pipe Made and Treated for Enhanced Performance?
Advanced production methods are used by TSM Technology to make Monel 400 seamless pipes that meet the strict needs of hydrofluoric acid applications. Our production method uses strict process controls to make sure that the quality is always the same and that the corrosion protection is at its best.
The process of making seamless pipes starts with high-quality Monel 400 billets that are heated and pierced by rotating tools. These ways get rid of weld seams that could be places where corrosion starts in HF environments. Through 5-axis CNC machining, our 8 production lines spread across 3 sites keep tight size tolerances of ±0.05 mm.
Heat treatment is a key part of making the material as acid-resistant as possible. The annealing process gets rid of any remaining stresses and evens out the grain structure, which makes it easier for the metal to form passive protective films. Controlling the temperature during annealing makes sure that the right amount of helpful phases form while preventing the formation of harmful carbides.
Adhering to quality standards ensures reliable performance in harsh settings. TSM Technology follows the rules set by ASTM B165, ASME SB165, and EN 10095, which makes sure that all output batches have the same material properties. Using ultrasonic, radiographic, and eddy current testing, triple NDT confirmation finds possible flaws before delivery.
For HF uses, it is very important to think about the operating temperature. Monel 400 seamless pipes don't rust at all up to 480°C when they're in constant service, and they can handle short-term exposure up to 800°C. This temperature stability makes sure that the product will work reliably in a wide range of chemical processing settings where hydrofluoric acid is present.
Comparing Monel 400 Seamless Pipe with Other Materials in Hydrofluoric Acid Environments
When choosing a material for use with hydrofluoric acid, it is important to think about how well it resists corrosion, its mechanical qualities, and its cost. In these important areas, Monel 400 always works better than other materials.
When stainless steel is used in high-frequency environments, where corrosion happens quickly no matter what grade is used, its limits become clear. Even super austenitic stainless steels are badly damaged by fluoride ions, which can cause them to fail early and raise safety issues. Because it is easy for pitting and crevice corrosion to happen, stainless steel is not good for reliable HF work.
Inconel alloys work well in places where things are oxidizing at high temperatures, but they don't have the fluoride protection needed for HF uses. Because Inconel grades have more chromium, they rust faster in reducing acid settings. This is why Monel 400 is best for systems that use hydrofluoric acid.
Copper-nickel alloys can prevent corrosion to some extent, but they don't work as well in concentrated HF solutions as Monel 400. Copper-nickel grades are less able to keep passive films in place in harsh acidic environments because they have less nickel in them.
Lifecycle cost study shows that implementing Monel 400 has a lot of benefits. Even though the initial prices of the materials may be higher than those of commodity grades, the longer service life, lower maintenance needs, and higher safety margins make the economic case strong. When HF uses use Monel 400 instead of stainless steel, petrochemical plants say they need to be serviced three to five times less often.
Industrial case studies show how real benefits can be used in a wide range of situations. Monel 400 seamless pipes were used instead of stainless steel pipes in a big pharmaceutical company's HF etching process. The new pipes have been trouble-free for 8 years, compared to the 18 months between replacements. In the same way, semiconductor manufacturing plants use Monel 400 for HF delivery systems because it is reliable and easy to keep pure.
Procurement Insights: Sourcing High-Quality Monel 400 Seamless Pipes for Acid Applications
To successfully buy Monel 400 seamless lines for use with hydrofluoric acid, suppliers must be carefully evaluated and quality checks must be carried out. TSM Technology's extensive list of certifications shows that we are dedicated to providing materials that meet important application needs.
Some important certifications are AS9100D for aircraft quality management, ISO 9001 for quality systems, and approvals for specific materials like ASME Section II and ASTM International standards. Because of these certificates, the quality of the products is always the same, and they can be tracked all the way through the production process. Our EN10204 3.1/3.2 certificates let you track all of your materials and have them checked by a third party using SGS testing methods.
Cost and quality are both affected by geographical sourcing methods. TSM Technology's factories are located in well-known industry hubs, which give them access to specialized raw materials and an experienced work force while keeping prices low. Our 14 years of experience trading internationally means that we can handle the supply chain reliably, even if the global market changes.
Pricing clarity is still important for making smart choices about what to buy. Our pricing system takes into account the cost of raw materials, the difficulty of manufacturing, and the need for customization while still making clear value propositions. Standard sizes from 6.0 to 324 mm OD and wall thicknesses from 0.5 to 30 mm meet a wide range of application needs without charging too much.
It's important for the project to keep going that the supply line is reliable. TSM Technology keeps strategic amounts of inventory and emergency stock available 24 hours a day, seven days a week to meet urgent replacement needs. Our ability to turn around custom sizes in 72 hours means that there is little downtime during repair or system changes.
Technical help increases the value of procurement by giving advice that is specific to the application. Our metalworking skills include optimizing welding parameters, helping with material selection, and checking to see if new systems will work with old ones. This all-around help lowers the risks of execution and guarantees the best long-term performance in hydrofluoric acid environments.
Practical Applications and Advantages of Using Monel 400 Seamless Pipe in Hydrofluoric Acid
Monel 400 seamless pipes are very important in many fields where hydrofluoric acid is present and can affect the performance of materials and the dependability of systems. Knowing about these uses helps people who work in buying make smart choices about which materials to use and how to put them into action.
The main place where Monel 400 is used in HF service is in chemical processing plants. In oil refineries, hydrofluoric acid is used as a catalyst in alkylation units. This means that the pipe systems need to be able to handle both chemical attack and process pressures. The corrosion resistance of Monel 400 seamless pipes is high, and they meet the safety standards of the ASME pressure vessel code.
Ultra-pure hydrofluoric acid is used to cut and clean semiconductor wafers. Because these uses are sensitive to contamination, they need materials that don't rust and don't add metal impurities to the process stream. The stable inactive layer of Monel 400 stops metal ions from leaching and keeps the surface clean.
Hydrofluoric acid is used in pharmaceutical production environments in specific synthesis reactions where the purity of the result depends on how well the materials work together. Monel 400 seamless pipes come with FDA-compliant surface finishes that meet validation standards and ensure long-term dependability in corrosive service.
Here are the main reasons why Monel 400 seamless pipes are so important for HF uses:
- Better resistance to corrosion: The nickel-copper mesh doesn't react with fluoride, so the structure stays strong even when acidic conditions are present. Compared to other materials, this protection means that it will last longer and need to be replaced less often.
- Mechanical stability: Keeping strength and flexibility under acid stress stops sudden failures that could put safety systems at risk. Because the material can keep its mechanical qualities, it will work reliably for the whole design life.
- Safety compliance: Following international pressure vessel codes and material standards helps businesses follow the rules and reduces their risk of being sued. The performance history that has been written down in HF service gives trust for risk and safety assessments.
- Cost-effectiveness: Longer service intervals, less maintenance, and better operating reliability all lead to a lower total cost of ownership. The initial investment in materials pays off by increasing system efficiency and lowering the cost of emergency replacements.
All of these benefits make Monel 400 the best choice for important hydrofluoric acid uses where cost, safety, and performance all need to be taken into account. Because the material has been used successfully in many different fields, it can be trusted for both new setups and replacements.
Conclusion
Monel 400 seamless pipes are the best material for hydrofluoric acid environments because they are highly resistant to corrosion, reliable mechanically, and cost-effective in the long run. The special mix of nickel and copper makes it more resistant to fluoride than other materials, so it can be used safely and reliably in important chemical processing tasks. Because TSM Technology has advanced production skills, complete quality systems, and a lot of technical knowledge, we are the best company to work with for your tough HF service needs. Our dedication to quality goes back 14 years, and we've been providing materials that meet aerospace standards and are used in a wide range of industry settings around the world.
FAQs
1.Is it possible for Monel 400 seamless pipe to be exposed to hydrofluoric acid all the time?
Yes, Monel 400 seamless pipes are made to be exposed to high frequencies over and over again. The nickel-copper alloy creates a steady passive layer that stops fluoride-induced corrosion and keeps the structure's integrity even when it's in acidic conditions for a long time. Corrosion rates stay below 0.025 mm/year in normal HF service settings, so they will work reliably for a long time in chemical processing environments.
2.What makes Monel 400 different from stainless steel when it comes to hydrofluoric acid?
When it comes to fluoride resistance, Monel 400 is much better than stainless steel grades, which suffer from serious pitting and crevice corrosion in HF environments. Because Monel 400 has a lot of nickel, it forms a good inactive film, but stainless steel doesn't because it has too much chromium, which doesn't protect well against fluoride attack. Because of this basic difference, Monel 400 is the best metal for reliable HF service applications.
3.How can I be sure that the Monel 400 seamless pipes I buy from sellers are real and of good quality?
To check the quality of a product, you have to look at its certifications, such as ASTM B165 compliance, chemical composition certificates, and mechanical property test results. Suppliers you can trust will give you EN10204 3.1/3.2 certificates that have been checked by a third party, such as SGS. Check that the seller has certifications like AS9100D or ISO 9001, and ask for material traceability paperwork that connects specific heat numbers to test results.
Partner with TSM Technology for Premium Monel 400 Seamless Pipe Solutions
To find the best Monel 400 seamless pipe manufacturer, you need to look at their production capabilities, quality systems, and expert support services that will help you complete your project successfully. When you need high-performance nickel alloy solutions in harsh hydrofluoric acid conditions, you can count on TSM Technology.
Our three top-notch factories have a total of eight dedicated production lines and more than one hundred precise machines, which lets us consistently deliver materials that meet ASTM B165 standards. The AS9100D certification shows that we are dedicated to quality standards for aircraft that go above and beyond what is normally expected in industry. With a detection sensitivity of 0.02mm, AI-driven quality control systems make sure that 99.98% of the output is defect-free, making sure that every pipe meets strict performance standards.
The technical capabilities include a wide range of customization choices from 6.0 mm to 324 mm in outer diameter, 0.5 mm to 30 mm in wall thickness, and lengths up to 12,000 mm. Using surface processes like sandblasting and anodizing can improve performance for certain uses. Our rapid prototyping services can make unique configurations in 72 hours, which helps meet tight project deadlines.
Quality assurance goes beyond manufacturing. Full documentation packages, such as MTC and SGS test reports, are available to support your quality control systems. Free samples let you check the performance before committing to a full-scale purchase. Our two production streams, one for business use and one for medical use, can handle both with the right paperwork and tracking.
Feel the difference that 14 years of specialized knowledge in nickel alloys makes in your hydrofluoric acid uses. TSM Technology gives you the dependability and performance that important applications need, whether you need standard sizes or custom specs. We are a top supplier of Monel 400 seamless pipes to markets around the world because we are dedicated to quality and new ideas.
Are you ready to talk about your personal needs? Our technical team is ready to help you with your project and give you competitive quotes based on your unique needs. Email us at info@tsmnialloy.com for full technical support and help with buying things. Our full line of nickel alloy solutions are made for the toughest commercial uses. Visit tsmnialloy.com to learn more.
