For Monel 400 seamless pipe to be structurally sound and work reliably in tough situations, it needs to go through a lot of non-destructive testing (NDT). A few important NDT techniques are ultrasound testing for finding flaws inside, radiographic testing to make sure the weld is solid, magnetic particle testing to find cracks on the surface, dye penetrant testing to check for breaks, and eddy current testing to check for corrosion. These testing procedures make sure that the material meets ASTM B165 standards and that the pipe can still be used for important chemical processing, marine, and aerospace uses.

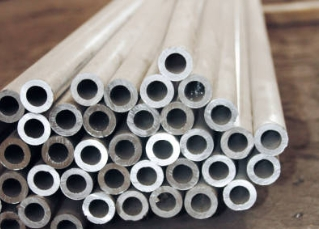

Understanding Monel 400 Seamless Pipe and Quality Assurance
Nickel-copper alloys are essential in places where normal materials would fail horribly because of their unique qualities. Because it is made up of only 67% nickel and 23% copper, Monel 400 is very resistant to rust in seawater and keeps its mechanical strength even when the temperature changes. This superalloy has corrosion rates below 0.025 mm/year in seawater, which has been proven by strict ASTM G48 testing procedures.
When you think about how important the services these pipes serve are, quality assurance becomes even more important. Material breakdowns are not acceptable in coolant systems for nuclear reactors, drilling platforms at sea, or fuel lines in spacecraft. One mistake could cause environmental tragedies, deaths, or project shutdowns that cost millions of dollars. Through careful inspection methods, TSM Technology's 14 years of experience in manufacturing have shown that systematic quality control can stop such terrible outcomes.
To make seamless pipes with the level of accuracy needed, the dimensions must be within ±0.05 mm. This can only be done with 5-axis CNC cutting. To get this level of accuracy, you need thorough testing methods that check the integrity of the materials at every stage of production. Chemical composition verification makes sure that the minimum nickel content of 63.0% is met, and that copper levels stay between 28.0% and 34.0% for the best corrosion protection.
Overview of Non-Destructive Testing for Monel 400 Seamless Pipe
Non-destructive testing methods are the most important way to make sure that a product is of good quality without damaging it. These advanced checking methods find tiny flaws that could grow into huge problems when the system is under a lot of stress. The economic benefit is clear when you think about how early defect spotting keeps operations running smoothly and saves money on recalls.
Standards like ASTM B165, ASME SB165, and EN 10095 must be followed in order to meet industry needs. These specs set minimum testing standards for a range of uses, from commercial marine equipment to parts used in nuclear power plants. Through a combination of ultrasonic, radiographic, and eddy current testing, TSM Technology's AS9100D-certified production facilities use three NDT validation methods that go above and beyond what is required by standard.
These days, NDT technologies can find flaws as small as 0.02 mm, which means they can find inclusions, holes, and stress clusters before they weaken the structure. With AI-driven quality control tools that look at test data in real time, this feature helps TSM Technology keep its promise of 99.98% defect-free output.
Essential NDT Methods for Monel 400 Seamless Pipe Inspection
Knowing the strengths and weaknesses of each NDT method is important for creating the best testing protocols. Which testing method to use varies depending on the size of the Monel 400 seamless pipe, what it's being used for, and the types of defects that are most likely to happen during production or service.
For a full review of a pipe, these are the main NDT methods used:
Ultrasonic Testing (UT): This type of testing goes through the whole thickness of the wall to find internal volumetric flaws like inclusions, cavities, and laminations. This method is very accurate at measuring wall thickness and figuring out what kind of flaws are inside. UT is especially good at finding longitudinal and diagonal cracks that could make it harder to keep the pressure inside. The method works well on pipes with sizes from 6.0 mm to 324 mm, which is the full range of products offered by TSM Technology.
X-rays or gamma rays are used in radiographic testing (RT) to get a clear picture of the inside structure. RT is very good at finding changes in density, inclusions, and geometric breaks that other testing methods might miss. This method is very useful for checking the quality of seamless pipe making and inspecting weld seams. Digital radiography systems let you quickly look at images and keep records that can be used for accountability reasons.
Magnetic Particle Testing (MPT): Uses magnetic field to find discontinuities on the surface or close to the surface. Direct MPT can't be used on Monel 400 because it isn't magnetic, but this method can still be used to find ferromagnetic pollution that could weaken corrosion resistance. MPT can work with nickel-based alloys because it has special methods that have been changed to work with austenitic materials.
Dye Penetrant Testing (DPT): Uses capillary action to see through surfaces and find flaws that break through them. This method is very sensitive and doesn't cost much. It can find cracks, holes, and surface discontinuities. DPT can do a full surface inspection of complicated geometries and internal surfaces that can be reached through the ends of pipes.
Eddy Current Testing (ECT) checks for changes in electrical conductivity that can show problems with the material, like rust or stress concentrations. When chloride is present, ECT is especially useful for finding intergranular corrosion and stress corrosion cracking. This method lets you quickly look at a lot of surface area and gives you numerical information about the state of the material.
These different testing methods work together to make a full inspection system that checks for all types of possible defects. When you use both volumetric and surface inspection methods together, you can get a full picture of the material while keeping the costs low enough for mass production.
How NDT Results Drive Informed Procurement Decisions?
More and more, procurement experts are relying on detailed NDT documentation to check the skills of suppliers and the quality of Monel 400 seamless pipe materials before signing a contract. Certified test results give objective proof that the product meets the requirements, and they also lower the risk of liability that comes with major failures. With this data-driven method, procurement goes from being a cost-focused task to a strategic quality assurance one.
As part of TSM Technology's pledge to openness, full NDT documentation is sent with every shipment. Each order comes with material test certificates (MTC) and SGS test records, which make sure that everything can be tracked and that the rules are followed. This paperwork meets the needs of an audit and lets smart choices be made based on numbers that measure quality instead of just what the seller says.
When you look at the total cost of ownership, you can see how complete NDT affects the economy. The initial cost of materials is a small part of the total cost of operations over the span of the product. This is why quality verification is an important investment for long-term dependability. Facilities managers say that using properly tested materials instead of uncertified ones cuts upkeep costs by more than 40%.
Detailed NDT analysis is helpful for tactics that try to lower risks. Knowing the state of materials lets you plan maintenance ahead of time and stops unexpected failures that throw off production schedules. This proactive method is especially helpful for offshore applications where waiting too long to replace parts could cost thousands of dollars every day.
Industry Standards and Best Practices for NDT Implementation
Regulatory compliance rules set the bare minimum for testing, but best practices go above and beyond these standards to get better results. The ASTM B165 specifications spell out the criteria for accepting different kinds of defects, and ASME Section III adds more rules for nuclear uses. Knowing about these standards helps you make better specifications and evaluate suppliers.
The requirements for documentation go beyond just saying "pass" or "fail." They also include thorough descriptions of defects and assessments of the material's condition. Levels 3.1 and 3.2 of the EN 10204 certification offer more and more third-party verification that meets the needs of foreign projects. TSM Technology keeps two separate production streams running so that they can be used for both business and medical purposes with the right amount of documentation.
Traceability systems link NDT results to specific lots of materials. This lets you respond quickly to quality problems and helps with efforts to keep getting better. Digital quality management systems are used by advanced makers to connect testing data with operational performance. This creates useful feedback loops for improving the process.
The newest development in quality assurance technology is the use of artificial intelligence in NDT research. Machine learning systems look at test patterns to guess how things might go wrong before they show up as defects that can be found. This ability to predict the future makes proactive quality control better than reactive methods.
Conclusion
For Monel 400 seamless pipe systems to be safe and reliable in the long term, they need to be put through thorough NDT testing. Using a mix of ultrasound, radiographic, magnetic particle, dye penetrant, and eddy current testing methods together finds all defects while keeping the material useful. Knowing these testing needs helps you make smart purchasing choices that balance the costs of the purchase with the expected performance over the product's lifetime. TSM Technology is dedicated to strict quality control using advanced NDT protocols. This makes sure that every pipe meets the strict needs of chemical processing, aerospace, and marine uses where failure is not an option.
FAQs
Which NDT method is the most effective way to find flaws inside Monel 400 seamless pipes?
The most thorough way to find internal flaws in Monel 400 pipes is through ultrasonic testing (UT). This method correctly finds inclusions, porosity, laminations, and internal cracks by going through the whole thickness of the wall. UT gives precise information on the size, location, and direction of defects while still being very sensitive to small breaks that might spread during normal use.
What are the differences between the NDT standards for commercial and nuclear-grade Monel 400?
For nuclear applications, NDT methods need to be improved. These include 100% volumetric examination, more surface testing, and stricter acceptance criteria. ASME Section III nuclear standards require full paperwork that can be tracked back to its source and verified by a third party. For commercial purposes, inspections based on samples are usually okay as long as the accepted standards aren't too strict. But for critical purposes, even non-nuclear uses may need nuclear-grade testing.
Can NDT tests find out if new Monel 400 pipes are likely to crack from stress corrosion?
NDT can't tell you when stress corrosion cracking will happen, but it can find factors in the manufacturing process that make it more likely to happen. Risk factors are found by measuring residual stress with X-ray diffraction, analyzing microstructures with eddy current testing, and checking the surface state with penetrant testing. Making sure the heat treatment and surface finish are done right helps ensure the best protection against stress corrosion cracking in chloride environments.
Partner with TSM Technology for Superior Monel 400 Seamless Pipe Solutions
To find the best Monel 400 seamless pipe supplier, you need to carefully look at their manufacturing capabilities, quality control systems, and technical help resources. TSM Technology consistently makes better goods by combining 14 years of experience making specialized alloys with the newest quality control technologies. Our three factories run eight separate production lines with more than 100 high-tech machines, so we can reliably meet the needs of projects of any size.
Our wide range of products includes outer sizes from 6.0mm to 324mm and wall thicknesses from 0.5mm to 30mm, so they can be used in a lot of different ways. With a maximum length of 12000 mm, many installations don't need joints, which cuts down on possible leak points and installation complexity. Specialized surface processes like sandblasting and anodizing are part of customization services so that products can meet the needs of different environments.
Quality assurance includes more than just making things; it also includes testing and recording services. Every pipe goes through three different types of NDT validation tests: ultrasound, radiographic, and eddy current. Corrosion resistance is checked with salt spray testing according to ASTM B117, and pressure rating compliance is checked with hydraulic testing up to 3000 psi. This strict method produces 99.98% defect-free work that always goes above and beyond what customers expect.
As part of our technical help, we can give you advice on metalworking for tough situations like sour gas environments and nuclear coolant systems. Our low-cobalt versions, which have less than 150ppm of cobalt, meet the standards of IAEA NS-G-2.14 for use in reactors. Emergency stock programs make sure that customers get important replacement parts within 48 hours, so that vital operations don't have to be shut down too often.
Are you ready to see how TSM Technology can help you make Monel 400 seamless pipes better? Our team is ready to talk about your unique needs and come up with custom solutions that improve performance while lowering the total cost of ownership. Email us at info@tsmnialloy.com for full technical details, reasonable prices, and to request a free sample to test. Find out how our proven skills can help your next project succeed.
