Welding Techniques for Nickel 201 Plate
Gas Tungsten Arc Welding (GTAW)
Gas Tungsten Arc Welding (GTAW), commonly referred to as TIG welding, is highly favored for joining Nickel 201 plates due to its precision and ability to produce clean, high-quality welds. For optimal results, pure argon should be used as the shielding gas, and the welding environment must be kept free of contaminants. The welding current is typically set to direct current electrode negative (DCEN), ensuring deep penetration and minimal distortion. Attention to joint preparation, electrode positioning, and consistent travel speed is essential to maintain the mechanical integrity and corrosion resistance of the finished weld.
Shielded Metal Arc Welding (SMAW)
Shielded Metal Arc Welding (SMAW), or stick welding, is another effective method for joining Nickel 201 plates, especially in field applications or when working with thicker sections. Choosing the correct electrode, such as ENi-1 or ENiCrFe-2, is crucial to ensure compatibility and weld quality. Proper electrode storage and handling are necessary to prevent moisture absorption, which could cause porosity, cracking, or other weld defects. SMAW provides versatility and strength in structural applications, allowing for reliable welds even under challenging working conditions while maintaining the base metal's desirable properties.
Preparation and Post-Weld Cleaning
Proper surface preparation and post-weld cleaning are critical for ensuring the durability and corrosion resistance of Nickel 201 welds. Before welding, all surfaces should be thoroughly cleaned to remove grease, oxides, or other contaminants that could compromise the weld. After welding, slag and oxide residues should be removed using a stainless steel wire brush or appropriate grinding techniques. In some cases, pickling may be required to restore the metal's surface integrity. These steps help maintain the base metal's properties, ensuring the welded joints perform reliably in high-temperature, corrosive, or industrial environments.
Heat Treatment Processes for Nickel 201 Plate
Solution Annealing
Solution annealing is a fundamental heat treatment process applied to Nickel 201 plates to optimize their mechanical and metallurgical properties. During this procedure, plates are heated to temperatures typically ranging from 760°C to 1150°C, depending on the specific requirements of the application. The high-temperature treatment helps to relieve internal stresses accumulated during manufacturing, cold working, or forming. It also enhances ductility and toughness while ensuring uniform mechanical properties throughout the material. The duration of annealing varies with plate thickness, emphasizing careful control to achieve consistent microstructure and optimal performance in service environments.
Rapid Cooling

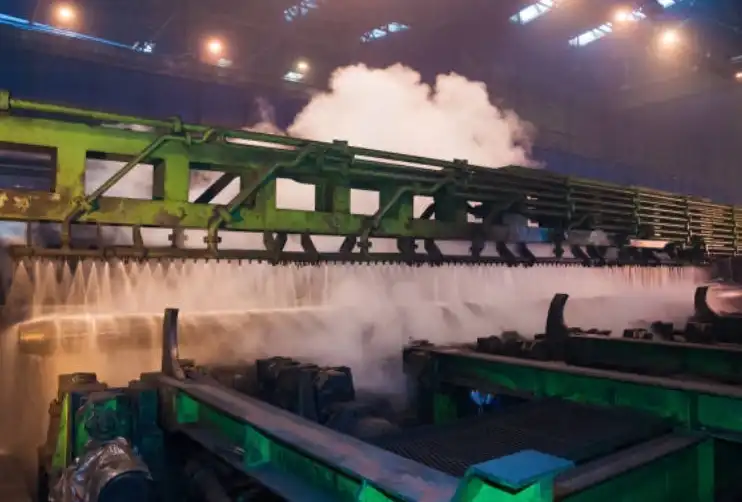

Following solution annealing, it is essential to rapidly cool Nickel 201 plates to room temperature. This step, commonly performed using water quenching, preserves the beneficial microstructure developed during annealing and prevents the formation of detrimental precipitates or grain coarsening. Rapid cooling plays a key role in maintaining the material’s superior corrosion resistance, mechanical strength, and dimensional stability. Improper cooling can compromise performance, leading to decreased durability and higher susceptibility to stress-related failures. Therefore, controlling cooling rates is critical to ensure that Nickel 201 plates retain their high-quality properties for industrial applications.
Stress Relief Heat Treatment
Stress relief heat treatment is sometimes required for Nickel 201 plates, particularly after processes such as welding, heavy cold working, or forming. This treatment involves heating the material to temperatures typically between 425°C and 870°C, holding it at the target temperature for a specified duration, and then allowing it to cool slowly. The process effectively reduces residual stresses induced during fabrication, which can otherwise lead to distortion or stress corrosion cracking in service. By relieving internal stresses, the treatment enhances the long-term reliability, dimensional stability, and mechanical integrity of Nickel 201 plates in demanding industrial applications.
Optimizing Nickel 201 Plate Properties Through Welding and Heat Treatment
Controlling Grain Size
The microstructure of Nickel 201 plate plays a key role in determining its overall mechanical behavior. Through precise control of welding temperatures, heat input, and post-weld heat treatment, manufacturers can refine and stabilize the grain structure. Fine, uniform grains improve tensile strength, ductility, and resistance to cracking under stress. Rapid cooling after welding may lead to coarser grains, while controlled furnace cooling ensures structural consistency. Maintaining optimal grain size not only enhances performance but also extends service life, especially in high-temperature or corrosive industrial environments.
Enhancing Corrosion Resistance
Nickel 201 is valued for its natural corrosion resistance, but welding and heat treatment can either enhance or compromise it depending on process control. Clean joint preparation, proper shielding gas, and controlled heat input prevent oxidation and carbide precipitation at weld zones. Solution annealing after welding restores uniformity by dissolving harmful precipitates and homogenizing the alloy’s composition. This ensures that the welded areas exhibit corrosion resistance comparable to the base metal, making the plate suitable for chemical processing, marine, and high-purity applications.
Improving Mechanical Properties
Mechanical optimization of Nickel 201 plates involves balancing hardness, ductility, and toughness through tailored welding and heat treatment cycles. Post-weld heat treatment relieves internal stresses introduced during fabrication, improving fatigue performance and dimensional stability. Controlled cooling rates following annealing can adjust the material’s yield and tensile strength to suit specific engineering needs. These refinements make Nickel 201 more resilient under cyclic loading and high-pressure conditions, ensuring consistent performance in demanding applications such as heat exchangers, reactors, and electronic components.
Conclusion
Welding and heat-treating Nickel 201 plate requires a thorough understanding of the material's properties and behavior. By employing proper welding techniques such as GTAW or SMAW, and following appropriate heat treatment processes including solution annealing and rapid cooling, manufacturers can ensure that Nickel 201 plates maintain their exceptional characteristics. These processes not only preserve the material's high purity and corrosion resistance but also optimize its mechanical properties for various industrial applications. As with any specialized material, consulting with experts and adhering to industry standards is crucial for achieving the best results in welding and heat-treating Nickel 201 plate.
FAQs
What are the key features of Nickel 201 plate?
Nickel 201 plate is known for its high purity (min. 99.0% Ni), excellent corrosion resistance, superior thermal and electrical conductivity, good ductility and formability, and non-magnetic properties.
What are the common applications for Nickel 201 plate?
Nickel 201 plates are extensively used in chemical processing equipment, food preparation vessels, pharmaceutical reactors, electronic components, and heat exchangers.
What standards does TSM Technology's Nickel 201 plate comply with?
Our Nickel 201 plates comply with ASTM B162, ASME SB162, and DIN 17750 standards, ensuring consistent quality and performance.
Choose TSM TECHNOLOGY for Premium Nickel 201 Plate
TSM TECHNOLOGY, a leading Nickel 201 plate manufacturer and supplier, offers top-quality products backed by rigorous quality control. With our state-of-the-art facilities, including 3 factories, 8 production lines, and over 100 machines, we ensure consistent excellence in every Nickel 201 plate we produce. Our comprehensive range of thicknesses (5-150 mm) and widths (1000-2500 mm) caters to diverse industrial needs. Trust in our expertise for all your Nickel 201 plate requirements. For inquiries or to request a free sample, contact us at info@tsmnialloy.com.
References
ASTM International. (2021). "Standard Specification for Nickel Plate, Sheet, and Strip." ASTM B162-21.
American Welding Society. (2020). "Welding Handbook: Metals and Their Weldability." 9th Edition, Volume 4.
ASM International. (2018). "Heat Treating of Nonferrous Alloys." ASM Handbook, Volume 4E.
Nickel Institute. (2019). "Welding of Nickel and Nickel Alloys." Technical Series No. 10064.
Journal of Materials Processing Technology. (2022). "Recent Advances in Welding and Heat Treatment of Nickel-Based Alloys." Volume 300.
Materials Science and Engineering: A. (2021). "Microstructure and Properties of Heat-Treated Nickel 201 Alloy." Volume 803.
