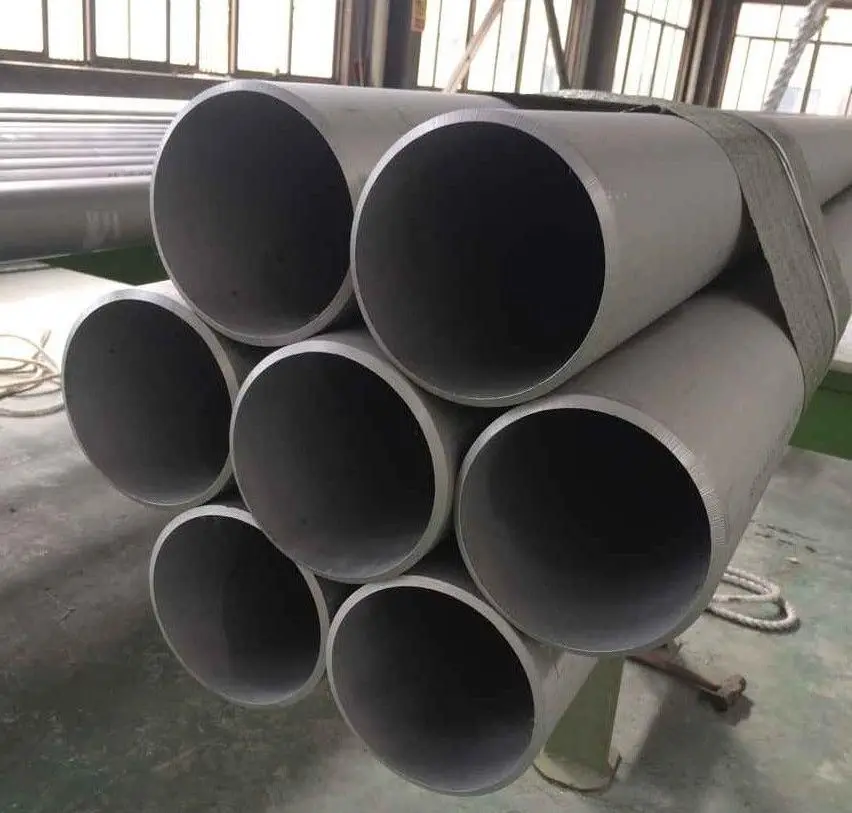

Understanding Inconel 601 Tube Properties and Applications
Composition and Microstructure
Inconel 601 is a nickel-chromium alloy known for its exceptional heat resistance and corrosion resistance. The composition typically includes:
- 58-63% Nickel
- 21-25% Chromium
- 1-1.7% Aluminum
- Up to 1.5% Iron
This unique blend of elements contributes to the formation of a protective oxide layer, enhancing the material's resistance to oxidation and other forms of high-temperature corrosion.
Mechanical Properties
Inconel 601 tubes exhibit impressive mechanical properties, especially at elevated temperatures:
- Tensile Strength: 550-750 MPa at room temperature
- Yield Strength: 205-380 MPa at room temperature
- Elongation: 30-45%
These properties remain relatively stable up to temperatures of 1200°C, making Inconel 601 tubes ideal for high-temperature applications.
Common Applications
Inconel 601 tubes find extensive use in various industries, including:
- Aerospace: Jet engine components and exhaust systems
- Chemical Processing: Heat exchangers and reaction vessels
- Energy: Power generation equipment and furnace components
- Petrochemical: Refinery equipment and process piping
The material's versatility and reliability make it a preferred choice for critical high-temperature applications across these sectors.
Key Factors in Selecting Inconel 601 Tubes for High-Temperature Use
Temperature Range Considerations
When choosing Inconel 601 tubes, it's crucial to consider the specific temperature range of your application. While the alloy performs exceptionally well up to 1200°C, its behavior can vary within this range:
- 600-800°C: Excellent oxidation resistance and mechanical stability
- 800-1000°C: Enhanced chromium oxide formation for improved corrosion resistance
- 1000-1200°C: Maintained strength, but increased oxidation rates
Evaluate your process conditions carefully to ensure the selected tube can withstand the expected thermal cycling and peak temperatures.
Corrosive Environment Assessment
Inconel 601 tubes offer superior resistance to various corrosive environments, but it's essential to match the material to your specific conditions:
- Oxidizing Atmospheres: Excellent performance due to chromium oxide layer formation
- Sulfidizing Environments: Good resistance, but may require additional considerations
- Chloride-containing Environments: Moderate resistance, potential for stress corrosion cracking
Analyze your process fluids and gases to determine compatibility and potential long-term effects on the Inconel 601 tubes.
Dimensional Requirements
Selecting the appropriate tube dimensions is crucial for optimal performance:
- Outside Diameter (OD): Choose from available sizes ranging from 6.0 mm to 114 mm
- Wall Thickness: Options typically range from 0.5 mm to 15 mm
- Length: Consider maximum available lengths up to 15000 mm for special requirements
Ensure that the selected dimensions align with your system design, pressure requirements, and installation constraints. Consult with suppliers for customized sizes if standard options don't meet your needs.
Best Practices for Inconel 601 Tube Selection and Quality Assurance
Material Certification and Traceability
To ensure the authenticity and quality of Inconel 601 tubes, always request and verify:
- Material Test Reports (MTRs): Documenting the alloy’s precise chemical composition and mechanical properties to confirm compliance with engineering requirements.
- Heat numbers: Providing full traceability throughout the production process, linking each tube back to its original melt and batch record.
- Compliance certificates: Verifying adherence to relevant ASTM, ASME, or equivalent international standards.
These essential documents not only confirm product quality and consistency but also support effective quality assurance, audit readiness, and long-term reliability across critical applications.
Non-Destructive Testing (NDT) Requirements
Implement appropriate NDT methods to verify the integrity of Inconel 601 tubes:
- Ultrasonic Testing (UT): Detects internal defects, inclusions, and wall thickness variations that could compromise performance.
- Eddy Current Testing (ECT): Identifies surface and near-surface discontinuities, corrosion, or cracks without damaging the tube.
- Hydrostatic Testing: Confirms leak-free operation and evaluates the pressure-bearing capacity under simulated working conditions.
Specifying detailed NDT procedures and acceptance criteria during procurement ensures the tubes meet rigorous quality and safety standards before installation.
Supplier Evaluation and Partnership
Choosing a reliable supplier is crucial for obtaining high-quality Inconel 601 tubes:
- Evaluate supplier experience: Confirm their track record in manufacturing and supplying nickel alloy products for demanding industries.
- Verify certifications: Check for ISO 9001 or equivalent quality management credentials to ensure systematic process control.
- Assess technical support: Review their capability to provide engineering advice, material selection guidance, and prompt response to inquiries.
Establishing a strong partnership with a reputable supplier ensures consistent product quality, on-time delivery, and long-term collaboration for future projects.
Conclusion
Choosing the best Inconel 601 tube for high-temperature use requires a comprehensive approach that considers material properties, application requirements, and quality assurance measures. By carefully evaluating temperature ranges, corrosive environments, and dimensional needs, you can select tubes that offer optimal performance and longevity. Prioritize material certification, implement appropriate non-destructive testing, and partner with reliable suppliers to ensure the highest quality Inconel 601 tubes for your critical high-temperature applications. With these considerations in mind, you can confidently select Inconel 601 tubes that meet the demanding needs of aerospace, petrochemical, energy, and chemical processing industries.
FAQs
What is the maximum operating temperature for Inconel 601 tubes?
Inconel 601 tubes can maintain their strength and oxidation resistance up to 1200°C (2192°F).
Are Inconel 601 tubes suitable for welding?
Yes, Inconel 601 tubes have good fabricability and can be easily welded using various methods.
What are the standard sizes available for Inconel 601 tubes?
Standard outside diameters range from 6.0 mm to 114 mm, with wall thicknesses from 0.5 mm to 15 mm. Custom sizes are also available.
Choose TSM Technology for Premium Inconel 601 Tubes
TSM Technology is your trusted manufacturer and supplier of high-quality Inconel 601 tubes. With over 14 years of expertise in nickel alloys, we offer superior products that meet ASTM B163/B167/B829 standards. Our tubes are available in various sizes, with outside diameters from 3 mm to 600 mm and wall thicknesses from 0.5 mm to 30 mm. We provide exceptional customer service and reliable supply to meet your specific needs. For premium Inconel 601 tubes from a reputable manufacturer, contact us at info@tsmnialloy.com.
