How to Inspect and Test Inconel 625 Flange for Quality Assurance?

Inspecting and testing Inconel 625 flanges for quality assurance involves a comprehensive approach combining visual inspection, dimensional checks, and material verification. Start with a thorough visual examination to detect surface defects or irregularities. Use precision measuring tools to confirm dimensions align with specifications. Employ non-destructive testing methods like ultrasonic testing or radiography to identify internal flaws. Conduct chemical analysis to verify material composition. Perform hardness testing to ensure mechanical properties meet standards. Finally, review documentation for material traceability and certifications. This multi-step process ensures the Inconel 625 flange meets the highest quality standards for critical applications in aerospace, marine, and chemical processing industries.

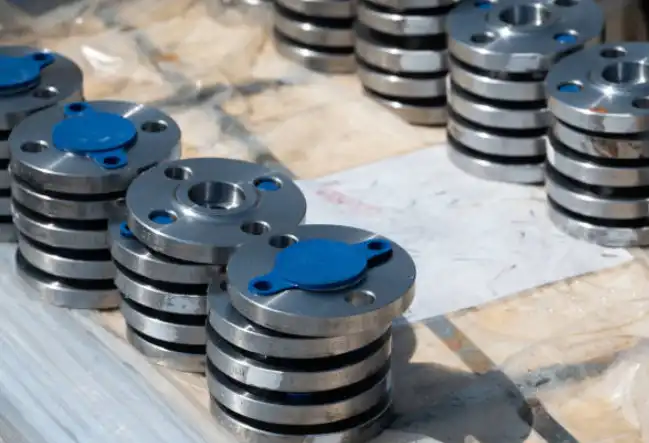

Visual Inspection and Dimensional Verification of Inconel 625 Flanges

Surface Examination Techniques

Visual inspection is the first crucial step in assessing Inconel 625 flange quality. Carefully examine the flange surface for any signs of defects, such as scratches, pits, or cracks. Use magnifying tools to scrutinize areas prone to imperfections. Pay special attention to sealing surfaces and bolt holes, as these are critical for proper flange functionality. Look for any signs of corrosion, discoloration, or manufacturing irregularities that could compromise the flange's performance in demanding environments.

Dimensional Accuracy Checks

Precision in dimensions is paramount for Inconel 625 flanges. Utilize calibrated measuring instruments like micrometers, calipers, and bore gauges to verify critical dimensions. Check flange thickness, outer diameter, bolt circle diameter, and bolt hole sizes against the specified tolerances. For raised face flanges, measure the height and width of the raised face. Ensure that flatness and parallelism meet the required standards, as these factors significantly impact the flange's sealing capabilities in high-pressure and high-temperature applications.

Surface Finish Evaluation

The surface finish of an Inconel 625 flange plays a crucial role in its sealing performance. Use a surface roughness tester to measure and evaluate the flange's surface finish. Compare the results with the specified roughness values, typically expressed in Ra (roughness average). A proper surface finish ensures optimal contact between mating surfaces, enhancing the flange's ability to maintain a leak-tight seal in corrosive environments and extreme temperatures characteristic of industries like chemical processing and aerospace.

Non-Destructive Testing Methods for Alloy 625 Flanges

Ultrasonic Testing Procedures

Ultrasonic testing is a powerful non-destructive method for detecting internal flaws in Inconel 625 flanges. This technique uses high-frequency sound waves to penetrate the material and reveal hidden defects such as cracks, voids, or inclusions. Calibrate the ultrasonic equipment using a reference block with known flaws. Scan the entire flange volume, paying extra attention to critical stress areas. Analyze the resulting echoes to identify and characterize any internal discontinuities. Ultrasonic testing is particularly valuable for thick-walled flanges used in high-pressure systems within the energy and marine industries.

Radiographic Inspection Techniques

Radiography offers another effective means of examining alloy 625 flanges for internal defects. This method involves passing X-rays or gamma rays through the flange and capturing the image on film or digital detectors. The resulting radiograph reveals density variations that indicate the presence of flaws. Ensure proper exposure settings and positioning to achieve optimal image quality. Interpret the radiographs to identify any porosity, inclusions, or other internal imperfections that could compromise the flange's integrity in demanding applications such as aerospace components or chemical processing equipment.

Magnetic Particle and Dye Penetrant Testing

While Inconel 625 is non-magnetic, magnetic particle testing can still be useful for detecting surface and near-surface defects in welded areas of the flange. For comprehensive surface flaw detection, employ dye penetrant testing. This method involves applying a penetrant liquid to the flange surface, allowing it to seep into any surface-breaking defects. After removing excess penetrant, apply a developer to draw out the penetrant from flaws, making them visible under proper lighting conditions. These techniques are particularly useful for identifying surface cracks or porosity that may not be apparent during visual inspection, ensuring the flange meets the stringent quality requirements for critical applications in various industries.

Material Verification and Mechanical Property Testing

Chemical Composition Analysis

Verifying the chemical composition of Inconel 625 flanges is crucial to ensure they meet the specified alloy requirements. Utilize X-ray fluorescence (XRF) spectroscopy or optical emission spectroscopy (OES) for non-destructive elemental analysis. These methods provide rapid, accurate results for key elements like nickel, chromium, molybdenum, and niobium. Compare the obtained composition with the standard specifications for Inconel 625 (UNS N06625). Pay particular attention to the percentages of alloying elements that contribute to the material's corrosion resistance and high-temperature strength, essential for applications in chemical processing plants and marine environments.

Hardness Testing Procedures

Hardness testing is an essential step in evaluating the mechanical properties of alloy 625 flanges. Employ Brinell or Rockwell hardness testing methods, following ASTM E10 or ASTM E18 standards, respectively. Conduct tests at multiple points across the flange surface to ensure uniformity. Compare the results with the specified hardness range for Inconel 625, typically between 150 to 250 Brinell. Hardness values provide insight into the material's strength and wear resistance, critical factors for flanges used in high-stress applications such as aerospace components or turbine parts in the energy sector.

Tensile Strength and Yield Strength Verification

While not always feasible for every flange, tensile testing on sample pieces from the same material batch provides valuable data on mechanical properties. Conduct tensile tests according to ASTM E8 standards, measuring ultimate tensile strength, yield strength, and elongation. For Inconel 625, expect a minimum tensile strength of 120 ksi (827 MPa) and a yield strength of at least 60 ksi (414 MPa) at room temperature. These properties ensure the flange can withstand the high stresses encountered in applications like pressure vessels or heat exchangers in corrosive, high-temperature environments typical of chemical processing and oil refining industries.

Conclusion

Thorough inspection and testing of Inconel 625 flanges are crucial for ensuring quality and reliability in demanding industrial applications. By combining visual inspection, dimensional verification, non-destructive testing, and material property analysis, manufacturers and end-users can confidently validate the integrity of these critical components. This comprehensive approach not only meets industry standards but also guarantees the exceptional performance of Inconel 625 flanges in corrosive, high-temperature, and high-pressure environments. Implementing these rigorous quality assurance measures safeguards against potential failures, enhances operational safety, and extends the service life of systems utilizing these specialized flanges.

FAQs

What are the key properties that make Inconel 625 flanges suitable for harsh environments?

Inconel 625 flanges excel in harsh environments due to their exceptional corrosion resistance, high strength at elevated temperatures, and excellent oxidation resistance. They maintain their integrity in aggressive media and can withstand temperatures up to 980°C.

How often should Inconel 625 flanges be inspected during service?

The inspection frequency depends on the application and operating conditions. Generally, it's recommended to perform visual inspections during scheduled maintenance and conduct more thorough non-destructive testing annually or biannually, especially in critical systems.

Can Inconel 625 flanges be welded without losing their properties?

Yes, Inconel 625 has excellent weldability. However, proper welding procedures must be followed to maintain the alloy's properties. Post-weld heat treatment may be necessary to restore optimal corrosion resistance and mechanical properties.
