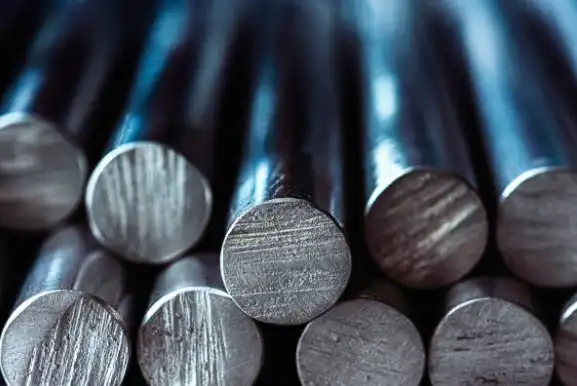

Understanding Inconel 625 Round Bar and Its Importance in Industry
Composition and Properties of Inconel 625
Inconel 625, also known as alloy 625, is a high-performance nickel-chromium-based superalloy renowned for its exceptional resistance to corrosion and high-temperature strength. The composition of Inconel 625 typically includes nickel (58% minimum), chromium (20-23%), molybdenum (8-10%), and smaller amounts of niobium, iron, and other elements. This unique blend of alloying elements contributes to its remarkable properties, such as excellent fatigue strength, outstanding oxidation resistance, and superior creep resistance at elevated temperatures.
The mechanical properties of Inconel 625 round bar are equally impressive. It maintains its strength and toughness across a wide temperature range, from cryogenic conditions to temperatures exceeding 1000°C. The alloy's yield strength at room temperature is typically around 415 MPa, with a tensile strength of approximately 830 MPa. These characteristics make Inconel 625 an ideal choice for applications requiring both high strength and corrosion resistance in extreme environments.
Applications of Inconel 625 Round Bar
Inconel 625 round bar finds extensive use across various industries due to its exceptional properties. In the aerospace sector, it's utilized in jet engine components, exhaust systems, and thrust reverser systems. The marine industry relies on alloy 625 for propeller blades, shafts, and underwater equipment due to its excellent resistance to seawater corrosion. In chemical processing, Inconel 625 is employed in reactors, heat exchangers, and piping systems where aggressive chemicals and high temperatures are present.
The oil and gas industry benefits from Inconel 625's properties in downhole tools, wellhead components, and subsea equipment. Nuclear power plants use this alloy in reactor vessels and steam generator tubing. Additionally, Inconel 625 round bar is crucial in pollution control equipment, flue gas desulfurization systems, and waste treatment facilities. Its versatility and reliability make it an indispensable material in critical applications across these diverse industries.
Importance of Quality Control in Inconel 625 Production
Maintaining strict quality control in the production of Inconel 625 round bar is paramount to ensure its performance and reliability in demanding applications. The alloy's complex composition requires precise control during melting, forming, and heat treatment processes. Any deviations from the specified chemical composition or improper processing can significantly affect the material's properties and performance.
Quality control measures typically include rigorous testing of mechanical properties, such as tensile strength, yield strength, and elongation. Non-destructive testing methods like ultrasonic testing and eddy current inspection are employed to detect any internal defects or surface imperfections. However, one of the most critical aspects of quality control for Inconel 625 round bar is the verification of its chemical composition, which is where Optical Emission Spectrometry (OES) analysis plays a crucial role.
Principles and Equipment of Optical Emission Spectrometry (OES)
Fundamentals of OES Technology
Optical Emission Spectrometry (OES) is a powerful analytical technique used to determine the elemental composition of metallic materials, including Inconel 625 round bar. The fundamental principle behind OES is the excitation of atoms in a sample, causing them to emit light at characteristic wavelengths. This emitted light is then analyzed to identify and quantify the elements present in the sample.
In OES analysis, a high-energy spark is used to vaporize a small amount of the sample material, creating a plasma. The atoms in this plasma are excited to higher energy states and subsequently return to their ground states, emitting photons of light in the process. Each element emits light at specific wavelengths, creating a unique spectral fingerprint. The intensity of the emitted light is proportional to the concentration of the element in the sample, allowing for quantitative analysis.
Components of an OES Instrument
An OES instrument consists of several key components that work together to perform the analysis of alloy 625 round bar. The spark stand is where the sample is placed and where the electrical discharge occurs. This discharge creates the plasma necessary for atomic excitation. The optical system collects and directs the emitted light, typically using a series of mirrors and lenses.
The spectrometer is the heart of the OES system. It separates the collected light into its constituent wavelengths, typically using a diffraction grating or prism. Modern OES instruments often employ multiple detectors or charge-coupled devices (CCDs) to simultaneously measure light intensity across a wide range of wavelengths. This allows for rapid, multi-element analysis.
The data processing system interprets the spectral data, comparing it to calibration standards to determine the elemental composition of the sample. Advanced software packages can perform complex calculations, apply matrix corrections, and generate detailed reports of the analysis results.
Advantages of OES for Alloy Analysis
OES offers several advantages for analyzing Inconel 625 round bar and other alloys. It provides rapid, multi-element analysis, capable of detecting and quantifying a wide range of elements simultaneously. This is particularly beneficial for complex alloys like Inconel 625, which contain numerous alloying elements in varying concentrations.
The technique is highly sensitive, capable of detecting elements at parts per million (ppm) levels or lower. This sensitivity is crucial for verifying the presence of trace elements that can significantly impact the alloy's properties. OES analysis is also non-destructive, requiring only a small spark mark on the sample surface, which is typically negligible for large components like round bars.
Another significant advantage of OES is its ability to provide rapid results. A complete elemental analysis can be performed in a matter of minutes, making it suitable for production environments where quick quality control decisions are necessary. The technique is also highly reproducible, providing consistent results across multiple analyses when properly calibrated and maintained.
Step-by-Step Guide to Performing OES Analysis on Inconel 625 Round Bar
Sample Preparation Techniques
Proper sample preparation is crucial for accurate OES analysis of Inconel 625 round bar. Begin by selecting a representative section of the round bar for testing. The sample surface must be flat, smooth, and free from contaminants to ensure reliable results. Start by cutting a small section from the round bar using a clean, sharp cutting tool to minimize any heat-induced changes to the material's structure.
Once cut, the sample surface needs to be prepared. This typically involves grinding the surface with progressively finer abrasives, starting with coarse grit and moving to fine grit. The final surface should be smooth and polished, free from any visible scratches or marks. It's important to avoid overheating the sample during preparation, as this could alter its microstructure and affect the analysis results.
After polishing, thoroughly clean the sample surface to remove any residual abrasive particles or contaminants. This can be done using ultrasonic cleaning in a suitable solvent, followed by drying with clean, compressed air. Handle the prepared sample with clean gloves to avoid introducing any surface contaminants that could interfere with the analysis.
Calibration Process for OES Instruments
Calibration is a critical step in ensuring accurate OES analysis of alloy 625 round bar. Begin by selecting appropriate calibration standards that closely match the composition of Inconel 625. These standards should be certified reference materials (CRMs) with known elemental compositions that span the expected range of concentrations in your samples.
Perform a series of measurements on these calibration standards, starting with a blank (usually high-purity iron) and progressing through standards of increasing elemental concentrations. This process establishes a calibration curve for each element of interest. Modern OES systems often use sophisticated software to perform multi-point calibrations and apply mathematical corrections for matrix effects.
It's important to verify the calibration regularly using quality control samples. These can be either certified reference materials or in-house standards with well-characterized compositions. Analyze these samples periodically throughout your testing session to ensure the instrument's performance remains stable and accurate.
Conducting the OES Analysis
With the sample prepared and the instrument calibrated, you're ready to perform the OES analysis on your Inconel 625 round bar. Place the prepared sample in the spark stand, ensuring it's positioned correctly and making good contact with the electrode. Most modern OES instruments have automated sample handling systems that can precisely position the sample.
Initiate the analysis sequence as per your instrument's operating procedures. The system will generate a series of sparks on the sample surface, creating the plasma necessary for analysis. Multiple sparks are typically used to improve precision and to average out any small inhomogeneities in the sample.
As the analysis progresses, the instrument will collect spectral data and process it in real-time. Many systems provide live updates of the elemental composition as the analysis proceeds. Once complete, review the results to ensure they fall within the expected ranges for Inconel 625. Pay particular attention to key elements like nickel, chromium, molybdenum, and niobium, as well as any specified impurity limits.
If the results appear anomalous or outside of specifications, consider repeating the analysis on a different area of the sample or preparing a new sample altogether. It's important to verify any unexpected results before making quality control decisions based on the OES analysis.
Conclusion
Performing OES analysis on Inconel 625 round bar is a critical process in ensuring the quality and composition of this high-performance alloy. By following proper sample preparation techniques, maintaining accurate instrument calibration, and conducting the analysis with care, manufacturers and end-users can reliably verify the chemical composition of their materials. This analytical capability is essential for maintaining the exceptional properties that make Inconel 625 so valuable across various industries. As materials science continues to advance, the role of precise compositional analysis in quality control will only grow in importance, making OES an indispensable tool in the production and utilization of superior alloys like Inconel 625.
FAQs
How often should OES instruments be calibrated for Inconel 625 analysis?
OES instruments should be calibrated daily or before each testing session to ensure accuracy. Regular calibration checks using certified reference materials are recommended throughout extended testing periods.
Can OES analysis detect trace elements in Inconel 625 round bar?
Yes, OES is highly sensitive and can detect trace elements down to parts per million (ppm) levels in Inconel 625, which is crucial for verifying alloy composition and purity.
Is OES analysis destructive to the Inconel 625 round bar sample?
OES analysis is considered minimally destructive. It leaves only a small spark mark on the sample surface, which is typically negligible for large components like round bars.
