How to Verify Genuine Inconel 686: PMI Testing and MTR Analysis?

Positive Material Identification (PMI) tests and Material Test Report (MTR) research must be used in a planned way to make sure that Inconel 686 flanges are real. These scientific methods of testing make sure that buying teams get real UNS N06686 superalloy parts that meet strict industry standards. PMI testing quickly checks the chemical makeup on-site, while MTR analysis gives detailed records of the product's origin. Together, these methods keep fake materials out and make sure that the materials have the high corrosion resistance that is needed for important industry uses in the aircraft, petrochemical, and marine engineering fields.

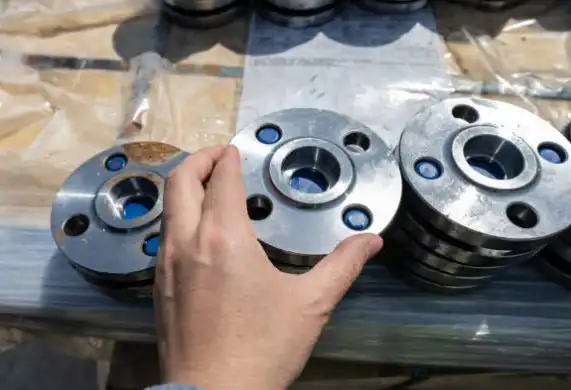

Understanding the Importance of Authentic Inconel 686 Flanges

The reliability of Inconel 686 flanges has a direct effect on operating safety and legal compliance in mission-critical fields. This nickel-chromium-molybdenum-tungsten superalloy is very resistant to both oxidizing and reducing agents, which is why it is essential for tough chemical conditions.

Chemical Composition and Performance Characteristics

Genuine Inconel 686 flanges have alloying elements that are perfectly balanced, which makes them more resistant to rust. Nickel is the main element in the material, followed by chromium (19–23%), molybdenum (15–17%), and tungsten (3–4.4%). This particular mix of metals makes a thick, silent film that shields against strong chemical attacks and rusting at high temperatures.

The Inconell 686 flange stays mechanically sound at very high and very low temperatures, from -200°C to 1000°C. Its tensile strength is over 655 MPa and its yield strength is over 310 MPa. These qualities make sure that the material will work well for a long time in tough situations where failure of the material could have terrible results.

Industry Impact of Material Authenticity

Buying materials that have been checked out keeps operations from failing, which can cost businesses millions in lost time and lawsuits. Chemical processing plants depend on real Inconel 686 flanges for heat exchangers and reactor tanks. The safety of the plant is directly affected by the quality of the material. Genuine parts are used in marine industries for systems that carry seawater and for offshore platforms, where resistance to rust keeps structures from falling apart.

Nuclear power plants need approved materials for equipment that handles radioactive trash, and full material tracking is required to meet regulations. For environmental uses, like flue gas desulfurization systems, real parts are needed to keep the pollution control working well and maintain regulatory approval.

Challenges in Identifying Genuine Inconel 686 Flanges

Material proof is hard because it involves a lot of complicated issues that can't be solved with standard checking methods. Visual inspection and marks from the seller aren't always effective ways to tell the difference between real superalloy parts and fakes.

Limitations of Traditional Verification Methods

Since surface marks and paperwork are easy to copy, a visual review is not enough to prove that a material is real. Differences in how things are made at different foundries cause look differences that make recognition harder. Traditional methods of proof are even less reliable when testing standards vary between providers.

Even though fake materials may look the same, they might not have the exact chemical makeup that makes real Inconel 686 flanges work efficiently. These alternatives don't always work when they're supposed to, which can put people in danger and break expensive equipment.

Market Complexities and Supply Chain Risks

There are many places in global supply lines where the validity of goods can be questioned. Distributors may handle fake goods without realizing it, and teams that are in a hurry to get things can be tempted to skip thorough verification steps. When there are price stresses, people may accept iffy materials that seem to save money.

Another big problem is documentation theft, which happens when fake certificates are sent with bad materials. For these complex fake schemes to work, scientific testing methods are needed to find differences between what the material claims to have properties and what those properties actually are.

Core Principles and Methods for Authenticity Verification

Through exact chemical research and a thorough review of all the paperwork, scientific proof methods provide reliable authentication. These methods get rid of the need to guess and create a clear material character.

Positive Material Identification (PMI) Testing Fundamentals

X-ray fluorescence (XRF) technology is used in PMI testing to look at the elements directly on the surfaces of components. Within seconds of checking, this non-destructive method finds key alloying elements like molybdenum, tungsten, nickel, and chrome. Modern mobile XRF instruments can be used for field testing tasks and are just as accurate as those used in a lab.

The testing process doesn't need much work on the surface and gives quick data that can be compared to standard requirements for UNS N06686 material. PMI testing finds differences in elements that show material substitution or contamination, so you can be sure of the authenticity even if an eye check can't tell you for sure.

Material Test Report (MTR) Analysis Protocols

Through thorough chemical analyses, mechanical testing results, and records of the production process, MTR paperwork makes it possible to track down all of an Inconel 686 flange material's history. As well as identifying the heat number, real MTRs come with full chemical makeup data and proof that they meet relevant standards like ASTM B564 and ASME SB564.

Verification teams need to compare MTR data with PMI testing results to make sure that the written and real qualities of the material are the same. Differences between these sources could mean that there are problems with identification that need to be looked into further or that the evidence is not solid.

Complementary Testing Techniques

Testing for hardness confirms that the material's mechanical qualities are correct after the right amount of heat treatment and processing. Dimensional checks make sure that limits and factory standards are being followed. Ultrasonic testing finds flaws inside materials that could make them less reliable in real-world situations.

Overall verification trust is higher thanks to these extra ways that confirm more than just the basic chemical makeup of a material. Using a combination of testing methods gives you full authentication that checks every part of the quality and accuracy of the material.

Applying Verification Processes in Real Procurement Scenarios

For verification methods to be successfully put into place, they need to be carefully integrated into current procurement workflows and seller qualification processes. In real life, this means organizing different testing methods while keeping project deadlines on track.

Supplier Selection and Qualification Procedures

Qualified providers have complete quality control systems that keep track of materials from the time they are first made until they are delivered. To get certified, you need to be registered with ISO 9001 for quality management, a member of NACE International, and follow industry standards like API 6A for oil and gas uses.

During supplier checks, testing capabilities, paperwork processes, and inventory management practices are checked to make sure that the integrity of the materials is maintained throughout the supply chain. Suppliers who have been pre-qualified show that they consistently meet requirements by keeping up with third-party certifications and delivery records.

Sample Preparation and Testing Execution

Representative sampling methods make sure that PMI testing correctly shows the properties of bulk materials across whole orders. Different Inconel 686 flange surfaces must be tested on different locations, but areas that have been treated with cutting fluids or surface treatments shouldn't be tested because they could affect the accuracy of the analysis.

Before analyzing production materials, PMI testing methods need to make sure that the calibration is correct using approved reference standards. Multiple test spots on each component make sure that the makeup is regular and look for possible segregation problems that could hurt service performance.

Real-World Case Studies and Implementation Examples

A big petroleum plant escaped a disaster by finding fake flanges through regular PMI tests that showed they didn't have enough molybdenum content. The testing process stopped the use of low-quality materials in acid service uses that needed to be resistant to corrosion for safety reasons.

A company that makes aircraft parts used a full MTR analysis to find problems with the paperwork for turbine parts. Cross-checking supplier certificates with independent tests showed that the wrong materials were used, which could have hurt the performance at high temperatures in jet engine use.

A nuclear power plant was able to stay in line with the rules by using structured testing methods that proved the traceability of materials used in systems for handling radioactive waste. The paperwork gave regulatory officials all the information they needed about the material's history in order to update licenses.

Comparing Verification and Procurement Considerations for Inconel 686 Flanges

Knowing the problems that come up with verifying different types of superalloy helps buying teams choose the right testing methods and build good relationships with suppliers. Comparative research shows that each person has unique traits that affect the identification process.

Alloy Composition Variations and Testing Implications

Inconel 686 has higher amounts of molybdenum and tungsten than Inconel 625 or 718. This makes it easier to identify PMI because it has unique chemical fingerprints. However, these high alloy amounts need calibrated instruments that can measure heavy elements correctly within their designated areas.

Because stainless steel replacements don't have the complicated superalloy chemistry of real Inconel 686, it's pretty easy to tell when a different material is being used by doing simple compositional analysis. Because these materials have very different prices, there are strong economic benefits for people to make fakes.

Procurement Strategy Development

Diversifying your Inconel 686 flange suppliers lowers the risks in the supply chain and makes it easier to get verified Inconel 686 flange products from more than one reliable source. Suppliers can invest in quality systems and testing tools that meet full verification standards through long-term partnership deals.

Services that add value, like fast shipping, custom machining, and expert advice, help buyers choose the best providers and add more verification points throughout the buying process. These services help people work together, which improves the quality of the work and the success of the project as a whole.

Our three factories, eight production lines, and more than 100 precision tools show that TSM Technology can follow these concepts in all of its manufacturing. Our 300-ton-per-month production capacity for Inconel 686 flanges supports large-scale projects and makes sure that the quality of each part is maintained through strict testing procedures.

We make all common sizes and shapes (WN, SO, SW, BL, and LJ types) from 1/2" to 24" in diameter, and they are made to meet ASME B16.5, B16.47, and EN 1092 standards. Surface processes like sandblasting, electropolishing, and chemical passivation improve performance for particular uses while still ensuring the accuracy of the material.

Conclusion

Verifying that Inconel 686 flanges are real through PMI testing and MTR analysis is an important way to keep fake materials from getting into operations and causing problems with following the rules. These scientific methods get rid of the question that comes with direct inspection while proving that the material is real. For adoption to go smoothly, testing methods must be carefully combined with procedures for vetting suppliers and the buying process. Investing in the right testing methods stops mistakes that cost a lot of money and guarantees long-term performance in important uses in the power generation, aerospace, petrochemical, and marine industries.

FAQ

1. How accurate is PMI testing for Inconel 686 verification?

Modern XRF-based PMI testing can accurately measure the major alloying elements in Inconel 686 to within 0.1%, which makes it possible to reliably identify real UNS N06686 material. Calibrated equipment using approved reference standards makes sure that measurements are accurate enough to make final choices about authentication.

2. What critical features should be evaluated in MTR documentation?

Complete chemical analysis data, mechanical property test results, heat treatment certification, and the ability to trace back to main mill output records are all important parts of a MTR. Cross-verification between different test methods in the MTR makes sure that the information is fully described and that the rules are followed.

3. Can welding or machining operations affect material verification results?

Heat-affected areas from welding may change the local microstructure without changing the main chemical makeup, which can be seen with PMI testing. Most of the time, machining processes don't change the identity of the material, but cutting fluids should be cleaned off the surface before PMI analysis to make sure the results are correct.

Partner with TSM Technology for Certified Inconel 686 Flange Solutions

TSM Technology has 14 years of experience working with superalloys around the world and can verify that the Inconel 686 flanges they sell are real. Our modern factories offer full PMI testing and MTR analysis services, helping you with your material identification needs from the time you start looking for it until it arrives at your door. As one of the biggest companies that makes Inconel 686 flanges, we have strict quality control standards for every part, which include MTC and SGS certification. Get in touch with our expert team at info@tsmnialloy.com to talk about your unique verification needs and get real, high-performance materials that will work in the toughest situations.
