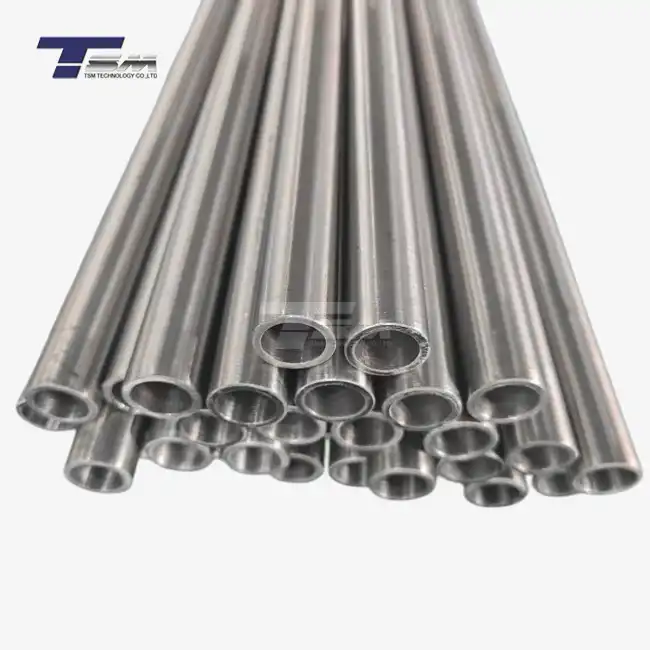

Incoloy 800 Tube - Properties, Characteristics, and Applications

Nickel-iron-chromium metal Incoloy 800 tube is considered to be amazingly profitable and is well-known for its capacity to work successfully in unfriendly situations. The truth that this high-performance fabric is amazingly safe to oxidation, carburisation, and erosion at tall temperatures makes it an irreplaceable component for a wide assortment of commercial applications. It is especially imperative for critical exercises in warm trade frameworks, vitality generation, and chemical forms to have channels made of Incoloy 800 since they have a exceptional basic astuteness and warm steadiness. Since of its one-of-a-kind set of qualities, such as being able to withstand tall temperatures and being basic to control, Incoloy 800 tubing is the fabric of choice for engineers and producers who are looking for tried and true arrangements to challenging mechanical challenges.

Properties and Characteristics of Incoloy 800 Tube

Chemical Composition and Microstructure

The one of a kind qualities of Incoloy 800 tubes come from their carefully adjusted chemical make-up. This austenitic metal is generally made up of nickel (30-35%), chromium (19-23%), and press (adjust), with little sums of manganese, silicon, and titanium. The nickel in the fabric makes it more safe to rust and erosion, and the chromium makes a defensive metal layer that makes it work indeed superior in unforgiving conditions. The microstructure of Incoloy 800 channels is made up of a steady austenitic framework, which makes a difference clarify why it has such great mechanical qualities and warm solidness.

Mechanical Properties

The mechanical qualities of Incoloy 800 tubing are very good, especially at high temperatures. Its yield strength is usually between 170 and 310 MPa, but this can change based on how it was heated. It stays strong and flexible at a lot of different temperatures. At room temperature, its tensile strength is between 450 and 750 MPa. Incoloy 800 pipe also has good creep resistance, which is very important for parts that are stressed for a long time at high temperatures. Because of these mechanical properties, it can be used in situations where long-term performance is needed in tough circumstances.

Thermal and Electrical Properties

Because of its thermal qualities, Incoloy 800 tube is very good for uses that need to be at high temperatures. In the range of 1,350°C to 1,400°C, it melts, but its structure stays the same at temperatures up to 1,000°C. Between 20°C and 100°C, the material's thermal expansion coefficient is low, running from 14.4 to 18.0 µm/m·°C. This helps keep thermal stresses in heat exchange systems to a minimum. Incoloy 800 pipe is also a good thermal conductor, which makes it better at moving heat. Electrically, it has a middling electrical resistivity, which means it can be used in some situations where conductivity is not the most important thing.

Key Characteristics of Incoloy 800 Tube

Corrosion Resistance

Its high resistance to rust is one of the best things about Incoloy 800 tube. The high amount of nickel and chromium in the metal creates an oxide layer that protects the material from different corrosive substances. Because of this, Incoloy 800 pipes are very immune to pitting, crevice corrosion, and stress corrosion cracking. It does a great job in oxidising environments, sulfur-containing atmospheres, and chloride-rich environments. The material is resistant to both carburisation and metal dusting, which makes it last longer in high-temperature carbon-rich environments. This makes it perfect for tools used in petrochemical processing.

High-Temperature Strength

When heated to high temperatures, Incoloy 800 tubing keeps its mechanical qualities very well. While many materials lose strength quickly as temperatures rise, Incoloy 800 pipe keeps a lot of its room-temperature strength even when it's hotter than 800°C. This high-temperature strength is very important for power generation, where parts have to last for long amounts of time in very hot conditions. The alloy's ability to fight thermal fatigue and creep makes it even better for places where temperatures change quickly, like heat exchangers and boiler systems.

Fabricability and Weldability

Even though it has high performance properties, Incoloy 800 tube is very easy to work with. Normal methods can be used to shape, machine, and join it quickly. Because the material is flexible, it can be cold worked and bent without losing many of its qualities. Gas tungsten arc welding (GTAW), shielding metal arc welding (SMAW), and gas metal arc welding (GMAW) are some of the ways that Incoloy 800 pipes can be joined together. Because it doesn't crack when heated during welding, it helps keep welded buildings together. Because it is easy to shape and machine, Incoloy 800 tubing is a good choice for making complicated parts for many industry uses.

Applications of Incoloy 800 Tube

Chemical and Petrochemical Industries

A lot of chemical and petroleum processing plants use Incoloy 800 tube. Because it doesn't rust and is strong at high temperatures, it's perfect for heat exchanges, reaction vessels, and piping systems. In factories that make ethylene, Incoloy 800 pipe is often used in furnace tubes and quench systems because it can handle the harsh, high-temperature conditions that happen during the breaking process. Because the material doesn't easily get carbonised or dusty, it can also be used in reformer tubes in plants that make hydrogen and synthesis gas. This makes sure that these important processes will work reliably for a long time.

Power Generation

In the power production industry, Incoloy 800 tubing is used for many different tasks. It is used for superheater and reheater tubes in fossil fuel power plants because it can handle high temperatures and keep steam from oxidising. Incoloy 800 pipe is used in steam generators at nuclear power plants because it is very resistant to stress corrosion cracking in settings with very pure water. Because it is thermally stable and mechanically strong, the material can also be used for parts in gas turbines. This makes power producing equipment more efficient and lasts longer.

Aerospace and Defense

In aerospace and defence applications, where dependability in harsh conditions is very important, Incoloy 800 tube plays a big part. It's used in parts of aeroplane engines like exhaust systems and combustion chambers because it's strong at high temperatures and doesn't rust. Incoloy 800 piping is used in fuel lines and heat exchangers in rocket propulsion systems because it can handle the harsh chemical and thermal conditions that happen during launch and flight. Because the metal doesn't easily wear down, it can also be used for parts in hypersonic vehicles, where temperatures change very quickly.

Conclusion

The presence of this combination, which happens in the shape of Incoloy 800 tube, is very uncommon. It is unimaginably profitable in a wide number of areas due to the reality that it highlights a solitary combination of characteristics that empowers it to be so. In expansion to having awesome mechanical capabilities, it is greatly safe to erosion, oxidation, and corruption when subjected to tall temperatures. As an extra advantage, it is simple to make and does not show any challenges. As a result of this, it is an perfect choice for considerable applications in the taking after businesses: the air ship trade, the chemical handling industry, and the control era division. Incoloy 800 pipe remains at the best of the list of changes that are being made to businesses in terms of execution and proficiency. These improvements are always being made. Indeed in the most challenging of working circumstances, it offers arrangements that can be depended upon.

FAQ

What are the key advantages of using Incoloy 800 tube?

Incoloy 800 tube offers excellent corrosion resistance, high-temperature strength, and thermal stability. It maintains its mechanical properties at elevated temperatures and resists oxidation and carburization.

In which industries is Incoloy 800 pipe commonly used?

Incoloy 800 pipe is widely used in chemical processing, petrochemical, power generation, aerospace, and nuclear industries.

Can Incoloy 800 tubing be welded easily?

Yes, Incoloy 800 tubing has good weldability and can be welded using various methods such as GTAW, SMAW, and GMAW.

Why Choose TSM TECHNOLOGY for Your Incoloy 800 Tube Needs?

TSM TECHNOLOGY stands out as a premier Incoloy 800 tube manufacturer and supplier. With our state-of-the-art production facilities, including 3 factories, 8 production lines, and over 100 advanced machines, we ensure top-quality Incoloy 800 pipes that meet international standards. Our expertise in custom sizing and processing, coupled with a robust supply capacity of 300 tons/month, makes us the ideal partner for your critical industrial applications. For unparalleled quality and service in Incoloy 800 tubing, contact us at info@tsmnialloy.com.
