The Importance of Ultrasonic Testing for Inconel 625 Fasteners
Understanding Inconel 625 and Its Applications

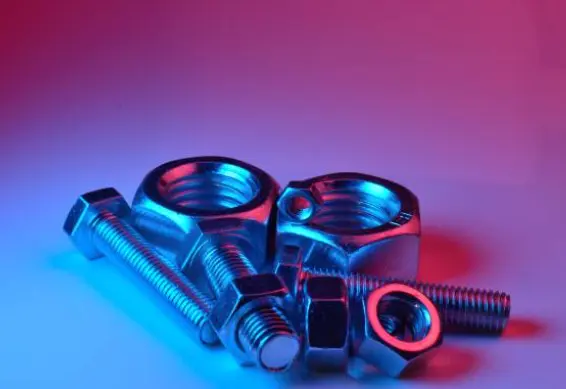

Inconel 625 is a nickel-chromium-based superalloy renowned for its exceptional resistance to corrosion and high-temperature strength. These properties make it an ideal material for fasteners used in extreme environments. Inconel 625 bolts and other fasteners find extensive use in applications where standard materials would fail, such as in offshore oil rigs, chemical processing plants, and nuclear reactors.
The unique composition of Inconel 625, which includes elements like molybdenum and niobium, contributes to its superior performance. However, this complex alloy structure also necessitates stringent quality control measures to ensure the integrity of the final product. Fasteners made from this material must withstand intense pressures, temperatures, and corrosive environments without compromising structural integrity.
The Role of Non-Destructive Testing in Quality Assurance
Non-destructive testing (NDT) techniques, including ultrasonic testing, play a crucial role in maintaining the quality standards of Inconel 625 fasteners. Unlike destructive testing methods that render the tested component unusable, NDT allows for thorough inspection without damaging the fastener. This is particularly valuable for high-cost materials like Inconel 625, where waste reduction is economically significant.
Ultrasonic testing stands out among NDT methods for its ability to detect internal flaws that might be missed by surface inspection techniques. This capability is essential for Inconel 625 fasteners, as their performance often depends on the integrity of their internal structure. By employing UT, manufacturers can identify potential weaknesses before the fasteners are put into service, preventing costly failures and ensuring safety in critical applications.
Advantages of Ultrasonic Testing for Inconel 625 Components
Ultrasonic testing offers several advantages when applied to Inconel 625 fasteners:
- High Sensitivity: UT can detect minute flaws that could develop into larger defects under stress.
- Versatility: It can be used on various fastener sizes and shapes, from small bolts to large studs.
- Depth Penetration: UT can inspect deep into the material, not just surface or near-surface areas.
- Real-Time Results: Immediate feedback allows for quick decision-making in production processes.
- Cost-Effective: By preventing the use of defective fasteners, UT saves on potential replacement and liability costs.
These advantages make ultrasonic testing an indispensable tool in ensuring the reliability of Inconel 625 fasteners across diverse industrial applications.
Ultrasonic Testing Techniques for Inconel 625 Fasteners
Principles of Ultrasonic Testing
Ultrasonic testing relies on the propagation of high-frequency sound waves through a material. When these waves encounter a discontinuity or flaw within the Inconel 625 fastener, they are reflected back to the transducer. By analyzing the reflected signals, technicians can determine the presence, location, and size of internal defects.
The process typically involves the following steps:
- A transducer emits ultrasonic waves into the Inconel 625 fastener.
- The waves travel through the material at a known velocity.
- If a flaw is present, it reflects part of the ultrasonic energy.
- The reflected waves are detected by the transducer and converted into electrical signals.
- These signals are displayed on a screen for interpretation by a qualified technician.
The effectiveness of UT in Inconel 625 fasteners is partly due to the material's uniform structure, which allows for consistent wave propagation and clear signal interpretation.
Specific UT Methods for Fastener Inspection
Several ultrasonic testing methods are employed for inspecting Inconel 625 fasteners:
Pulse-Echo Technique: This is the most common method used for fastener inspection. A single transducer acts as both the transmitter and receiver of ultrasonic waves. It's particularly effective for detecting planar defects like cracks that are perpendicular to the sound beam.
Through-Transmission Technique: This method uses separate transmitting and receiving transducers on opposite sides of the fastener. It's useful for detecting laminar flaws and is often used for larger Inconel 625 bolts or studs.
Phased Array Ultrasonic Testing (PAUT): This advanced technique uses multiple elements in a single transducer, allowing for electronic beam steering and focusing. PAUT provides more detailed imaging of defects in complex geometries, which is beneficial for specialized Inconel 625 fasteners.
Calibration and Standards for UT of Inconel 625 Fasteners
Accurate ultrasonic testing of Inconel 625 fasteners requires proper calibration and adherence to industry standards. Calibration typically involves the use of reference blocks made from the same material as the fasteners being tested. These blocks contain artificial flaws of known sizes and locations, allowing technicians to adjust the equipment for optimal detection sensitivity.
Key standards governing the ultrasonic testing of Inconel 625 fasteners include:
- ASTM E2375: Standard Practice for Ultrasonic Testing of Wrought Products
- ASTM E587: Standard Practice for Ultrasonic Angle-Beam Contact Testing
- ISO 16810: Non-destructive testing - Ultrasonic testing - General principles
Adherence to these standards ensures consistency and reliability in the inspection of Inconel 625 bolts and other fasteners across different manufacturers and testing facilities.
Interpreting UT Results and Quality Control Measures
Analysis of Ultrasonic Data for Inconel 625 Fasteners
Interpreting ultrasonic testing data for Inconel 625 fasteners requires skilled technicians with a deep understanding of both the material properties and the ultrasonic testing process. The analysis typically involves examining A-scan displays, which show the amplitude of reflected signals over time, and B-scan or C-scan images for more complex geometries.
Key aspects of data analysis include:
- Signal Amplitude: Higher amplitudes often indicate larger defects.
- Signal Location: The position of reflected signals helps determine the depth of flaws within the fastener.
- Signal Shape: The shape and duration of signals can provide information about the type and orientation of defects.
- Attenuation: Unexpected changes in signal strength can indicate material inconsistencies.
For Inconel 625 fasteners, it's crucial to differentiate between actual defects and normal material characteristics. The complex alloy structure of Inconel 625 can sometimes produce signals that might be misinterpreted as flaws by less experienced operators.
Common Defects in Inconel 625 Fasteners Detectable by UT
Ultrasonic testing can reveal various types of internal defects in Inconel 625 fasteners, including:
- Cracks: These can occur due to stress during manufacturing or heat treatment processes.
- Voids: Gas pockets or shrinkage cavities that form during solidification.
- Inclusions: Non-metallic particles trapped within the alloy during production.
- Lack of Fusion: Incomplete bonding in welded or additively manufactured fasteners.
- Material Segregation: Uneven distribution of alloying elements within the fastener.
Each of these defects presents unique ultrasonic signatures that trained technicians can identify and assess for severity. The detection of these flaws is critical, as they can significantly impact the performance and longevity of Inconel 625 bolts and other fasteners in high-stress applications.
Quality Control Protocols and Decision-Making
Effective quality control for Inconel 625 fasteners involves integrating ultrasonic testing results into a comprehensive quality assurance system. This system typically includes:
- Establishing acceptance criteria based on industry standards and specific application requirements.
- Implementing a rigorous sampling plan to ensure representative testing of production batches.
- Maintaining detailed records of UT results for traceability and trend analysis.
- Conducting regular equipment calibration and operator training to maintain testing accuracy.
- Developing clear protocols for handling detected defects, including criteria for rework or rejection.
Decision-making based on UT results often involves a team approach, with input from quality control specialists, engineers, and metallurgists. For critical applications, additional testing methods may be employed to confirm UT findings and provide a comprehensive assessment of fastener quality.
By implementing these robust quality control measures, manufacturers can ensure that Inconel 625 fasteners meet the exacting standards required for high-performance applications, maintaining the reputation of this exceptional alloy in the most demanding industrial environments.
Conclusion
Internal defect detection with ultrasonic testing plays a pivotal role in ensuring the reliability and performance of Inconel 625 fasteners. By employing advanced UT techniques, manufacturers can identify potential flaws that could compromise the integrity of these critical components. The non-destructive nature of UT, combined with its ability to detect subsurface defects, makes it an invaluable tool in quality assurance processes. As industries continue to push the boundaries of material performance, the importance of rigorous testing methods like UT for Inconel 625 bolts and other fasteners cannot be overstated. Ultimately, the implementation of comprehensive UT protocols contributes to safer, more efficient operations across a wide range of demanding applications.
FAQs
How often should Inconel 625 fasteners undergo ultrasonic testing?
The frequency of UT for Inconel 625 fasteners depends on their application and operating conditions. Generally, critical components should be tested before installation and during regular maintenance intervals. For less critical applications, batch testing during production may be sufficient.
Can ultrasonic testing detect all types of defects in Inconel 625 fasteners?
While UT is highly effective, it may not detect all defect types, especially those very close to the surface. For comprehensive quality assurance, UT is often used in conjunction with other NDT methods like magnetic particle or dye penetrant testing.
How does the cost of UT compare to other testing methods for Inconel 625 fasteners?
While initial equipment costs for UT can be higher, the non-destructive nature of the test and its ability to inspect internal structures make it cost-effective in the long run, especially for high-value Inconel 625 components.
Expert Inconel 625 Fastener Testing and Supply | TSM TECHNOLOGY
At TSM TECHNOLOGY, we specialize in providing top-quality Inconel 625 fasteners subjected to rigorous ultrasonic testing. Our state-of-the-art UT equipment and experienced technicians ensure that every bolt and fastener meets the highest industry standards. As a leading manufacturer and supplier, we offer a wide range of Inconel 625 products tailored to your specific needs. For expert advice and superior alloy solutions, contact us at info@tsmnialloy.com.
