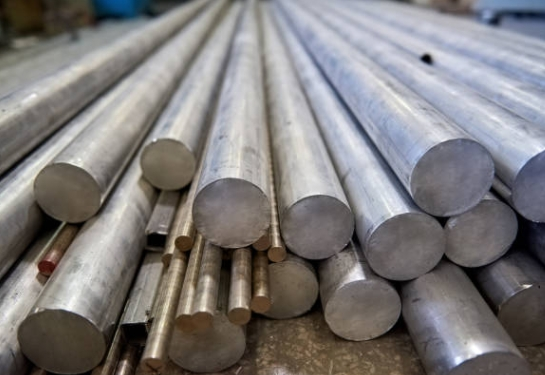

Understanding the Thermal Expansion Behavior of Inconel 718 Round Bar
Coefficient of Thermal Expansion (CTE)
The coefficient of thermal expansion (CTE) is a crucial property that quantifies how much a material expands or contracts with temperature changes. For Inconel 718 round bar, the CTE varies slightly with temperature, typically increasing as the temperature rises. At room temperature (70°F or 21°C), the CTE is approximately 7.1 µin/in/°F (12.8 µm/m/°C). As the temperature increases to 1000°F (538°C), the CTE rises to about 7.9 µin/in/°F (14.2 µm/m/°C).
This relatively low and stable CTE is one of the reasons why Inconel 718 bar stock is highly valued in applications requiring dimensional stability across a wide temperature range. The alloy's ability to resist expansion and contraction helps maintain tight tolerances and prevents issues like thermal fatigue or distortion in complex assemblies.
Temperature Dependence of Thermal Expansion
The thermal expansion of Inconel 718 bar is not linear across its entire temperature range. As the temperature increases, the rate of expansion also changes slightly. This non-linear behavior is important to consider when designing components or systems that will operate across a broad temperature spectrum.
For instance, between room temperature and 200°F (93°C), the average CTE is about 7.3 µin/in/°F (13.1 µm/m/°C). From 200°F to 600°F (93°C to 316°C), it increases to approximately 7.6 µin/in/°F (13.7 µm/m/°C). Understanding these variations is crucial for engineers and designers working with Inconel 718 round bar in high-precision applications.
Comparison with Other Alloys
When compared to other high-temperature alloys, Inconel 718 bar demonstrates superior thermal expansion characteristics. For example, stainless steels typically have higher CTEs, ranging from 9.0 to 10.1 µin/in/°F (16.2 to 18.2 µm/m/°C) at similar temperatures. This lower expansion rate of Inconel 718 round bar contributes to its excellent dimensional stability and resistance to thermal fatigue.
The controlled thermal expansion of Inconel 718 bar stock also makes it compatible with other materials commonly used in high-temperature applications, such as certain ceramics and other superalloys. This compatibility is particularly valuable in composite structures or multi-material assemblies where differential thermal expansion can lead to stress and potential failure.
Factors Influencing Thermal Expansion Properties of Inconel 718 Round Bar
Microstructure and Heat Treatment
The thermal expansion properties of Inconel 718 round bar are intimately linked to its microstructure, which is in turn influenced by the alloy's heat treatment. The standard heat treatment for Inconel 718 bar involves solution annealing followed by a two-step aging process. This treatment promotes the formation of strengthening precipitates, primarily γ' (gamma prime) and γ" (gamma double prime) phases.
These precipitates not only contribute to the alloy's high strength but also play a role in controlling thermal expansion. The coherent nature of these precipitates with the matrix helps maintain the alloy's dimensional stability at elevated temperatures. Variations in heat treatment can subtly affect the size, distribution, and volume fraction of these precipitates, potentially leading to slight differences in thermal expansion behavior.
Grain Size and Orientation
The grain structure of Inconel 718 bar stock can influence its thermal expansion properties. Generally, a finer grain size tends to result in more uniform expansion characteristics across the material. However, in some applications, a controlled columnar grain structure might be desirable for directional properties.
The orientation of grains in Inconel 718 round bar can lead to anisotropic thermal expansion, meaning the expansion may vary slightly depending on the direction relative to the bar's axis. This anisotropy is usually minimal but can be a consideration in high-precision applications or when working with large diameter Inconel 718 bars.
Alloying Elements and Impurities
While the composition of Inconel 718 bar is tightly controlled, slight variations within the allowable range of alloying elements can influence thermal expansion properties. Elements like niobium, which is crucial for the formation of strengthening precipitates, can affect the alloy's response to temperature changes.
Impurities or trace elements, even in small quantities, may also impact thermal expansion behavior. For instance, the presence of certain interstitial elements can cause localized lattice distortions, potentially affecting the overall thermal expansion characteristics of the Inconel 718 round bar.
Applications Leveraging the Thermal Expansion Properties of Inconel 718 Round Bar
Aerospace and Gas Turbine Components
The aerospace industry extensively utilizes Inconel 718 bar for components subjected to extreme temperature fluctuations. Jet engine parts, such as turbine discs, shafts, and casings, benefit from the alloy's controlled thermal expansion. These components must maintain precise dimensions and clearances across a wide temperature range, from the cold temperatures at high altitudes to the intense heat of combustion chambers.
In gas turbines for power generation, Inconel 718 round bar is used for similar reasons. The material's ability to resist expansion at high temperatures ensures that critical tolerances are maintained, optimizing engine efficiency and reliability. Compressor blades, fasteners, and other structural components often leverage the unique thermal properties of Inconel 718 bar stock.
Oil and Gas Industry Applications
The oil and gas sector relies on Inconel 718 bar for various downhole tools and equipment. In deep-sea drilling operations, these components are exposed to extreme temperature gradients, from the cold of the ocean floor to the heat of geothermal wells. The controlled thermal expansion of Inconel 718 round bar ensures that seals remain tight and moving parts operate smoothly across these temperature ranges.
Wellhead components, valves, and pump parts made from Inconel 718 bar stock benefit from its dimensional stability, resisting deformation that could lead to leaks or equipment failure. The material's resistance to thermal fatigue also extends the operational life of these critical components, reducing downtime and maintenance costs.
Nuclear Power Plant Components
In nuclear power plants, where safety and reliability are paramount, Inconel 718 bar finds applications in various reactor components. The material's low thermal expansion rate helps maintain the integrity of fuel rod assemblies, control rod mechanisms, and other critical structures within the reactor core.
The predictable thermal behavior of Inconel 718 round bar also makes it valuable for components in steam generators and heat exchangers. These parts must withstand not only high temperatures but also rapid temperature changes during operational cycles. The alloy's resistance to thermal shock and fatigue contributes to the longevity and safety of nuclear power plant systems.
Conclusion
The thermal expansion properties of Inconel 718 round bar make it an indispensable material in high-temperature applications across various industries. Its low and stable coefficient of thermal expansion, combined with excellent strength and corrosion resistance, enables the creation of components that maintain dimensional stability and structural integrity under extreme conditions. As industries continue to push the boundaries of performance and efficiency, the unique thermal characteristics of Inconel 718 bar stock will undoubtedly play a crucial role in future technological advancements. Understanding and leveraging these properties is key to designing robust, reliable, and efficient systems for the most demanding environments.
