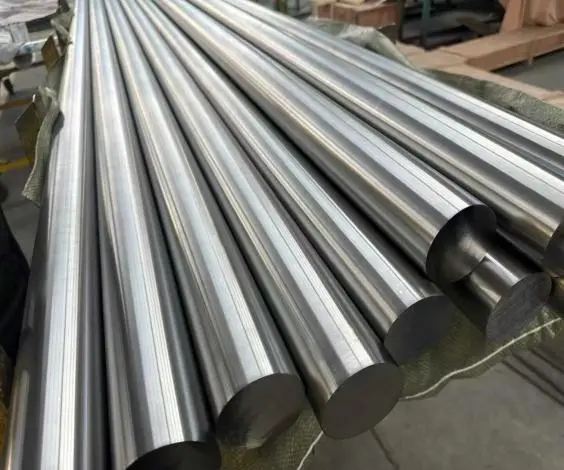

Preparation and Material Considerations for Welding Monel 400 Bars
Surface Preparation Techniques
Before initiating the welding process on Monel 400 round bars, thorough surface preparation is paramount. Start by cleaning the surface meticulously, removing any contaminants such as oil, grease, or oxides. Utilize a stainless steel wire brush or specialized chemical cleaners designed for nickel alloys. For optimal results, consider grit blasting the surface to achieve a uniform, clean finish. This step is crucial in preventing weld contamination and ensuring strong, defect-free bonds.
Joint Design Optimization
The joint design plays a pivotal role in the success of welding Monel bars. For butt joints, a V-groove configuration with a 60-70 degree included angle is often recommended. When working with thicker Monel 400 round bars, consider employing a U-groove design to enhance penetration and reduce the amount of filler material required. Proper joint preparation not only facilitates easier welding but also contributes to the overall strength and integrity of the welded structure.
Filler Metal Selection
Choosing the appropriate filler metal is critical when welding Monel 400 bars. The most commonly used filler metals are ERNiCu-7 for Gas Tungsten Arc Welding (GTAW) and ENiCu-7 for Shielded Metal Arc Welding (SMAW). These filler metals closely match the composition of Monel 400, ensuring compatibility and maintaining the alloy's corrosion-resistant properties. When selecting filler materials, consider factors such as the specific application requirements, expected service conditions, and any potential galvanic corrosion risks.
Welding Techniques and Parameters for Monel 400 Round Bars
Gas Tungsten Arc Welding (GTAW) Procedures
GTAW, also known as TIG welding, is highly recommended for welding Monel 400 round bars due to its precision and control. When employing GTAW, use direct current electrode negative (DCEN) polarity. Maintain a short arc length to minimize atmospheric contamination and ensure stable arc characteristics. For optimal results, utilize pure argon as the shielding gas, typically at a flow rate of 15-20 cubic feet per hour. Adjust welding parameters based on the thickness of the Monel bar, with typical current ranges between 70-150 amperes for most applications.
Shielded Metal Arc Welding (SMAW) Guidelines
SMAW, or stick welding, can also be effectively used for Monel 400 bar applications, particularly in field situations or where GTAW equipment is unavailable. When using SMAW, select direct current electrode positive (DCEP) polarity. Maintain a short arc length to minimize oxidation and ensure proper fusion. Preheat the Monel bars to 50-100°C (122-212°F) to reduce the risk of cracking and improve weld quality. Use stringer beads or a slight weaving technique, limiting the weave width to 2.5 times the electrode diameter.
Heat Input and Interpass Temperature Control
Controlling heat input is crucial when welding Monel 400 round bars to prevent excessive grain growth and maintain the alloy's mechanical properties. Aim for a heat input range of 0.5-1.5 kJ/mm, adjusting welding parameters accordingly. Monitor and maintain interpass temperatures between 100-150°C (212-302°F) to ensure consistent weld quality throughout multi-pass welds. Avoid excessive heat buildup by allowing proper cooling between passes and utilizing heat sinks when necessary.
Post-Weld Treatment and Quality Assurance for Monel Bar Welds
Stress Relief and Heat Treatment
Post-weld heat treatment is generally not required for Monel 400 bar welds due to the alloy's excellent resistance to stress corrosion cracking. However, in cases where dimensional stability is critical or residual stresses need to be minimized, consider stress relief heat treatment. Heat the welded assembly to 540-590°C (1004-1094°F) for 1-2 hours per inch of thickness, followed by air cooling. This process helps alleviate internal stresses and can improve the overall performance of the welded structure.
Non-Destructive Testing Methods
To ensure the integrity and quality of Monel 400 bar welds on Monel round bar, employ appropriate non-destructive testing (NDT) methods. Visual inspection should be conducted as a primary quality control measure, looking for surface defects, incomplete fusion, or excessive reinforcement. For more thorough examination, consider using radiographic testing (RT) or ultrasonic testing (UT) to detect internal defects. Liquid penetrant testing (PT) can be effective in identifying surface-breaking discontinuities. When selecting NDT methods, consider the specific project requirements and applicable industry standards.
Corrosion Resistance Verification
Given the importance of corrosion resistance in Monel 400 applications, it's essential to verify that the welded joints maintain this critical property. Conduct electrochemical testing, such as potentiodynamic polarization, to assess the corrosion behavior of the weld and heat-affected zone. Additionally, consider performing accelerated corrosion tests, such as salt spray testing or immersion tests, to evaluate long-term performance in specific environments. These tests help ensure that the welded Monel bars will maintain their intended corrosion resistance throughout their service life.
Conclusion
Mastering the welding guidelines for Monel 400 bar applications is essential for achieving high-quality, durable welds in corrosive environments. By carefully considering material preparation, selecting appropriate welding techniques, and implementing proper post-weld treatments, you can ensure the integrity and longevity of your Monel 400 welded structures. Remember that each welding project may have unique requirements, so always consult with material specialists and adhere to relevant industry standards to optimize your welding processes for Monel 400 round bars and other Monel bar applications.
