What Are the Main Applications of Inconel 617 Sheet in Gas Turbines?

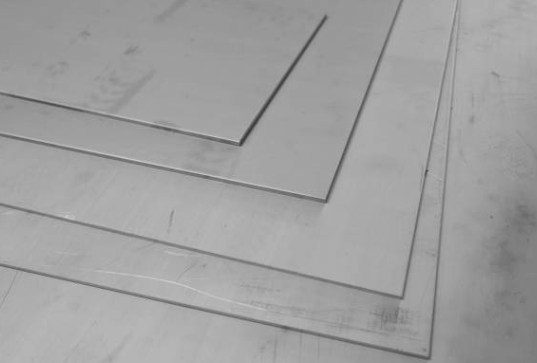

Additionally, Inconel 617 sheet is very important in gas engines because it is very strong at high temperatures and doesn't rust. In gas engines, Inconel 617 sheet is mostly used for combustor plates, transition tubes, afterburner parts, and exhaust system parts. This superalloy of nickel, chromium, cobalt, and molybdenum works great in harsh conditions and keeps its shape at temperatures above 980°C (1800°F). Because it can handle changing temperatures, rust, and hot corrosion, it is an important part of both aircraft and commercial gas engines.

Exceptional Properties of Inconel 617 Sheet for Gas Turbine Applications

High-Temperature Strength and Creep Resistance

Inconel 617 sheet keeps its strength very well at high temperatures, which is an important factor in how well gas turbines work. Its unique make-up, which includes about 22% chromium, 12.5% cobalt, and 9% molybdenum, makes it more resistant to creep. In fact, Inconel 617 keeps more than 85% of its yield strength even after being heated above 900°C for a long time. Because of this great performance, gas turbine makers can push the boundaries of what is possible, which leads to higher power levels and better fuel economy.

Oxidation and Corrosion Resistance

Because of how hard it is inside a gas engine, materials must be able to resist rust and corrosion. The surface of Inconel 617 sheet forms a protective chromium oxide layer that makes it very resistant to rusting at high temperatures. This self-healing layer keeps the metal below from breaking down even when sulfur-containing burning gases are present. Because the metal doesn't rust when it gets hot, especially in sea settings, it's perfect for gas turbines used on land and in space.

Thermal Stability and Low Thermal Expansion

During running, the temperatures of gas engine parts change very quickly. The high temperature stability of Inconel 617 sheet ensures that its dimensions stay the same and it doesn't change much in these circumstances. Compared to other high-temperature metals, it has a relatively low rate of thermal expansion. This lowers thermal pressures and makes gas engine parts last longer. This quality is very useful for parts like transition tubes and combustor plates that need to keep their exact shapes for the best performance.

Specific Applications of Inconel 617 Sheet in Gas Turbine Components

Combustor Liners and Flame Tubes

Some of the most important parts of gas engines that use Inconel 617 sheet are the combustor plates and flame tubes. It is these parts that are directly exposed to the engine's hottest temperatures and most acidic conditions. The fact that Inconel 617 stays strong and doesn't rust at temperatures above 1000°C makes it a great choice for these parts. The metal is very easy to work with, so it can be used to make complicated shapes with cooling holes and thermal barrier coatings that work well together. This makes it even better at its hard job.

Transition Ducts and Hot Gas Path Components

The hot gases from the combustion process are moved from the combustor to the turbine area by transition tubes. Large amounts of Inconel 617 sheet are used to make these parts because it can handle huge differences in temperature and still keep its shape. Because the metal doesn't easily wear down or creep, these important parts will last longer. Inconel 617 is also used in parts of hot gas paths, like turbine shrouds and heat shields, because it is strong and doesn't rust.

Exhaust System Components and Afterburner Parts

Inconel 617 sheet is used a lot in the exhaust area of gas turbines, especially in military aircraft engines with afterburners. Because it doesn't rust and stays strong at high temperatures, the metal can be used for exhaust plates, nozzle flaps, and afterburner flame holders. These parts have to be able to handle not only high temperatures, but also quick changes in temperature and the damaging effects of burning by-products. The success of Inconel 617 in these situations helps make engines more reliable and lowers their servicing needs.

Advantages of Using Inconel 617 Sheet in Gas Turbine Design

Enhanced Engine Efficiency and Performance

Using Inconel 617 sheet in gas turbine parts directly leads to better engine performance and economy. Because it can handle high temperatures, it can burn fuel at higher temperatures, which increases heat efficiency and power output. Because the metal stays strong at high temperatures, lighter parts with smaller cross-sections can be made, which lowers the weight of the whole engine. This decrease in weight is especially helpful in aircraft use, where it can lead to better fuel economy and more cargo room.

Extended Component Lifespan and Reduced Maintenance

Inconel 617 is very resistant to high-temperature breakdown processes like creep, rust, and corrosion. This makes gas engine parts last a lot longer. This means that repair processes can be spread out over longer periods of time, which cuts down on downtime and running costs. Because the metal is stable, it keeps important engine shapes over time, which means that the performance characteristics of the part stay the same over time. This longer life saves managers of both aircraft and commercial gas engines a lot of money and makes them more reliable.

Design Flexibility and Manufacturing Advantages

Inconel 617 sheet is very easy to work with, which lets you make complicated parts that improve gas flow and cooling efficiency inside the turbine. The metal is easy to shape, weld, and machine using standard methods, which makes the production process simpler. Because it works with many covering systems, including thermal barrier coats, makers have more ways to improve the performance of parts. Because Inconel 617 sheet is so flexible, it can be used to make new designs that push the limits of gas engine technology. This leads to improvements in both power output and transportation systems.

Conclusion

It has been shown that Inconel 617 sheet is an important material for gas turbines because it is strong at high temperatures, doesn't rust, and stays stable over time. Its use in important parts like combustor plates, transition tubes, and exhaust systems makes it possible to make gas engines that are more powerful, reliable, and efficient. As the need for better performance and efficiency in industry and aircraft grows, Inconel 617 sheet will continue to be an important part of modern gas turbine technology, pushing the boundaries of what is possible with high-temperature materials.

FAQs

1.Why does Inconel 617 sheet work so well for gas turbines?

Inconel 617 sheet works great in gas engines because it is very strong at high temperatures, doesn't creep, and doesn't oxidize, so it keeps working well above 900°C.

2.How is Inconel 617 different from other metals that can handle high temperatures?

Inconel 617 is better at resisting creep and rust than many other options, and it can keep over 85% of its yield strength at very high temperatures.

3.Is it easy to make complicated gas engine parts out of Inconel 617 sheet?

Yes, Inconel 617 is very easy to work with. It can be shaped, welded, and machined into very complex shapes, such as combustor plates with precise cooling holes.

Experience the TSM TECHNOLOGY Advantage

At TSM Technology, we use our 14 years of experience making high-quality alloys to provide high-quality Inconel 617 sheet for gas turbine uses. Our 3 plants, 8 production lines, and more than 100 CNC tools make sure that the quality and accuracy of our work are unmatched. We give unique solutions, strict quality control, and compliance around the world. Try TSM Technology, your reliable source for high-performance Inconel 617 sheet, and see the difference. For questions or free samples, email us at info@tsmnialloy.com.
