The mechanical qualities of K500 Monel bar are very high: its tensile strength ranges from 1100 to 1350 MPa, its yield strength exceeds 160 ksi, and it can stretch by up to 15%. Through controlled aging methods, this precipitation-hardened nickel-copper metal exhibits improved hardness while retaining excellent flexibility and impact resistance. These mechanical features, along with their high resistance to rust and lack of magnetic qualities, make K500 Monel bars perfect for tough jobs in the aircraft, naval, oil and gas, and power generation industries, where dependability in harsh conditions is very important.

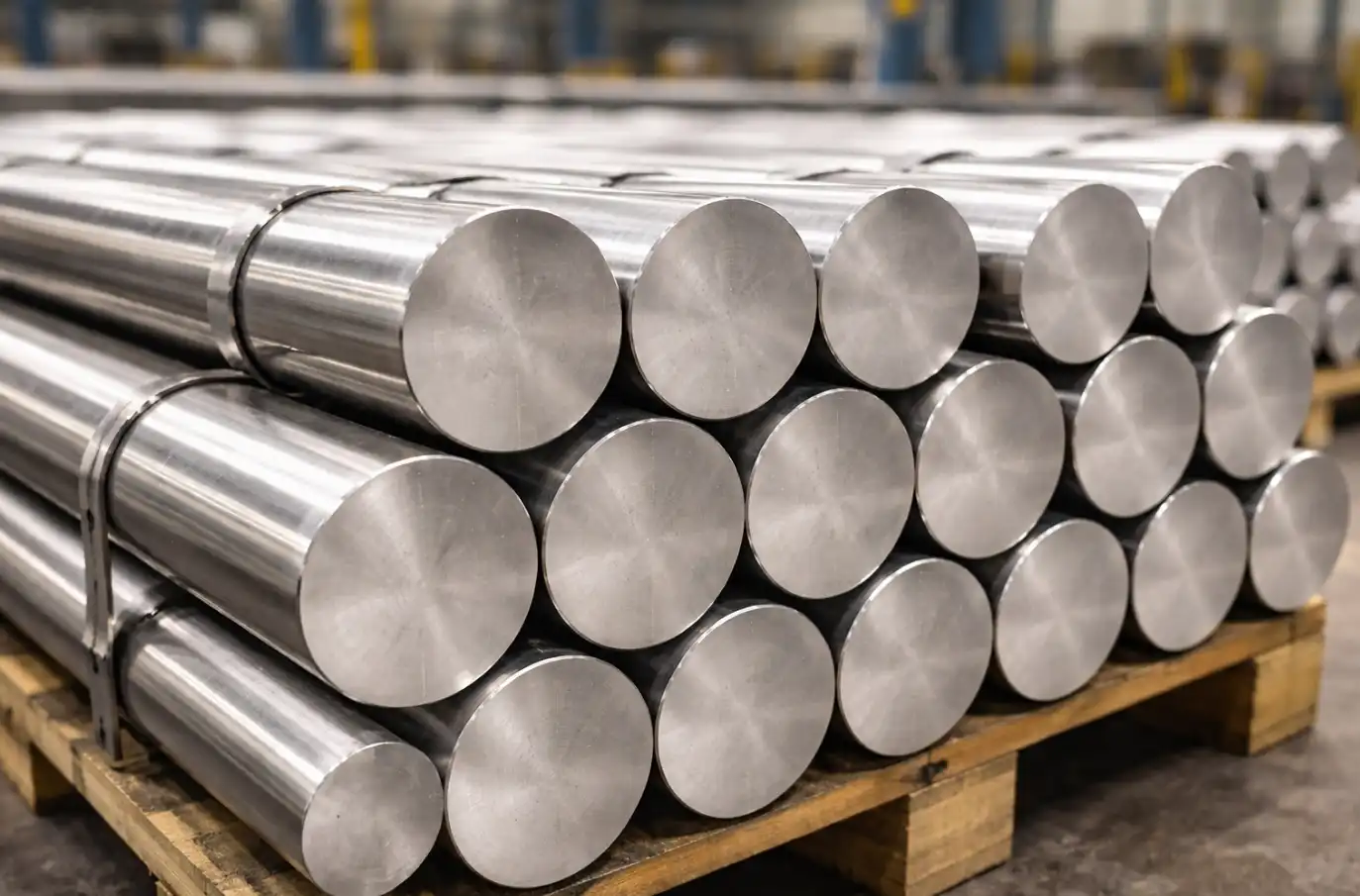

Overview of Monel K500 Bars and Their Mechanical Properties
The nickel-copper metal technology has come a long way with Monel K500, which builds on the work that was done with regular Monel 400. This precipitation-hardened metal is made up of about 63% nickel and 30% copper. Aluminum and titanium are added to make it age-hardenable. Because of its special makeup, K500 is one of the best nickel-based superalloys, and it has better mechanical performance than other types.
Fundamental Mechanical Characteristics
The nanoscale of this modern metal was carefully designed to give it its dynamic qualities. The material's tensile strength ranges from 1100 to 1350 MPa after precipitation hardening, which is a lot higher than the normal 550 MPa range for heated Monel 400. This increase in strength doesn't take away from the Monel family's great resistance to rust.
When the material is old, its yield strength always goes above 160 ksi (1103 MPa), which gives engineers solid design guidelines for high-stress situations. The extension property of ≥15% shows that the material can bend without breaking, which is very important in situations where it will be loaded and unloaded or heated and cooled many times.
Density and Physical Properties
With a density of 8.44 g/cm³, K500 has a good strength-to-weight ratio that experts in the aircraft and naval industries like. The material is not magnetic under any heat treatment conditions. This makes it perfect for places with sensitive electronics and high-precision instruments where magnetic interference could hurt performance.
Detailed Analysis of Core Mechanical Properties of K500 Monel Bars
To understand the exact mechanical features, you have to look at how different working factors change the way the material behaves. The precipitation hardening process changes the alloy's structure from the inside out, making ordered precipitates that make the matrix much stronger.
Tensile and Yield Strength Performance
Nickel copper alloy bars like the K500 Monel bar have middling amounts of strength when they have been treated with a solution. The mechanical qualities change a lot, though, after being aged at 1100°F (593°C) for 16 hours. The high strength values are caused by gamma-prime precipitates interacting with dislocations during this controlled heating process.
The link between tensile strength and yield strength stays the same for all bar sizes. The only difference is that bigger pieces have slightly different traits because they cool down more slowly during heat treatment. This problem is solved by TSM Technology's production method, which uses carefully controlled cooling routines to make sure that the qualities are the same for all diameters from 5 to 300 mm.
Hardness and Impact Resistance
Using the Rockwell C scale, the hardness of old material is usually between 35 and 42 HRC, while heated material is only 15 to 20 HRC. This rise in hardness is directly linked to better resistance to wear in service uses. Vickers hardness testing gives you more accuracy; the numbers you get are usually between 350 and 400 HV.
Even though it's harder, the material still has great impact resistance, with Charpy V-notch values above 40 ft-lbs (54 J) at room temperature. This quality is very important for parts that are used in naval and industrial settings where they are exposed to shock loading or vibration.
Ductility and Forming Characteristics
One of the best things about K500 is that it has the right amount of power and flexibility. Elongation values of 15 to 20 percent when the material is old allow for manufacturing processes while keeping the structure's stability under service loads. This flexibility lets the plastic bend in a controlled way during assembly without changing the mechanical properties of the part.
How Heat Treatment and Processing Affect K500 Mechanical Performance？
The main way that precipitation-hardened metals' mechanical qualities can be improved is through heat treatment. The order of heat processing has a direct effect on the end strength, hardness, and resistance to rust.
Aging Treatment Protocols
Heating to 1100°F (593°C) and keeping it there for 16 hours is the usual way to age something. After that, the air cools it down. This process creates the best structure for the precipitate to make it as strong as possible. Different aging plans at 1050°F (566°C) for longer amounts of time can make slightly different mixtures of properties. This lets engineers fine-tune properties for specific uses.
Before the aging process starts, the solution for a K500 Monel bar is heated to 1800°F (982°C), which dissolves any existing solids and makes a solid solution that is all the same. Rapid cooling from the solution temperature stops precipitation before it happens, which makes sure the age treatment works as planned.
Work Hardening Considerations
Cold distortion of Monel K500 causes it to harden significantly, which can make cutting more difficult. Knowing this feature helps people who work in buying set the right cutting margins and processing steps. Because the material tends to work harden, it needs special cutting tool shapes and cooling techniques to keep the dimensions and finish of the workpiece.
Quality Control and Standards Compliance
The ASTM B865 and ASME SB865 guidelines spell out the K500 bars' mechanical properties and how they should be tested. These guidelines tell materials what their minimum tensile strength, yield strength, and stretch numbers should be. The European standards in EN 10095 are very similar to the standards set by ASTM, but they are also tailored to meet the needs of special applications in Europe.
TSM Technology's quality control methods go above and beyond what is required by law by adding more testing steps. Each output lot is put through technical tests to make sure it meets the requirements of UNS N05500. Material test documents show that properties were met and are important for applications in the nuclear and aircraft industries.
Comparative Insights: Monel K500 Bars vs Other Alloy Bars in Mechanical Properties
When you compare K500 to other materials, you can see that it has clear benefits in certain situations. This comparison helps people who work in buying make smart choices based on technology needs and practical limits.
K500 versus Standard Monel Alloys
When compared to Monel 400, K500 has about twice the bending strength while still having the same level of rust protection. This edge in strength means that parts can be smaller and lighter, which is especially helpful in aircraft and naval uses where design choices are based on limited space and weight.
Because their mechanical features have been improved, K500 parts can work under more stress without lowering their safety standards. This ability often makes the higher cost of the material worth it because it leads to better performance and longer service life.
Comparison with Stainless Steel Alternatives
If you compare the K500 Monel bar to precipitation-hardened stainless steels like 17-4 PH, it is more resistant to rust in coastal settings while still being strong. The nickel-copper mix makes it more resistant to stress corrosion cracks caused by chloride, which is a big plus for underwater and undersea uses.
K500 is better than ferritic or martensitic stainless steels in situations where magnetic balance is needed because it is not magnetic. This quality is very important for the housings of navigational tools and sensitive instrument parts.
Performance Against Inconel Alloys
Inconel metals work best at high temperatures, but K500 has better mechanical qualities at room temperature and higher. K500 is cheaper than other materials, so it's a good choice for uses that don't need to withstand high temperatures but do need high strength and resistance to rust.
Practical Applications and Procurement Considerations for Mechanical Properties
Applications in the real world show how mechanical qualities affect how well something works. When buying teams understand these links, they can choose products that give the best performance while keeping costs low.
Marine Industry Applications
K500 bars are used for pump shafts on offshore sites that work in saltwater. Because these parts are both very strong and very resistant to rust, they can handle both heavy loads and harsh conditions that cause corrosion. A big platform in the North Sea said that K500 pump shafts last 15 years, while stainless steel ones only last 5 to 7 years.
Aerospace Component Requirements
Landing gear parts made from K500 bars show that the material can be used in high-stress, safety-critical situations. The consistent mechanical qualities and high level of wear resistance meet strict certification needs while reducing weight compared to steel options.
Supplier Selection Criteria
To find trusted sources, you need to look at more than just how well the materials are made. A supplier's ability to get certifications, such as AS9100D for aircraft use and ISO 9001 for general industry use, shows how committed they are to quality management systems.
For important uses, being able to track materials such as the K500 Monel bar becomes necessary, and sellers must provide full records from where the raw materials come from to the final review. These needs can be met by TSM Technology's full tracking system, which also keeps shipping times low at 10 to 25 days for common setups.
TSM Technology: Your Trusted K500 Monel bar Manufacturer
TSM Technology has 14 years of experience working with nickel alloys and advanced production skills to make high-quality K500 Monel bars that always meet strict mechanical property standards. Our three factories run eight separate production lines with more than 100 high-precision tools. This lets us supply 300 tons of goods every month to big industry projects around the world.
Advanced Manufacturing Excellence
Our 50,000 ㎡ modern building has assembly lines that are designed to work best with Monel K500. The first step in the production process is vacuum induction melting, which makes sure that the chemicals are all the same. This is followed by controlled hot forging and precision cold drawing, which make sure that the mechanical properties and dimensions are exactly as needed, within ±0.01mm.
The AS9100D aircraft approval makes sure that throughout the whole production process, every K500 Monel bar meets aviation-grade quality standards. Every step of the production process is tracked by smart factory technology, which makes sure that the quality is the same for all diameters (5–300 mm) and lengths (3000–6000 mm).
Comprehensive Quality Assurance
There are thorough material test certificates (MTCs) and SGS proof records in every package. These show the mechanical qualities, chemical makeup, and correctness of the dimensions. Our quality control methods go beyond what is required by ASTM B865 and ASME SB865. We do this by adding extra testing steps, such as ultrasonic checking according to ASTM E2375 and rust testing based on ASTM G28 and G48 standards.
Our K500 Monel bars have great mechanical properties that make them perfect for important uses in the aerospace, marine, oil and gas, and power generation industries. They can be treated with sandblasting, electropolishing (EP), and chemical polishing (CP) to improve their resistance to corrosion and appearance.
Conclusion
This precipitation-hardened nickel-copper metal makes K500 Monel bars a great choice for tough industrial uses because of their mechanical qualities. With a tensile strength of up to 1350 MPa, a yield strength of over 160 ksi, and a stretch of ≥15%, these bars work well in naval, aircraft, oil and gas, and power generation settings. The fact that it is strong, doesn't rust, and isn't magnetic makes it a unique value offer for engineers who have to meet tough design standards. When purchasing managers know how heat treatment changes these qualities, they can choose materials that are the best in terms of performance and cost-effectiveness for important uses where dependability cannot be compromised.
FAQs
1.What are the mechanical features of K500 Monel bars that make them better than regular Monel alloys?
K500 has about twice the yield strength of Monel 400 (≥160 ksi vs. 80 ksi), but it still resists rust just as well. The precipitation hardening process raises the tensile strength of Monel 400 from 550 MPa to 1100-1350 MPa. This makes it possible for higher stress uses and lighter parts.
2.What changes about the mechanical features of K500 bars when they are heated in different ways?
By forming precipitates, aging at 1100°F for 16 hours creates the best strength qualities. Different aging plans can change the balance between strength and flexibility. For example, aging for longer periods of time at lower temperatures can make the material slightly more flexible while still meeting or exceeding standard requirements for strength.
3.What quality standards make sure that the mechanical features of K500 Monel bars are reliable?
The ASTM B865 and ASME SB865 guidelines say what the basic mechanical quality needs to be. Material test certificates (MTC) and SGS verification reports are official proof that properties were met. For aircraft uses, AS9100D approval adds more quality control steps to the manufacturing process.
Partner with TSM Technology for Premium K500 Monel bar Solutions
TSM Technology is ready to help you with your toughest projects by providing approved K500 Monel bars that have great mechanical qualities and consistently good performance. Our extensive production skills, 14 years of specialized experience, and AS9100D approval guarantee that the materials you receive will meet the strict requirements of industrial, naval, and aerospace uses. With 300 tons of production capacity per month and shipping times between 10 and 25 days, we provide the supply chain stability that keeps your projects on track.
Our skilled engineering team can help you choose the best materials for your purpose by giving you detailed advice. Whether you need standard setups or custom-machined parts, TSM Technology's advanced production skills and quality assurance processes will make sure that the mechanical properties you need for your most important uses are met. Ready to talk about your needs for a K500 Monel bar supplier? Get in touch with us at info@tsmnialloy.com to find out how our high-quality products and excellent service can help your next project succeed.
