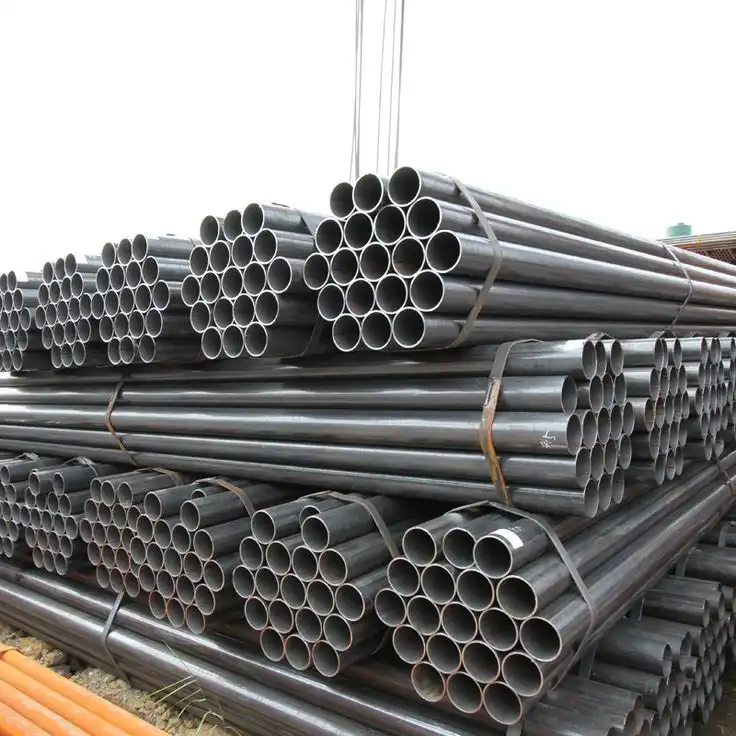

At TSM Technology, we specialize in manufacturing high-quality Monel 400 tubing that meets rigorous industry standards. With our state-of-the-art facilities, including 3 factories, 8 production lines, and over 100 machines, we ensure precision and consistency in every product. Our Monel 400 tubing is available in various dimensions, with OD ranging from 6.0 to 114 mm and wall thickness from 0.5-15 mm.
Understanding Thermal Conductivity of Monel 400 Tubing
Definition and Importance of Thermal Conductivity
Thermal conductivity refers to a material's ability to transfer heat through its structure, a property that directly affects its performance in thermal management applications. For Monel 400 tubing, this characteristic is especially important in industries such as chemical processing, marine engineering, and heat exchanger manufacturing. Efficient heat conduction helps maintain stable operating temperatures, improving system reliability and energy efficiency. Typically, the thermal conductivity of Monel 400 falls between 21.8 and 25.9 W/m·K, varying slightly with temperature and alloy composition.
Factors Affecting Thermal Conductivity in Monel 400
The thermal conductivity of Monel 400 is influenced by several interrelated factors. Temperature is one of the most significant variables—conductivity tends to increase as the material's temperature rises due to enhanced atomic vibration. The precise nickel-to-copper ratio also plays a key role; higher copper content generally improves thermal transfer. Furthermore, impurities, grain size, and fabrication processes such as cold working or annealing can subtly affect heat conduction. Understanding these factors helps engineers optimize Monel 400's performance in specific thermal environments.
Comparing Monel 400 to Other Alloys
When compared to other engineering alloys, Monel 400 occupies a middle ground in terms of thermal conductivity. It offers better heat transfer capabilities than most stainless steels, which makes it advantageous in moderate heat exchange systems. However, it remains less conductive than pure copper or aluminum, materials known for their exceptional heat conduction. This balanced combination of thermal efficiency, mechanical strength, and corrosion resistance makes Monel 400 an excellent choice for applications where both durability and controlled heat flow are required.
Thermal Expansion Properties of Monel 400 Tubing
Coefficient of Thermal Expansion Explained
The coefficient of thermal expansion (CTE) quantifies how a material changes in length or volume as its temperature varies. For Monel 400 tubing, the CTE is approximately 13.9 × 10⁻⁶ m/m·°C, indicating a relatively low rate of expansion compared to many other engineering alloys. This property is essential in maintaining dimensional stability under fluctuating thermal conditions. The low CTE of Monel 400 minimizes thermal distortion, making it particularly suitable for precision equipment, cryogenic systems, and components requiring tight dimensional tolerances.
Impact on Design and Applications
The thermal expansion behavior of Monel 400 tubing has direct implications for its use in mechanical and structural design. Engineers must carefully consider how the material expands and contracts during temperature variations to prevent stress buildup or misalignment in assemblies. Monel 400's moderate expansion rate allows for better compatibility with other metals and materials, simplifying design integration. This property reduces the likelihood of thermal fatigue and leakage in systems such as heat exchangers, condensers, and piping used in chemical and marine industries.
Temperature Range Considerations
Monel 400 tubing exhibits excellent performance and structural stability across an extensive temperature range, from cryogenic levels up to approximately 480°C (896°F). At low temperatures, it retains high toughness and ductility, while at elevated temperatures, it maintains strength and resistance to oxidation. Its predictable expansion characteristics across this spectrum ensure reliable performance in harsh environments. This makes Monel 400 a preferred material for aerospace, petrochemical, and power generation applications where both thermal resilience and dimensional accuracy are critical.
Applications Leveraging Monel 400's Thermal Properties
Heat Exchangers and Process Equipment
The outstanding thermal conductivity and controlled expansion properties of Monel 400 tubing make it an ideal material for heat exchangers and industrial process systems. Its ability to efficiently transfer heat while maintaining exceptional corrosion resistance ensures dependable long-term performance in harsh environments such as chemical processing plants, desalination systems, and oil refineries. TSM Technology's Monel 400 tubing, produced with precise dimensional tolerances of ±0.01mm, guarantees consistent flow characteristics and leak-free connections, meeting the high-performance requirements of modern process engineering.
Aerospace and Defense Industries
In aerospace and defense applications, Monel 400 tubing offers the durability and stability needed to perform under extreme operational conditions. Its excellent thermal balance and resistance to stress make it ideal for use in aircraft fuel delivery systems, cryogenic lines, and hydraulic circuits where safety and precision are critical. TSM Technology's thin-wall Monel 400 tubing, available in thicknesses as low as 0.3mm, supports weight reduction without compromising structural integrity. Each batch meets rigorous AMS 4676 and EN 9100 standards, ensuring compliance with aerospace-grade reliability and performance.
Marine and Offshore Applications
For marine and offshore environments, where exposure to saltwater and pressure extremes is unavoidable, Monel 400 tubing demonstrates unmatched resilience. Its combination of corrosion resistance and stable thermal behavior makes it indispensable for seawater piping, subsea manifolds, and heat exchange systems. TSM Technology's OceanArmor Series enhances this performance with biofouling-resistant surface finishes (Ra ≤0.8μm), reducing maintenance needs and prolonging operational lifespan. Certified by DNV-GL, this tubing can reliably withstand depths up to 2,000 meters, offering superior strength and protection for offshore and subsea engineering systems.
Conclusion
The thermal conductivity and expansion properties of Monel 400 tubing make it an exceptional material for a wide range of industrial applications. Its balanced thermal conductivity, coupled with a low coefficient of thermal expansion, ensures reliable performance in extreme environments. From heat exchangers to aerospace components, Monel 400 tubing continues to be a preferred choice for engineers and designers seeking a material that can withstand high temperatures and corrosive conditions while maintaining dimensional stability. As industries evolve and demand more from their materials, Monel 400 tubing stands ready to meet these challenges head-on.
FAQs
What is the composition of Monel 400 tubing?
Monel 400 tubing is composed of approximately 67% nickel and 23% copper, with small amounts of iron, manganese, and other elements.
What are the key advantages of Monel 400 tubing?
Monel 400 tubing offers excellent corrosion resistance, high strength, and good thermal properties. It performs well in extreme temperatures and aggressive environments.
What industries commonly use Monel 400 tubing?
Monel 400 tubing is widely used in aerospace, chemical processing, marine engineering, and oil & gas industries.
Why Choose TSM Technology for Your Monel 400 Tubing Needs?
TSM Technology stands out as a premier manufacturer and supplier of Monel 400 tubing. With our extensive manufacturing capabilities, including 3 factories and 8 production lines, we ensure consistent quality and timely delivery. Our Monel 400 tubing meets ASTM B163, ASME SB163, and EN 10095 standards, with customizable dimensions and surface treatments. We offer rigorous quality control, including AI-powered defect detection and comprehensive testing protocols. For superior Monel 400 tubing that meets your exact specifications, trust TSM Technology. Contact us at info@tsmnialloy.com for inquiries or free samples.
