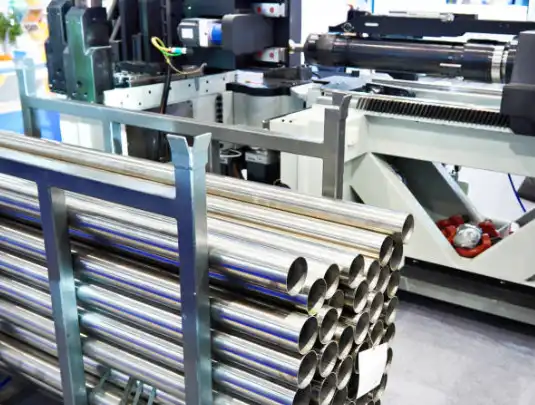

Material Properties and Selection Criteria for Incoloy 800 Tube
Chemical Composition and Its Impact on Performance
Nickel, iron, and chromium alloy Incoloy 800 tube has great qualities because its chemicals are carefully balanced. The high nickel content (30–35%) makes it very resistant to rust and corrosion, and the chromium (19–23%) makes it better at making protective oxide layers at high temperatures. The smallest amount of iron in the alloy (39.5%) makes it strong and affordable. Incoloy 800 pipes can keep their shape in harsh environments because of their special makeup. This makes them perfect for load-bearing uses in many fields.
Mechanical Strength and Temperature Resistance
The mechanical strength of Incoloy 800 tube is one of the most important things to make sure safe load-bearing. This metal has great tensile strength, yield strength, and resistance to creep over a wide temperature range. It is normal for Incoloy 800 to have a yield strength of 170 MPa and a tensile strength of 515 MPa at room temperature. But what makes it unique is that it can keep a lot of its strength at high temperatures, with only a little loss up to 760°C (1400°F). This ability to withstand high temperatures is very important for use in heat exchangers, boilers, and petroleum processing equipment that needs to keep its load-bearing capacity even when temperatures rise.
Corrosion Resistance and Environmental Considerations
One important thing about Incoloy 800 tube's ability to hold weight is that it doesn't rust. This is especially true in harsh settings. The metal is strong against oxidation, carburization, and different types of corrosion, so the tube's structure doesn't get damaged over time. This quality is very useful in places like chemical plants and nuclear power plants that make steam, where acidic media are often present. When engineers plan for load-bearing uses, they have to think about the specific corrosive agents that will be present and make sure that Incoloy 800 protects against material degradation well enough.
Stress Analysis and Wall Thickness Calculations
Hoop Stress and Longitudinal Stress Considerations
When Incoloy 800 tubes are used to carry weight, they are stressed in different ways. The two main types of stress are hoop stress and longitudinal stress. Most of the time, the most difficult part of designing a pressure vessel is dealing with hoop stress, which works around the tube wall. The formula to find it is πh = (P * D) / (2 * t), where P is the pressure inside the tube, D is its width, and t is its thickness. In cylindrical pressure vessels, longitudinal stress, which acts along the tube's plane, is usually half as strong as hoop stress. Correct stress analysis makes sure that the Incoloy 800 pipe's highest stress level stays well below its yield strength. This gives it a safety gap for load-bearing uses.
Safety Factors and Industry Standards
When building load-bearing systems with Incoloy 800 tube, it is very important to include the right safety factors. Uncertainties in material properties, loading conditions, and possible production variations are all caused by these things. Standards in the industry, like ASME Boiler and Pressure Vessel Code Section VIII and ASTM B163, tell you how to choose the right safety factor. In most cases, a safety factor of 3–4 is added to the yield strength for use in pressure vessels. The exact safety factor may change, though, based on how important the application is and what the rules say. Following these rules makes sure that Incoloy 800 pipes are built with enough space around them to handle both known and unexpected stresses.
Wall Thickness Optimization for Weight and Performance
Finding the best wall width requires a delicate balance between making sure the structure can hold enough weight and keeping the weight and material costs as low as possible. When figuring out the wall thickness of an Incoloy 800 tube, you have to take into account the internal pressure, the external loads, the effects of temperature, and the corrosion limit. Standards for process piping, such as ASME B31.3, include methods that can be used to figure out the minimum thickness that is needed. But designers often have to go above and beyond the basic requirements to account for tolerances in the manufacturing process and the possibility of thinning over time. Advanced finite element analysis (FEA) tools can help find the best wall thickness by simulating different loading situations and finding areas with a lot of stress. This makes sure that the design of the Incoloy 800 pipe is safe and cost-effective.
Design Considerations for Specific Applications
Heat Exchanger Tube Design
Several things are taken into account when building Incoloy 800 tubes for heat exchangers. Thermal expansion is very important because the tubes have to be able to handle being heated and cooled many times without breaking. When designing something, the coefficient of thermal expansion for Incoloy 800, which is about 14.4 µm/m°C at 20–100°C, needs to be taken into account so that it can expand properly and doesn't get too stressed. Also, the plan, pitch, and design of the baffles must be perfected to find the best balance between heat transfer efficiency and vibration resistance caused by flow. TEMA (Tubular Exchanger Manufacturers Association) rules tell you how to choose the right tube thickness for shell and tube heat exchangers based on pressure, temperature, and corrosion tolerance.
Pressure Vessel and Piping Systems
When used in pressure vessels or pipes, the design of an Incoloy 800 pipe must follow pressure vessel rules like ASME Section VIII. As part of the construction process, the minimum wall thickness has to be found by using the Incoloy 800 specific allowable stress values, internal pressure, and external loads. Designers also have to think about changes in pressure, changes in temperature, and how welded joints affect the total strength. For uses at high temperatures, creep analysis is necessary because the creep strength of Incoloy 800 affects its long-term load-bearing ability. To make sure the pressure-bearing parts stay strong throughout their service life, the design should include the right nozzle reinforcements, support structures, and inspection entry points.
Nuclear Steam Generator Tubing
Because they are so important, Incoloy 800 tubes used in nuclear steam engines have to deal with some special problems. Radiation effects, high-temperature steam conditions, and possible stress corrosion cracking must all be taken into account during design. The form of the tube bundle must maximize heat transfer while lowering the risks of vibrations caused by flow. When figuring out wall thickness for these uses, extra margins are often added to account for possible degradation processes that are unique to nuclear environments. To make sure that every Incoloy 800 tube meets the high standards needed for nuclear applications, strict quality control methods must be used. These include non-destructive testing and strict material traceability. A lot of computer models and testing of prototypes are usually part of the design process to make sure that the steam generator tubing system will work well and safely in the long run.
Conclusion
To make beyond any doubt that Incoloy 800 tube can securely hold weight, it needs to be outlined in a way that takes into account the material's properties, stretch examination, and the one of a kind needs of the application. Engineers can make solid and dependable frameworks for imperative industry employments by carefully choosing the right review of Incoloy 800, doing nitty gritty push calculations, and finding the best divider thickness. Taking after industry benchmarks and including the right security highlights are exceptionally vital for making beyond any doubt that Incoloy 800 pipe setups work well and remain secure over time. As innovation makes strides, more investigate and improvement into how amalgams are made and how they are planned will make Incoloy 800 tube indeed way better for load-bearing employments in numerous diverse businesses.
FAQ
What is the maximum operating temperature for Incoloy 800 tube?
Incoloy 800 can maintain its mechanical properties up to approximately 760°C (1400°F) for continuous service.
How does Incoloy 800 compare to stainless steel in terms of corrosion resistance?
Incoloy 800 generally offers superior corrosion resistance, especially in high-temperature oxidizing environments, compared to most stainless steels.
Can Incoloy 800 tube be welded easily?
Yes, Incoloy 800 has good weldability and can be joined using various welding techniques, including TIG, MIG, and submerged arc welding.
Precision-Engineered Incoloy 800 Tube Solutions | TSM TECHNOLOGY
At TSM Technology, we specialize in manufacturing high-quality Incoloy 800 tubes tailored to your specific load-bearing requirements. Our state-of-the-art facilities, equipped with 8 production lines and over 100 advanced machines, ensure precision and consistency in every tube we produce. With a monthly supply capacity of 300 tons and customizable specifications, we're ready to meet your most demanding industrial needs. For expert guidance on selecting the right Incoloy 800 pipe for your application, contact our team at info@tsmnialloy.com.
