What is the Difference Between Monel 400 and Monel 500?

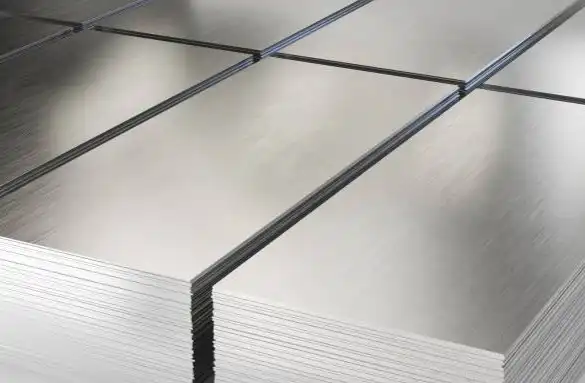

Monel 400 and Monel 500 are both nickel-copper alloys known for their exceptional corrosion resistance and strength, but they have distinct differences in composition and properties. Monel 400 contains approximately 66% nickel and 31.5% copper, while Monel 500 has a similar base composition with the addition of small amounts of aluminum and titanium. This slight variation results in Monel 500 having higher strength and improved resistance to high-temperature oxidation. Monel 400 excels in marine and chemical processing applications, whereas Monel 500 is preferred for aerospace and high-temperature environments. Both alloys are available in sheet form, with Monel 400 sheet being more widely used due to its versatility, and Monel 500 sheet finding specialized applications where enhanced properties are required.

Composition and Properties of Monel 400 and Monel 500

Chemical Composition

Monel 400 and Monel 500 share a similar base composition, primarily consisting of nickel and copper. However, the key difference lies in the additional elements present in Monel 500. Monel 400 typically contains 63-70% nickel, 28-34% copper, and small amounts of iron and manganese. In contrast, Monel 500 includes 63-70% nickel, 27-33% copper, and notably, 2.3-3.15% aluminum and 0.35-0.85% titanium. These additional elements in Monel 500 contribute to its unique properties and performance characteristics.

Mechanical Properties

The mechanical properties of Monel 400 sheet and Monel 500 differ significantly due to their compositional variations. Monel 400 exhibits excellent ductility and malleability, making it ideal for forming and shaping processes. It has a tensile strength ranging from 70-85 ksi (480-586 MPa) and a yield strength of 25-50 ksi (172-345 MPa). Monel 500, with its aluminum and titanium additions, demonstrates higher strength levels. It boasts a tensile strength of 100-130 ksi (690-896 MPa) and a yield strength of 45-90 ksi (310-621 MPa). This enhanced strength makes Monel 500 suitable for applications requiring greater load-bearing capacity and resistance to deformation.

Corrosion Resistance

Both Monel 400 and Monel 500 are renowned for their exceptional corrosion resistance, particularly in marine and chemical environments. Monel 400 exhibits outstanding resistance to seawater, brackish water, and various acids and alkalis. It performs exceptionally well in reducing conditions and is resistant to stress corrosion cracking. Monel 500, while maintaining excellent corrosion resistance, offers improved resistance to oxidation at elevated temperatures. This makes it particularly valuable in applications where both corrosion resistance and high-temperature performance are crucial. The aluminum content in Monel 500 contributes to the formation of a protective oxide layer, enhancing its resistance to oxidation and sulfidation at high temperatures.

Applications and Industry Usage

Monel 400 Applications

Monel 400 sheet finds extensive use across various industries due to its versatile properties. In the marine sector, it is utilized for propeller shafts, pump shafts, and valve components, benefiting from its excellent resistance to seawater corrosion. The chemical processing industry relies on Monel 400 for heat exchangers, reaction vessels, and piping systems, particularly in environments involving hydrofluoric acid and other corrosive substances. In the oil and gas industry, Monel 400 is employed for wellhead components, valves, and fittings exposed to sour gas environments. Its ability to maintain strength and ductility at cryogenic temperatures also makes it suitable for liquefied natural gas (LNG) applications.

Monel 500 Applications

Monel 500 sheet, with its enhanced strength and high-temperature capabilities, is primarily used in aerospace and specialized industrial applications. In the aerospace sector, it is utilized for components such as exhaust systems, engine seals, and high-temperature fasteners. The alloy's ability to maintain its properties at elevated temperatures makes it valuable for turbine components and combustion chamber parts. In industrial settings, Monel 500 is employed in heat treatment equipment, furnace parts, and chemical processing equipment operating at high temperatures. Its improved oxidation resistance at elevated temperatures makes it particularly suitable for applications involving hot gases and steam.

Comparative Advantages

When choosing between Monel 400 and Monel 500 sheets, several factors come into play. Monel 400 offers greater versatility and is often more cost-effective for general corrosion-resistant applications. Its excellent workability makes it easier to form and fabricate, reducing manufacturing costs. On the other hand, Monel 500 provides superior strength and high-temperature performance, making it the preferred choice for more demanding environments. While Monel 500 may have a higher initial cost, its enhanced properties can lead to longer service life and reduced maintenance in specific applications. The decision between the two alloys often depends on the specific requirements of the application, including operating temperature, mechanical stress, and exposure to corrosive environments.

Manufacturing and Processing Considerations

Fabrication Techniques

The fabrication of Monel 400 and Monel 500 sheets requires careful consideration of their unique properties. Monel 400, known for its excellent ductility, can be easily cold-worked and formed into complex shapes. It responds well to various forming techniques, including deep drawing, spinning, and bending. Welding of Monel 400 is relatively straightforward, with gas tungsten arc welding (GTAW) and shielded metal arc welding (SMAW) being commonly used methods. Monel 500, while still workable, requires more care during fabrication due to its higher strength. Hot working is often preferred for Monel 500, particularly for significant forming operations. Welding of Monel 500 necessitates stricter control of heat input and interpass temperatures to maintain its mechanical properties.

Heat Treatment

Heat treatment plays a crucial role in optimizing the properties of both Monel 400 and Monel 500 sheets. Monel 400 can be annealed to relieve stress and improve ductility, typically at temperatures between 870°C and 980°C (1600°F to 1800°F), followed by rapid cooling. Solution annealing at higher temperatures can be performed to enhance corrosion resistance. Monel 500, being an age-hardenable alloy, undergoes a more complex heat treatment process. It is usually solution-treated at temperatures around 980°C to 1095°C (1800°F to 2000°F), followed by rapid cooling. Subsequently, it is aged at temperatures between 590°C and 760°C (1100°F to 1400°F) to develop its full strength through precipitation hardening.

Quality Control and Testing

Ensuring the quality and performance of Monel 400 and Monel 500 sheets is paramount for their intended applications. Rigorous quality control measures are implemented throughout the manufacturing process. Non-destructive testing methods such as ultrasonic testing and eddy current inspection are employed to detect any internal defects or surface imperfections. Chemical composition analysis is conducted to verify adherence to specified alloy standards. Mechanical testing, including tensile tests, hardness tests, and impact tests, is performed to ensure the material meets the required strength and toughness specifications. For applications involving corrosive environments, corrosion testing may be conducted to validate the alloy's resistance to specific media. These comprehensive quality control measures ensure that Monel 400 and Monel 500 sheets consistently meet the high standards required for their demanding applications.

Conclusion

In conclusion, while Monel 400 and Monel 500 share a common nickel-copper base, their distinct compositions result in unique properties suited for different applications. Monel 400 sheet excels in general corrosion-resistant applications, offering excellent workability and versatility. Monel 500 sheet, with its added strength and high-temperature capabilities, is tailored for more demanding aerospace and industrial environments. The choice between these alloys depends on specific application requirements, balancing factors such as corrosion resistance, strength, temperature performance, and fabrication considerations. Understanding these differences enables engineers and material specialists to select the most appropriate alloy for their specific needs, ensuring optimal performance and longevity in diverse industrial applications.

FAQs

Can Monel 400 and Monel 500 be used interchangeably?

While both alloys have similar base compositions, they are not typically interchangeable due to their distinct properties. Monel 500 offers higher strength and better high-temperature performance, making it more suitable for specific aerospace and industrial applications.

Which alloy is better for marine applications?

Monel 400 is generally preferred for marine applications due to its excellent resistance to seawater corrosion and its more cost-effective nature for these environments.

How does the machinability of Monel 400 compare to Monel 500?

Monel 400 is generally easier to machine due to its lower strength and higher ductility. Monel 500, being stronger, may require more specialized machining techniques and tools.

Choose the Right Monel Alloy for Your Project | TSM TECHNOLOGY

At TSM TECHNOLOGY, we specialize in providing high-quality Monel 400 and Monel 500 sheets to meet your specific project needs. Our extensive experience and strict quality control ensure that you receive the best materials for your applications. Whether you require the versatility of Monel 400 or the enhanced properties of Monel 500, our expert team can guide you in selecting the ideal alloy. Contact us at info@tsmnialloy.com to discuss your requirements and discover how our premium Monel products can elevate your project's performance.
