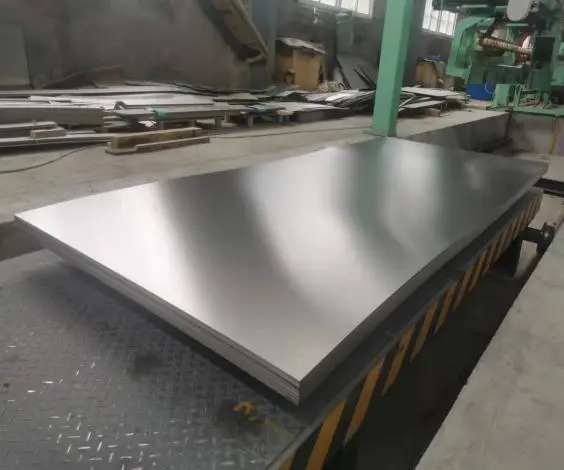

What Quality Tests Are Needed for Inconel 617 Sheets?

To make sure that Inconel 617 sheets work well in harsh settings, they have to go through a lot of quality tests. Some important tests are analysing the chemical makeup, testing the mechanical properties, looking at the nanoscale, and judging the rust resistance. Ultrasonic and radiography screening are important non-destructive testing methods for finding problems inside things. High-temperature creep and stress breakage tests are also done to make sure the material will stay stable over time in harsh circumstances. These thorough quality checks make sure that Inconel 617 sheets meet the highest standards in the aircraft, energy, and chemicals industries.

Chemical and Physical Property Tests for Inconel 617 Sheets

Chemical Composition Analysis

Making sure that Inconel 617 sheets have the right mix of chemicals is very important for how well they work. X-ray fluorescence (XRF) spectroscopy and optical emission spectroscopy (OES) are two popular ways to check what the metal is made of. These tests show that the material has the right amounts of nickel (44-66%), chromium (20-24%), cobalt (10-12%), molybdenum (8-10%), and some other small elements.

Mechanical Property Testing

Mechanical tests check how strong and flexible the Inconel 617 sheet is. Important tests are:

• Testing for tensile strength: finds the maximum tensile strength (≥760 MPa), the yield strength, and the stretch.
• Most of the time, Rockwell or Brinell scales are used to test hardness.
• Testing for impacts: Checks for toughness, usually with Charpy V-notch tests

These tests make sure that the material meets the mechanical property standards set by ASTM B168 and ASME SB168.

Microstructure Examination

The Inconel 617 sheet's grain structure is examined with metallographic research to find any problems. In this case:

• Microscopy with light: Shows grain size and shape as a whole
• SEM stands for scanning electron microscopy. Gives a thorough look at precipitates and grain borders
• EDS stands for energy-dispersive X-ray spectroscopy. shows how the elements are spread out in the microstructure

For best performance in high-temperature situations, the structure must be regular and fine-grained.

Non-Destructive Testing for Defect Detection

Ultrasonic Testing (UT)

Ultrasonic testing is the only way to find flaws inside Inconel 617 sheets. High-frequency sound waves are used in this method to find:

• Laminations
• What's In
• Void or empty space

UT is particularly effective for thick sheets and can detect flaws as small as 0.2mm in diameter.

Radiographic Testing (RT)

X-ray or gamma-ray radiography can show you what the sheet's underlying structure looks like. This test is very important for

• Finding problems with welded parts that have been made
• Finding cracks or holes inside the structure

Making sure that the density is the same all over the sheet, RT works with UT to give a different view of possible flaws.

Dye Penetrant Inspection (DPI)

DPI is useful for Inconel 617 sheets, especially after cutting or bonding, but it is mostly used to find flaws on the surface. This test can show:

• Cracks on the surface
• Porosity
• Other breaks in the surface

DPI is cheap and can find problems that you can't see with the naked eye.

High-Temperature Performance and Corrosion Resistance Tests

Creep and Stress Rupture Testing

Because Inconel 617 is mostly used in places with high temperatures, it is very important to do creep and stress breakage tests. These tests consist of:

• Putting samples under steady loads at high temperatures (often over 900°C)
• How to measure the distortion that changes over time and final failure
• Checking the long-term safety of structures in harsh situations

Our Inconel 617 sheets are tested for creep resistance at 950°C for more than 1,000 hours. This makes sure that they keep at least 85% of their yield strength even after being heated and cooled many times over a long period of time.

Oxidation Resistance Testing

Oxidation tests check how well the Inconel 617 sheet can create a safe layer of chromium oxide. Cyclic oxidation tests at temperatures up to 980°C are common parts of these studies.

• Measurements of weight gain to figure out oxidation rates
• Using a microscope to look at how oxide scale forms and sticks to things

Our sheets are very resistant to rust, which is important for uses in jet engine combustors and exhaust tubes.

Corrosion Resistance Evaluation

To make sure that Inconel 617 works well in harsh settings, it needs to be tested for corrosion. Important tests are:

• ASTM G28 tests for intergranular rust
• Tests for pitting erosion in places with chloride
• Tests for stress corrosion cracking, especially for nuclear uses

Our Inconel 617 sheets don't rust or pit in H₂S-rich settings, so they meet NACE TM0177 standards for use in petrochemicals.

Conclusion

The strict quality control process for Inconel 617 sheets makes sure they can be used in dangerous high-temperature and corrosive situations. Each test, from analyzing the chemical makeup to checking how well it works at high temperatures, is very important for confirming the material's unique qualities. Manufacturers can make Inconel 617 sheets that meet or beat industry standards by following strict quality control measures. These sheets are reliable and last a long time in the harshest conditions. Engineers and people who work in buying need to know about these quality tests to choose the right materials for projects in flight, energy, and petrochemicals.

FAQs

What are the main ways that Inconel 617 sheets are used?

Inconel 617 sheets are mostly used in air engines, nuclear reactors, and industrial systems that need to stay strong at temperatures above 900°C.

How do Inconel 617 sheets keep them from rusting?

A layer of protected chromium oxide forms on the surfaces, which makes them resistant to sulfur chemicals and helium's ability to weaken things.

What sizes do Inconel 617 sheets usually come in?

We have thicknesses ranging from 0.5 mm to 50 mm and widths ranging from 1000 mm to 2000 mm. If you need a different size, just let us know.

Experience the TSM Technology Difference in Inconel 617 Sheet Manufacturing

At TSM Technology, we use our 14 years of experience with high-quality nickel metals to make sure that the quality of our Inconel 617 sheets is unmatched. Our 3 plants, 8 production lines, and more than 100 machines in state-of-the-art buildings make sure that our products are made precisely to meet ASTM B168, ASME SB168, and EN 10095 standards. We can customize, treat the surface, and fully certify all of our materials. Email us at info@tsmnialloy.com if you need high-quality Inconel 617 sheets that are made just for you.
