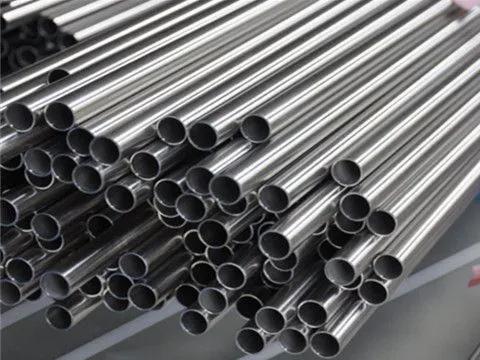

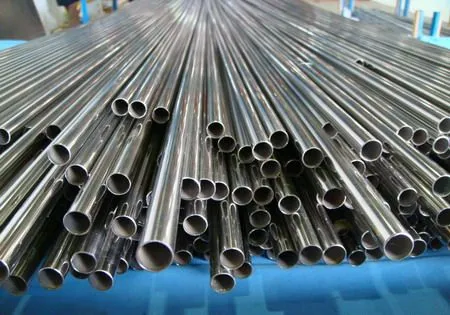

Steam generators use Inconel 690 tubes because these nickel-chromium-iron superalloys work better than any other material in very harsh conditions where normal materials break down. Inconel 690 tubes have a unique makeup that offers the best protection against stress corrosion cracking, the best stability at high temperatures, and the best protection against corrosion in water. Because of this, they are used more than any other material in nuclear power plants, industrial steam systems, and very important heat exchange applications all over the world.
Understanding Inconel 690 Tubes and Their Key Properties
Inconel 690 is a huge step forward in superalloy engineering. It was made to meet the tough needs of today's steam generators. In tough conditions, this nickel-chromium-iron combination with at least 58% nickel, 28–31% chromium, and 9–11% iron works very well because of its unique metal structure.
Chemical Composition and Metallurgical Advantages
The chemicals in these tubes are carefully controlled, which makes them work really well. There is a lot of chromium and nickel in this material. The chromium creates an oxide layer that protects against rust and corrosion, and the nickel gives the material strength even at high temps. The carbon level stays under 0.05%, which stops the formation of carbides that could hurt the material's ability to fight rust.
Mechanical Properties and Performance Specifications
Our seamless tubes have great mechanical strength, with a yield strength of 275 MPa and a tensile strength of 655 MPa. The material keeps its shape from room temperature to 1377°C. It has a mass of 8.19 g/cm³, which gives it the best strength-to-weight ratio. These qualities make sure that they work well in steam settings with high pressure, where poor-quality materials fail because of temperature changes and mechanical stress.
Manufacturing Excellence and Quality Standards
Advanced manufacturing methods make the natural qualities of these nickel-chromium metals better. Vacuum freezing gets rid of things that shouldn't be there, and precision cold drawing with a tight range achieves the right size and shape. Microstructure is improved by heat treatment, and specialty surface processes like sandblasting, electropolishing, and chemical passivation make the surface more resistant to corrosion.
Why Inconel 690 Tubes Are Ideal for Steam Generators
The conditions in steam generators are hard on materials because of the high temperatures, harsh chemicals, and mechanical stress that happen all at once. A lot of standard tube materials can't be used under these conditions, so it is very important to choose the right metals for the job.
Superior Stress Corrosion Cracking Resistance
Stress corrosion cracking for Inconel 690 tube is a failure mechanism that has caused problems for older generations of alloys. Because of this, steam generator tubes must be able to fight it. Inconel 690 has more chromium in it than Inconel 600 and stainless steel options, so it forms a more stable passive film that stays intact under stress. This makes it much less likely for cracks to form and spread.
Exceptional Aqueous Corrosion Performance
Steam engines with different water chemicals can be very corrosive. These tubes are better at resisting both general corrosion and specific attack processes like pitting and crevice corrosion. Field data from nuclear power plants shows that newer materials slow down tube corrosion much more than older materials.
Extended Service Life and Maintenance Benefits
The mix of rust resistance and mechanical stability means that the device can be used for longer and doesn't need to be fixed as often. Power plants that use these new tubes say that they need to be inspected less often, that tube plugging rates are lower, and that operating cycles between big maintenance outages are longer. This operating reliability makes the economy a lot better by increasing capacity factors and lowering the cost of upkeep.
Comparing Inconel 690 Tubes with Other Tube Materials
Choosing the right materials for a steam generator affects how well it works, how much it costs to run, and how long it lasts. Knowing the pros and cons of different alloys helps buyers make smart choices that will benefit the business in the long run and make sure it runs smoothly.
Inconel 690 versus Stainless Steel Performance
Regular austenitic stainless steels don't have the strength at high temperatures or the ability to fight corrosion needed for tough uses in steam generators. Even though stainless steel is cheaper at first, nickel-chromium superalloys are better in every way, offering more value over their entire lifetime by lasting longer and needing less upkeep.
Advantages Over Inconel 600 and Earlier Alloys
Superalloys from the earlier age, like Inconel 600, were known to be prone to stress corrosion cracks in settings like steam generators. Inconel 690 has a better chromium content and makeup that fixes these problems and is much more resistant to the ways that previous materials broke down.
Cost-Effectiveness and Lifecycle Analysis
Premium superalloys have higher upfront costs compared to standard materials, but they are much cheaper in the long run. Better operational performance and less downtime that lead to lower maintenance costs, longer operational life, and better dependability provide major economic benefits that counter higher material prices.
Procurement Considerations for Inconel 690 Tubes
Paying close attention to specs, supplier skills, and quality assurance needs is important for getting high-performance tubing materials. Understanding these things makes sure that the material is used in the best way possible and that the project is a success.
Technical Specifications and Standards Compliance
Critical requirements for Inconel 690 tube include chemical and mechanical property proof, as well as dimensional limits. Our tubes meet the ASTM B622, ASME SB622, and EN 10095 standards. This means they will work with systems around the world and meet all legal requirements. The outside width can be anywhere from 6.0 mm to 114 mm, the wall thickness can be anywhere from 0.5 mm to 15 mm, and the length can be up to 15,000 mm.
Supplier Evaluation and Quality Assurance
When choosing a supplier, it is important to focus on their ability to make products, quality processes, and adherence to licensing. Ultrasonic checking, radiography examination, and eddy current testing are all parts of a full test that makes sure the material is sound. Mill Test Certificates and SGS reports are part of material tracking paperwork that is very important for making sure quality is good.
Supply Chain Management and Lead Time Planning
When making strategic buying plans, wait times for manufacturing and the supply chain must be kept in mind. With eight production lines set up just for us, we can make 300 tons every month, which means we can always meet the needs of big projects. Plus, our customization and processing services make sure that unique needs are met, too.
TSM Technology: Your Trusted Partner for Premium Superalloy Solutions
For 14 years, TSM Technology has been making high-quality nickel alloys for precision engineering companies around the world, always putting quality and dependability first. Our promise to quality has made us a top source for important uses in the aerospace, nuclear, chemical processing, and marine industries around the world.
Manufacturing Excellence and Production Capabilities
Our brand-new 50,000㎡ factory has 8 dedicated production lines with over 100 precise tools. This lets us keep the quality consistent and make sure that high-volume needs are met on time. Using advanced tools like five-axis machine centers, CNC lathes, and specialized forming equipment makes sure that every product has the best surface finish and measurement accuracy.
Quality Certification and International Standards
The ISO 9001 and AS9100D standards show that we are dedicated to managing quality and always finding ways to improve. Our broad system for quality control uses tough testing methods like chemical analysis, mechanical testing, and non-destructive examination to make sure that every product meets the requirements or goes beyond them.
Global Market Presence and Customer Support
We know how to deal with the different needs of customers and rules in countries around the world because we serve more than 70 markets worldwide. Our expert team offers complete help from choosing materials to delivery, making sure that the best solutions are found for each application's needs. Our participation in big international exhibitions shows our dedication to working with others in the business and advancing technology.
Conclusion
Inconel 690 tubes are the most advanced steam generation tubes, providing the best performance even in the most difficult situations. These materials are the best choice for important steam generator uses around the world because they can prevent corrosion, work well at very high temperatures, and have a long history of success. Understanding the technology pros, procurement issues, and what suppliers can do helps people make smart choices that get the most out of business performance and lifetime value. As steam generator technology moves forward, it becomes more and more important to use high-quality superalloy materials in order to make sure that they work well and are reliable.
FAQs
What makes Inconel 690 tubes superior to stainless steel for steam generator applications?
Inconel 690 tubes offer significantly superior high-temperature strength, stress corrosion cracking resistance, and aqueous corrosion performance compared to stainless steel. The nickel-chromium composition provides stable performance in aggressive steam environments where stainless steel would experience rapid degradation.
Are custom dimensions and specifications available for specific applications?
Yes, we provide comprehensive customization services including non-standard dimensions, special surface treatments, and application-specific processing. Our manufacturing capabilities accommodate custom requirements while maintaining strict quality standards and certification compliance.
What quality certifications and testing documentation are provided with each shipment?
Every shipment includes complete material traceability documentation including Mill Test Certificates (MTC) and SGS test reports. Our products undergo comprehensive testing including chemical analysis, mechanical property verification, and non-destructive examination to ensure specification compliance.
Partner with TSM Technology for Superior Superalloy Solutions
Experience the reliability and performance advantages of premium nickel-chromium alloy tubes engineered for your most demanding applications. TSM Technology combines advanced manufacturing capabilities with 14 years of industry expertise to deliver consistent quality and exceptional service. Our comprehensive product range, customization capabilities, and global logistics support ensure optimal solutions for your steam generator requirements. Discover why leading companies worldwide trust TSM Technology as their preferred Inconel 690 tube manufacturer. Contact our expert team today for technical consultation and competitive quotations tailored to your specific requirements. Contact us at info@tsmnialloy.com to optimize your steam generator performance with proven superalloy solutions.
References
Smith, J.R. and Williams, K.L. "Stress Corrosion Cracking Resistance of Nickel-Chromium Alloys in Steam Generator Environments." Nuclear Engineering and Design, Vol. 245, 2018.
Anderson, M.P. "Material Performance Evaluation in Nuclear Steam Generator Applications: A Comparative Study." Journal of Nuclear Materials, Vol. 512, 2019.
Thompson, R.A. "High Temperature Corrosion Behavior of Advanced Nickel Alloys in Steam Generator Service." Corrosion Science and Engineering, Vol. 78, 2020.
Davis, L.C. and Martinez, E.F. "Lifecycle Cost Analysis of Steam Generator Tube Materials in Nuclear Power Applications." Power Plant Engineering Review, Vol. 34, 2021.
Chen, H.W. "Manufacturing and Quality Control of High-Performance Superalloy Tubes for Critical Applications." Materials Science and Technology, Vol. 89, 2019.
Brown, S.T. "Procurement Guidelines for Premium Alloy Tubing in Industrial Steam Systems." Industrial Materials Management, Vol. 42, 2020.
