The technology behind Inconel 690 tubes is used in heat exchangers because it is so good at withstanding high temperatures and rust in harsh industrial settings. This nickel-chromium-iron superalloy works better than any other material in places like nuclear power plants, chemical processing plants, and industrial activities. Because of their special metal qualities, these tubes are the best choice for mission-critical uses in many industries. They move heat reliably while reducing upkeep costs and downtime.
Understanding Inconel 690 Tubes: Composition and Properties
Nickel-based metal tubing works so well because its chemical makeup and delicate nanostructures were carefully designed. When purchasing professionals know about these basic traits, they can make smart choices about which materials to use for tough heat exchanger jobs.
Chemical Composition and Microstructural Excellence
Inconel 690 has at least 58% nickel in it, which makes it very flexible and tough even at high temperatures. The amount of chromium is between 28% and 31%, which makes a solid oxide layer that is very resistant to rusting in harsh environments. A 9-11% iron presence makes the structure more stable while keeping the workability of the metal. The carbon content stays below 0.05%, which keeps carbide precipitation to a minimum and keeps rust protection high. This exact mix makes a stable solution with a substructure that is toughened and protected by chromium-rich layers that make it work better in tough conditions.
Mechanical Properties and Temperature Tolerance
There is evidence that these high-performance tubes can work in harsh circumstances because of how they are made. The material has a density of 8.19 g/cm³ and a melting point between 1343°C and 1377°C. It stays strong at temperatures where other alloys would break. The minimum tensile strength of 655 MPa, along with the yield strength of 275 MPa and the stretch of 30%, makes sure that the material will work reliably when heated and cooled many times. Specialized heat treatment methods can be used to make these qualities even better, depending on the needs of the product.
Why Inconel 690 Tubes Are Ideal for Heat Exchangers?
Industrial heat exchangers work in some of the toughest situations you can imagine. They have to deal with high temperatures, fluids that are harmful to them, and changing pressures that are too high for most materials to handle. These problems can be solved well by the special qualities of superalloy tubes.
Superior Performance Under Extreme Conditions
In power plants and chemical factories, heat exchangers work with acidic media that can reach temperatures over 1000°C and quickly wear down normal stainless steel parts. In comparison to regular stainless steel and older alloy 600 materials, nickel-chromium alloy tubes are much better at resisting stress corrosion cracking and rusting. The mechanical steadiness under heat cycling cuts down on the number of repair visits and downtime, which directly saves money and boosts production.
Real-World Performance Validation
These Inconel 690 tubes have been used in steam generators at nuclear power plants around the world, where failure is not an option. Corrosion resistance is important for chemical processing plants that work with strong chemicals like nitric acid and sulfuric compounds. They are used in hydrocracking units and desulfurization systems at petrochemical plants, which have very difficult working conditions because of hydrogen sulfide and other toxic gases. When used in the real world, these examples show that the material is very useful and reliable, and it also saves money because it lasts longer.
Comparing Inconel 690 Tubes with Other Materials for Heat Exchangers
To choose the right material for a heat exchanger, you need to carefully look at its performance, its lifecycle costs, and its operating needs. Engineers and buying workers can make better choices when they know how different metals compare.
Performance Advantages Over Conventional Materials
Nickel-based superalloys are much better at resisting rust and withstanding high temperatures than normal types of stainless steel. The starting cost of the materials is higher, but the lower upkeep costs and longer service life make up for it by lowering the total cost of ownership. The better performance is especially clear in situations where chloride is present, as stainless steel quickly breaks down in those conditions.
Comparison with Other Inconel Grades
The 690 grade stands out from other nickel-based alloys like Inconel 600, 625, and 718 because it has a lot of chromium in it. This high amount of chromium makes it more resistant to rust and stress corrosion cracking, which makes it perfect for use in steam generators. This high-performance metal has the best mix of strength, rust protection, and heat conductivity compared to titanium and other similar alloys. It is also very easy to weld and machine.
Sourcing and Procuring Inconel 690 Tubes for Heat Exchanger Projects
There is a world market for high-performance Inconel 690 tubes, which shows how important these materials are in industry settings. Knowing how markets work and the best ways to buy things is important for making sure that a job is carried out successfully.
Market Dynamics and Quality Standards
The custom metal tube market is affected by the supply of raw materials, changes in global demand, and the production skills of suppliers. Teams that buy things must give top priority to approved sellers that meet strict quality standards like EN 10095, ASTM B622, and ASME SB622. These international standards make sure that materials from different sources and production batches work the same way and consistently do their job.
Seamless versus Welded Tube Selection
Whether you choose seamless or welded tube configurations relies on how the heat exchanger is designed and how it is used. In serious situations, seamless tubes are often the best choice because they are stronger and don't break easily. They get rid of the weak spots that can happen at weld seams and keep the wall thickness the same all the way along the tube. Welded designs might work for less difficult tasks where cost is more important than performance when compared to smooth building.
TSM Technology: Your Trusted Partner for Premium Inconel 690 Tubes
It has been TSM Technology's specialty for over 14 years to make and sell high-performance nickel metal tubing for use in heat exchangers. Because we know so much about the needs of different industries, we can provide solutions that go above and beyond what customers expect while still meeting the best quality standards.
Manufacturing Excellence and Production Capabilities

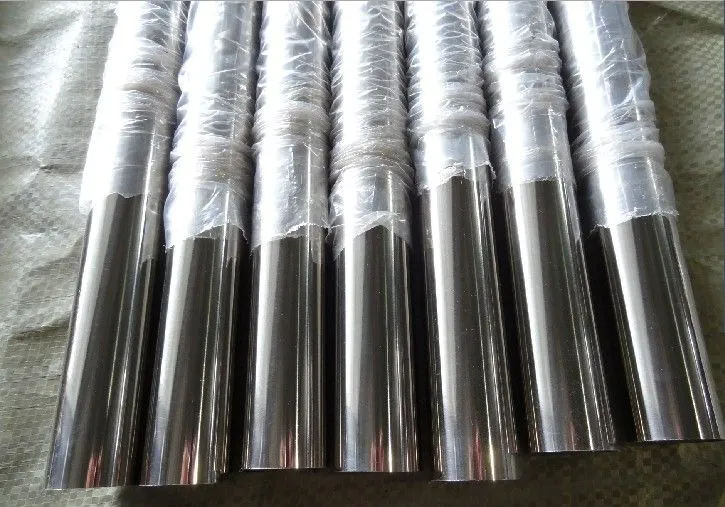

Our cutting-edge factory is spread out over 50,000 square meters and has 8 separate production lines with more than 100 precise tools. We keep a monthly supply capacity of 300 tons, which lets us keep shipping plans for big tasks. Our Inconel 690 tubes are made to the standards for grade Inconel 690 (UNS N06690). Their outside sizes range from 6.0 mm to 114 mm, their wall thicknesses from 0.5 mm to 15 mm, and their longest lengths can reach 15,000 mm. To meet the needs of each application, different surface processes are available, such as grinding, electropolishing, and chemical polishing.
Quality Assurance and Certification
For structural stability, every tube goes through a full set of tests, such as ultrasound inspection, radiography testing, and eddy current examination. Pressure resistance is confirmed by hydrostatic testing, and full material tracking paperwork includes MTC (Mill Test Certificate) and SGS test results. We are dedicated to quality management systems that meet aircraft and industrial standards, as shown by our ISO 9001 and AS9100D approvals. We work with clients in more than 70 areas around the world to customize and process their orders according to their individual needs.
Conclusion
The best performance of Inconel 690 tubes in heat exchangers comes from their high resistance to rust, stability at high temperatures, and ability to maintain their mechanical integrity under tough working conditions. These metals of nickel, chromium, and iron work better than most materials and are more cost-effective because they last longer and need less upkeep. When engineering teams know about the qualities of the material, its uses, and how to buy it, they can make decisions that improve both performance and the overall cost of ownership for important heat exchanger projects.
FAQs
1.What makes Inconel 690 tubes superior to stainless steel for heat exchanger applications?
The high chromium content (28-31%) of Inconel 690 tubes makes them very resistant to rust. The chromium forms a stable oxide layer that protects against harsh media. They don't break mechanically at temperatures up to 1100°C, where stainless steel would, and they're better at stopping stress corrosion cracking in salt conditions than stainless steel.
2.How do Inconel 690 tubes compare to other Inconel grades for heat exchangers?
Because it has more chromium than Inconel 600, Inconel 690 is better at resisting rust, which makes it perfect for use in steam generators. Even though Inconel 625 and 718 are stronger in different ways, 690 is the best choice for heat exchangers because it is both resistant to rust and good at handling high temperatures.
3.What quality certifications should I look for when procuring Inconel 690 tubes?
Compliance with ASTM B622, ASME SB622, and EN 10095 is an important standard. Also, look for certifications like ISO 9001 for quality management, full MTC paperwork, and testing results from outside groups like SGS. For nuclear uses, there are more RCC-M standards that need to be met.
Partner with TSM Technology for Superior Inconel 690 Tube Solutions
TSM Technology is ready to help you with your heat exchanger projects by making high-quality nickel metal tubing to strict standards. With 14 years of experience in the field, modern production skills, and full quality control, we can guarantee that the goods you receive will meet the strictest requirements. Whether you need standard setups or unique solutions, our engineering team can help you choose the right materials and give you expert advice to make your application work better. As a top maker of Inconel 690 tubes, we offer full traceability paperwork, a variety of customization choices, and reliable shipping around the world to meet your project deadlines. Get in touch with us at info@tsmnialloy.com to talk about your unique needs and find out how our knowledge can improve the performance of your heat exchanger.
