Compare Monel 400 Tensile and Yield Strengths at Room Temperature

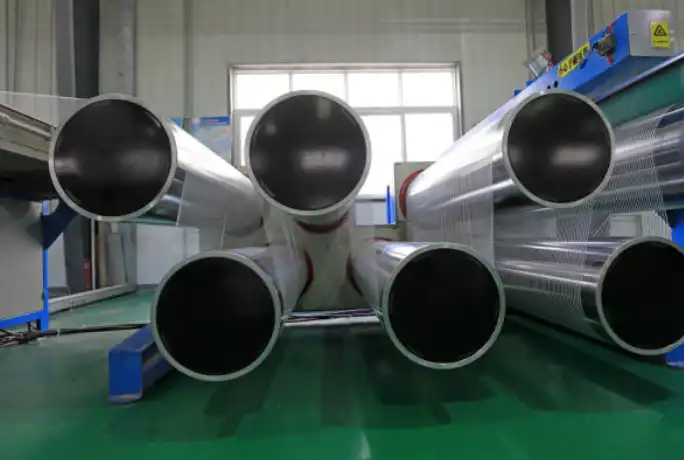

Monel 400 tube, a nickel-copper alloy renowned for its exceptional mechanical properties, exhibits impressive tensile and yield strengths at room temperature. The tensile strength of Monel 400 typically ranges from 70,000 to 85,000 psi (483 to 586 MPa), while its yield strength falls between 25,000 to 50,000 psi (172 to 345 MPa). These values highlight Monel 400's superior strength compared to many other alloys, making it an excellent choice for applications requiring both durability and corrosion resistance. The combination of high tensile and yield strengths contributes to Monel 400's versatility in various industries, from marine engineering to chemical processing.

Understanding Monel 400 Mechanical Properties

Composition and Microstructure

Monel 400's unique composition, primarily consisting of nickel (63-70%) and copper (28-34%) with small amounts of iron, manganese, and carbon, contributes to its exceptional mechanical properties. This alloy's solid solution strengthening mechanism results in a face-centered cubic crystal structure, enhancing its strength and ductility. The uniformity of the microstructure in Monel 400 tubing ensures consistent mechanical properties throughout the material, making it ideal for demanding applications in corrosive environments.

Strength-to-Weight Ratio

One of the standout features of Monel 400 is its impressive strength-to-weight ratio. Despite being lighter than many steel alloys, Monel 400 pipes and tubes maintain excellent mechanical strength. This characteristic makes Monel tubing particularly valuable in aerospace and marine applications, where weight reduction is crucial without compromising structural integrity. The combination of high strength and relatively low density allows engineers to design lighter, more efficient systems using Monel 400 components.

Work Hardening Behavior

Monel 400 exhibits significant work hardening capabilities, which further enhance its mechanical properties. As Monel 400 tubes undergo deformation during manufacturing processes or in service, the material's strength increases due to the multiplication and interaction of dislocations within its crystal structure. This work-hardening behavior contributes to the alloy's ability to maintain its structural integrity under stress, making Monel 400 piping systems resilient in dynamic and high-pressure environments.

Factors Influencing Monel 400 Strength

Heat Treatment Effects

The strength of Monel 400 can be significantly influenced by heat treatment processes. Annealing, for instance, can reduce the tensile and yield strengths while increasing ductility, which may be desirable for certain forming operations. Conversely, cold working followed by aging treatments can substantially increase the strength of Monel 400 tubing. Understanding these heat treatment effects allows manufacturers to tailor the mechanical properties of Monel 400 pipes to specific application requirements, ensuring optimal performance in diverse industrial settings.

Environmental Considerations

While Monel 400 maintains excellent strength at room temperature, it's important to consider how environmental factors can impact its mechanical properties. Exposure to extreme temperatures, both high and low, can affect the tensile and yield strengths of Monel 400 pipes. In cryogenic applications, for example, Monel 400 retains its toughness and strength, making it suitable for liquefied natural gas (LNG) processing equipment. Conversely, at elevated temperatures, there may be a gradual decrease in strength, which must be accounted for in high-temperature applications such as heat exchangers in chemical plants.

Manufacturing Processes

The manufacturing processes used to produce Monel 400 tubes and pipes can significantly influence their final strength characteristics. Seamless Monel tubing, produced through extrusion and cold drawing, often exhibits higher strength due to work hardening during the drawing process. Welded Monel 400 pipes, while also strong, may have slightly different properties in the weld zone. Advanced manufacturing techniques, such as those employed by leading producers, ensure consistent quality and optimal strength properties across different production methods, meeting stringent industry standards like ASTM B163 and ASME SB163.

Applications Leveraging Monel 400's Strength

Marine and Offshore Industries

The exceptional strength and corrosion resistance of Monel 400 make it an ideal material for marine and offshore applications. Monel 400 pipes and tubes are extensively used in seawater handling systems, desalination plants, and offshore oil and gas platforms. The material's ability to withstand the corrosive effects of saltwater while maintaining high tensile and yield strengths ensures long-term reliability in these harsh environments. From heat exchanger tubing to pump shafts in marine propulsion systems, Monel 400 components play a crucial role in maintaining the integrity of critical marine infrastructure.

Chemical Processing Equipment

In the chemical processing industry, the combination of strength and corrosion resistance offered by Monel 400 is invaluable. Monel tubing is widely used in the construction of reactors, distillation columns, and piping systems handling aggressive chemicals. The high yield strength of Monel 400 allows for the design of thin-walled pipes that can withstand high internal pressures, optimizing material usage without compromising safety. This is particularly beneficial in processes involving hydrofluoric acid, sulfuric acid, and other corrosive media where the material's strength and chemical inertness are crucial for maintaining process integrity and safety.

Aerospace and Defense Applications

The aerospace and defense sectors leverage Monel 400's high strength-to-weight ratio and excellent mechanical properties in various critical applications. Monel 400 tubes are used in aircraft fuel systems, hydraulic lines, and structural components where both strength and corrosion resistance are paramount. In missile technology, Monel 400 pipes find application in propulsion systems and fuel tanks, where their ability to maintain strength under extreme conditions is crucial. The material's reliability and performance in these high-stakes applications underscore its importance in advanced engineering solutions for aerospace and defense industries.

Conclusion

The comparison of Monel 400 pipe's tensile and yield strengths at room temperature reveals its exceptional mechanical properties, making it a versatile and reliable material for various industrial applications. Its high strength, combined with excellent corrosion resistance, positions Monel 400 tubing as a superior choice for demanding environments in marine, chemical processing, and aerospace sectors. As industries continue to seek materials that offer both durability and performance, Monel 400 pipe stands out as a solution that meets and exceeds these requirements, ensuring long-lasting and efficient operation in critical systems worldwide.

FAQs

How does Monel 400's strength compare to stainless steel?

Monel 400 generally offers comparable or higher strength than many stainless steels, with superior corrosion resistance in certain environments.

Can Monel 400 tubes be welded without losing strength?

Yes, Monel 400 can be welded while maintaining good strength, though proper welding procedures should be followed to ensure optimal results.

Is Monel 400 suitable for cryogenic applications?

Absolutely. Monel 400 retains its strength and toughness at cryogenic temperatures, making it excellent for LNG and other low-temperature applications.
