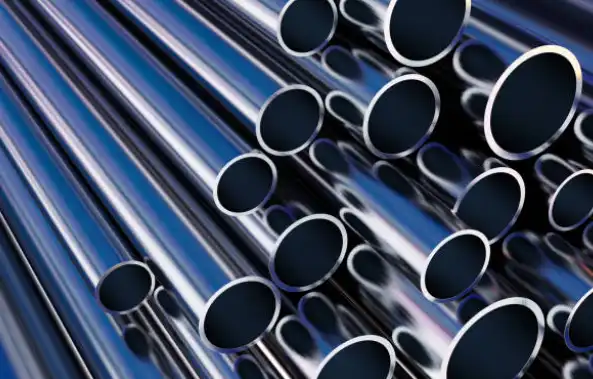

Difference Between Seamless And Welded Nickel Alloy Tubes Explained

Seamless and welded nickel alloy tubes are two distinct types of tubing used in various industrial applications. The primary difference lies in their manufacturing processes and resulting characteristics. Seamless tubes are produced from solid round billets, extruded or pierced to create a hollow form without any welding. This results in a uniform structure with consistent properties throughout. Welded tubes, on the other hand, are made by rolling flat strips of nickel alloy into a cylindrical shape and welding the seam. While both types have their merits, seamless tubes generally offer superior strength, pressure resistance, and corrosion resistance due to their homogeneous structure. The choice between seamless and welded nickel alloy tubes depends on factors such as application requirements, operating conditions, and budget considerations.

Manufacturing Processes of Nickel Alloy Tubes

Seamless Nickel Alloy Tube Production

The production of seamless nickel alloy tubes involves a sophisticated process that begins with high-quality nickel alloy billets. These billets are heated to extreme temperatures, making them malleable enough for shaping. The heated material is then passed through a piercing mill, where a mandrel creates the initial hollow form. This step is crucial in establishing the tube's inner diameter and wall thickness.

Following the piercing process, the tube undergoes a series of rolling operations. These operations further refine the tube's dimensions and improve its structural integrity. Hot rolling is typically employed first, followed by cold rolling for enhanced precision and surface finish. The result is a seamless nickel alloy tube with uniform properties throughout its entire structure.

One of the key advantages of this manufacturing method is the absence of weak points or seams. This characteristic makes seamless tubes particularly suitable for high-pressure and high-temperature applications where structural integrity is paramount.

Welded Nickel Alloy Tube Fabrication

Welded nickel alloy tubes follow a different production path. The process begins with flat strips or plates of nickel alloy material. These strips are carefully rolled into a cylindrical shape, creating what's known as a tube shell. The edges of this shell are then brought together and welded to form a complete tube.

The welding process is a crucial step in producing these tubes. Advanced welding techniques, such as tungsten inert gas (TIG) welding or laser welding, are employed to ensure a strong and reliable seam. After welding, the tube undergoes various finishing processes, including heat treatment and surface conditioning, to enhance its properties and appearance.

While welded tubes may have a seam that could potentially be a weak point under extreme conditions, modern welding technologies have significantly improved the quality and reliability of these tubes. In many applications, welded nickel alloy tubes perform admirably and offer a cost-effective solution.

Quality Control in Nickel Alloy Tube Manufacturing

Regardless of the manufacturing method, quality control plays a crucial role in ensuring the reliability and performance of nickel alloy tubes. Both seamless and welded tubes undergo rigorous inspection processes to verify their dimensional accuracy, surface quality, and mechanical properties.

Non-destructive testing methods, such as ultrasonic testing and eddy current inspection, are commonly used to detect any internal defects or inconsistencies. Hydrostatic pressure tests are also conducted to assess the tube's ability to withstand operating pressures. These quality control measures help ensure that both seamless and welded nickel alloy tubes meet the stringent requirements of various industrial applications.

Comparative Analysis of Seamless and Welded Nickel Alloy Tubes

Strength and Pressure Resistance

When it comes to strength and pressure resistance, seamless nickel alloy tubes generally have an edge over their welded counterparts. The uniform structure of seamless tubes, free from any welded seams, provides consistent strength throughout the entire tube. This characteristic makes them particularly suitable for high-pressure applications in industries such as oil and gas, chemical processing, and power generation.

Welded nickel alloy tubes, while robust in their own right, may have a potential weak point at the welded seam. However, it's important to note that with advanced welding technologies and proper heat treatment, the strength difference between seamless and welded tubes has significantly narrowed in recent years. For many standard pressure applications, welded tubes perform adequately and can be a cost-effective choice.

The choice between seamless and welded tubes often depends on the specific pressure requirements of the application. Engineers must consider factors such as maximum operating pressure, safety factors, and regulatory requirements when selecting the appropriate tube type.

Corrosion Resistance and Material Uniformity

Nickel alloys are renowned for their excellent corrosion resistance, making them ideal for use in harsh environments. In terms of corrosion resistance, seamless nickel alloy pipes have a slight advantage due to their uniform material composition. The absence of a welded seam eliminates the possibility of localized corrosion or galvanic effects that could potentially occur at the weld interface in welded tubes.

However, it's worth noting that modern welding techniques and proper post-weld heat treatment can significantly mitigate these concerns in welded nickel alloy tubes. Many welded tubes exhibit corrosion resistance comparable to seamless tubes in most applications. The key lies in selecting the appropriate nickel alloy grade for the specific corrosive environment and ensuring proper manufacturing and quality control processes.

Material uniformity is another area where seamless tubes excel. The consistent microstructure throughout the tube wall ensures uniform mechanical properties and predictable performance. This uniformity can be particularly important in applications involving cyclic loading or thermal cycling.

Cost Considerations and Availability

When it comes to cost, welded nickel alloy tubes often have an advantage. The manufacturing process for welded tubes is generally more straightforward and less energy-intensive than that of seamless tubes. This typically translates to lower production costs and, consequently, lower prices for the end-user.

Additionally, welded tubes offer greater flexibility in terms of size ranges and can be more readily available in certain dimensions. This is particularly true for larger diameter tubes, where seamless production may be limited by equipment capabilities. The ability to produce welded tubes from flat stock also allows for greater material utilization, potentially reducing waste and contributing to cost savings.

However, it's important to consider the total lifecycle cost rather than just the initial purchase price. In high-pressure or critical applications where the superior strength and uniformity of seamless tubes are required, the higher upfront cost may be justified by improved performance and longevity.

Applications and Selection Criteria for Nickel Alloy Tubes

Industrial Applications of Nickel Alloy Tubes

Nickel alloy tubes, both seamless and welded, find widespread use across various industries due to their exceptional properties. In the oil and gas sector, these tubes are crucial components in offshore platforms, refineries, and subsea equipment. Their corrosion resistance and ability to withstand high pressures make them ideal for transporting hydrocarbons and other fluids in harsh environments.

The chemical processing industry relies heavily on nickel alloy tubes for heat exchangers, reactors, and piping systems. These tubes excel in handling corrosive chemicals and maintaining their integrity at elevated temperatures. Similarly, in the power generation sector, nickel alloy tubes are used in boilers, steam generators, and nuclear reactors, where their heat resistance and durability are paramount.

Aerospace and defense industries also utilize nickel alloy tubes in aircraft engines, missile systems, and other high-performance applications. The combination of strength, lightweight properties, and resistance to extreme conditions makes these tubes indispensable in advanced engineering designs.

Factors Influencing the Choice Between Seamless and Welded Tubes

Selecting between seamless and welded nickel alloy pipes requires careful consideration of several factors. The operating pressure of the system is a primary consideration. For extremely high-pressure applications, seamless tubes are often preferred due to their superior strength and absence of weld seams. However, for moderate pressure systems, welded tubes may be sufficient and more cost-effective.

The corrosiveness of the environment or fluid being transported is another crucial factor. While both seamless and welded tubes offer excellent corrosion resistance, seamless tubes may be favored in highly aggressive environments where even minor variations in material composition could lead to localized corrosion.

Temperature cycling and mechanical stress are also important considerations. Applications involving frequent thermal cycling or high mechanical stress may benefit from the uniform structure of seamless tubes, which can better withstand these conditions without developing weak points.

Budget constraints and availability of specific sizes and grades can also influence the decision. Welded tubes often offer a more economical solution and may be more readily available in certain dimensions, particularly for larger diameter tubes.

Future Trends in Nickel Alloy Tube Technology

The field of nickel alloy tube technology is continuously evolving, driven by the demands of increasingly challenging industrial applications. One notable trend is the development of advanced nickel alloys with enhanced properties, such as improved high-temperature strength, superior corrosion resistance, and better weldability. These innovations are expanding the potential applications for both seamless and welded nickel alloy tubes.

Advancements in manufacturing processes are also shaping the future of nickel alloy tubes. Improved extrusion techniques for seamless tubes are enabling the production of longer lengths and more complex profiles. In the realm of welded tubes, cutting-edge welding technologies, such as electron beam welding and friction stir welding, are enhancing the quality and performance of welded seams.

The integration of smart technologies and IoT (Internet of Things) capabilities into nickel alloy tubing systems is another emerging trend. Embedded sensors and monitoring systems can provide real-time data on tube performance, enabling predictive maintenance and optimizing operational efficiency in critical applications.

Conclusion

The choice between seamless and welded nickel alloy tubes ultimately depends on the specific requirements of each application. Seamless tubes offer superior strength, uniform properties, and excellent performance in high-pressure and corrosive environments. Welded tubes, while potentially having a slight disadvantage in extreme conditions, provide a cost-effective solution for many standard applications and offer greater flexibility in size ranges. As technology continues to advance, the gap between seamless and welded tube performance is narrowing, giving engineers and designers more options to optimize their systems. Understanding the unique characteristics and benefits of each type enables informed decision-making, ensuring the selection of the most suitable nickel alloy tube for any given industrial challenge.

FAQs

What are the main advantages of seamless nickel alloy tubes?

Seamless nickel alloy tubes offer superior strength, uniform properties, and excellent performance in high-pressure and corrosive environments due to their homogeneous structure without weld seams.

When should I choose welded nickel alloy tubes?

Welded nickel alloy tubes are suitable for moderate pressure applications, offer cost-effectiveness, and are more readily available in certain dimensions, particularly larger diameters.

How do I determine which type of nickel alloy tube is best for my application?

Consider factors such as operating pressure, corrosive environment, temperature cycling, mechanical stress, budget constraints, and size requirements to determine the most suitable type for your specific needs.

Expert Nickel Alloy Tube Solutions | TSM TECHNOLOGY

At TSM TECHNOLOGY, a trusted nickel alloy tubes manufacturer, we specialize in providing high-quality nickel alloy tubes tailored to your specific needs. Our expert team can guide you in selecting the ideal seamless or welded nickel alloy tube for your application, ensuring optimal performance and cost-effectiveness. With our state-of-the-art manufacturing facilities and stringent quality control, we deliver superior alloy products that meet the highest industry standards. Contact us at info@tsmnialloy.com to discuss your nickel alloy tube requirements and experience our unparalleled service and expertise.
