Understanding Inconel 600 and Its Properties
Composition and Characteristics of Inconel 600
Inconel 600, also known as alloy 600, is a nickel-chromium superalloy renowned for its exceptional resistance to corrosion and heat. This versatile material comprises approximately 72% nickel, 14-17% chromium, and 6-10% iron, along with trace amounts of other elements. The unique composition of Inconel 600 round bar contributes to its remarkable strength, durability, and ability to maintain structural integrity under extreme conditions.
Applications of Inconel 600 in Various Industries
The superior properties of Inconel 600 bar make it an indispensable material across numerous industries. In aerospace, it's utilized for jet engine components and exhaust systems. The nuclear sector relies on alloy 600 round bar for reactor vessels and heat exchangers. Chemical processing plants benefit from its corrosion resistance in pipelines and reaction vessels. Additionally, Inconel 600 finds applications in oil and gas exploration, marine environments, and high-temperature industrial furnaces.

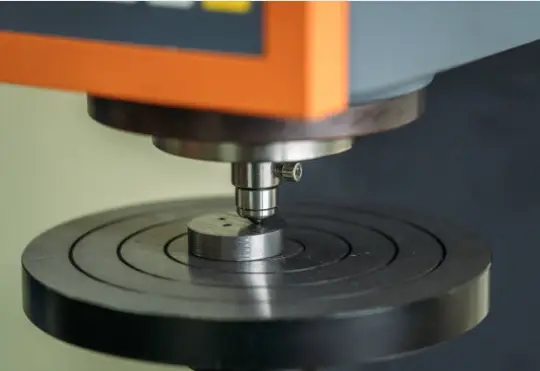

Importance of Hardness Testing for Inconel 600
Hardness testing plays a pivotal role in ensuring the quality and performance of Inconel 600 products. By quantifying the material's resistance to indentation, engineers can predict its wear resistance, machinability, and overall durability. Accurate hardness measurements are crucial for validating the heat treatment processes and confirming that the Inconel 600 round bar meets the stringent requirements of its intended application. Moreover, hardness testing serves as a non-destructive method to estimate other mechanical properties, such as tensile strength, making it an invaluable tool in material characterization and quality control.
Rockwell Hardness Testing for Inconel 600
Principles of Rockwell Hardness Testing
Rockwell hardness testing is a widely adopted method for evaluating the hardness of materials, including Inconel 600 bar. This technique involves applying a predetermined force to the material's surface using a diamond cone or hardened steel ball indenter. The depth of indentation is then measured to determine the hardness value. For Inconel 600, the Rockwell C scale (HRC) is typically used, which employs a diamond cone indenter and a total force of 150 kgf.
Advantages of Rockwell Testing for Inconel 600
One of the primary advantages of Rockwell testing for alloy 600 round bar is its speed and simplicity. The test can be performed quickly, making it ideal for high-volume production environments. Additionally, the Rockwell method leaves only a small indentation on the surface, minimizing damage to the tested component. This non-destructive nature allows for multiple tests on the same specimen, enhancing reliability and statistical significance. The Rockwell scale also provides a direct hardness reading, eliminating the need for complex calculations or microscopic measurements.
Limitations and Considerations in Rockwell Testing
While Rockwell testing offers numerous benefits, it's essential to consider its limitations when testing Inconel 600 round bar. The shallow indentation depth means that Rockwell measurements are more susceptible to surface conditions. Proper surface preparation is crucial to ensure accurate results. Furthermore, Rockwell testing may not be suitable for very thin Inconel 600 specimens, as the indentation could be influenced by the substrate material. When working with Inconel 600 bars of varying thicknesses, it's important to select the appropriate Rockwell scale and indenter to obtain reliable hardness values.
Brinell Hardness Testing for Inconel 600
Fundamentals of Brinell Hardness Testing
Brinell hardness testing is another prominent method used to assess the hardness of Inconel 600 and other alloys. This technique involves pressing a hardened steel ball into the material's surface under a specified load for a set duration. The diameter of the resulting indentation is then measured and used to calculate the Brinell hardness number (HBW). For testing Inconel 600 round bar, a typical setup might use a 10mm diameter ball with a 3000 kgf load applied for 10-15 seconds.
Benefits of Brinell Testing for Alloy 600 Round Bar
Brinell testing offers several advantages when evaluating the hardness of alloy 600 round bar. The larger indentation area provides a more representative hardness value, especially for materials with non-uniform microstructures. This makes Brinell testing particularly useful for assessing the overall hardness of Inconel 600 bar with varying grain sizes or heat treatment conditions. Additionally, the Brinell method is less sensitive to surface irregularities compared to Rockwell testing, making it suitable for rougher or less polished surfaces of Inconel 600 products.
Challenges and Precautions in Brinell Testing
While Brinell testing is highly effective for Inconel 600, it does present some challenges. The test requires more time than Rockwell testing, as the indentation must be measured manually or with specialized equipment. This can slow down the testing process in high-volume production settings. Moreover, the larger indentation left by Brinell testing may be undesirable for finished Inconel 600 components where surface integrity is crucial. When testing thinner sections of Inconel 600 bar, care must be taken to ensure that the indentation depth does not exceed 1/8 of the specimen thickness to avoid substrate influence on the hardness measurement.
Comparing Rockwell and Brinell Methods for Inconel 600
Accuracy and Precision in Hardness Measurements
When it comes to measuring the hardness of Inconel 600 round bar, both Rockwell and Brinell methods offer high levels of accuracy and precision, but with different strengths. Rockwell testing typically provides more consistent results across multiple measurements due to its automated process and smaller indentation size. This makes it particularly suitable for quality control applications where rapid, repeatable measurements are essential. Brinell testing, while slightly less precise in terms of repeatability, offers a more comprehensive assessment of the material's overall hardness, especially for larger Inconel 600 bar specimens with potential microstructural variations.
Suitability for Different Inconel 600 Product Forms
The choice between Rockwell and Brinell testing often depends on the specific form and dimensions of the Inconel 600 product being evaluated. Rockwell testing is generally preferred for thin sheets or small-diameter Inconel 600 bar, where the shallow indentation depth doesn't risk penetrating through the material. It's also ideal for finished components where minimal surface damage is crucial. Brinell testing, on the other hand, is more suitable for larger Inconel 600 round bars or thicker sections, where its ability to average hardness over a larger area provides a more representative value of the material's bulk properties.
Correlation and Conversion Between Rockwell and Brinell Results
While Rockwell and Brinell hardness values for Inconel 600 are not directly interchangeable, there are established correlation tables and equations that allow for approximate conversions between the two scales. However, it's important to note that these conversions are empirical and may not be perfectly accurate across all hardness ranges or material conditions. For critical applications of alloy 600 round bar, it's recommended to perform both Rockwell and Brinell tests to establish a reliable correlation specific to the particular Inconel 600 product and processing conditions.
Best Practices for Hardness Testing of Inconel 600
Sample Preparation and Testing Environment
Proper sample preparation is crucial for accurate hardness testing of Inconel 600 bar. The surface should be clean, flat, and free from scale, oxide layers, or decarburization. For Rockwell testing, a smooth, polished surface is ideal, while Brinell testing can tolerate slightly rougher surfaces. The testing environment should be controlled for temperature and humidity, as extreme conditions can affect both the material and the testing equipment. It's also important to ensure that the Inconel 600 round bar specimen is sufficiently thick to prevent the indentation from being influenced by the supporting surface.
Calibration and Verification of Testing Equipment
Regular calibration of hardness testing machines is essential for maintaining accuracy when evaluating alloy 600 round bar. This includes verifying the applied load, indenter geometry, and measurement systems. Calibration should be performed using certified reference blocks that closely match the expected hardness range of the Inconel 600 being tested. For Brinell testing, periodic checks of the indenter ball's condition are necessary, as deformation can occur over time, especially when testing hard materials like Inconel 600.
Interpretation and Reporting of Hardness Results
When reporting hardness results for Inconel 600 products, it's crucial to include all relevant testing parameters. For Rockwell testing, this includes the scale used (e.g., HRC), the applied load, and the dwell time. Brinell results should specify the ball diameter, applied force, and dwell time (e.g., HBW 10/3000/15). Multiple measurements should be taken across the Inconel 600 bar surface to account for potential hardness variations, and statistical analysis of the results can provide valuable insights into material uniformity. When comparing hardness values to specifications or previous tests, ensure that the same testing method and parameters were used to avoid misinterpretation.
Conclusion
In conclusion, both Rockwell and Brinell hardness testing methods offer valuable insights into the properties of Inconel 600 round bar, each with its own strengths and applications. Rockwell testing excels in rapid, non-destructive measurements ideal for quality control, while Brinell testing provides a more comprehensive assessment of bulk material properties. The choice between these methods depends on factors such as specimen size, surface condition, and the specific requirements of the application. By understanding the principles, advantages, and limitations of each technique, engineers and quality control professionals can ensure accurate hardness measurements of Inconel 600 bar, contributing to the reliable performance of this exceptional alloy across diverse industrial applications.
Contact Us
For more information about our Inconel 600 products and hardness testing services, please don't hesitate to contact TSM TECHNOLOGY at info@tsmnialloy.com. Our team of experts is ready to assist you in selecting the right alloy and testing methods for your specific needs.
References
Davis, J.R. (2000). Nickel, Cobalt, and Their Alloys. ASM International.
ASTM International. (2019). ASTM E18-19: Standard Test Methods for Rockwell Hardness of Metallic Materials.
ASTM International. (2017). ASTM E10-17: Standard Test Method for Brinell Hardness of Metallic Materials.
Chandler, H. (1999). Hardness Testing, 2nd Edition. ASM International.
Special Metals Corporation. (2008). Inconel Alloy 600 Technical Data Sheet.
Dieter, G.E. (1986). Mechanical Metallurgy, 3rd Edition. McGraw-Hill.
