Understanding Inconel 625 Sheet Properties
Chemical Composition and Microstructure

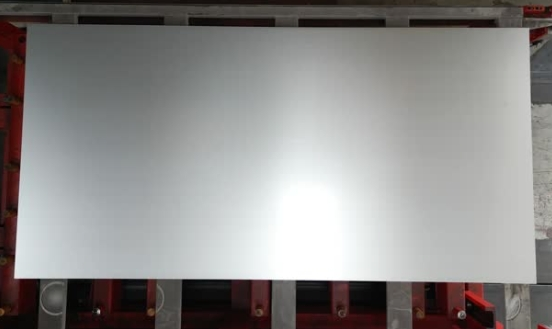

Inconel 625 sheet, also known as alloy 625 sheet, is a nickel-chromium-molybdenum superalloy renowned for its exceptional combination of strength and corrosion resistance. The chemical composition of this alloy typically includes 58% nickel, 20-23% chromium, 8-10% molybdenum, and smaller amounts of niobium, iron, and other elements. This unique blend of elements contributes to the formation of a complex microstructure that gives Inconel 625 its remarkable properties.
The microstructure of Inconel 625 sheet consists primarily of a face-centered cubic (FCC) austenitic matrix strengthened by solid solution hardening. The presence of molybdenum and niobium in the alloy leads to the formation of various precipitates, such as MC carbides and intermetallic phases like Ni3Nb (gamma double prime). These microstructural features play a significant role in determining the alloy's mechanical and corrosion-resistant properties.
Mechanical Properties and Performance Characteristics
Inconel 625 sheet exhibits an impressive array of mechanical properties that make it suitable for demanding applications. Some key characteristics include:
- High tensile strength: Typically ranging from 690 to 965 MPa (100 to 140 ksi)
- Excellent yield strength: Usually between 415 and 655 MPa (60 to 95 ksi)
- Good ductility: Elongation values of 30-60% are common
- Superior fatigue resistance
- Exceptional creep resistance at elevated temperatures
These mechanical properties, combined with the alloy's outstanding corrosion resistance in various aggressive environments, make Inconel 625 sheet a preferred choice for applications in the chemical processing, aerospace, and marine industries.
Importance of Heat Treatment
Heat treatment processes are essential for optimizing the properties of Inconel 625 sheet. These thermal procedures allow manufacturers to tailor the alloy's characteristics to meet specific application requirements. Heat treatment can significantly influence factors such as:
- Strength and hardness
- Ductility and formability
- Stress corrosion cracking resistance
- High-temperature performance
- Dimensional stability
By carefully controlling the heat treatment parameters, including temperature, time, and cooling rates, engineers can achieve the desired balance of properties for Inconel 625 sheet and alloy 625 sheet, ensuring optimal performance in its intended application.
Primary Heat Treatment Processes for Inconel 625 Sheet
Solution Annealing
Solution annealing is a critical heat treatment process for Inconel 625 sheet that aims to homogenize the microstructure and dissolve secondary phases. This treatment typically involves heating the alloy to temperatures between 1095°C and 1200°C (2000°F to 2200°F) for a specified duration, followed by rapid cooling, usually through water quenching.
The primary objectives of solution annealing include:
- Dissolving carbides and intermetallic compounds
- Eliminating segregation and reducing chemical inhomogeneities
- Recrystallizing the grain structure
- Improving ductility and formability
- Enhancing corrosion resistance
The specific temperature and time parameters for solution annealing may vary depending on the thickness of the Inconel 625 sheet and the desired final properties. It's crucial to control the cooling rate to prevent the re-precipitation of unwanted phases that could compromise the alloy's performance.
Stress Relieving
Stress relieving is a heat treatment process applied to Inconel 625 sheet to reduce residual stresses that may have been introduced during manufacturing, forming, or welding operations. This process involves heating the material to a temperature below its recrystallization temperature, typically between 870°C and 980°C (1600°F to 1800°F), holding it for a specified time, and then cooling it slowly.
The benefits of stress relieving Inconel 625 sheet include:
- Minimizing distortion during subsequent machining or service
- Improving dimensional stability
- Reducing the risk of stress corrosion cracking
- Enhancing fatigue resistance
The duration of the stress-relieving treatment depends on the thickness of the Inconel 625 sheet and alloy 625 sheet and the severity of the residual stresses. Careful control of the cooling rate is essential to prevent the introduction of new stresses during the cooling process.
Age Hardening
Age hardening, also known as precipitation hardening, is a heat treatment process used to increase the strength and hardness of Inconel 625 sheet. This process involves heating the alloy to temperatures typically between 650°C and 760°C (1200°F to 1400°F) for extended periods, allowing the controlled precipitation of strengthening phases within the microstructure.
The age hardening process for Inconel 625 sheet generally consists of two steps:
- Solution treatment: Heating the alloy to dissolve precipitates and create a supersaturated solid solution
- Aging: Controlled heating at lower temperatures to promote the formation of fine, uniformly dispersed precipitates
The primary strengthening mechanism in age-hardened Inconel 625 is the precipitation of gamma double prime (γ") phase, which is a coherent, body-centered tetragonal Ni3Nb intermetallic compound. The size, distribution, and volume fraction of these precipitates significantly influence the alloy's mechanical properties.
Age hardening can result in substantial improvements in:
- Tensile strength
- Yield strength
- Hardness
- Creep resistance
However, it's important to note that age hardening may reduce ductility and impact toughness. Therefore, the heat treatment parameters must be carefully optimized to achieve the desired balance of properties for specific applications of Inconel 625 sheet.
Optimizing Heat Treatment Parameters for Inconel 625 Sheet
Temperature Control and Monitoring
Precise temperature control is paramount in the heat treatment of Inconel 625 sheet. The accuracy and uniformity of the temperature throughout the material can significantly impact the final properties and performance of the alloy. To ensure optimal results, consider the following aspects of temperature control:
- Use of high-precision thermocouples and advanced temperature monitoring systems
- Regular calibration of furnace equipment to maintain accuracy
- Implementation of temperature profiling techniques to ensure uniform heating across the entire sheet
- Consideration of furnace loading patterns to minimize temperature gradients
For critical applications, it may be beneficial to employ advanced temperature monitoring technologies, such as thermal imaging cameras or embedded sensors, to gain real-time insights into the temperature distribution across the Inconel 625 sheet during heat treatment.
Time and Cooling Rate Management
The duration of heat treatment and the subsequent cooling rate are crucial factors that influence the microstructural evolution and final properties of Inconel 625 sheet. Proper management of these parameters involves:
- Accurate timing of heating and soaking periods to ensure complete homogenization or precipitation, as required
- Careful control of cooling rates to achieve desired microstructures and properties
- Consideration of sheet thickness when determining heating and cooling times
- Use of automated quenching systems for consistent and rapid cooling when required
For solution annealing, rapid cooling is often necessary to retain the supersaturated solid solution. In contrast, stress relieving typically requires slow, controlled cooling to prevent the reintroduction of residual stresses. Age hardening processes may involve complex cooling profiles to optimize precipitate formation and growth.
Atmosphere Control and Surface Protection
The atmosphere within the heat treatment furnace can significantly impact the surface quality and properties of Inconel 625 sheet. Proper atmosphere control is essential to prevent oxidation, decarburization, or other unwanted surface reactions. Consider the following measures:
- Use of inert gas atmospheres (e.g., argon or nitrogen) to prevent oxidation
- Implementation of vacuum heat treatment for sensitive applications
- Application of protective coatings or wraps to shield the Inconel 625 sheet surface
- Regular maintenance and monitoring of furnace seals and gas flow systems
In some cases, controlled oxidation may be desirable to form a protective oxide layer on the surface of the Inconel 625 sheet. This can be achieved through careful management of oxygen partial pressure in the furnace atmosphere.
By meticulously controlling these heat treatment parameters, manufacturers can optimize the properties of Inconel 625 sheet to meet the exacting requirements of various high-performance applications, ensuring superior strength, corrosion resistance, and longevity in demanding environments.
Conclusion
Heat treatment processes play a vital role in enhancing the properties of Inconel 625 sheet, enabling it to meet the demanding requirements of various industrial applications. Through carefully controlled solution annealing, stress relieving, and age hardening procedures, manufacturers can optimize the alloy's strength, ductility, and corrosion resistance. The success of these heat treatment processes hinges on precise control of temperature, time, cooling rates, and atmosphere. By mastering these parameters, engineers can tailor the characteristics of Inconel 625 sheet to excel in challenging environments, from aerospace components to chemical processing equipment, ensuring long-lasting performance and reliability.
FAQs
What is the primary purpose of heat treating Inconel 625 sheet?
Heat treatment of Inconel 625 sheet aims to optimize its mechanical properties, corrosion resistance, and microstructure for specific applications.
How does solution annealing affect Inconel 625 sheet properties?
Solution annealing homogenizes the microstructure, improves ductility, and enhances the corrosion resistance of Inconel 625 sheet.
Can age hardening be reversed in Inconel 625 sheet?
Yes, the effects of age hardening can be reversed by re-solution annealing the material at appropriate temperatures.
What are the typical temperature ranges for stress relieving Inconel 625 sheet?
Stress relieving is typically performed between 870°C and 980°C (1600°F to 1800°F).
How does heat treatment affect the weldability of Inconel 625 sheet?
Proper heat treatment can improve the weldability of Inconel 625 sheet by reducing residual stresses and optimizing the microstructure.
