The Science Behind Inconel 601's Oxidation Resistance
Composition and Microstructure
Inconel 601's exceptional oxidation resistance stems from its carefully engineered composition. This high-performance alloy typically contains 58-63% nickel, 21-25% chromium, and 1.0-1.7% aluminum, along with small amounts of other elements. The synergy between these components creates a unique microstructure that contributes to its outstanding performance in high-temperature environments.
The nickel base provides excellent stability and strength, while the chromium content is crucial for forming a protective oxide layer. Aluminum plays a vital role in enhancing this protective layer's effectiveness. When exposed to high temperatures, these elements work together to form a complex, adherent oxide scale that acts as a barrier against further oxidation.
Oxide Layer Formation

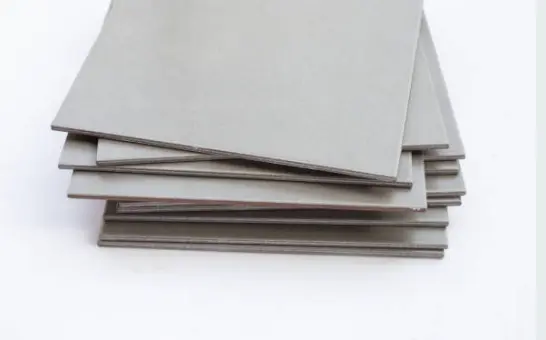

When Inconel 601 sheet or plate is subjected to elevated temperatures in an oxygen-rich environment, a process called selective oxidation occurs. The chromium and aluminum in the alloy preferentially react with oxygen to form a thin, continuous layer of chromium oxide (Cr2O3) and aluminum oxide (Al2O3) on the surface of Inconel 601 plate.
This oxide layer is remarkably stable and acts as a diffusion barrier, significantly slowing down the rate at which oxygen can penetrate the material. As a result, the underlying metal is protected from rapid oxidation, even in extreme conditions commonly encountered in chemical processing applications.
Self-Healing Properties
One of the most remarkable aspects of Inconel 601's oxidation resistance is its self-healing capability. If the protective oxide layer becomes damaged or partially removed due to mechanical stress or chemical attack, the alloy can quickly reform the protective layer when exposed to oxygen at high temperatures.
This self-healing property ensures that Inconel 601 maintains its oxidation resistance over extended periods, even in challenging operating conditions. It's this characteristic that makes Inconel 601 plate an ideal choice for long-term use in chemical processing equipment subjected to thermal cycling and mechanical stresses.
Impact on Chemical Processing Applications
Extended Equipment Lifespan
The superior oxidation resistance of Inconel 601 translates directly into extended equipment lifespan in chemical processing applications. In environments where other materials might rapidly degrade, Inconel 601 sheet and plate maintain their structural integrity and performance characteristics over prolonged periods.
This longevity is particularly valuable in applications such as chemical reactors, where frequent shutdowns for equipment replacement can be costly and disruptive. By using Inconel 601, chemical processing facilities can significantly reduce the frequency of maintenance and replacement cycles, leading to improved operational efficiency and reduced downtime.
Enhanced Process Efficiency
The ability of Inconel 601 plate to withstand high-temperature oxidizing environments allows chemical processing equipment to operate at higher temperatures and pressures. This capability can lead to enhanced process efficiency in several ways:
- Increased reaction rates: Higher operating temperatures often result in faster chemical reactions, improving throughput.
- Better heat transfer: Inconel 601's stability at high temperatures allows for more efficient heat exchange processes.
- Reduced energy consumption: The ability to maintain consistent performance at elevated temperatures can lead to more energy-efficient operations.
Moreover, the oxidation resistance ensures that the surface characteristics of Inconel 601 components remain stable over time. This stability is crucial for maintaining consistent process parameters and product quality in chemical manufacturing operations.
Improved Safety and Reliability
In the chemical processing industry, safety is paramount. The high-temperature oxidation resistance of Inconel 601 contributes significantly to equipment reliability and safety in several ways:
- Reduced risk of catastrophic failure: By resisting oxidation-induced degradation, Inconel 601 components are less likely to fail unexpectedly under harsh operating conditions.
- Minimized contamination: The stable oxide layer formed on Inconel 601 surfaces helps prevent metal ions from leaching into chemical processes, maintaining product purity.
- Consistent performance: The ability to maintain mechanical properties at high temperatures ensures that equipment performs reliably over extended periods.
These safety benefits make Inconel 601 plate an attractive choice for critical components in chemical processing systems, particularly in applications involving corrosive or high-temperature environments.
Practical Applications in Chemical Processing
Reactor Vessels and Components
Inconel 601 sheet and plate find extensive use in the construction of reactor vessels and internal components for chemical processing. The alloy's ability to resist oxidation at high temperatures makes it ideal for applications such as:
- Reactor linings: Inconel 601 can be used to line the interior of reactors, providing a durable barrier against corrosive chemicals and high-temperature reactions.
- Catalyst support structures: The alloy's stability makes it suitable for creating support structures for catalysts in high-temperature catalytic processes.
- Agitator blades and shafts: In reactors requiring mixing, Inconel 601 components can withstand the combined effects of mechanical stress and chemical attack.
The use of Inconel 601 in these applications ensures consistent performance and extended service life, even in the most demanding chemical processing environments.
Heat Exchangers and Piping Systems
The exceptional oxidation resistance of Inconel 601 makes it an excellent choice for heat exchangers and piping systems in chemical processing plants. Some key applications include:
- Tube sheets and tubes in shell-and-tube heat exchangers
- Plate heat exchangers for corrosive or high-temperature fluids
- Piping for transporting hot, oxidizing chemicals
- Flue gas handling systems in waste heat recovery units
In these applications, Inconel 601 plate and sheet materials help maintain efficient heat transfer and fluid transport while resisting degradation from both high temperatures and corrosive process streams.
Specialized Process Equipment
Beyond reactors and heat transfer equipment, Inconel 601 finds use in various specialized process equipment within the chemical industry:
- Furnace components: Retorts, muffles, and other high-temperature furnace parts benefit from Inconel 601's oxidation resistance.
- Gas handling systems: In processes involving hot, corrosive gases, Inconel 601 components help ensure system integrity.
- Pressure vessels: For high-pressure, high-temperature applications, Inconel 601 offers a combination of strength and corrosion resistance.
- Distillation column internals: Trays and packing support grids made from Inconel 601 can withstand corrosive environments in distillation processes.
The versatility of Inconel 601 in these diverse applications underscores its importance in advancing chemical processing capabilities and efficiency.
Conclusion
The high-temperature oxidation resistance of Inconel 601 plays a crucial role in enhancing the performance, longevity, and safety of chemical processing applications. By forming a stable, self-healing oxide layer, Inconel 601 sheet and plate materials provide exceptional protection against degradation in harsh, high-temperature environments. This unique property enables the design of more efficient and durable chemical processing equipment, from reactor vessels to heat exchangers and specialized components. As the chemical industry continues to push the boundaries of process efficiency and product innovation, the role of advanced materials like Inconel 601 becomes increasingly vital in overcoming technological challenges and ensuring sustainable, safe operations.
FAQs
What is the maximum temperature at which Inconel 601 maintains its oxidation resistance?
Inconel 601 maintains excellent oxidation resistance up to approximately 1200°C (2192°F).
How does Inconel 601 compare to other high-temperature alloys in terms of oxidation resistance?
Inconel 601 offers superior oxidation resistance compared to many other alloys, particularly in cyclic temperature conditions and environments containing sulfur or carbon.
Can Inconel 601 be welded for fabrication in chemical processing equipment?
Yes, Inconel 601 exhibits good weldability using various welding techniques, making it suitable for the fabrication of complex chemical processing equipment.
Experience the Superior Performance of Inconel 601 | TSM TECHNOLOGY
At TSM Technology, we specialize in providing high-quality Inconel 601 sheet and plate for demanding chemical processing applications. Our expertise in superior alloys ensures you receive products that meet the highest standards of performance and durability. From custom sizes to specialized processing, we offer tailored solutions to meet your specific needs. Experience the difference that premium Inconel 601 can make in your chemical processing operations. Contact our expert team at info@tsmnialloy.com to discuss your requirements and discover how our products can enhance your processes.
