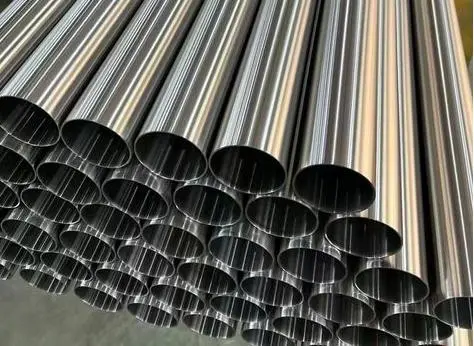

How Does Inconel 686 Tube Perform in FGD and Flue Gas Desulfurization Systems?

​​​​​​​Inconel 686 tubes are great at Flue Gas Desulfurization (FGD) systems because they are more resistant to rust and last longer. These high-performance metal tubes can handle the tough, acidic conditions that are common in FGD processes. They fight pitting, crevice corrosion, and stress corrosion cracks better than other products. Inconel 686 is a great choice for important parts in scrubber systems, heat exchangers, and other FGD equipment because its nickel, chromium, molybdenum, and tungsten makeup makes it last a long time in sulfuric acid. Inconel 686 tubes help FGD systems run more efficiently, with less downtime, and for longer by keeping their structural integrity in tough situations.

Understanding Inconel 686 Tube's Corrosion Resistance in FGD Environments

Chemical Composition and Its Impact on Corrosion Resistance

The chemicals in Inconel 686 tubes are carefully controlled, giving them great resistance to rust. This nickel-chromium-molybdenum-tungsten metal is made to handle the tough conditions that happen in Flue Gas Desulfurization (FGD) systems. The high nickel level (about 58%) is what makes the metal resistant to rust, and chromium (19-23%) gives it an oxide layer that protects it. Alloy's resistance to pitting and crevice corrosion is improved even more by molybdenum (15-17%) and tungsten (3-4%).

Inconel 686 tubes work better in FGD settings where sulfuric acid is a typical toxic substance. The make-up of the metal lets it keep its strength even when highly concentrated acids are around. This makes it a great choice for parts that are used in strong chemistry processes for cleaning waste gas.

Passive Film Formation and Its Role in Protection

A steady inactive film forming on the surface of the Inconel 686 tube is one of the main ways that it resists rust. In settings that oxidize materials, like in FGD systems, the alloy's chromium mixes with air and makes a thin layer of chromium oxide that sticks to the surface. This passive film creates a shield that greatly slows down rust by keeping the metal base away from corrosive substances.

Molybdenum and tungsten are present in Inconel 686, which makes this passive film even more stable and effective. These things help make complicated oxides that make the protected layer stronger, which helps it avoid breaking down in settings that have been FGD chloride systems.

Comparison with Other Materials Used in FGD Systems

Inconel 686 tubes have much better rust protection than other materials often used in FGD systems. Regular stainless steels are cheap, but they don't work well in FGD settings where things are very acidic. When hot, strong sulfuric acid is around, even high-quality stainless steels like 316L or 904L can rust quickly.

Inconel 625 and Hastelloy C-276 are examples of other nickel-based alloys that resist rust well, but they might not work as well as Inconel 686 in FGD uses. Inconel 686 has a higher molybdenum content and a balanced makeup, which makes it better at resisting both reducing and oxidizing acids. This makes it a useful option for a range of parts in FGD systems.

Performance of Inconel 686 Tubes in Specific FGD Components

Absorber Towers and Spray Nozzles

In FGD systems, absorber towers are very important because they are where waste gases come into close touch with the cleaning solution. Inconel 686 tubes are great for this use because they can handle the harmful mix of sulfur dioxide, water, and different types of acid. The metal doesn't easily corrode or pit, which is very useful in the lower parts of absorber towers where acidic liquids tend to build up.

Inconel 686 is also good for spray tubes that spread the washing slurry. These parts are exposed to slurries with high speed and lots of particles, which can cause erosion-corrosion in materials that aren't very strong. Inconel 686 has better dynamic qualities than other metals and is also better at resisting rust. This means that these important parts will last longer and need less upkeep.

Heat Exchangers and Reheaters

In FGD systems, heat exchangers are very important because they are often used to warm the cleaned waste gas before it goes into the stack. This job is a good fit for Inconel 686 tubes because they can handle the heat and corrosive nature of the waste gas during the warming process. Because the metal has great temperature stability and resists stress corrosion cracking, it is a perfect material for making the tubes that go in FGD systems' heat exchangers.

Inconel 686 tubes keep their strength and resistance to rust in reheater uses where the temperature can change a lot. This ability to work consistently across a wide range of temperatures makes the FGD system more efficient and reliable.

Piping Systems and Slurry Lines

Strong plumbing is needed for moving acidic slurries and process fluids in FGD systems. Inconel 686 tubes are a great way to deal with these tough conditions. The metal doesn't corrode easily, even in small areas. This protects pipe systems, which lowers the risk of leaks and the need to shut down systems to fix them.

Inconel 686 is the best choice for slurry lines because it is hard and resistant to corrosion. This is important because slurry lines have rough materials that make rust worse. This longevity means that upkeep is needed less often and pipe changes can be spaced out more, which makes FGD activities generally more cost-effective.

Long-Term Benefits of Using Inconel 686 Tubes in FGD Systems

Extended Service Life and Reduced Maintenance

Inconel 686 tubes make Flue Gas Desulfurization (FGD) systems last longer, which is one of their most important benefits. Because this metal resists rust so well, parts fail and have to be replaced less often. In practice, this means that FGD systems can run for longer amounts of time without having to be turned off. This makes the plant more efficient overall, and it also lowers the cost of repair.

Due to the longevity of the Inconel 686 tube, maintenance plans for FGD devices can often be stretched. This not only saves money on upkeep, but it also lowers the amount of output that is lost when the system is down. Better stability and certainty in repair plans can help plant workers allocate resources more efficiently.

Improved System Efficiency and Environmental Compliance

Inconel 686 tubes help FGD systems work better in a number of ways. The alloy's ability to fight rust and fouling helps parts like heat exchangers and reheaters keep the best heat transfer. This ongoing performance makes sure that the FGD system always runs at top speed during its lifetime, which gets rid of as much sulfur dioxide and other harmful chemicals in waste gases as possible.

Better system performance means better compliance with environmental rules. Because Inconel 686 tubes don't break down over time, FGD systems can always meet or go beyond the rules for emissions. In today's legal climate, where strict emission standards must be met regularly to avoid fines and keep working licenses, this dependability is very important.

Cost-Effectiveness in the Long Run

Inconel 686 tubes might cost more upfront than other options, but they are very cost-effective in the long run. Over the lifespan of the FGD system, the total cost of ownership is cheaper because it has a long working life and needs very little upkeep. Some of the things that make this cost-effective are:

Lowered how often parts need to be replaced

Maintenance and fixes can be done more cheaply because labor is cheaper.

Reduced output costs that were caused by downtime that wasn't planned

Better energy economy because the machine kept working

Also, Inconel 686 tubes help avoid expensive surprises like breakdowns or environmental non-compliance, which can hurt the company's image and get them fined. When looking at the total lifetime costs, including upkeep, downtime, and possible regulation problems, Inconel 686 tubes are often the cheapest choice for FGD systems.

Conclusion

Inconel 686 tubes are a great choice for Flue Gas Desulfurization (FGD) systems because they work perfectly in tough, salty settings. Their excellent resistance to rust of all kinds and great mechanical qualities make sure that important parts for FGD last a long time. Inconel 686 tubes help FGD operations save money and go green. They make the system more efficient, lower the need for regular upkeep, and help it last longer. As environmental rules get stricter, it becomes clearer that using high-performance materials like Inconel 686 in pollution control systems is a smart choice for power plants and factories around the world.

FAQs

Why are Inconel 686 tubes good for FGD systems?

Inconel 686 tubes are great for FGD systems because they don't corrode easily, especially when they come into contact with sulfuric acid. Because they are made of nickel, chromium, molybdenum, and tungsten in special ways, they are much less likely to pitting, crevice corrosion, and stress corrosion cracking.

In terms of FGD uses, how do Inconel 686 tube materials stack up against other materials?

Inconel 686 tubes work better in FGD settings than many older materials, like stainless steels and other nickel alloys. They are more useful and long-lasting in a range of FGD parts because they better withstand both reducing and oxidizing acids.

What are the long-term benefits of using Inconel 686 tubes in FGD systems?

Inconel 686 tubes make the system more efficient, the service life longer, the need for upkeep smaller, and the compliance with environmental rules better. Even though they cost more at first, they is often more cost-effective in the long run because they are durable and work consistently.

Choose TSM Technology for Your Inconel 686 Tube Needs

At TSM Technology, we focus on offering high-quality Inconel 686 tubes for FGD uses that need them to work well. Our three plants, eight production lines, and over one hundred tools make up a cutting-edge manufacturing system that guarantees stable quality and a monthly supply of 300 tons. You can customize the size and surface of our Inconel 686 tubes, which meet global standards like ASTM B622, ASME SB622, and EN 10095. With over 14 years of experience, extensive testing, and a focus on customer satisfaction, you can trust us to provide the best corrosion-resistant tubing for your FGD systems. To get more information on how our Inconel 686 tubes can improve the performance and lifespan of your FGD system, please email us at info@tsmnialloy.com.
