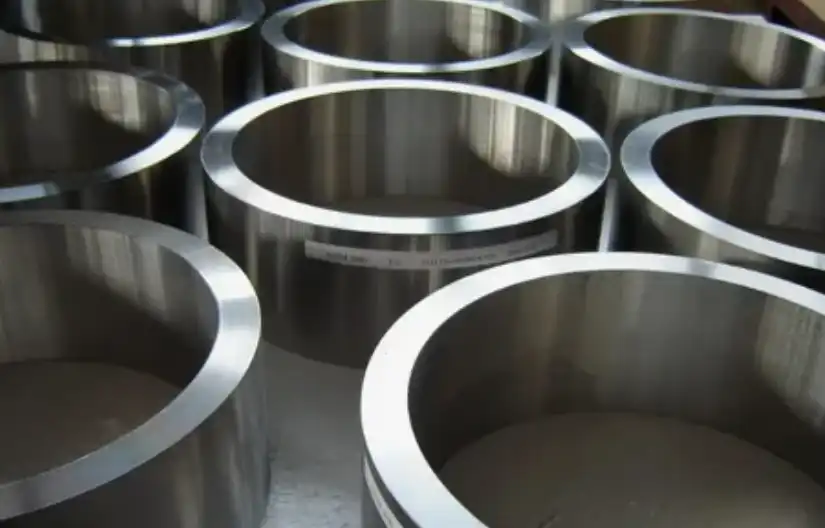

How Does Monel 401 Forging Perform in Corrosive Environments?

Because of their special nickel-copper composition, Monel 401 forgings perform exceptionally well in extremely corrosive situations and offer great resistance to alkaline solutions, reducing acids, and seawater. These high-performance parts are essential for offshore, chemical processing, and marine applications because they retain structural integrity in harsh environments when traditional materials falter. In harsh industrial settings where material failure offers serious operational and safety issues, the forged microstructure improves corrosion resistance over cast alternatives, guaranteeing a longer service life.

Understanding Monel 401 Forgings and Their Corrosion Resistance

Monel 401 forgings' exceptional resistance to corrosion is a result of their sophisticated manufacturing techniques and meticulously designed chemical makeup. Engineers and procurement specialists can choose materials for difficult applications with confidence when they are aware of these basic properties.

Chemical Composition and Microstructure

Nickel (at least 66%) and copper (28–34%) make up the majority of Monel 401, with trace amounts of iron, manganese, carbon, and silicon. When exposed to corrosive environments, this nickel-copper matrix forms a passive surface layer that effectively prevents the underlying material from degrading. By removing porosity and producing a compact, homogeneous microstructure, the forging process improves corrosion resistance considerably more than cast alternatives.

TSM Technology's controlled forging method makes use of 2,500-ton forging presses and vacuum arc furnaces to produce the best possible grain flow and mechanical qualities. In order to obtain the required microstructure and corrosion resistance qualities, our manufacturing process involves precision temperature control during heating (1300–1350°C), followed by controlled cooling and heat treatment.

Mechanical Properties Supporting Corrosion Performance

The ability of Monel 401 forgings to withstand corrosion is directly influenced by their mechanical characteristics. Under stress-corrosion cracking conditions, these components maintain structural integrity with a minimum tensile strength of 760 MPa and a minimum yield strength of 345 MPa. While the controlled hardness (75 HRB maximum) guarantees sufficient toughness for severe service circumstances, the elongation rate of 45% minimum offers ductility that inhibits the onset of cracks.

In order to maximize mechanical qualities and corrosion resistance, heat treatment is essential. The fine-grain structure necessary for corrosion resistance is preserved while internal tensions are reduced by annealing at the proper temperatures. This procedure guarantees reliable performance in a range of stressful situations and environmental circumstances.

Comparing Monel 401 Forgings with Other Alloys in Corrosive Settings

The selection of materials necessitates a thorough assessment of cost factors, application-specific needs, and performance qualities. When compared to other materials, Monel 401 exhibits clear benefits in particular corrosive conditions.

Performance Against Marine Corrosion

When it comes to seawater applications, Monel 401 performs better than stainless steel grades. Monel 401 exhibits superior resistance to both uniform and localized corrosion, whereas 316L stainless steel may encounter pitting and crevice corrosion in chloride conditions. Monel 401 is the recommended option for maritime applications needing affordable corrosion resistance because titanium alloys provide similar seawater resistance but at far greater material prices.

The copper content that gives Monel 401 its remarkable performance in reducing acid conditions is absent from Inconel 625, despite the latter's superior resistance to corrosion at high temperatures. Monel 401 is especially well-suited for applications involving both seawater exposure and lowering acid conditions because of this basic distinction.

Forging Versus Casting Advantages

Compared to casting, the forging process offers a number of benefits that directly affect corrosion resistance performance. When compared to cast equivalents, forged components have better mechanical qualities, a finer grain structure, and no porosity. These qualities result in improved resistance to corrosion, especially in applications where fatigue or stress-corrosion cracking are present.

Microshrinkage, porosity, or segregation in Cast Monel components may act as corrosion initiation sites. These flaws are removed during the forging process, which also produces advantageous grain flow that adheres to the component shape and offers the best defense against corrosive and mechanical stress.

Practical Applications and Industry Use Cases of Monel 401 Forgings

Applications in a variety of industrial sectors show how well Monel 401 forgings perform in terms of corrosion resistance. These case studies offer insightful information about how materials behave in real-world working environments.

Marine and Offshore Engineering Applications

When seawater exposure produces harsh corrosive conditions, Monel 401 forgings perform exceptionally well in marine propeller shafts, pump impellers, and valve components. These parts are used by offshore platforms for vital applications such as seawater cooling systems, pipeline connections, and wellhead equipment. Further benefits for subsea applications come from the material's resistance to biofouling and marine organism attack.

The exceptional performance of Monel 401 in seawater injection pump components was recently shown in an offshore project, where the forgings ran continuously for more than 15 years without suffering severe corrosion damage. Because of pitting corrosion, competing stainless steel components had to be replaced after five years, underscoring the long-term financial advantages of choosing Monel 401.

Chemical Processing and Oil & Gas Industry Performance

Monel 401 forgings are used in chemical processing plants for heat exchanger parts, valve trim, and pump components that are exposed to alkaline and reducing acids. The material is essential for petrochemical processing applications due to its resistance to sulfuric acid, hydrofluoric acid, and other organic acids.

Monel 401 forgings are used in refinery processing equipment, wellhead components, and downhole equipment used in oil and gas activities. The material's ability to handle several corrosive species at once is demonstrated by its performance in sour gas conditions comprising hydrogen sulfide.

Power Generation and Nuclear Applications

Monel 401 forgings are used in condenser tubes, heat exchanger parts, and cooling water systems in power plants where thermal stability and corrosion resistance are crucial. The material's long-term stability under neutron exposure and radiation resistance are advantageous for nuclear applications.

Monel 401 Forgings Procurement Considerations in a Global B2B Setting

It is necessary to comprehend supply chain factors, market trends, and quality assurance standards in order to acquire Monel 401 forgings successfully. These elements have a big influence on project budgets, schedules, and final performance results.

Market Pricing and Supply Chain Factors

Global pricing for Monel 401 forgings takes into account regional supply capacities, manufacturing complexity, and raw material costs. Long-term supply agreements are beneficial for large-scale projects since the volatility of nickel and copper prices significantly affects forging costs. Opportunities for bulk purchases might result in significant cost savings, especially for standardized components or required for big quantities.

For sensitive applications where material delays affect project dates, supply chain stability becomes essential. Consistent material availability is ensured by forming partnerships with capable suppliers who keep sufficient stock levels and manufacturing capability. Regional supply factors that impact overall procurement costs include lead times, transportation expenses, and customs regulations.

Quality Assurance and Certification Requirements

The requirements for material certification differ greatly between applications and sectors. Material test certificates (MTC), chemical composition analysis, mechanical property testing, and traceability paperwork are just a few of the many documents that are usually needed for aerospace and nuclear applications. Independent confirmation of material characteristics and composition conformity is offered by SGS test reports.

Assessing production capabilities, quality systems, and certification compliance are all part of the supplier qualifying process. Established quality management systems suitable for demanding applications are indicated by ISO 9001, AS9100D, and NADCAP certifications. Facility inspections, process evaluations, and continuous quality monitoring initiatives are examples of audit requirements.

TSM Technology's Expertise in Supplying Certified Monel 401 Forgings

TSM Technology produces outstanding Monel 401 forgings that surpass industry standards by fusing sophisticated manufacturing capabilities with thorough quality assurance. From the procurement of raw materials to the delivery of completed components, we are experts in supply chain management.

Advanced Manufacturing Capabilities

Our 3,200㎡ Three state-of-the-art facilities with eight production lines and more than 100 specialized machines for superalloy forging are housed at the Shaanxi industrial complex. Vacuum arc furnaces remove contaminants that can jeopardize corrosion resistance while guaranteeing exact alloy composition control. The force required for full grain refinement and ideal mechanical qualities is supplied by the 2,500-ton forging presses.

Precise control over each stage of manufacture, from initial material melting to final machining and inspection, is made possible by complete vertical integration. For urgent project requirements, an all-inclusive strategy maintains competitive lead times while guaranteeing continuous quality. We can meet the needs of rapid prototyping as well as large-scale projects with our 300-ton monthly production capability.

Customization and Technical Support Services

The technical staff at TSM Technologies works with customers to provide solutions that are tailored to their needs. Custom geometries, unique heat treatments, and property optimization tailored to a certain application are among our competences. Weights of components ranging from 1 kg to 500 kg allow for a variety of project needs while upholding constant standards of quality.

Beyond production, technical support includes recommendations for performance optimization, advice on material selection, and application help. With the help of strategic inventory management and expedited shipping capabilities when project schedules necessitate quick reaction, our global logistics network guarantees effective delivery everywhere.

Conclusion

Because of their high mechanical qualities, precise microstructure, and distinctive nickel-copper composition, Monel 401 forgings perform exceptionally well in corrosive situations. In addition to offering the strength and durability needed for demanding applications, the forging process improves corrosion resistance beyond cast options. Comparative investigation shows clear benefits over substitute materials in offshore, chemical processing, and marine applications where long-term dependability is crucial. To provide the best possible project results, successful procurement necessitates careful assessment of supplier qualifications, supply chain capabilities, and quality standards.

FAQ

In corrosive settings, why are Monel 401 forgings better than other nickel alloys?

The special composition of nickel and copper in Monel 401 forgings gives them remarkable resistance to alkaline solutions, reducing acids, and seawater. While the forged microstructure removes porosity and imperfections that could act as sites for corrosion start, the copper content provides advantages over pure nickel alloys in reducing conditions.

What effects do heat treatment and temperature have on the corrosion characteristics of Monel 401?

In addition to reducing internal tensions that may cause stress-corrosion cracking, proper heat treatment maximizes the microstructure's resistance to corrosion. Grain structure consistency and the development of a passive surface layer necessary for corrosion protection are ensured by annealing at regulated temperatures.

What standards should be applied when assessing vendors of Monel 401 forgings?

Suppliers who meet the requirements should show that they have the necessary manufacturing equipment, traceability systems, ISO certification, and material testing capabilities. Facility audits, quality system evaluations, and testing capability verification—including chemical analysis, mechanical testing, and non-destructive examination capabilities—should all be part of the evaluation process.

What is the difference between stainless steel and Monel 401 forgings in marine applications?

Compared to austenitic stainless steels, Monel 401 offers better resistance to pitting and crevice corrosion caused by chloride. Without the localized corrosion issues that come with stainless steel in maritime settings, the material continues to operate exceptionally well in saltwater.

What paperwork is normally needed when purchasing Monel 401 forgings?

Heat treatment records, dimensional inspection reports, and material test certificates demonstrating mechanical and chemical composition are examples of standard documentation. Additional testing, including corrosion testing, grain size analysis, and specialized non-destructive examination, may be necessary for critical applications.

Partner with TSM Technology for Premium Monel 401 Forging Solutions

As your go-to source for Monel 401 forgings, TSM Technology produces outstanding corrosion-resistant parts that go above and beyond industry requirements. Our state-of-the-art production facilities, extensive quality control systems, and technological know-how guarantee peak performance in your most exacting applications. We deliver the dependability and traceability required for important projects thanks to our ISO 9001, AS9100D, and NADCAP certifications. To discuss your unique needs and learn how our tailored solutions may improve project outcomes while adhering to strict delivery deadlines, get in touch with our technical team at info@tsmnialloy.com.
