What Heat Treatment Is Used for Monel 401 Forgings?

Solution annealing is the main type of heat treatment used on Monel 401 forgings. It is usually done at temperatures between 1000°C and 1150°C (1832°F and 2102°F), followed by quick cooling. This process makes the mechanical properties of Monel 401 forgings even better while keeping their amazing ability to fight corrosion. The heat treatment reduces the stresses inside the part caused by the forging process and makes sure that the microstructure is spread out evenly across the part. This makes the nickel-copper alloy forgings perfect for tough jobs in the chemical processing, aircraft, and marine industries.

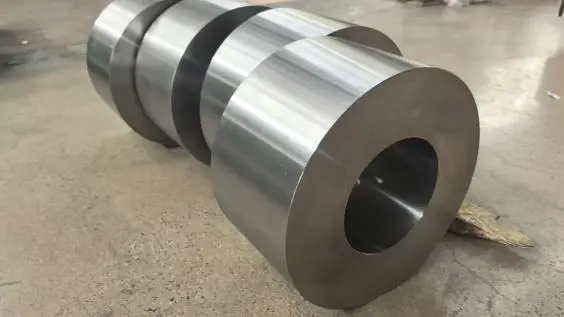

Understanding Monel 401 Forgings and Their Properties

There is a special metal called Monel 401 made of nickel and copper that was made to work really well in the toughest industrial settings. About 63% of this amazing material is nickel and 30% is copper. It also has small amounts of iron, manganese, and silicon, which give it its unique mechanical properties.

Chemical Composition and Microstructure

Monel 401 has a balanced chemical makeup that makes it have a single-phase austenitic structure that stays steady at a lot of different temperatures. This metal is very stable at high temperatures. It has a density of 8.8 g/cm³ and a melting point between 1300°C and 1350°C. Its resistance to rust comes from the nickel-copper matrix, and trace elements make it stronger and easier to work with.

Mechanical Performance Characteristics

When properly heated, Monel 401 forgings have mechanical qualities that make them essential for important uses. The tensile strength of these parts is between 550 and 750 MPa, and the yield strength is between 240 and 380 MPa. The extension values of 25–35% show that the material is very flexible, which means that it can be formed in many ways without losing its strength. Because of these qualities, the alloy is very useful for parts that need to be very reliable, like those in spacecraft, ships, and chemical handling equipment.

Knowing these basic properties helps procurement workers compare the performance of a material to the needs of a specific application. This helps them choose the best components for harsh industrial environments.

The Role of Heat Treatment in Monel 401 Forgings

The internal structure of cast parts is changed by heat treatment, which is an important metallurgical process that makes them work better in certain situations. While the forging process is necessary to shape parts, it creates internal stresses and possible microstructural flaws that can be fixed by heat treatment.

Stress Relief and Microstructural Enhancement

When metal is forged, it deforms mechanically, which leaves residual stresses in the material structure. These pressures can cause problems with the shape, shorter fatigue life, and even failure in service if they are not dealt with. These worries go away when you heat treat the part because it lets the atoms move around and the stress relax across the whole cross-section.

Property Optimization Through Controlled Heating

Heat treatment's controlled heating and cooling processes make it possible to precisely change the structure of grains and the distribution of phases. Solution annealing gets rid of crystals and evens out the microstructure, and controlled cooling rates stop unwanted phase formation that could hurt the material's ability to resist corrosion or its mechanical qualities.

Heat treatment also makes Monel 401 more resistant to rust by making sure that the alloying elements are spread out evenly throughout the matrix. This homogenization stops small differences in chemicals that could lead to galvanic cells and speed up rusting in harsh environments like seawater or chemical processing fluids.

The process basically turns raw forged metal into precisely engineered parts that can meet strict requirements in the aircraft, marine, and industry sectors.

Recommended Heat Treatment Process for Monel 401 Forgings

The best way to heat treat Monel 401 forgings is in a carefully planned order that is meant to improve both their mechanical qualities and their resistance to corrosion. Knowing these factors ensures that the quality and performance of each production batch are the same.

Solution Annealing Parameters

Solution annealing is the main way that Monel 401 parts are heated to make them stronger. The first step is to heat the cast parts to temperatures between 1000°C and 1150°C (1832°F and 3102°F), and keep them at those temperatures for long enough to dissolve all the precipitates and relieve stress. Depending on the thickness and shape of the part, the keeping time is usually between 30 minutes and several hours.

Cooling Rate Control

Rapid cooling after the annealing temperature stops the formation of unwanted phases that could weaken the resistance to rust. The austenitic structure stays stable at room temperature with water quenching or fast air cooling, which keeps the alloy's best properties.

Quality Control and Verification

To make sure that the process can be repeated and tracked, the temperature must be carefully monitored and written down during each heat treatment cycle. Our advanced heat treatment facilities at TSM Technology have computerized temperature control systems and data logging features that meet the standards of the aircraft and nuclear industries. The 3,200㎡ production base in Shaanxi has special ovens that can work with parts that weigh anywhere from 1 kg to 500 kg and get the same results every time.

Post-Treatment Considerations

After being heated, parts are carefully inspected by measuring them, checking their hardness, and looking at their microstructure. With these quality checks, each forging is made sure to meet certain standards and have the right mechanical traits for its job.

By combining heat treatment with our forging processes, we have full control over the end properties of the parts, which makes them reliable in a wide range of demanding situations, from offshore platforms to aerospace assemblies.

Comparative Insight: Heat Treatment vs Other Monel Alloys and Nickel-based Forgings

The heat treatment needs for Monel 401 are very different from those for other Monel alloys and other nickel-based alloys. This makes choosing the right material and processing very important for the success of the purchase.

Monel 401 vs Monel 400 Heat Treatment

Both alloys are made up of similar chemicals, but Monel 401 needs more exact heat treatment control to get its better mechanical properties. Stress reduction annealing is usually done on Monel 400 at lower temperatures (870–925°C), while solution annealing at higher temperatures is best for Monel 401 to fully improve its strength.

Comparison with Precipitation-Hardening Alloys

Monel 401 doesn't need complicated aging processes to become strong like precipitation-hardening nickel alloys like Inconel 718 or Waspaloy do. This makes things easier, which cuts down on processing time and gets rid of the risk of over-aging, which can damage the qualities of precipitation-hardening systems. Due to its single-step annealing process, Monel 401 is a more cost-effective choice for uses that need moderate strength and good corrosion resistance.

Performance Trade-offs

When Monel 401 is heated, the method used to treat it values resistance to corrosion and moderate strength over maximum high-temperature capability. This placement makes it perfect for use in marine settings and chemical processes, where resistance to the environment is more important than performance at high temperatures. When procurement teams look at different options, they have to weigh these features against the needs of the product and costs.

By knowing these differences, you can make smart choices about which materials to use that affect both performance and cost on a particular project.

Procurement Considerations for Monel 401 Forgings and Heat Treated Products

To successfully buy heat-treated Monel 401 forgings, you need to carefully look at the supplier's skills, quality systems, and production ability to make sure you get parts that meet strict requirements.

Supplier Certification and Capabilities

Quality control starts with choosing a supplier based on their appropriate certifications and proven experience processing nickel alloys. Look for companies that have AS9100D certification for aircraft uses, ISO 9001 certification for general quality management, and NADCAP certification for specific processes. These certifications show that quality systems have been in place for a while and can keep product quality uniform.

Production Capacity and Scalability

The success of the project relies on suppliers who can meet both the current needs and the needs for future production scaling. TSM Technology runs three high-tech factories with more than 100 tools and 8 production lines that can make 300 tons of goods every month. This system can be used for both making prototypes and mass production, and it can keep the quality the same for all order sizes.

Traceability and Documentation Requirements

Important uses need full material tracking from the source of the raw materials to the end inspection. Suppliers should give Material Test Certificates (MTC) and SGS test results that list the chemical make-up, mechanical properties, and heat treatment parameters of the goods. This paperwork helps with following the rules and lets you figure out what went wrong if something goes wrong during service.

Customization and Engineering Support

The following traits set great suppliers apart from commodity providers:

• Custom forging design and optimization - Ability to work with customer engineering teams to make sure that the shape and qualities of parts are best for each application

• Flexible production schedules that can adapt to different delivery needs and urgent project needs

• Services for technical advice - Access to mechanical experts to help choose materials and make processes run more smoothly

• Integrating the quality system - Meeting the quality standards and inspection procedures of the company

These skills make sure that choices about what to buy support both the needs of the project at hand and the reliability of the supply chain in the long term. Working with well-known companies like TSM Technology gives you access to a wide range of technical tools and production skills that have been tested and proven to reduce project risks and improve component performance.

Conclusion

Heat treatment plays a fundamental role in optimizing Monel 401 forgings for demanding industrial applications across aerospace, marine, and chemical processing sectors. The solution annealing process at 1000-1150°C effectively relieves forging stresses while preserving the alloy's exceptional corrosion resistance and mechanical properties. Understanding these metallurgical principles enables procurement professionals to make informed decisions when selecting materials and suppliers for critical applications. Successful procurement requires partnering with certified manufacturers who possess advanced heat treatment capabilities, comprehensive quality systems, and proven track records in nickel alloy processing.

FAQ

What range of temperatures is used to treat Monel 401 forgings with heat?

Solution annealing of Monel 401 forgings usually takes place at temperatures between 1000°C and 1150°C (1832°F to 2102°F). This temperature range makes sure that all stresses are relieved and that the microstructures are uniform, while still keeping the alloy's ability to fight corrosion. The exact temperature in this range relies on the shape of the parts and the properties that are wanted in the end.

What does heat treatment do to make Monel 401 less likely to rust?

Heat treatment makes something more resistant to rust by evening out the microstructure and making sure that the alloying elements are spread out evenly throughout the part. The solution annealing method gets rid of compositional differences that could speed up localized corrosion in harsh environments and dissolves precipitates that could form galvanic cells.

Can Monel 401 forgings go through more than one run of heat treatment?

Yes, Monel 401 forgings can go through several rounds of heat treatment without losing any of their properties. This feature lets you relieve some stress during machining processes or change the properties while the part is being made. But each cycle should use the right temperature and cooling rate controls to keep the features at their best.

What kinds of quality marks should I look for on Monel 401 forgings that have been heated?

Material Test Certificates (MTC) from reputable sources show the chemical makeup, mechanical properties, and heat treatment parameters of an item. Each shipment should come with an SGS test report and certificates that meet standards like ASTM B564, ASME SB564, and DIN 17743 to make sure that the rules are followed.

How long does it take for Monel 401 parts to go through the heat treatment process?

How long a heat treatment takes varies depending on the size and shape of the part. Heating to temperature (for one to four hours), holding at temperature (30 minutes to several hours), and controlled cooling (for one to two hours) are common processes. For most forging setups, the total cycle time is between 3 and 8 hours. Processing times are longer for larger parts.

How can I be sure that the heat treatment of Monel 401 forgings is done right?

Checking for quality includes checking the strength, looking at the microstructure, and figuring out the mechanical properties. Ultrasonic testing finds flaws inside the material, and physical checks make sure it stays stable after being heated. These ways of inspecting make sure that parts meet certain criteria and have the right qualities for the job they're meant to do.

Partner with TSM Technology for Premium Monel 401 Forgings

You can trust TSM Technology to make high-quality Monel 401 forgings. They have 14 years of experience and the most up-to-date production equipment, so they can make the best nickel-copper alloy parts. Our extensive heat treatment facilities and quality control systems make sure that every forging meets the strict needs of chemical processing, aerospace, and marine applications. We offer full traceability and documentation for key components because our business is certified by ISO 9001, AS9100D, and NADCAP. Our global supply chain can handle any size project. We can produce up to 300 tons per month and offer unique solutions for parts weighing 1 kg to 500 kg. Get in touch with our technical team at info@tsmnialloy.com to talk about your unique needs and find out how our advanced metallurgical knowledge can help you improve the performance and reliability of your procurement strategy.
