Understanding Monel 401 Sheet Properties and Testing Requirements
Composition and Characteristics of Monel 401

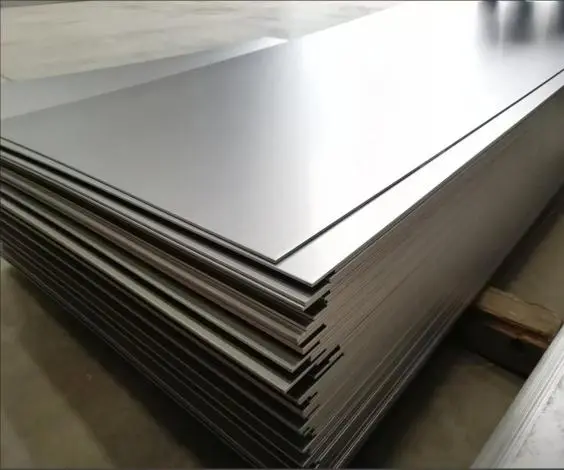

UNS N04401 is the nickel-copper alloy known as Monel 401. Because of its relatively constant electrical resistance and low temperature coefficient of resistance, Monel 401 is specifically linked to electrical and electronic applications, in contrast to Monel 400, which is often connected with corrosion-resistant equipment and maritime duty.
About 40–45% of its chemical makeup includes nickel, with copper making up the remaining portion. Manganese, iron, silicon, cobalt, carbon, and sulphur are also included with controlled inputs or restrictions. Manganese up to 2.25%, iron up to 0.75%, silicon up to 0.25%, cobalt up to 0.25%, carbon up to 0.10%, and sulphur up to 0.015% are examples of composition restrictions. The relevant material specification or purchase agreement should be consulted to determine the precise acceptable limitations.
Key Properties to Test
When conducting quality testing on Monel 401 sheet, the inspection plan should be matched to the material specification, product form, temper, and intended application. Depending on those requirements, key properties may include:
- Chemical composition
- Tensile strength
- Yield strength
- Elongation
- Hardness
- Electrical resistivity
- Temperature coefficient of electrical resistance
- Dimensional accuracy
- Surface condition
For electrical and electronic applications, electrical properties can be particularly important. Available technical data for Monel 401 identifies its electrical resistivity and temperature coefficient of resistance as important characteristics, so these properties should be considered when the material is being purchased for resistance-related applications.
Industry Standards and Specifications
Instead of choosing the appropriate standard for Monel 401 sheet only because it is often linked with Monel alloys, it should be verified against the actual product form and buying needs.
For rolled nickel-copper alloy plate, sheet, and strip manufactured from UNS N04400, for instance, ASTM B127-25 is a current standard. Therefore, without further proof that it is applicable to the material being provided, it should not be offered as a generic Monel 401/UNS N04401 standard.
Depending on whether the material is provided as sheet, strip, wire, bar, or another form, suppliers may utilise product-specific, customer-specific, or other relevant material requirements for Monel 401. Certain technical references link UNS N04401 to client electrical requirements and electrical-resistance alloy standards, especially for products with regulated resistivity and temperature coefficient.
Therefore, before deciding on the final testing scope, the purchase order, drawing, approved material specification, and inspection criteria should be reviewed.
Essential Quality Testing Methods for Monel 401 Sheet
Chemical Composition Analysis
One of the first stages in determining the material identification of Monel 401 sheet is to determine its chemical makeup. Depending on the laboratory and testing needs, the elemental composition may be determined by either optical emission spectroscopy (OES) or X-ray fluorescence (XRF).
The findings should be compared to the UNS N04401 limitations found in the relevant material specification. Nickel, copper, manganese, iron, silicon, cobalt, carbon, and sulphur should get special attention since they may change an alloy's characteristics and differentiate its composition.
In order to relate the chemical findings to the given material, a material certificate should include the relevant heat or batch information.
Mechanical Property Testing
The Monel 401 sheet's strength and ductility for the given situation may be confirmed by mechanical testing. Testing may include the following, depending on the established requirements:
Tensile testing: Determines elongation, yield strength, and tensile strength.
Hardness testing: Offers an extra measure of the mechanical state of the material.
If the purchase order or material standard specifies it, further mechanical or metallographic investigations may be necessary.
Published typical values should not be regarded as universal acceptance standards since mechanical qualities might change depending on product condition and cold operating. The specifications relevant to the given grade, thickness, and temper should be checked with the actual test results. For instance, the technical data for Monel 401 gives various mechanical values based on the state of the material.
Corrosion Resistance Evaluation
Although Monel 401 possesses corrosion-resistant qualities, corrosion testing should be chosen based on the real operating environment rather than being a regular test that is required for every sheet.
When a particular corrosion assessment is needed, the following methods might be used:
Testing by immersion in a particular chemical medium
Electrochemical testing for assessment in a lab
Additional standardised corrosion tests chosen for the target setting
Although salt spray testing could be helpful for certain comparative or application-specific assessments, it shouldn't be considered a necessary acceptance test for every order of Monel 401 sheets.
To ensure that the findings are applicable to the planned service conditions, it is important to determine the testing medium, exposure period, temperature, acceptance criteria, and assessment procedure prior to testing.
Advanced Inspection Techniques and Quality Assurance Measures
Non-Destructive Testing (NDT) Methods
When more sheet examination is required by the product specification or client needs, non-destructive testing might be used. The material thickness, product condition, anticipated fault kind, and inspection goal all influence the best approach.
Among the potential NDT techniques are:
When the product's thickness and shape allow it, ultrasonic testing may be utilised to look at interior discontinuities or laminations.
Certain surface or near-surface discontinuities and material changes may be found using eddy current testing.
In some situations when radiographic evaluation is suitable, radiographic testing may be taken into consideration.
Instead of being offered as required tests for each Monel 401 sheet, these techniques need to be chosen in accordance with a predetermined inspection strategy. The test procedure, sample amount, acceptability criteria, and reporting requirements should all be clearly specified.
Surface Finish and Dimensional Inspection
Dimensional and surface inspection provides a direct check that the supplied Monel 401 sheet matches the purchase requirements.
Typical inspection items may include:
- Thickness
- Width and length
- Flatness
- Straightness
- Edge condition
- Surface appearance
- Surface roughness, when specifically required
Scratches, dents, surface abnormalities, discolouration, and other obvious issues may be found by visual examination. The dimensions may then be checked against the required tolerances using precision measuring tools.
Because they might impact later manufacturing and assembly, dimensional consistency and surface condition can be especially crucial for applications requiring stamping, shaping, electrical connections, or precision components.
Quality Assurance Documentation and Traceability
Quality documentation is an important part of material verification, particularly for industrial buyers who need to maintain traceability throughout production.
Depending on the order requirements, documentation may include:
- Material Test Certificates (MTCs)
- Chemical composition results
- Mechanical test results
- Electrical property results when specified
- Dimensional inspection records
- Heat or batch identification
- Applicable inspection or test reports
The provided material may be connected to its manufacturing batch and test records thanks to traceability. If the client requests further certification or third-party inspection, such needs should be agreed upon prior to production.
Consistent manufacturing and inspection procedures may be supported by an ISO 9001 quality management system, but a buy specification's requirements for material-specific testing and documentation cannot be replaced by a quality management certification.
Conclusion
Verifying the material identification, relevant specification, product condition, and intended use should be the first step in the quality testing of Monel 401 sheet. The agreed-upon inspection standards may then be applied to the evaluation of chemical composition, mechanical qualities, electrical characteristics, dimensions, and surface condition.
Because Monel 401 is utilised in specialised electrical and electronic applications and is prized for its very steady electrical resistance, its electrical qualities in particular merit consideration.
Corrosion testing and nondestructive testing (NDT) may also be suitable for some projects, but neither should be offered as a general need without a supporting specification or client request. A comprehensive MTC and traceable test records provide purchasers with a useful foundation for verifying if the delivered material satisfies the agreed-upon specifications.
FAQs
What are the key properties that make Monel 401 sheet suitable for marine applications?
It is not appropriate to choose Monel 401 for a maritime application based just on its name or its affiliation with other Monel grades. Its electrical resistance behaviour is its most well-known feature, and the technical references that are now accessible mostly link it to electrical and electronic applications.
Before choosing a material, the actual chemical media, temperature, mechanical and electrical requirements, and relevant corrosion data should be examined if Monel 401 sheet is being considered for a maritime environment.
How often should quality testing be performed on Monel 401 sheet?
Every Monel 401 sheet order is not subject to the same testing frequency. The appropriate material specification, purchase order, production quality plan, customer requirements, and whether the test is a regular production inspection or an application-specific qualification test all influence the necessary frequency.
Buyers should verify that the heat or batch identifier can be linked to the provided material by examining the MTC and inspection records mandated by the purchase agreement.
Can Monel 401 sheet be used in cryogenic applications?
Instead of making assumptions based on generic alloy information, the appropriateness of Monel 401 sheet for a particular cryogenic application should be determined by application-specific material data and testing.
The buyer should specify the necessary temperature range as well as any pertinent mechanical or physical quality requirements when low-temperature service is involved. If further low-temperature testing is required, it may then be stated.
