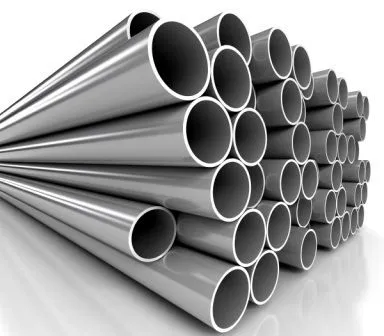

Understanding Inconel 601 Tubes and Their Properties
Composition and Characteristics of Inconel 601
Inconel 601 is a nickel-chromium alloy known for its exceptional resistance to high-temperature oxidation and corrosion. Its composition typically includes:
- 58-63% Nickel
- 21-25% Chromium
- 1-1.7% Aluminum
- Up to 1.5% Iron
This unique blend of elements contributes to the alloy's remarkable properties, making it ideal for applications in extreme environments. The high nickel content provides excellent resistance to reducing conditions, while chromium offers protection against oxidizing atmospheres.
Mechanical Properties and Behavior
Inconel 601 tubes exhibit exceptional mechanical properties, including:
- High tensile strength (even at elevated temperatures)
- Excellent creep resistance
- Good fatigue strength
- Resistance to thermal cycling
These properties make Inconel 601 tubes challenging to machine, as they tend to work harden rapidly during cutting operations. This characteristic necessitates special considerations when selecting cutting tools and machining parameters.
Common Applications of Inconel 601 Tubes
Inconel 601 tubes find extensive use in various industries due to their unique properties:
- Aerospace: Exhaust systems, combustion chambers
- Chemical Processing: Heat exchangers, reaction vessels
- Energy: Nuclear reactor components, steam generators
- Automotive: Turbocharger rotors, exhaust manifolds
Understanding these applications helps in appreciating the importance of efficient cutting and machining techniques for Inconel 601 tubes.
Cutting Techniques for Inconel 601 Tubes
Abrasive Cutting Methods
Abrasive cutting is often the preferred method for sectioning Inconel 601 tubes. This technique uses specially designed abrasive wheels or saws to cut through the material. Key considerations include:
- Wheel Selection: Use aluminum oxide or silicon carbide wheels for best results
- Cutting Speed: Maintain lower speeds to prevent work hardening
- Coolant: Apply ample coolant to manage heat generation
Abrasive cutting offers clean, precise cuts with minimal material loss, making it ideal for preparing Inconel 601 tubes for further processing or analysis.
Mechanical Cutting Tools
For smaller diameter Inconel 601 tubes, mechanical cutting tools can be effective. These include:
- Tube Cutters: Specialized tools with hardened steel cutting wheels
- Band Saws: Industrial-grade saws with bi-metal blades
- Circular Saws: Equipped with carbide-tipped blades for enhanced durability
When using mechanical cutting tools, ensure proper blade tension and use cutting fluids to improve tool life and cut quality.
Advanced Cutting Technologies
For complex cutting operations or larger production volumes, advanced cutting technologies offer significant advantages:
- Waterjet Cutting: Provides precise, cold cuts without inducing thermal stress
- Laser Cutting: Offers high precision and speed for thin-walled tubes
- Plasma Cutting: Suitable for thicker Inconel 601 tubes, though with a wider kerf
These technologies can significantly improve cutting efficiency and quality, especially for intricate designs or high-volume production runs.
Machining Strategies for Inconel 601 Tubes
Turning and Boring Operations
Turning and boring are common operations for processing Inconel 601 tubes. To achieve optimal results:
- Use rigid tool holders to minimize vibration
- Select coated carbide or ceramic inserts for improved wear resistance
- Maintain positive rake angles to reduce cutting forces
- Apply high-pressure coolant to manage heat and chip evacuation
Start with conservative cutting parameters and gradually optimize based on tool wear and surface finish quality.
Drilling and Tapping Techniques
When drilling or tapping Inconel 601 tubes:
- Use cobalt or carbide drills with split-point geometry
- Employ peck drilling cycles to manage chip formation
- For tapping, use spiral point taps with a suitable thread-forming compound
- Maintain slow speeds and high torque to prevent work hardening
Pre-drilling pilot holes can significantly improve the efficiency and quality of drilling operations in Inconel 601 tubes.
Milling and Profiling Strategies
For milling operations on Inconel 601 tubes:
- Opt for climb milling to reduce work hardening
- Use solid carbide end mills with variable helix angles to minimize chatter
- Implement high-speed machining techniques where possible
- Consider roughing and finishing passes to optimize material removal rates
CAM software can help optimize tool paths and cutting parameters for complex milling operations on Inconel 601 tubes.
Conclusion
Efficiently cutting and machining Inconel 601 tubes requires a combination of specialized tools, techniques, and knowledge. By understanding the material's properties and employing appropriate cutting and machining strategies, manufacturers can achieve high-quality results while minimizing tool wear and production time. Whether using traditional abrasive cutting methods or advanced CNC machining techniques, the key lies in selecting the right approach for each specific application. As technology continues to advance, new tools and methods may further improve the efficiency of processing Inconel 601 tubes, making it crucial for manufacturers to stay informed about the latest developments in this field.
FAQs
What are the key challenges in machining Inconel 601 tubes?
The main challenges include rapid work hardening, high tool wear, and heat generation during machining.
Can conventional cutting tools be used for Inconel 601 tubes?
While possible, it's recommended to use specialized coated carbide or ceramic tools for better performance and tool life.
What are the appropriate cutting speeds for Inconel 601 tubes?
Generally, lower cutting speeds (30-50 m/min) are recommended to prevent work hardening and excessive tool wear.
Is coolant necessary when machining Inconel 601 tubes?
Yes, high-pressure coolant is crucial for managing heat and assisting in chip evacuation during machining operations.
