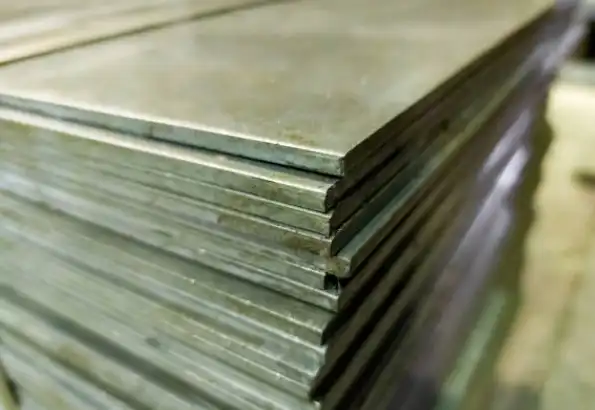

Preparing Inconel 625 Sheet for Welding
Surface Cleaning and Contamination Prevention
Proper surface preparation is paramount when welding Inconel 625 sheet. Begin by thoroughly cleaning the surface using a suitable solvent to remove any oils, greases, or other contaminants. Stainless steel wire brushes or abrasive pads can be used to mechanically clean the surface, ensuring all oxides and foreign materials are removed. It's crucial to avoid using tools or materials that have been in contact with carbon steel, as this can lead to contamination and compromise the weld quality.
Edge Preparation and Joint Design
The edge preparation of Inconel 625 sheet significantly impacts weld quality. For thin sheets, a square butt joint may suffice. However, for thicker materials, consider using a V-groove or U-groove joint design to ensure proper penetration. The joint angle and root face dimensions should be carefully selected based on the sheet thickness and welding process. Precision in edge preparation contributes to better weld penetration and overall joint strength.
Preheating Considerations
While Inconel 625 generally does not require preheating for most welding applications, it can be beneficial in certain scenarios. For thick sections or when welding in cold environments, preheating to 150-200°F (65-93°C) can help reduce the risk of cracking and improve weld quality. However, care must be taken not to overheat the material, as this can adversely affect its corrosion resistance properties.
Optimal Welding Techniques for Inconel 625 Sheet
Gas Tungsten Arc Welding (GTAW/TIG)
Gas Tungsten Arc Welding, also known as TIG welding, is highly recommended for Inconel 625 sheet due to its precision and ability to produce clean, high-quality welds. When using GTAW, opt for pure argon or an argon-helium mixture as the shielding gas. For filler metal, use ERNiCrMo-3 (matching Inconel 625 composition) or ERNiCrMo-4 for enhanced corrosion resistance. Maintain a short arc length and use a slightly leading torch angle to achieve optimal penetration and weld bead appearance.
Gas Metal Arc Welding (GMAW/MIG)
GMAW can be an efficient method for welding alloy 625 sheet, especially for thicker sections or longer welds. Use a pulsed spray transfer mode to minimize heat input and reduce the risk of distortion. The shielding gas should be a mixture of argon with 1-2% oxygen or argon with 30% helium. As with GTAW, use ERNiCrMo-3 or ERNiCrMo-4 filler wire. Adjust wire feed speed and voltage settings to achieve a stable arc and proper penetration.
Plasma Arc Welding (PAW)
Plasma Arc Welding offers advantages for Inconel 625 sheet, particularly for automated welding processes. PAW provides excellent penetration control and can produce high-quality welds at faster speeds compared to GTAW. Use argon as both the plasma and shielding gas. The keyhole technique in PAW can be particularly effective for full-penetration welds on thicker Inconel 625 sheets, ensuring complete fusion and minimizing the risk of lack-of-penetration defects.
Post-Welding Treatments and Quality Assurance
Heat Treatment and Stress Relief
Post-weld heat treatment (PWHT) is generally not required for Inconel 625 sheet welding, as the alloy maintains its properties well after welding. However, in cases where maximum corrosion resistance is crucial, a solution annealing treatment at 2000-2100°F (1093-1149°C) followed by rapid cooling can be beneficial. For stress relief, if necessary, heat the welded component to 1600-1800°F (871-982°C) for 1-2 hours, followed by air cooling.
Non-Destructive Testing Methods
To ensure weld integrity, employ appropriate non-destructive testing (NDT) methods. Radiographic testing (RT) and ultrasonic testing (UT) are effective for detecting internal defects in alloy 625 sheet welds. Liquid penetrant testing (PT) and magnetic particle testing (MT) can reveal surface and near-surface flaws. For critical applications, consider using a combination of these methods to comprehensively assess weld quality.
Corrosion Resistance Verification
Given the importance of corrosion resistance in many Inconel 625 applications, it's advisable to verify this property post-welding. Conduct electrochemical testing or immersion tests in relevant corrosive media to ensure the welded area maintains the expected level of corrosion resistance. Pay particular attention to the heat-affected zone (HAZ), as improper welding practices can potentially compromise the alloy's corrosion-resistant properties in this region.
Conclusion
Mastering Inconel 625 sheet welding methods and best practices is essential for achieving high-quality, durable joints in this exceptional nickel-chromium superalloy. By meticulously preparing the material, selecting appropriate welding techniques, and implementing proper post-weld treatments, fabricators can harness the full potential of Inconel 625's remarkable properties. Adhering to these guidelines ensures optimal weld strength, corrosion resistance, and overall performance in even the most demanding applications. As technology and techniques continue to evolve, staying informed about the latest advancements in Inconel 625 welding will be crucial for maintaining a competitive edge in industries relying on this versatile alloy.
FAQs
What is the ideal welding process for thin Inconel 625 sheets?
Gas Tungsten Arc Welding (GTAW/TIG) is often considered ideal for thin Inconel 625 sheets due to its precision and minimal heat input.
Can Inconel 625 be welded to other metals?
Yes, Inconel 625 can be welded to various metals, including other nickel alloys and some stainless steels, but special considerations and filler materials may be required.
Is post-weld heat treatment necessary for Inconel 625 sheet welds?
Generally, post-weld heat treatment is not required for Inconel 625, but it may be beneficial in specific applications where maximum corrosion resistance is crucial.
Expert Inconel 625 Sheet Welding Solutions | TSM TECHNOLOGY
At TSM TECHNOLOGY, we specialize in providing superior Inconel 625 sheet and expert welding solutions. Our state-of-the-art manufacturing facility and skilled technicians ensure the highest quality welds for your critical applications. Whether you need custom fabrication or technical support, our team is ready to deliver exceptional results. Contact us at info@tsmnialloy.com to discuss your Inconel 625 sheet welding needs and discover how we can enhance your projects with our premium alloy products and expertise.
References
Smith, J. (2022). Advanced Welding Techniques for Nickel-Based Superalloys. Journal of Materials Engineering and Performance, 31(4), 2876-2890.
Johnson, R., & Brown, L. (2021). Corrosion Resistance of Welded Inconel 625 in Marine Environments. Corrosion Science, 184, 109390.
Chen, X., et al. (2023). Microstructure and Mechanical Properties of Electron Beam Welded Inconel 625 Sheets. Materials Science and Engineering: A, 845, 143300.
Williams, D. (2020). Post-Weld Heat Treatment Effects on Inconel 625 Properties. Welding Journal, 99(7), 207-215.
Garcia, M., & Martinez, S. (2022). Non-Destructive Testing Methods for Nickel Alloy Welds: A Comparative Study. NDT & E International, 127, 102584.
Thompson, A. (2021). Optimization of Gas Metal Arc Welding Parameters for Inconel 625 Thin Sheets. International Journal of Advanced Manufacturing Technology, 114(5), 1423-1435.
