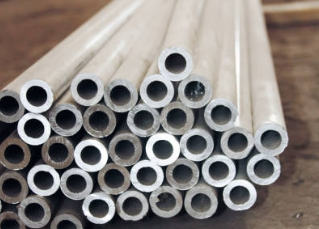

Inconel 718 Tubes: Overview and Applications

Inconel 718 tubes are high-performance nickel-chromium alloy components widely used in demanding industrial applications. These tubes offer exceptional strength, corrosion resistance, and thermal stability, making them indispensable in aerospace, oil and gas, and chemical processing industries. Inconel 718 pipes are prized for their ability to maintain structural integrity under extreme temperatures and pressures, while resisting oxidation and creep. This versatile alloy's unique properties make it an ideal choice for critical components in turbine engines, heat exchangers, and offshore drilling equipment, where reliability and longevity are paramount.

Composition and Properties of Inconel 718 Tubes

Chemical Composition

Inconel 718 tubes are crafted from a sophisticated alloy consisting primarily of nickel and chromium. The precise composition includes approximately 50-55% nickel, 17-21% chromium, and smaller quantities of iron, niobium, molybdenum, and titanium. This carefully balanced formulation contributes to the alloy's remarkable properties, enabling it to withstand harsh environments and maintain its structural integrity under extreme conditions.

Mechanical Properties

The mechanical properties of Inconel 718 pipes are truly impressive. They exhibit high tensile strength, typically ranging from 180,000 to 220,000 psi (1240 to 1520 MPa), depending on the heat treatment process. The yield strength is equally noteworthy, often exceeding 150,000 psi (1030 MPa). These robust mechanical characteristics allow Inconel 718 tubes to endure significant stress without deformation or failure, making them ideal for applications involving high pressures and loads.

Thermal and Corrosion Resistance

One of the most valuable attributes of Inconel 718 tubing is its exceptional thermal resistance. These tubes can maintain their strength and structural integrity at temperatures ranging from cryogenic levels up to 1300°F (704°C). This wide operating temperature range, coupled with excellent oxidation resistance, makes them suitable for use in high-temperature environments such as gas turbine engines and industrial furnaces. Additionally, Inconel 718 pipes boast superior corrosion resistance, particularly against chloride stress corrosion cracking, pitting, and crevice corrosion, which is crucial in marine and chemical processing applications.

Manufacturing Processes for Inconel 718 Tubes

Seamless Tube Production

The production of seamless Inconel 718 tubes involves a sophisticated process that begins with the creation of a solid billet. This billet is then heated and pierced to form a hollow shell. The shell undergoes a series of hot working operations, including extrusion and pilgering, to achieve the desired diameter and wall thickness. This method results in tubes with uniform properties throughout their cross-section, making them ideal for high-pressure applications where integrity is paramount.

Welded Tube Fabrication

Welded Inconel 718 pipes offer an alternative manufacturing method, particularly suitable for larger diameters or when cost considerations are a factor. In this process, flat Inconel 718 sheets are rolled into a cylindrical shape and welded along the seam. Advanced welding techniques, such as laser or plasma welding, ensure a strong, consistent joint. Post-welding heat treatments are typically applied to optimize the microstructure and properties of the welded area, bringing them in line with the base material.

Heat Treatment and Finishing

Regardless of the initial manufacturing method, all Inconel 718 tubes undergo critical heat treatment processes to enhance their mechanical properties. This typically involves solution annealing followed by a two-step aging process. The heat treatment sequence is carefully controlled to precipitate strengthening phases within the alloy's microstructure, optimizing its strength and corrosion resistance. Final finishing operations may include pickling to remove surface oxides, polishing to achieve specific surface roughness requirements, and non-destructive testing to ensure the integrity of each tube.

Applications of Inconel 718 Tubes across Industries

Aerospace and Aviation

In the aerospace sector, Inconel 718 tubing plays a crucial role in various aircraft components. These high-performance tubes are extensively used in jet engine parts, including exhaust systems, combustion chambers, and turbine blades. Their ability to maintain strength and resist corrosion at elevated temperatures makes them indispensable in these applications. Additionally, Inconel 718 pipes are utilized in rocket propulsion systems and spacecraft structures, where their lightweight yet durable nature contributes to improved fuel efficiency and payload capacity.

Oil and Gas Exploration

The oil and gas industry heavily relies on Inconel 718 tubes for their exceptional corrosion resistance and mechanical properties. These tubes are commonly employed in downhole tools, subsea equipment, and offshore platforms. In deep-sea drilling operations, where extreme pressures and corrosive environments are the norm, Inconel 718 pipes prove invaluable. They are used in production tubing, flow lines, and wellhead components, ensuring the safe and efficient extraction of oil and gas from challenging reservoirs.

Chemical Processing and Power Generation

In chemical processing plants, Inconel 718 tubing finds extensive use in heat exchangers, reaction vessels, and piping systems. The alloy's resistance to a wide range of corrosive chemicals makes it an excellent choice for handling aggressive substances at high temperatures. Similarly, in power generation facilities, Inconel 718 pipes are utilized in steam generators, nuclear reactors, and gas turbines. Their ability to withstand thermal cycling and maintain dimensional stability under fluctuating temperatures contributes to the longevity and reliability of these critical energy infrastructure components.

Conclusion

Inconel 718 tubes represent a pinnacle of metallurgical engineering, offering an unparalleled combination of strength, corrosion resistance, and thermal stability. Their versatility and reliability have made them indispensable across a wide spectrum of industries, from aerospace to energy production. As technological advancements continue to push the boundaries of material performance, Inconel 718 pipes remain at the forefront, enabling innovations in extreme environments and critical applications. The ongoing development and refinement of these remarkable alloy tubes promise to drive further progress in challenging industrial sectors, ensuring their continued relevance in the face of evolving engineering demands.

Contact Us

To learn more about our high-quality Inconel 718 tubes and how they can benefit your specific application, please contact our team of experts at TSM Technology Co., Ltd. We're here to provide you with tailored solutions and comprehensive support. Reach out to us today at info@tsm-technology.com to discuss your requirements and discover the optimal Inconel 718 tubing solutions for your projects.
