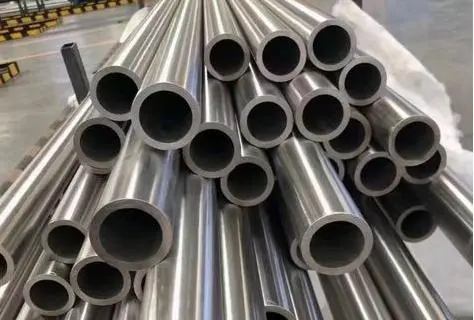

Understanding Monel 400 Tubing in Seawater Environments
Composition and Properties of Monel 400
Monel 400 is a nickel-copper alloy composed of approximately 67% nickel and 23% copper, with small amounts of iron, manganese, and carbon. This unique composition gives Monel 400 its outstanding corrosion resistance, especially in seawater and other chloride-rich environments. The alloy's high nickel content provides excellent resistance to stress corrosion cracking, while the copper contributes to its resistance against pitting and crevice corrosion.
Corrosion Resistance in Seawater
In seawater applications, Monel 400 tubing demonstrates exceptional resistance to uniform corrosion, pitting, and crevice corrosion. Its corrosion rate in flowing seawater is typically less than 0.02 mm per year, significantly lower than many other alloys. This resistance is due to the formation of a thin, protective oxide film on the surface of the alloy when exposed to seawater, which acts as a barrier against further corrosion.
Mechanical Properties in Marine Conditions
Monel 400 maintains its mechanical strength and ductility even after long-term exposure to seawater. It has a tensile strength of approximately 550 MPa and a yield strength of about 240 MPa. These properties, combined with its excellent fatigue resistance, make Monel 400 tubing capable of withstanding the dynamic loads and pressure fluctuations often encountered in seawater heat exchanger systems.
Advantages of Monel 400 Tubing in Seawater Heat Exchangers
Superior Heat Transfer Efficiency
Monel 400 tubing offers excellent thermal conductivity, approximately 21.8 W/(m·K) at 20°C. This property ensures efficient heat transfer in seawater heat exchanger applications. The alloy's ability to maintain a clean, corrosion-free surface over time also contributes to sustained heat transfer efficiency, reducing the need for frequent cleaning or replacement of heat exchanger tubes.
Resistance to Biofouling
One of the significant challenges in seawater heat exchangers is biofouling - the accumulation of microorganisms, plants, algae, or small animals on wetted surfaces. Monel 400 exhibits natural resistance to biofouling, particularly when combined with appropriate surface treatments. The TSM Technology's OceanArmor Series, with its Ra ≤0.8μm surface finish, further enhances this resistance, reducing maintenance requirements and improving overall system performance.
Long-term Cost-effectiveness
While the initial cost of Monel 400 tubing may be higher than some alternative materials, its long-term cost-effectiveness is significant. The extended service life, reduced maintenance needs, and sustained performance of Monel 400 in seawater environments often result in lower total lifecycle costs. This makes it an economically viable choice for seawater heat exchanger applications, especially in critical or hard-to-access installations.
Design Considerations for Monel 400 Tubing in Seawater Heat Exchangers
Optimal Tube Dimensions and Configurations
When designing seawater heat exchangers with Monel 400 tubing, careful consideration of tube dimensions is crucial. TSM Technology offers Monel 400 tubing with outer diameters ranging from 6.0 to 114 mm and wall thicknesses from 0.5 to 15 mm. The specific dimensions should be selected based on the required heat transfer rate, pressure ratings, and flow characteristics of the system. U-tube or straight tube configurations can be employed, with U-tube designs often preferred for their ability to accommodate thermal expansion.
Flow Velocity and Erosion Control
While Monel 400 has excellent erosion resistance, proper flow velocity control is essential to maximize tube life. For seawater applications, flow velocities between 1.5 to 3 m/s are typically recommended. This range ensures adequate heat transfer while minimizing erosion-corrosion risks. In areas of high turbulence, such as inlet zones, additional measures like erosion shields or increased wall thickness may be considered.
Cathodic Protection Considerations
Although Monel 400 has inherent corrosion resistance, cathodic protection may be employed in some seawater heat exchanger designs as an additional safeguard. When implementing cathodic protection, it's important to carefully control the potential to avoid overprotection, which can lead to hydrogen embrittlement in some conditions. Consultation with corrosion specialists is recommended to determine the most appropriate protection strategy for specific applications.
Conclusion
Monel 400 tubing stands out as an excellent choice for seawater heat exchanger applications, offering a unique combination of corrosion resistance, thermal efficiency, and long-term reliability. Its superior performance in aggressive marine environments, coupled with its resistance to biofouling and erosion, makes it an ideal material for demanding seawater heat exchange systems. While the initial investment may be higher, the long-term benefits in terms of reduced maintenance, extended service life, and sustained performance often justify the cost. As industries continue to seek durable and efficient solutions for marine and offshore applications, Monel 400 tubing remains a top contender, providing the reliability and performance needed in critical seawater heat exchanger systems.
FAQs
What is the maximum operating temperature for Monel 400 tubing in seawater applications?
Monel 400 can operate effectively up to 480°C in seawater environments.
How does Monel 400 compare to stainless steel in seawater heat exchangers?
Monel 400 generally offers superior corrosion resistance and longer service life compared to most stainless steels in seawater applications.
Is special maintenance required for Monel 400 tubing in seawater heat exchangers?
While Monel 400 requires less maintenance than many alternatives, regular inspections and cleaning are still recommended to ensure optimal performance.
Why Choose TSM Technology for Your Monel 400 Tubing Needs?
TSM Technology is your trusted partner for high-quality Monel 400 tubing solutions. With our state-of-the-art manufacturing facilities, including 3 factories, 8 production lines, and over 100 machines, we ensure precision and consistency in every product. Our Monel 400 tubing, compliant with ASTM B163, ASME SB163, and EN 10095 standards, undergoes rigorous quality control, including AI-powered defect detection and hydrostatic testing. For your seawater heat exchanger applications, choose TSM Technology for unparalleled expertise and reliability. Contact us at info@tsmnialloy.com for customized solutions and free samples.
