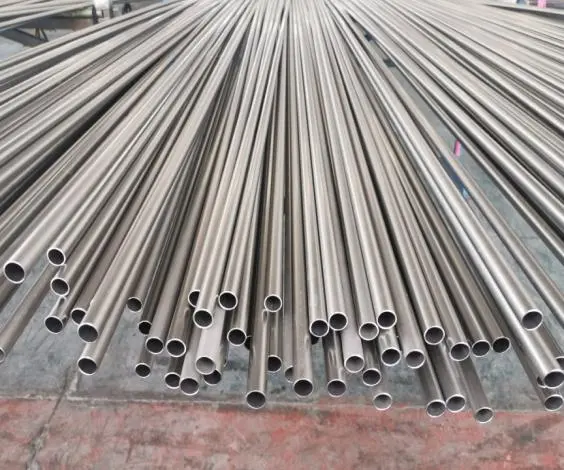

How to Select the Right Alloy 400 Pipe for Chemical Processing Equipment?

Selecting the right Alloy 400 pipe for chemical processing equipment requires careful consideration of several factors. First, assess the specific chemical environment and operating conditions your equipment will face. Consider the corrosion resistance needed, temperature range, and pressure requirements. Next, evaluate the pipe's mechanical properties, such as tensile strength and ductility, to ensure it can withstand the stresses of your application. Then, review industry standards and specifications like ASTM B165 or ASME SB165 to ensure compliance. Finally, consider the manufacturer's reputation, quality control processes, and ability to provide necessary certifications. By thoroughly evaluating these aspects, you can choose an Alloy 400 pipe that offers optimal performance and longevity in your chemical processing equipment.

Understanding Alloy 400 Pipe Properties and Applications

Composition and Key Characteristics

Alloy 400, also known as Monel 400, is a nickel-copper alloy composed of approximately 67% nickel and 23% copper, with small amounts of iron and manganese. This unique composition gives Alloy 400 pipes exceptional corrosion resistance, particularly in marine and chemical processing environments. The material exhibits excellent strength and toughness across a wide temperature range, from cryogenic conditions up to 480°C for long-term use.

Corrosion Resistance in Chemical Environments

One of the standout features of Alloy 400 pipes is their superior resistance to various corrosive media. They perform exceptionally well in seawater, with a corrosion rate of less than 0.025 mm/year. This makes them ideal for marine applications and chemical processing equipment handling saltwater or brine solutions. Additionally, Alloy 400 pipes show remarkable resistance to hydrofluoric acid, sulfuric acid, and other aggressive chemicals commonly found in industrial processes.

Thermal and Mechanical Properties

Alloy 400 pipes maintain their structural integrity across a broad temperature spectrum. They can withstand temperatures as low as -240°C without becoming brittle, making them suitable for cryogenic applications. At the other extreme, they can handle short-term exposure to temperatures up to 800°C. Mechanically, Alloy 400 pipes offer high tensile strength, good ductility, and excellent resistance to thermal cycling, making them a versatile choice for demanding chemical processing environments.

Factors to Consider When Choosing Alloy 400 Pipes

Chemical Compatibility and Corrosion Resistance

When selecting Alloy 400 pipes for chemical processing equipment, the primary consideration should be chemical compatibility. Assess the specific chemicals your pipes will come into contact with and their concentrations. While Alloy 400 excels in many corrosive environments, it's crucial to verify its suitability for your particular application. Consider factors such as pH levels, temperature, and the presence of oxidizing agents that could impact the pipe's performance over time.

Temperature and Pressure Requirements

Evaluate the operating conditions of your chemical processing equipment carefully. Alloy 400 pipes can handle a wide range of temperatures, but it's essential to consider both the continuous operating temperature and any potential temperature spikes. Similarly, assess the pressure requirements of your system. While Alloy 400 pipes offer good strength, ensure that the selected pipe dimensions can withstand the maximum pressure your equipment may experience, including safety margins for unexpected surges.

Dimensional Specifications and Tolerances

The dimensions of your Alloy 400 pipes play a crucial role in their performance and compatibility with your existing equipment. Consider the required outer diameter (OD), wall thickness (WT), and length needed for your application. At TSM Technology, we offer Alloy 400 pipes with OD ranging from 6.0 to 324 mm, WT from 0.5 to 30 mm, and lengths up to 12,000 mm. Ensure that the chosen dimensions meet your system's requirements and any relevant industry standards.

Ensuring Quality and Compliance in Alloy 400 Pipe Selection

Industry Standards and Certifications

Adherence to industry standards is crucial when selecting Alloy 400 pipes for chemical processing equipment. Look for pipes that comply with recognized standards such as ASTM B165, ASME SB165, or EN 10095. These standards ensure that the pipes meet specific requirements for chemical composition, mechanical properties, and manufacturing processes. Additionally, consider any industry-specific certifications that may be relevant to your application, such as those for pressure vessels or offshore equipment.

Quality Control and Testing Procedures

The reliability of your chemical processing equipment depends on the quality of its components. When selecting Alloy 400 pipes, inquire about the manufacturer's quality control processes. Look for suppliers who conduct rigorous testing, including non-destructive tests like ultrasonic, radiographic, and eddy current inspections. At TSM Technology, we employ a three-stage inspection process and validate corrosion resistance according to ASTM G28. These measures ensure that every pipe meets the highest standards of quality and performance.

Material Traceability and Documentation

In chemical processing applications, material traceability is often critical for regulatory compliance and quality assurance. Choose a supplier that provides comprehensive documentation, including Material Test Certificates (MTCs) and inspection reports. These documents should detail the chemical composition, mechanical properties, and test results for each batch of Alloy 400 pipes. At TSM Technology, we offer blockchain-enabled Material Test Reports (MTRs) for full traceability, giving you confidence in the authenticity and quality of your Alloy 400 pipes.

Conclusion

Selecting the right Alloy 400 pipe for chemical processing equipment is a critical decision that impacts the safety, efficiency, and longevity of your operations. By carefully considering factors such as chemical compatibility, operating conditions, dimensional requirements, and quality standards, you can make an informed choice that ensures optimal performance. Remember to partner with a reputable supplier who can provide not only high-quality Alloy 400 pipes but also the necessary documentation and support. With the right selection, your chemical processing equipment can benefit from the exceptional corrosion resistance, strength, and versatility that Alloy 400 pipes offer.

FAQs

What makes Alloy 400 pipes suitable for chemical processing equipment?

Alloy 400 pipes offer excellent corrosion resistance, particularly in marine and chemical environments, along with high strength and toughness across a wide temperature range.

What are the key standards for Alloy 400 pipes?

Important standards include ASTM B165, ASME SB165, and EN 10095, which ensure specific requirements for composition and properties are met.

Can Alloy 400 pipes handle extreme temperatures?

Yes, Alloy 400 pipes can operate from cryogenic temperatures (-240°C) up to 480°C for long-term use, with short-term exposure possible up to 800°C.

Choose TSM TECHNOLOGY for Premium Alloy 400 Pipes

At TSM TECHNOLOGY, we're your trusted partner for high-quality Alloy 400 pipes. With our state-of-the-art manufacturing facilities, rigorous quality control, and global supply chain capabilities, we deliver precision-engineered pipes that meet the most demanding chemical processing requirements. Our expertise in Monel 400 (UNS N04400) ensures you receive pipes that comply with ASTM B165, ASME SB165, and EN 10095 standards. Experience our commitment to excellence - contact us at info@tsmnialloy.com for tailored solutions and unmatched support.
